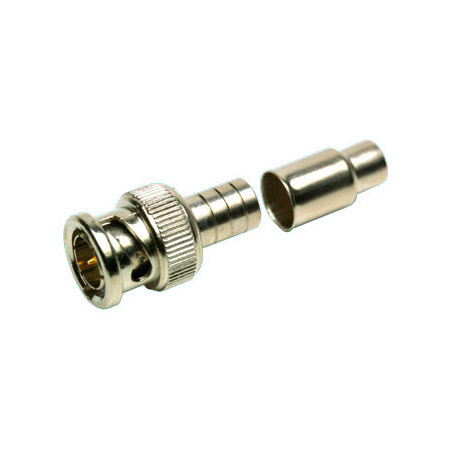

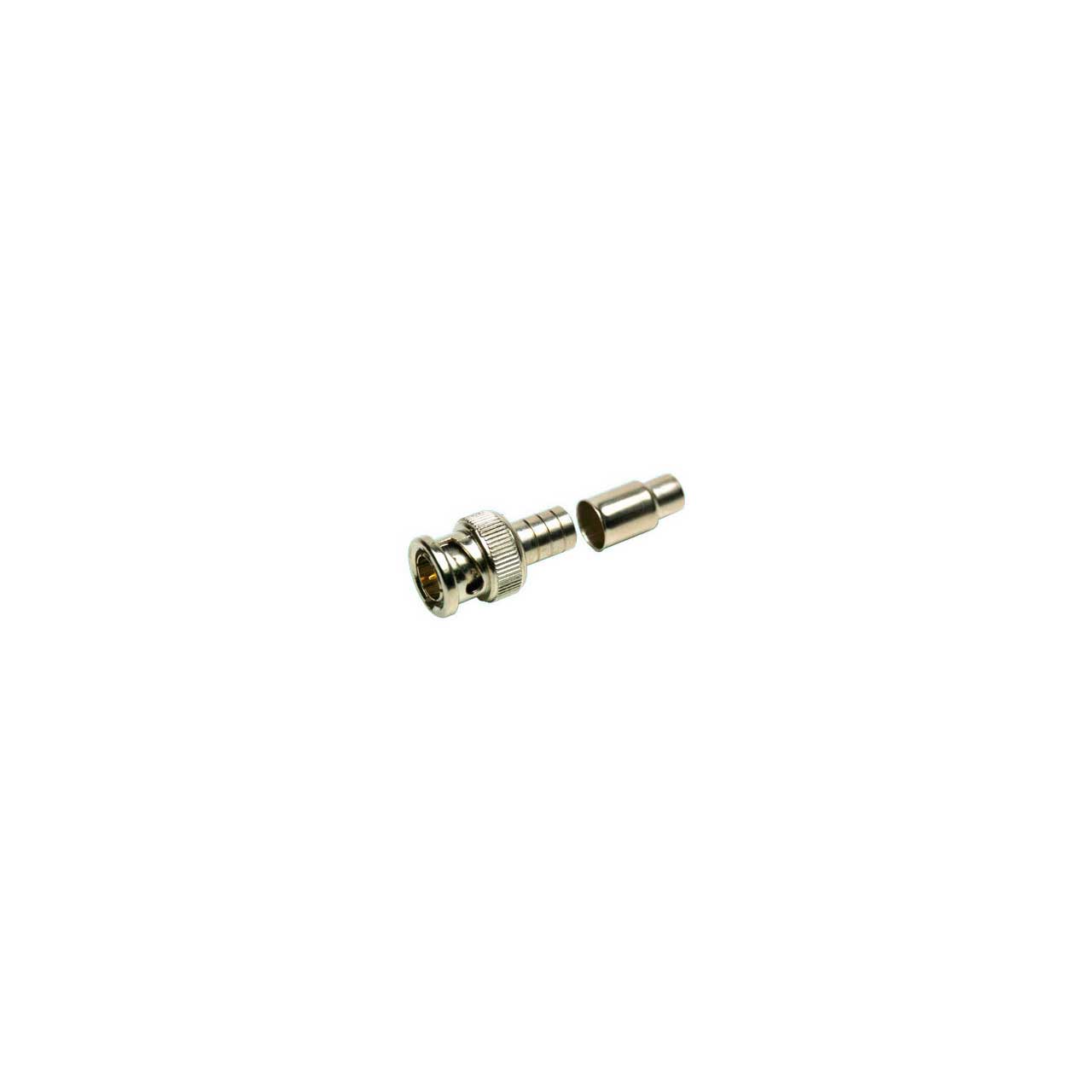

Amphenol Connex 112116 50 Ohm BNC Straight Crimp Plug for RG-58 Coax - LMR-195

9101 - Overview

• Features:

  • Military Spec Design MIL-C 39012
  • Nickel Over Brass Construction for Longevity & Reliability
  • Gold Plated Center Pin Offers Corrosion Resistance
  • Crimps Tight Every Time For Superior Cable Pull Strength
  • Crimp Center Pin and Crimp Collar


• Specifications:

  • Brand: Amphenol Connex
  • Gender: Plug
  • Orientation: Straight
  • Termination Style: Cable - Crimp
  • Impedance (Ohms): 50
  • Body Finish: Nickel
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Brass
  • Contact Termination Style: Crimp
  • Insulator Material: Delrin
  • Cable Group: C
  • Fits Cable Type: Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303, RG-58, RG-58A, RG-58B, RG-58C
  • Coupling Mechanism: Bayonet
  • Max Frequency (GHz): 4
  • Polarity: Standard
  • Min. Temp. (Celsius) : -40
  • Max. Temp. (Celsius): 85
  • Mating Cycles: 500
  • Weight (Grams): 9.9
