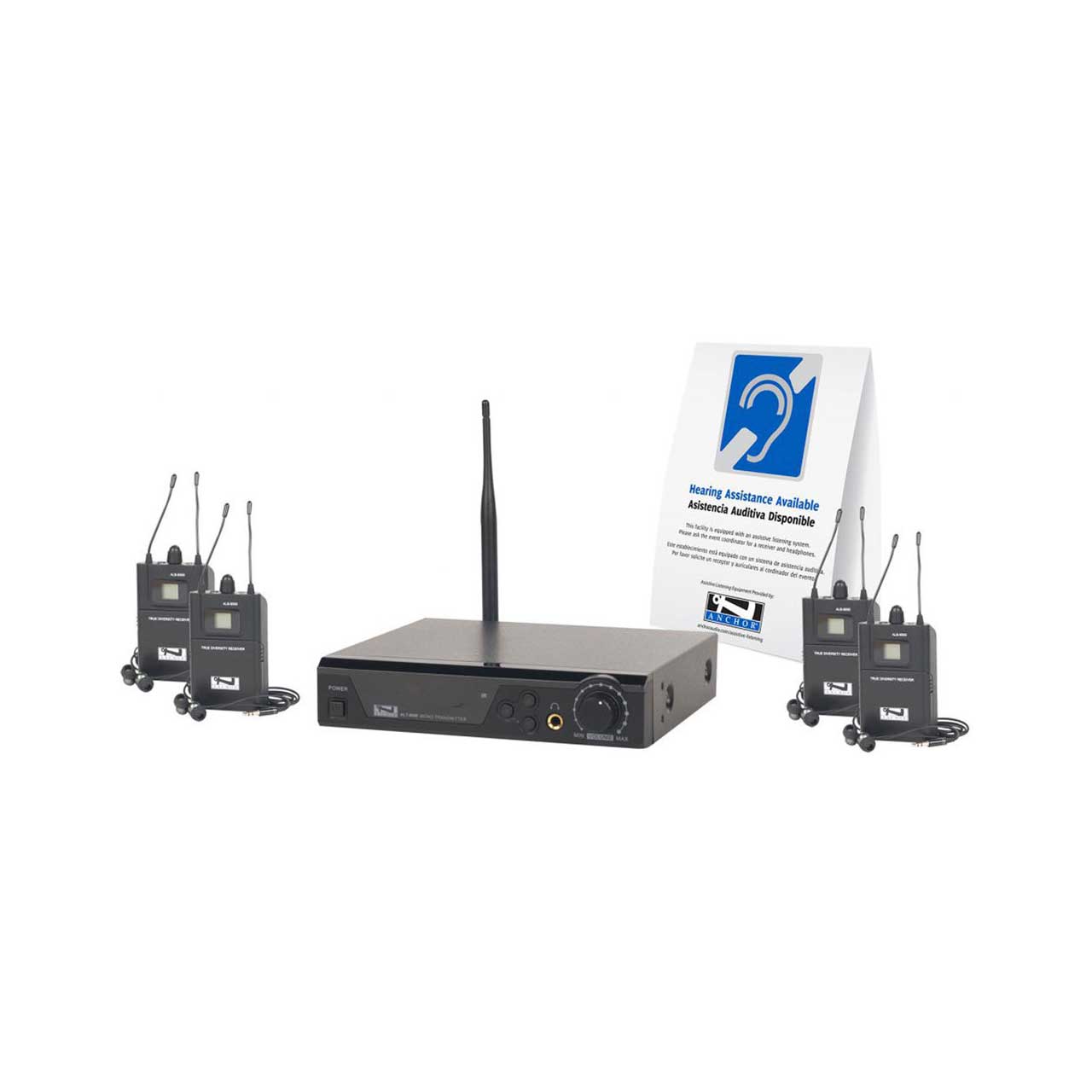

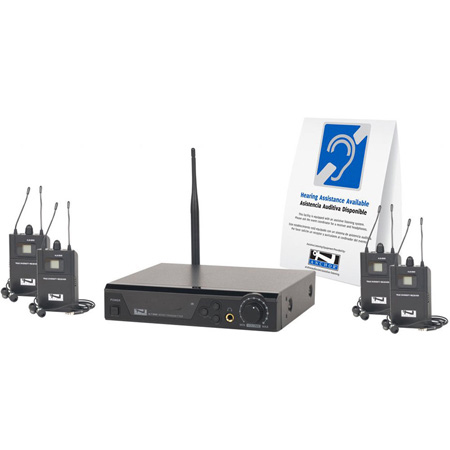

Anchor AL-9000 Assistive Listening System

AL-9000 - Overview

• Features:

  • 100 channel UHF diversity
  • Expandable for an unlimited number of users
  • ADA compliant
  • Range up to 500’ line of sight
  • One-way communication
  • Easy to set-up and operate
  • Lightweight in-ear headphones


• Specifications:

  • ALB-9000 - Beltpack Receiver
  • System Range: Up to 500’ line of sight
  • Frequency Range: UHF 902 - 928 MHz
  • Oscillator: PLL synthesized
  • T.H.D.: < 0.5% @ 1KHz
  • Power Supply: DC 3V (2 x 1.5V AA batteries)
  • Audio Output Headphone Output: 3.5mm / 16 ohms 105mW
  • Dimensions (HWD): 4” x 2.5” x 1”
  • Weight: 0.5 lb

    ALT-9000 - Base Station Transmitter
  • System Range: Up to 500’ line of sight
  • Frequency Range: UHF 902 - 928 MHz
  • RF Power Output: 100mW max
  • T.H.D.: < 0.5% @ 1KHz
  • Power Supply: DC 12 ~ 18V / 500mA
  • Inputs: 2 x 1/4” XLR combo line in
  • Dimensions (HWD): 2” x 8.5” x 8”
  • Weight: 2 lbs


• Item Includes:

  • Four beltpack receivers (ALB-9000)
  • Four lightweight in-ear headphones
  • Wireless transmitter base station - 902-928 MHz (ALT-9000)
  • Sturdy cardboard carrying case


• GTIN:

  0819941015154
