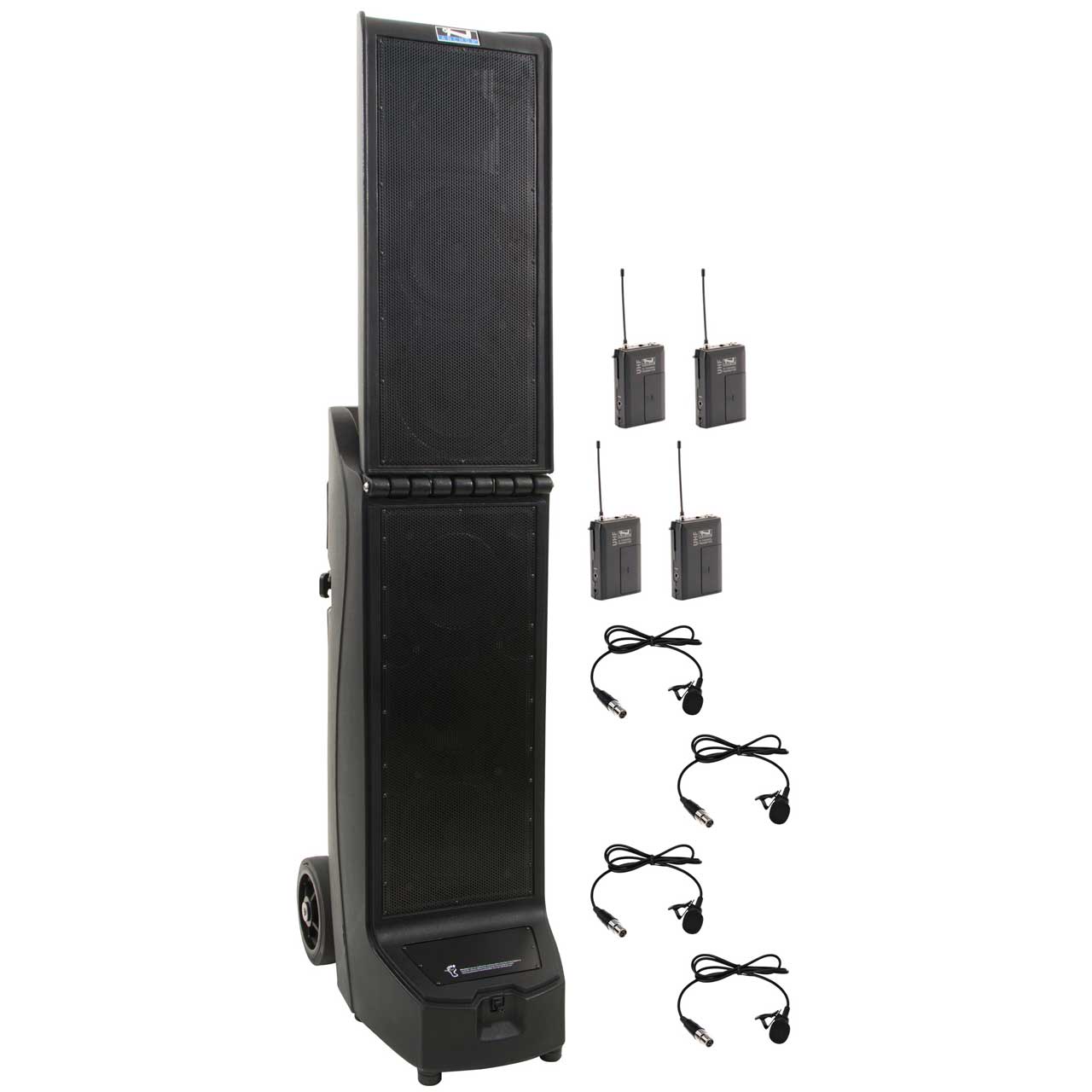

Anchor BIG-QUAD Bigfoot Quad Package with Bluetooth & (4) Wireless Receivers & (4) Lapel Mics

ITEM #: AN-BIG-QUAD-LM MFG #: BIG-QUAD-LM

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$7,399.00

Our Price:

$6,299.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


BIG-QUAD-LM - Overview

The Bigfoot Line Array is the newest, loudest, and most powerful portable sound system on the market. Designed to cover a football field, this thunderous battery powered system is up to any challenge. With a line array consisting of five 8" neodymium speakers and one high efficiency neodymium compression driver, the Bigfoot is ideal for large events and easily sets up in seconds.

The Bigfoot is the first Anchor Audio portable sound system that offers up to four built-in wireless receivers - allowing everyone to be involved! It also boasts standard built-in Bluetooth and an optional built-in CD/MP3 combo player to easily connect to anything you'll need for an all-inclusive sound coverage. Use the Bigfoot outdoors at sporting events, military ceremonies, large auditoriums, camps, graduations, and more!

The WB-8000 Beltpack is a wireless beltpack transmitter with a TA4F connector plug. With a 150' wireless range, it operates on the 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WB-8000 is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the Anchor Audio 8000 and F1+ series.

The LM-60 is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a TA4F connector plug.

  • Features:

    • Reaches crowds of 5,000+
    • 130 dB of clear sound
    • 400 Watts AC/DC
    • Four built-in wireless receivers
    • Standard built-in Bluetooth
    • Built-in CD/MP3 combo player
    • Two universal microphone input jacks
    • 3.5 mm AUX line input
    • Onboard mic storage bag
    • Durable enclosure with heavy duty wheels
    • Built-in rechargeable batteries operate 6 - 8 hours on a single charge
    • Five 8" neodymium woofers
    • One neodymium compression driver
    • Designed to cover a football field or large auditorium
    • Made in the USA
    • Six Year Warranty
    • Product HWD: 42.5" (68.5") x 23" x 14"
    • Product Weight: 78 lbs.

  • Specifications:

    • Rated Power Output: 400W AC/DC
    • Max SPL @ Rated Power: 130dB @ 1 meter
    • Battery: Three 12V sealed lead acid rechargeable, 9.0 AH; Full recharge: Approx 8 hrs
    • Frequency Response: 100 Hz - 15 Hz
    • Wireless Range: 150' line of sight
    • Line Output (post fader): Isolated, 600 Ohm, 1/4" phone
    • AC Power Reqs.: 100 - 240 VAC, 50/60 Hz, 300W max
    • USB: 5V 500mA
    • Dimensions Closed (HWD): 42.5" x 15.3" x 24"
    • Dimensions Opened (HWD): 68.5" x 15.3" x 24"
    • Base Model Weight: 73.5 lbs
    • Mic Inputs: Lo-Z (1kw), balanced, XLR; 12 VDC condenser mic (phantom) power; Hi-Z (10kw), unbalanced, 1/4" phone balanced
    • Line In: Balanced, 1/4" & 3.5mm stereo

  • Item Includes:

    • BIG-8000CU4 with built-in Bluetooth, CD/MP3 combo player, and four wireless receivers
    • (4) WB-8000 Beltpacks
    • (4) Lapel Mics (LM-60)
    • Includes 3.5 mm AUX cable

  • Warranty:

    • 6 Years

  • GTIN:

    0819941015390
