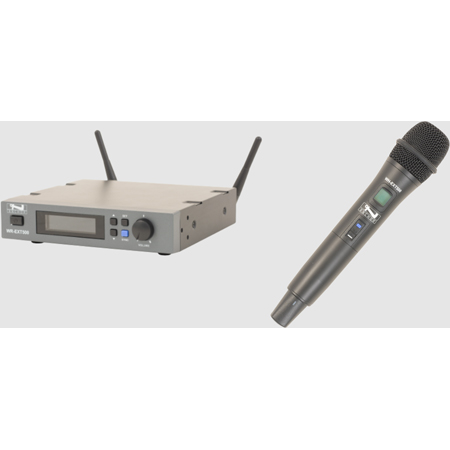

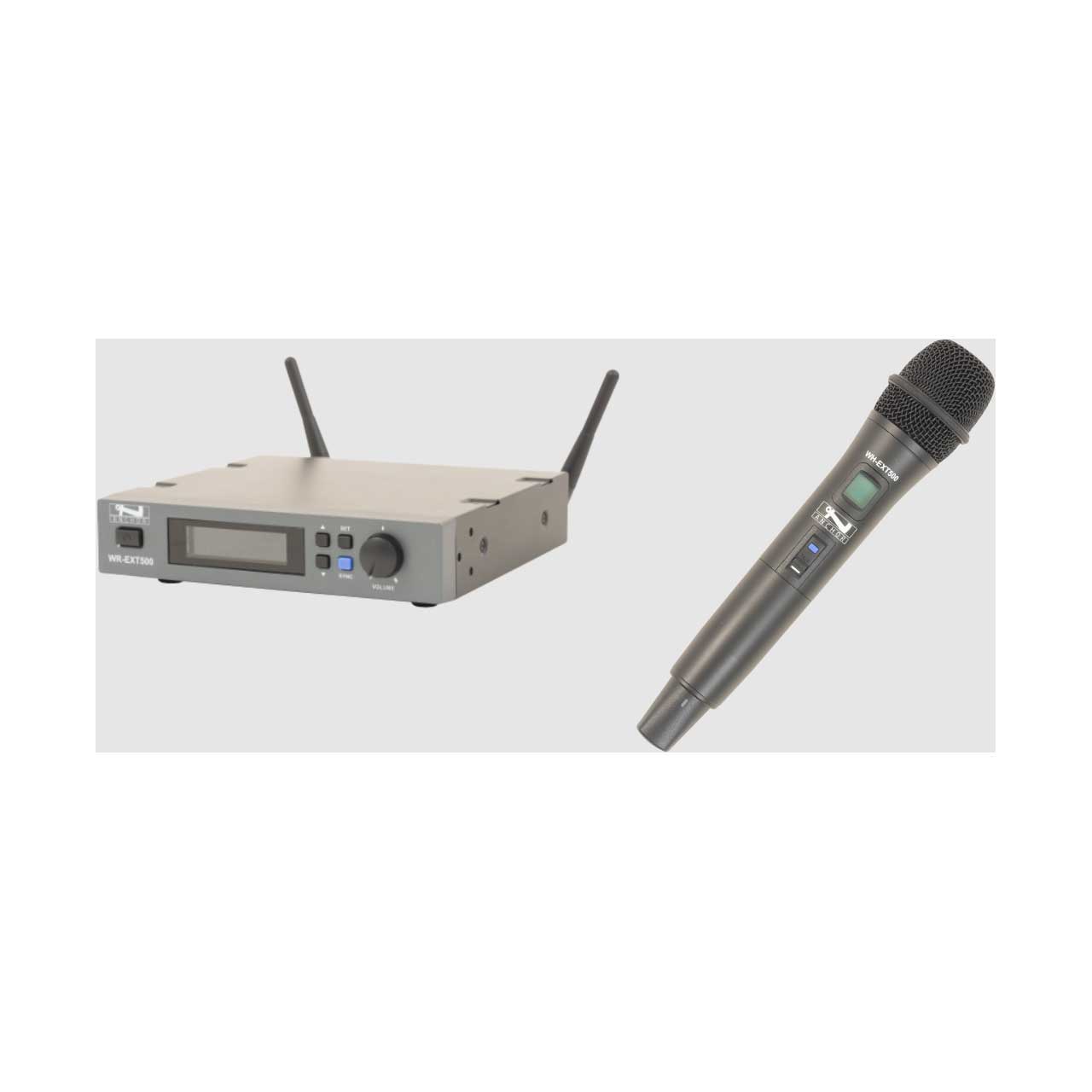

Anchor UHF-EXT500-H Wireless Handheld Mic Package with WR-EXT500 Receiver w/ Power Supply & WH-EXT500 Handheld Tx

UHF-EXT500-H - Overview

• Features:

  • 700 Selectable Channels
  • Set Interference-free Channels by using Automatic Frequency Setting
  • PLL Synthesized
  • 540 ~ 570 MHz
  • Built-in Talk/Mute Button on Handheld Mic


• Specifications:

  • Receiver
  • Frequency Range: UHF 540 ~ 570 MHz (Regionally Selected)
  • Case: Half 19" EIA Rack Metal Case
  • Oscillator: PLL Synthesized
  • Modulation: FM
  • S/N Radio: > 100 dB, at 200 KHz deviation and 60 dBµV antenna input
  • Image & Spurious Rejection: 70 dB minimum
  • Receiving Sensitivity: At 2µV over 52 dB S/N ratio
  • AF Response: 80 Hz to 18 KHz
  • T.H.D.: <1% (at 1 KHz)
  • IF Frequency 1st: 243.95 MHz 2nd: 10.7 MHz
  • Dynamic Range: >100 dB
  • Tone Signal: 32.768K Hz

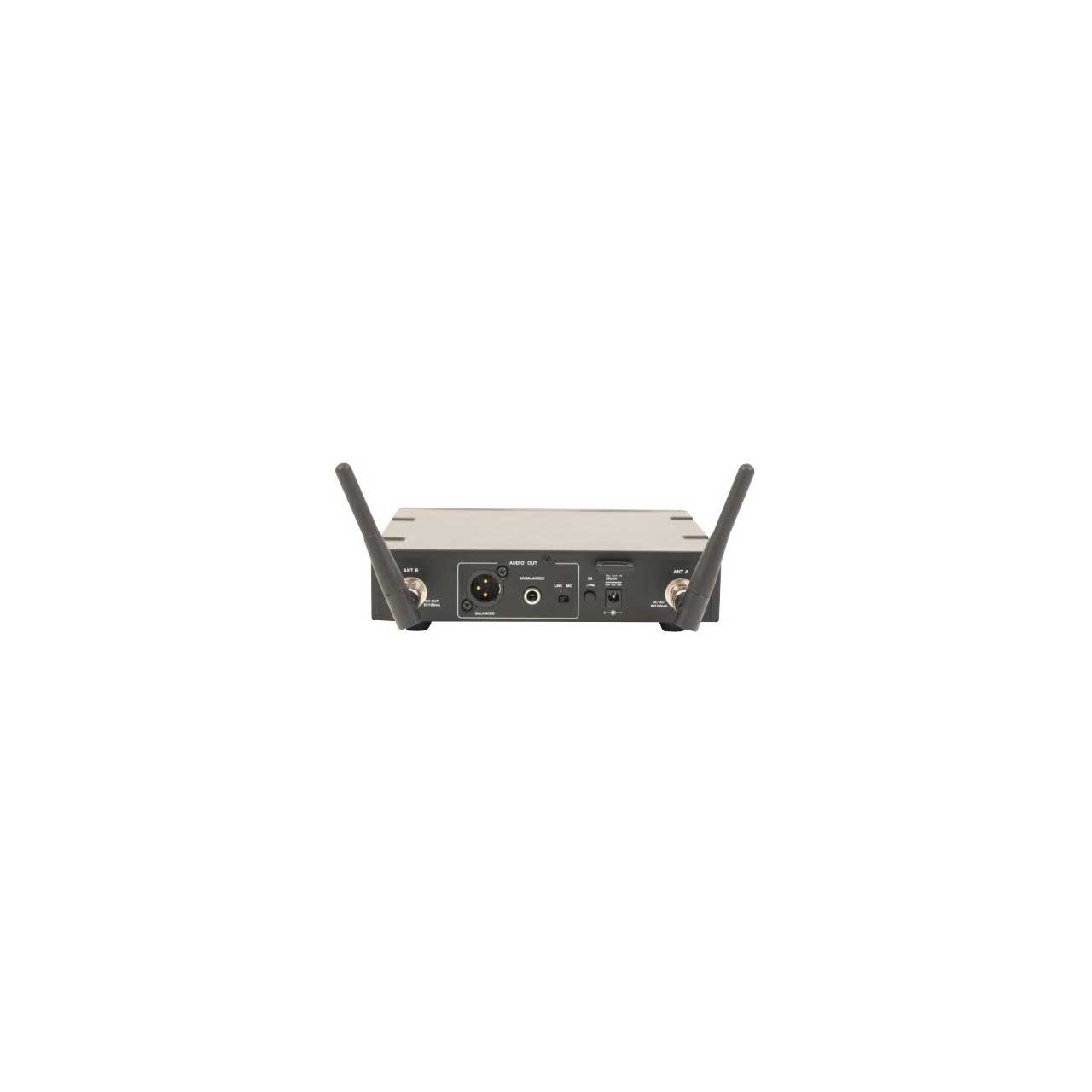

  • Audio Output: Balanced & Unbalanced
  • Power Supply: DC 12V
  • Current Consumption: 260 ± 10 mA

    Dimensions and Weight
  • Total (HWD): 1.65" x 7.9" x 7.2" (4.2 x 20 x 18.3 cm)
  • Weight: 2.05 lbs / 0.93 Kg

    Transmitter
  • Frequency Range: UHF 540 ~ 570 MHz (Regionally Selected)
  • Channel Select: SYNC with Receiver
  • Display: LCD displays status, channel, or battery
  • RF Power Output: 10mW (max.)
  • Frequency Stability: ± 0.005%
  • Spurious Emission: >60 dB below carrier frequency
  • Handheld Mic: Uni-Direction dynamic capsule
  • Battery:
    - 1. DC2.4V (1.2V x 2 AA size rechargeable batteries)
    - 2. DC3V (1.5V x 2 AA size batteries)
  • Current Consumption: 120 ± 10 mA

    Dimensions and Weight
  • Total (HW) Handheld: 10.2" x 2.1" (26 x 5.4 cm)
  • Weight Handheld: 0.52 lbs / 0.234 Kg


• Item Includes:

  • 1x WR-EXT500: External Wireless Receiver
  • 1x WH-EXT500: Wireless Handheld Mic Transmitter
  • 1x 12V DC Power Supply
