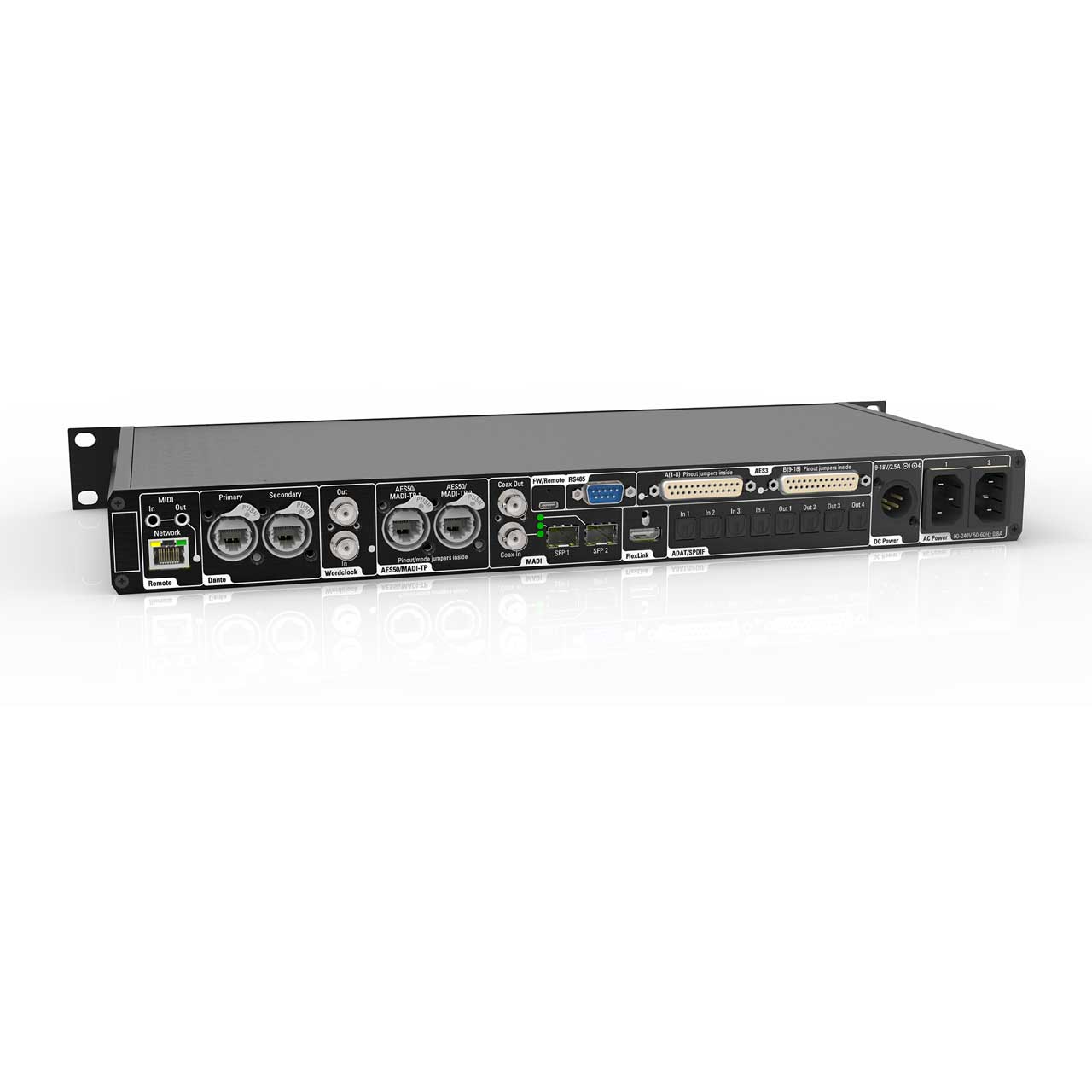

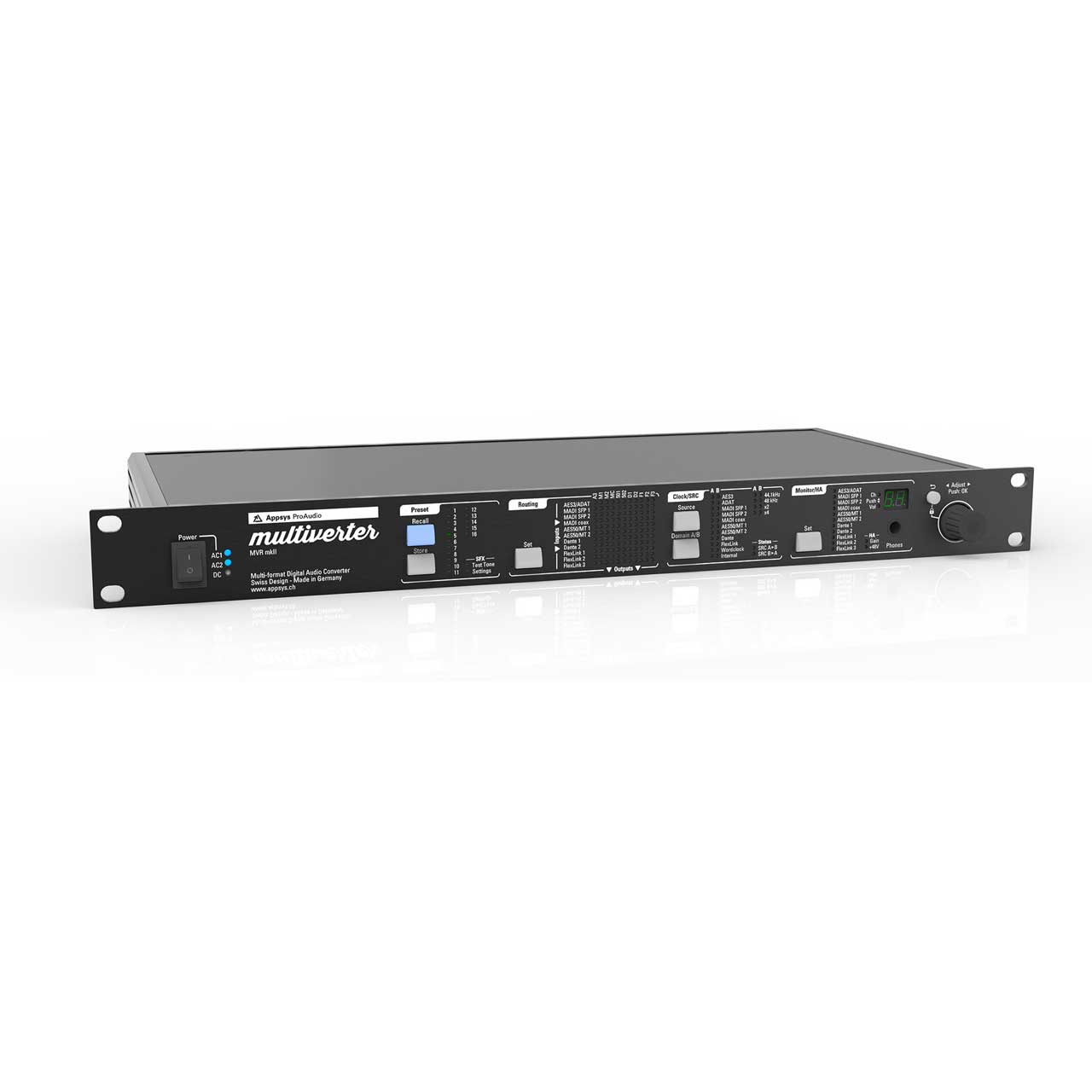

Appsys Pro Audio MVR-MKII 24-Bit/192 kHz -188-channel Hi-Performance USB 3.0 Audio Interface- 1RU

MVR-MKII - Overview

• Features:

  • Supports 32-192 kHz operation
  • Wordclock input and output (BNC)
  • Clock master can be any incoming audio signal, or BNC, or an high-quality internal clock
  • MADI and ADAT 96k frame and S/MUX operation supported
  • Asynchronous Sample Rate Conversion (64x64 channels) supported using the SRC-64 plugin module


• Specifications:

  • Dimensions(BxHxD): 18.89 x 1.77 x 9.05" (482 x 45 x 230mm)
  • Weight: 79.36 lbs (2.25 kg)

    Power consumption
  • 8W typ., 30W max.
  • Each AC input: 85..264VAC, 50-60Hz, 0.75A@115VAC / 0.5A@230VAC
  • DC input: 9-18VDC (up to 30V tolerant), 2.5A peak

    Channel Count
  • Up to 64 per interface in x1 modes
  • Up to 32 per interface in x2 modes
  • Up to 16 per interface in x4 modes
  • Multiple conversions (i.e. Dante <> MADI and ADAT <> AES50) with each using the full channel count can run simultaneously.

    Sample Rates: 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz +/-100ppm, Varispeed operation is not supported
  • Adat Ports: 8 input + 8 output ports 64ch @ 44.1/ 48kHz, 32ch @ 88.2 / 96kHz. Each port may be alternatively used as SPDIF or AES3 optical port with 2 channels @44.1/48kHz
  • RS485 Port: Male D-Sub 9pin, Yamaha AD8HR compatible; Pinout: 2=RX-, 3=TX-, 4=TX+, 5=GND, 6=RX+
  • Extension Port: HDMI connector type. 64 ch @ 32 / 44.1 / 48 kHz, 32ch @ 64 / 88.2 / 96 kHz, 16ch @ 128 / 176.4 / 192kHz
  • MADI Optical Port: SC connector, 50 / 125 μm or 62.5 / 125 μm multi-mode fibre (MM fibre), 1300nm, up to 2 km total length. Transceiver can be changed to Single mode (9/125æm) at the factory on request. 64ch @ 32 / 44.1 / 48kHz, 32ch @ 64 / 88.2 / 96kHz, 16ch @ 128 / 176.4 / 192kHz, MIDI-over-MADI; Transparent user bit forwarding
  • MADI BNC Port: Standard AES10 coaxial port. Use with up to 100meters of 75 ohm coaxial cable 64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz
  • MADI TP Port: AES-X 213 (upcoming MADI specification) compatible. 64ch@32/44.1kHz, 56ch@48kHz, 32ch@64/88.2, 28ch@96kHz, 16ch@128/176.4kHz, 14ch@192kHz, Pinout: MADI-TP on 4/5, 7/8 MIDI-over-MADI, Transparent user bit forwarding
  • AES50 Port: AES50 3.1 compatible, 48ch @ 44.1 / 48 kHz, 24ch @ 88.2 / 96 kHz Pinout: Data on 1/2, 3/6; Sync on 4/5, 7/8, Alternative use: Second MADI-TP with Pinout: 1/2, 3/6 (adapter cable required)
  • Wordclock Port: Output: 5.0Vpp nominal, able to drive two parallel 75 Ohm terminations; Input: 2.0Vpp.5.0Vpp
  • Dante/AES67 Port: 2x Gigabit Ethernet, configurable either as Switch or as Redundant connection in the Dante controller. Device prefix: MVR64, 64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz
  • MIDI Port: Standard isolated input, standard MIDI output
  • Headphones: 2x125mW into 32Ohm (@0.01% THD+N); Bandwidth: 22Hz to 22kHz
