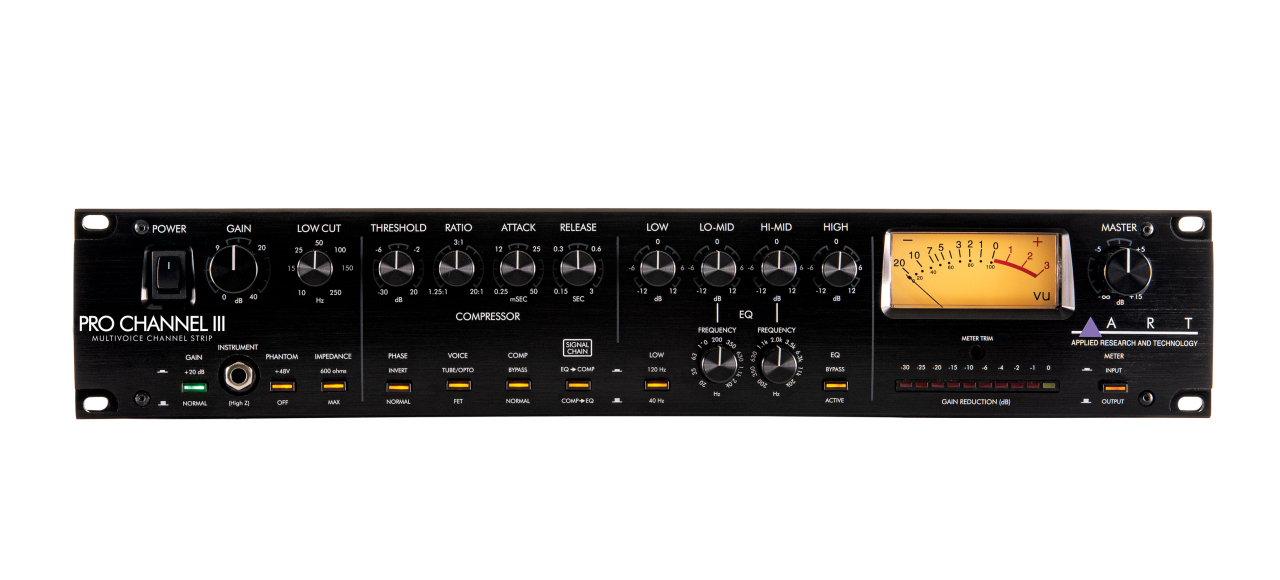

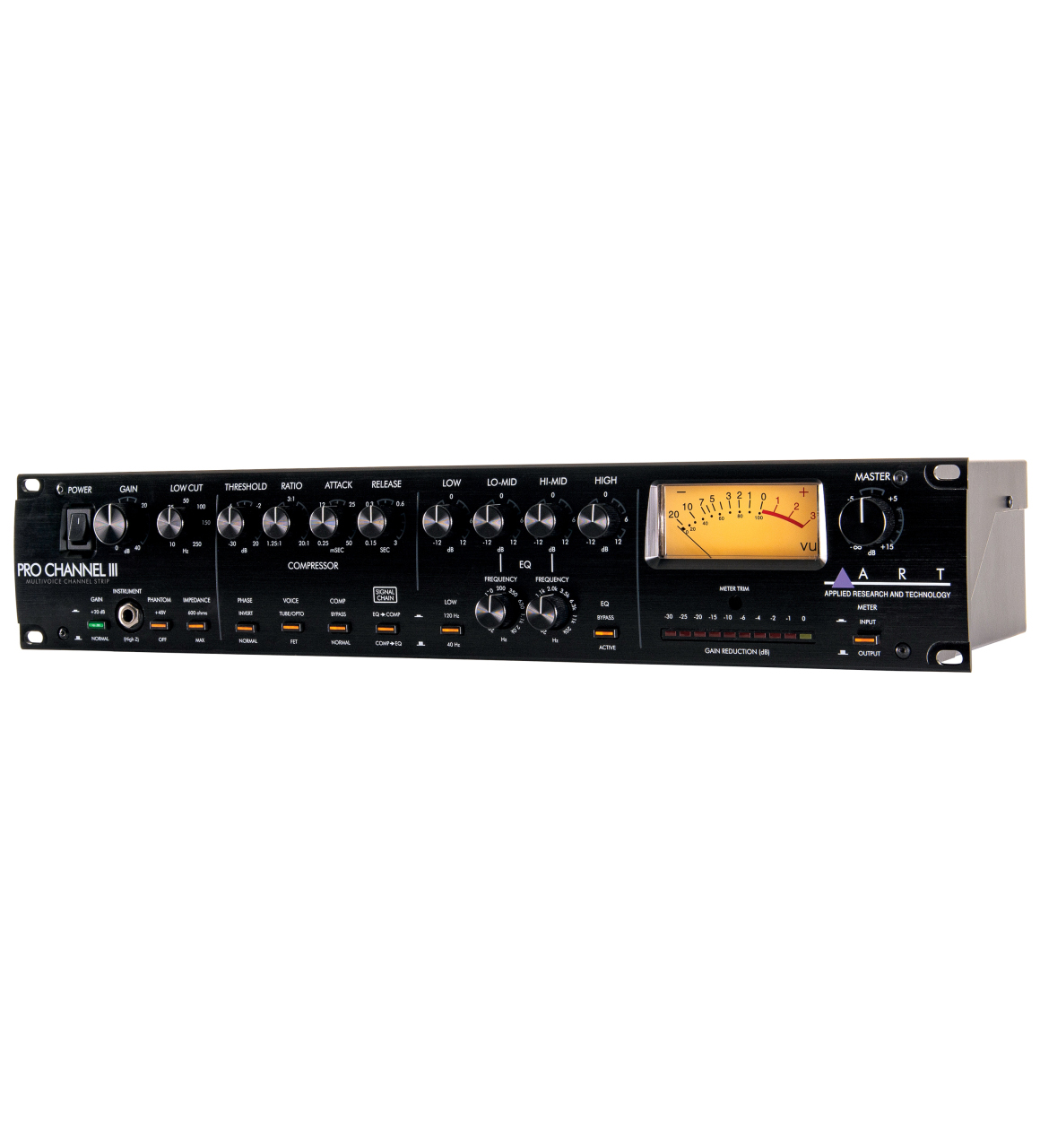

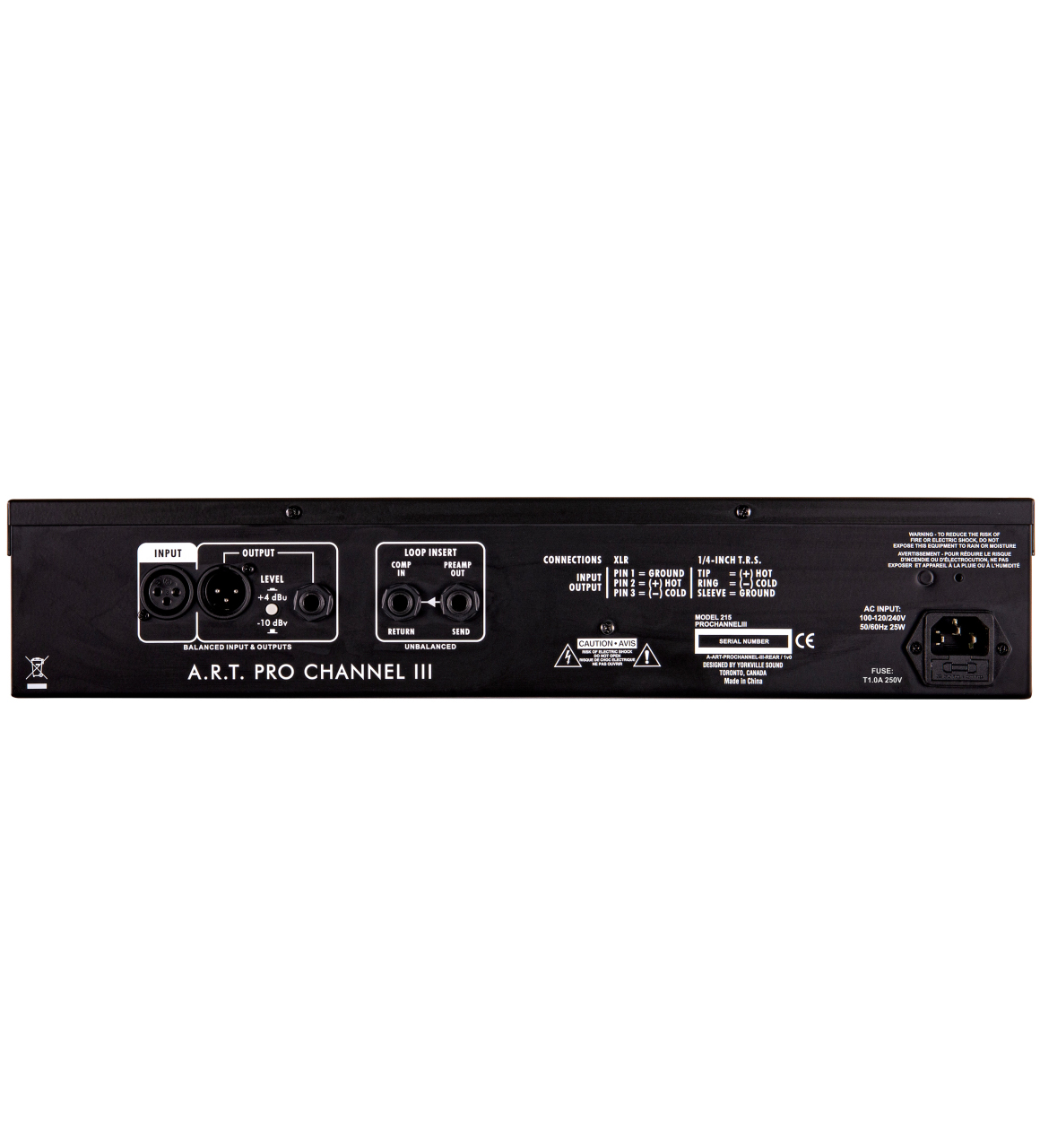

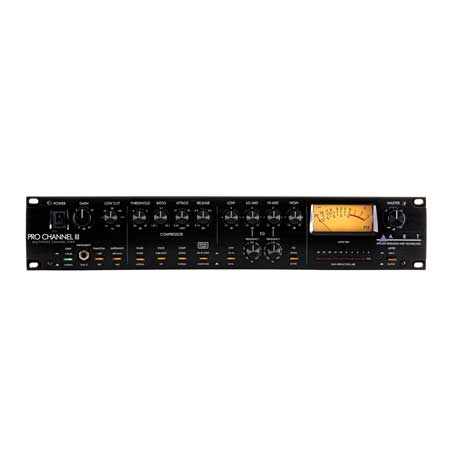

ART PROCHANNELIII Multivoice Channel Strip with Selectable Mic Impedance/2x Compression Voicings and Semi-Parametric EQ

ITEM #: ART-PROCHANNLIII MFG #: PROCHANNELIII

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PROCHANNELIII - Overview

Multivoice Channel Strip

The ART Pro Channel III is a fully-featured channel strip with selectable mic impedance, two compression voicings, and semi-parametric EQ.

New to this version, the compressor has both Tube/Opto and FET modes for smooth or punchy dynamic control. The compressor and EQ sections can now be reordered at the touch of a button, and the front panel has been streamlined for a faster, simpler workflow.

The mic preamp features a discrete FET input stage and up to 60 dB of preamp gain, with a variable low cut filter to eliminate rumble and tighten bass.

The EQ section offers a switchable low shelf frequency, variable low-mid and high-mid frequencies with over 4 octaves of range per band, and a 12 kHz high shelf.

The Pro Channel III is also a versatile instrument DI. Connecting to the front 1/4 input will override the rear XLR input so you can record direct tracks without disconnecting your mic or line signal.

Designed for recording musicians seeking a versatile character preamp with real tube warmth, the Pro Channel III offers the flexibility and fidelity to sculpt and enhance any source.

  • Features:

    • Class A FET Microphone Preamp
    • Selectable Microphone Impedance
    • 1/4" High Z Input on Front Panel
    • Compressor and EQ Sections with Switchable Order and Independent Bypass
    • Tube/Opto and FET Compressor Voicings
    • 4-Band Semi-Parametric EQ and Variable Low Cut Filter
    • Insert Point after Preamp Stage
    • +4 dBu or -10 dBv Operation
    • Universal Internal Power Supply

  • Specifications:

    • Input Impedance: 600Ω/47 kΩ (XLR) >800 kΩ (Instrument) 7.5kΩ (Insert)
    • Output Impedance: < 47Ω (XLR)
    • Maximum Input Level: +22dBu (+4dBu Mode) +13dBu (-10dBV Mode) Balanced
    • Maximum Output Level: +26dBu (Balanced), +20dBu (Unbalanced)
    • Maximum Gain: 40dB Variable Input Gain 20dB Switchable Boost, 15dB Variable Output Gain
    • Frequency Response: 12Hz - 100kHz (+0, -1dB)
    • Total Harmonic Distortion: >90dB
    • Equivalent Input Noise: -128dBu (Mic/Line) -109dBu (Instrument)
    • CMRR: >90dB
    • Power Requirements: 100V - 240V 50Hz/60Hz 25W
    • Dimensions (HxWxD): 3.5" x 19" x 9.2" (8.9cm x 48.3cm x 23.3cm)
    • Weight: 10.5lbs (4.76kg)

  • Item Includes:

    • 1x ART PROCHANNELIII Multivoice Channel Strip with Selectable Mic Impedance/2x Compression Voicings and Semi-Parametric EQ
