The Riedel Artist-1024 is the next evolutionary step in the continuous development of the Artist intercom ecosystem. This new node complements the Artist family, expanding its capabilities with a focus on IP-based installations and higher port densities. With Artist-1024, full compatibility is guaranteed. The node can be effortlessly added into any Artist fiber ring and, just like its siblings Artist-32, Artist-64, and Artist-128, is easily and intuitively configured within the Director software environment.
The Riedel Artist is a decentralized, scalable digital intercom network that provides reliable communications and audio signal distribution for any audio or intercom application.
An Artist system can be anything from a single Artist frame to a vast, fiber-based and remotely connected network of nodes. Each modular node contains client cards that accept and distribute different types of signals including SMPTE 2110-30/31 (AES67), VoIP, Dante, AVB, MADI, AES3 and analogue audio. At the present time, Artist is the only intercom platform that talks all audio standards - and its modular architecture allows for the easy accommodation of future standards.
The Riedel Artist-1024 has been architected with redundancy at its core, providing an unprecedented degree of robustness and reliability. In addition to control data and SMPTE 2022-7-compliant audio stream redundancy, there are countless redundancy mechanisms in place to avoid single points of failure: The N+1 subscriber redundancy scheme includes hot spare cards that can take over the configuration of other subscriber cards, while the NIC scenario allows a seamless handover between the primary and secondary NIC cards. And it doesn't stop there: the node itself boasts redundant control logic, backplane and data links, two load-sharing PSUs and a fan module with redundant fans. The sum of these measures equals the most comprehensive comms safety
net available on the market.

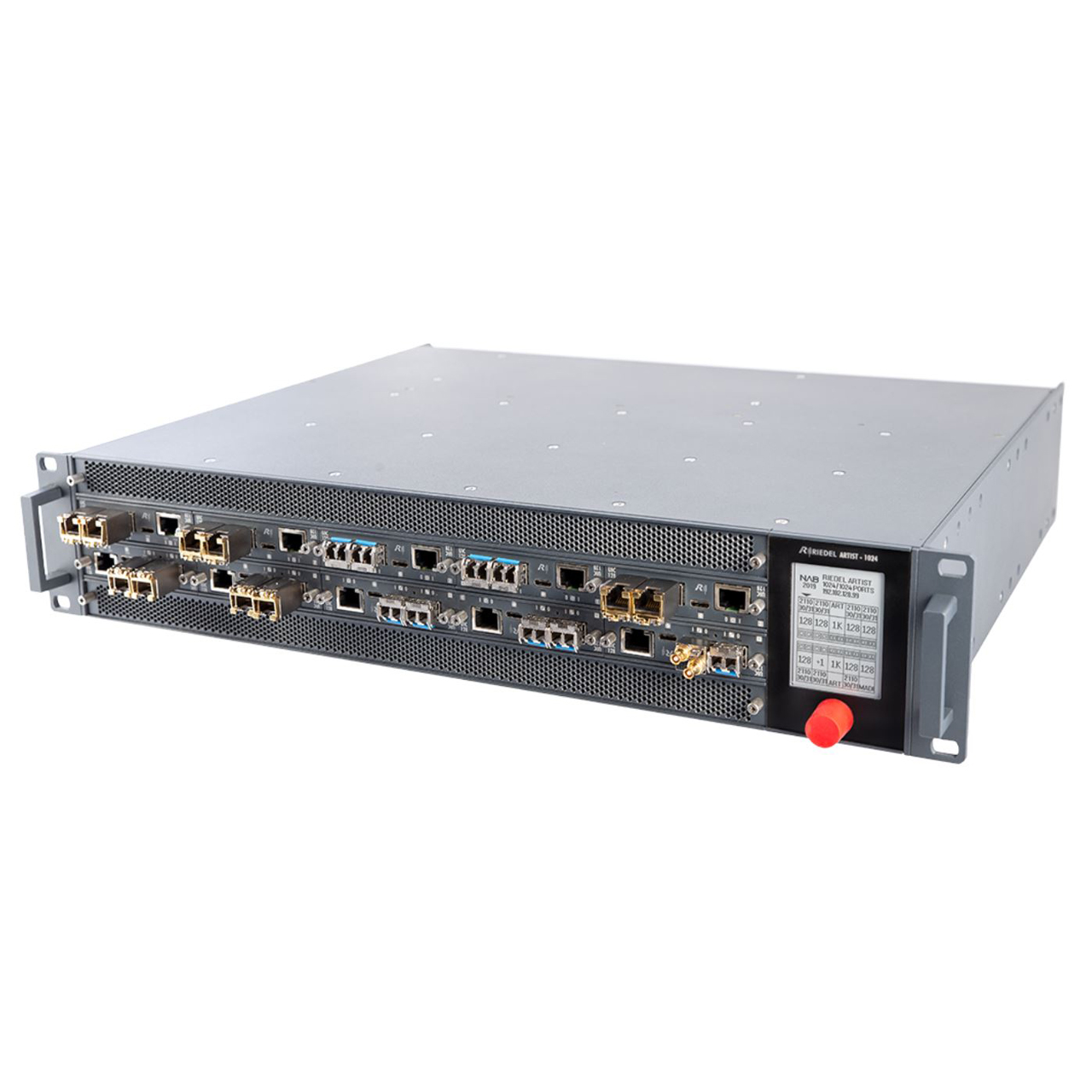

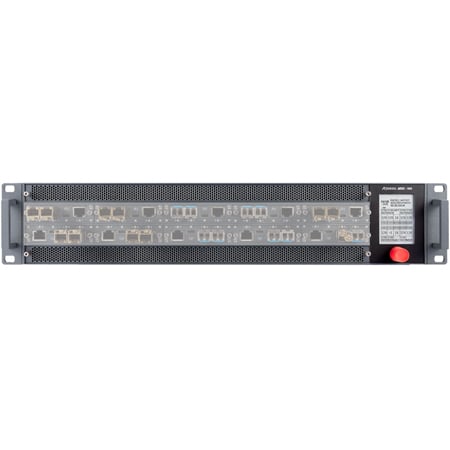

19"/2RU Artist intercom frame; holds up to: 10x Universal Interface cards (UIC-128-II) for up to 1024 audio ports; includes: 1x 16 ports license (node locked), 2x redundant load-sharing power supplies (PSU-1024), 1x Fan Module (FAN-1024) and 2x Power Cords
Please Note! Modules (UIC Universal Interface Cards) and SFP's are sold seperately. Image is for reference only!
