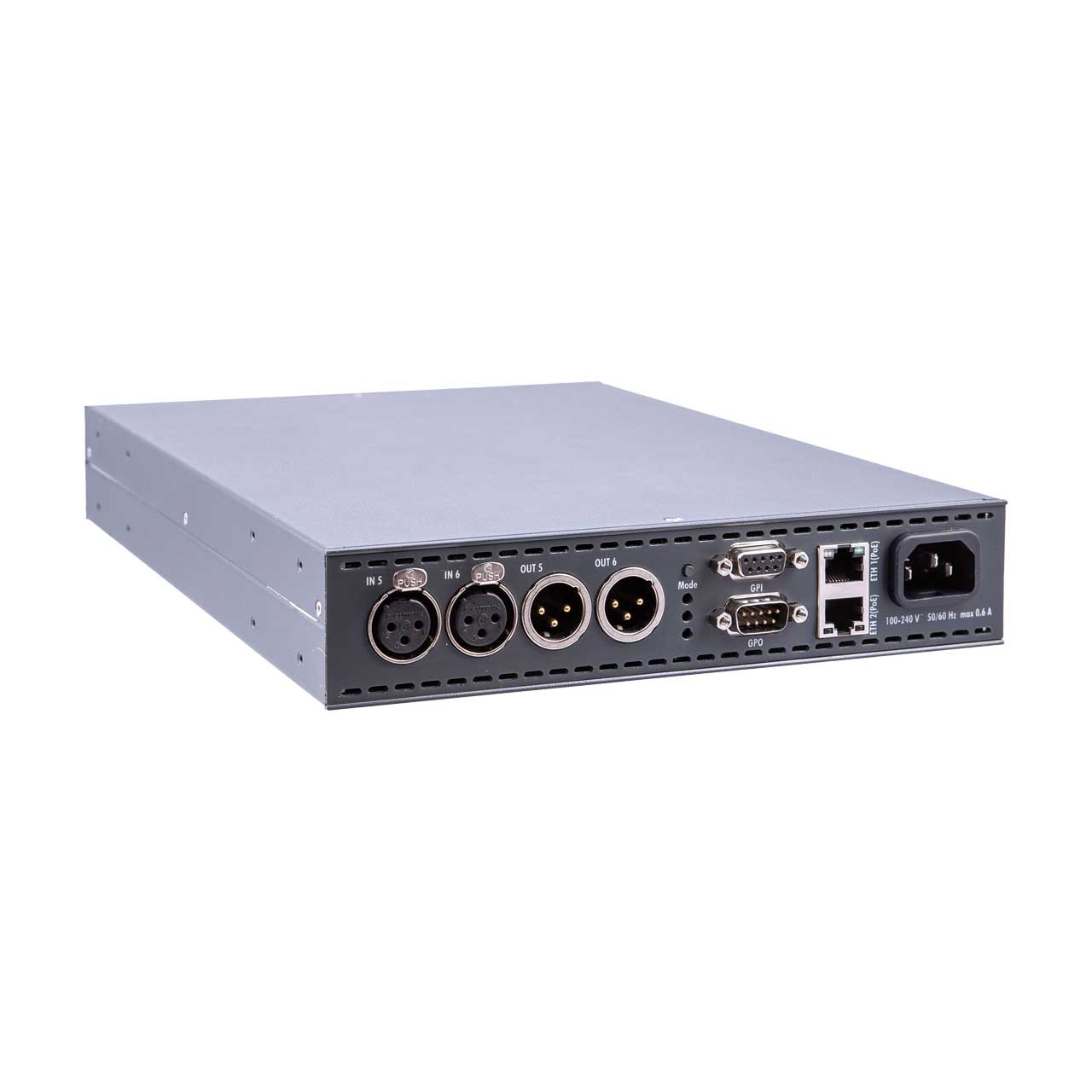

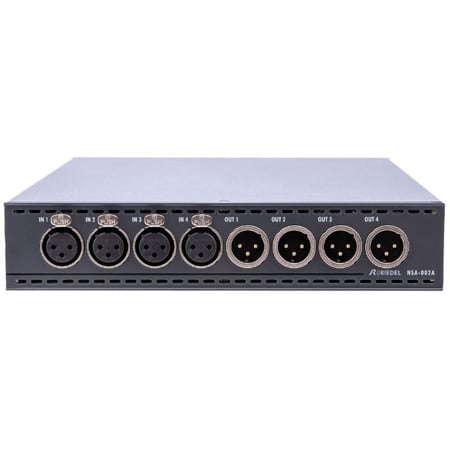

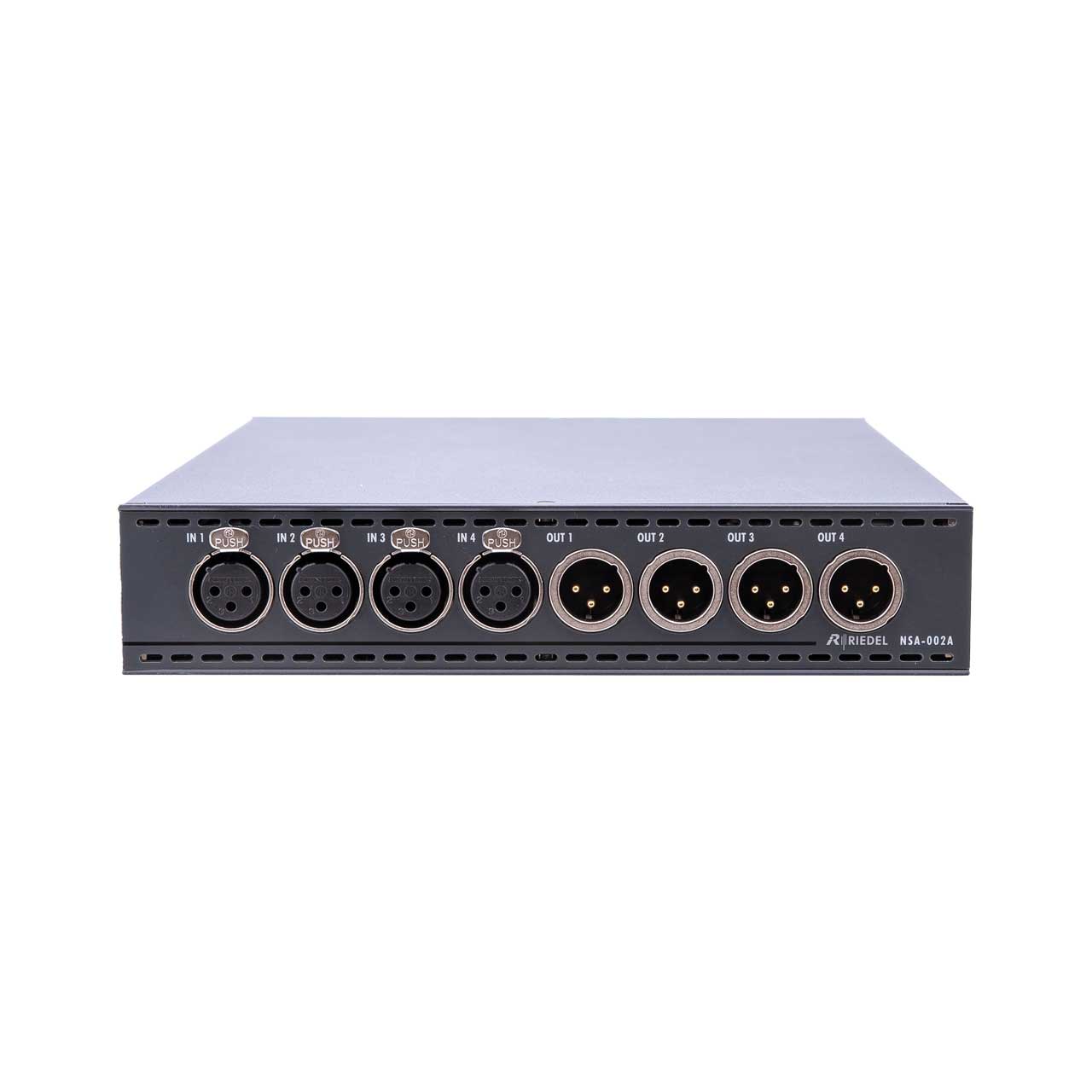

Riedel NSA-002A Network Stream Adapter - For Analog Breakout Of Multiple Analog Signals To & From An AES67 Network.

NSA-002A - Overview

• Features:

  • Handles bi-directional signal conversion between analog signals and AES67.
  • Plug-and-play device with multiple mounting options.
  • Connects Bolero wireless intercom system to any 4-Wire Analog.
  • Power is provided internally or via PoE.
  • Convenient LEDs indicate system status.


• Specifications:

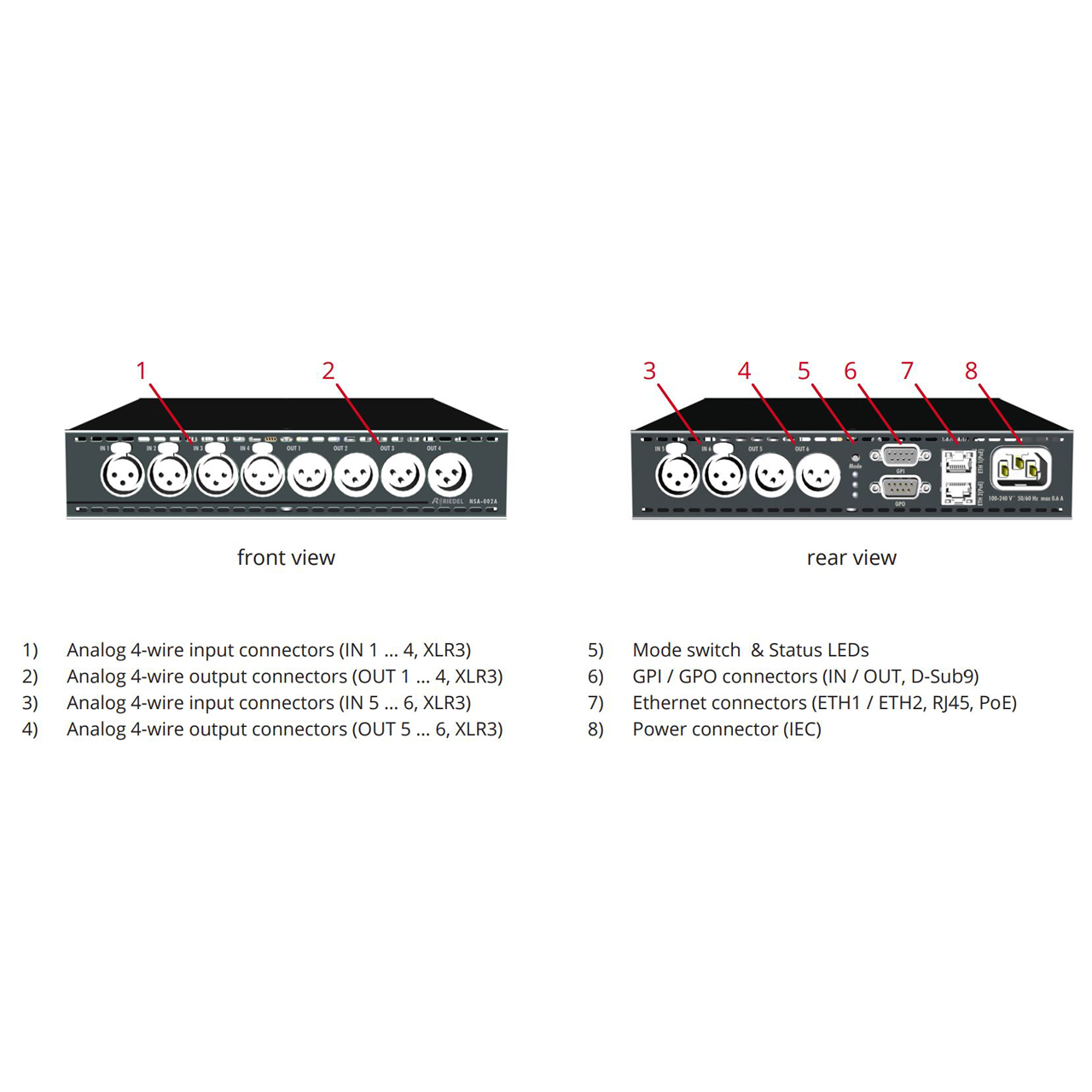

  • Analog Audio Line In 6x balanced
  • Nom. Input Level +6 dBu
  • Max. Input Level +24 dBu
  • Input Impedance 10 kO
  • Resolution 24 bit
  • GPI In 3x galvanically isolated opto-coupler inputs
  • Isolation Voltage 100 VDC
  • Maximum Voltage 30 VDC
  • Input Current 5 mA @ 5 VDC
  • Switching threshold off: <0.8 VDC, on: >2.0 VDC
  • Analog Audio Line Out 6x balanced
  • Nom. Output Level +6 dBu
  • Max. Output Level +24 dBu
  • Output Impedance <200 O
  • Min. load Impedance 2 kO
  • Frequency Response 20 Hz .. 20 kHz


• Item Includes:

  • 1x Riedel NSA-002A Robust 4-wire Analog/AES67 Network Stream Adapter with 6 Analog Inputs/Outputs


• GTIN:

  4371048190203
