CA1.04 - Overview

Stable operation at 0.2 ohms (0.2O) No, that's not a misprint.

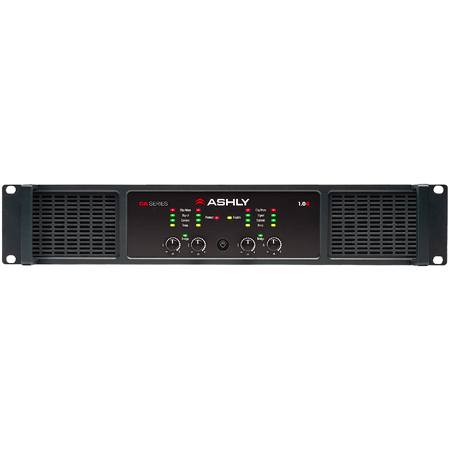

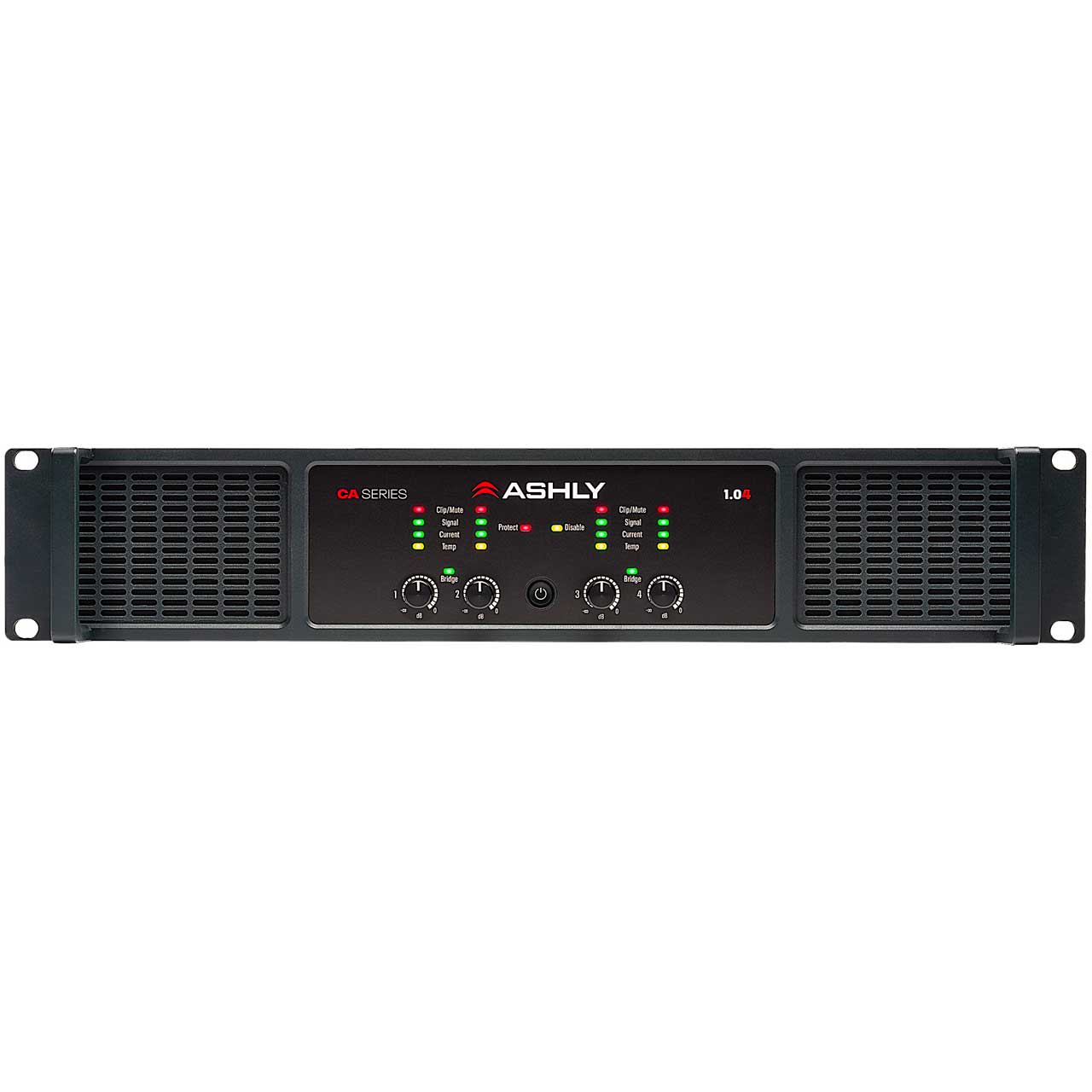

The CA Series is the next generation of Class D amplifiers. Ashly's proprietary D-MAX technology pushes amplifier efficiency to new heights and provides unmatched operational stability and performance in a commercial amplifier. By using ultra-fast, lossless Silicone-Carbide switches, a newly designed high-speed power supply, and Ashly's Dynamic Power Factor Correction, CA Series amps can run full-tilt without even breaking a sweat and are stable down to .02 Ohms. Ashly’s SailFlow directed cooling system further helps to keep everything run cool. The Ashly Audio CA-1.04 delivers 1,000W x 4 at 2/4 Ohms and can even drive 70V or 100V loads. A compliment of front-panel Input level controls and LED indicators for amp status, plus Balanced Euroblock & XLR Combo input connectors, VCA control ports, switchable HPF & Limiter on each channel, Standby port and front panel lockout, gives the CA the flexibility to meet almost any system requirement. The CAs high-power, Low Z stability makes it ideal for large live performance speakers, even subwoofers.

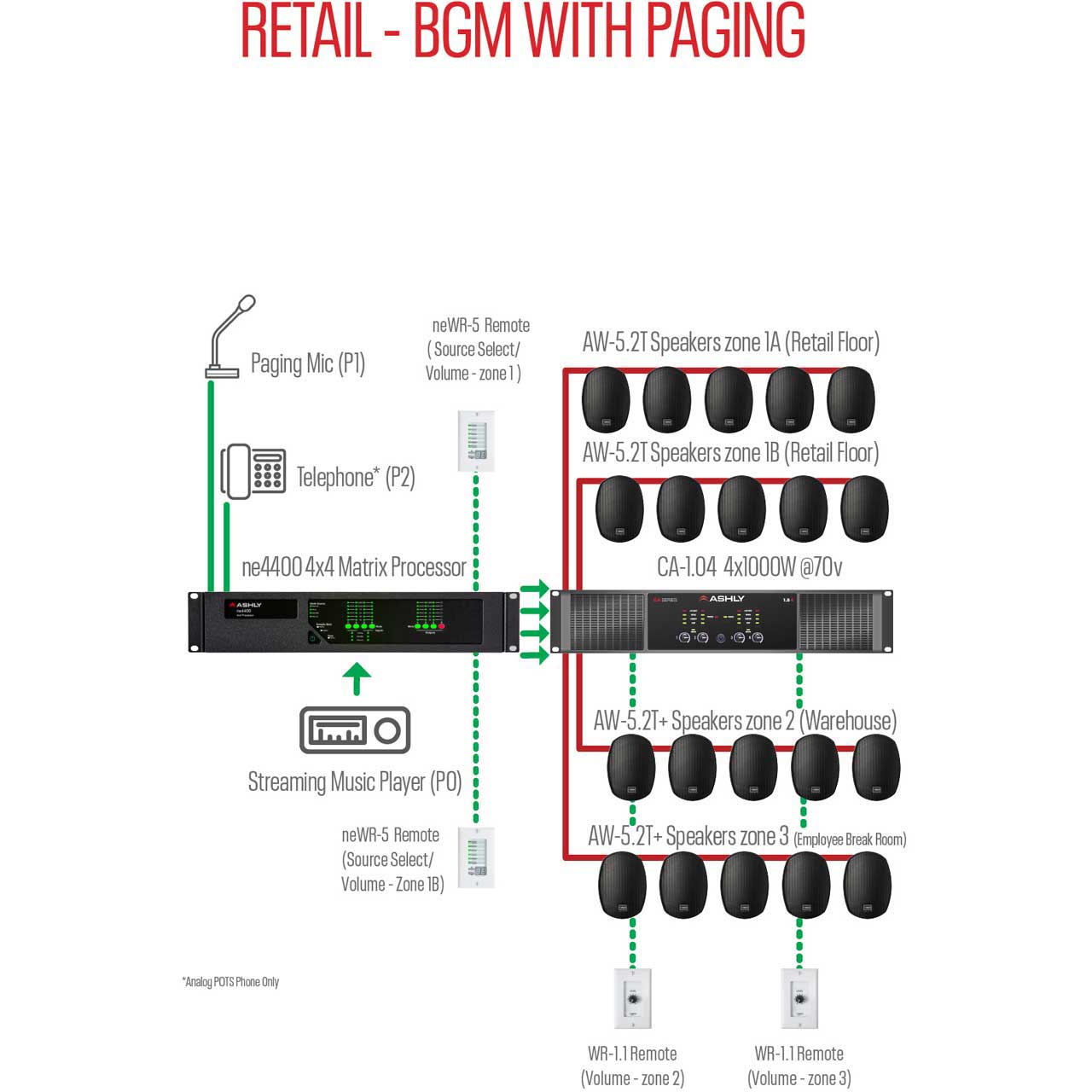

For performance spaces, the CA Series can push hard and keep on pushing. Play it loud? No problem. Big subs? Bring ‘em on! CA can take it down to 2 Ohms without missing a beat (and without a drop- off in power). Run up to SIXTEEN 8-ohm loudspeakers from a single 4-channel CA amplifier.In commercial installations CA can deliver 70V and 100V power with no reconfiguration required. And choice of both XLR and Euroblock connectivity make the CA at home just about anywhere.

Features:
- Ultra-efficient D-MAX technology consumes less power and assures reliable operation, even under extreme conditions.
- SailFlow directed cooling helps maintain cooler operating temperatures.
- Stable 2 Ohm (and lower) operation for use with larger speaker enclosures.
- Switchable 80Hz HPF and Clip Limiter on each channel
- Front Panel lockout switch for added security
Specifications:
- Power Output/Ch:
  - 2ω: 1,000W
  - 4ω: 1,000W
  - 8ω: 500W
  - 4ω (br): 2,000W
- 70V/100V Output
  - 70V: 1000 (Direct)
  - 100V:2000 (Bridged)
- Total Power Draw:
  - Standby: 19W
  - Idle (No Signal): 70W
  - 1/8 Max Power: 675 W
- Total Current Draw:
  - Standby: .37A
  - Idle (No Signal): .64A
  - 1/8 Max Power: 6A
- Total Thermal Dissipation:
  - Standby Mode: 65 BTU/H
  - Idle (No Signal): 184 BTU/H
  - 1/8 Max Power, 4ω: 474 BTU/H
  - 1/8 Max Power, 2ω: 576 BTU/H
- Input Sensitivity:
  - @26dB Gain: 2.7V
  - @32dB Gain: 1.4V
  - @38dB Gain: .68V
  - @1.4V Gain: 1.4V
- Distortion (SMPTE, typical): <0.5%
- Distortion (THD-N, typical, 8 Ohm, 10dB below rated power, 20Hz-20kHz: <0.5%
- Signal to Noise, 26dB input sensitivity, 20Hz-20kHz, unweighted: >101dB
- Frequency Response: 20Hz-20kHz, ±0.05dB
- Channel Separation (dB from full output, 1kHz): -75dB
- Damping Factor (8 Ohm load, <1kHz): >250

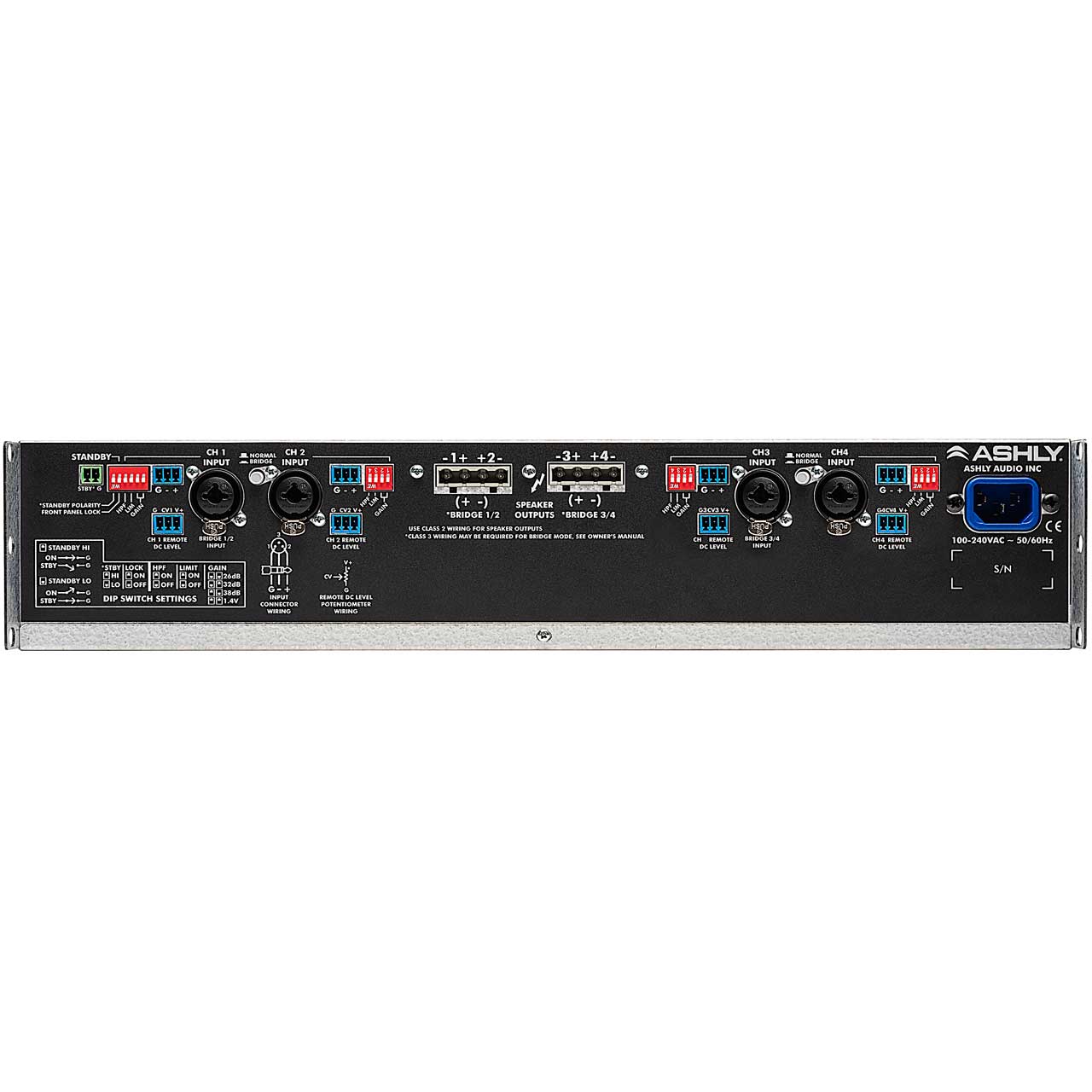

- Balanced Input Connector (per channel): Euroblock (3.5mm),1/4” TRS and XLR Combo jack
- Input Impedance: 10k Ohm
- Maximum Input Level: +21dBu
- Bridge Mode Switch(per channel pair): In for bridged mode, Out for stereo
- Remote DC Level Control (G, CV, V+ per channel): Euroblock (3.5mm),V+ is fully on, G is fully attenuated
- Power Switch LED (white): On, Off, Standby (flashing)
- Clip/Mute LED (red): On at 95% max output (0.5dB below max), Mute
- Signal LED (green): On at 25% max output (12dB below max)
- Current LED (green): On at >2 Amps to speaker load
- Temp LED (yellow): On when thermal countermeasures are being applied
- Bridge LED (green): Per Channel Pair - On, Off
- Protect LED (red): See troubleshooting section for protect LED error codes: On for fault condition counter-measures or shutdown, Off
- Disable LED (yellow): On when front panel controls are disabled, Off
Item Includes:
- 1x CA1.05 Power Amplifier
- 1x AC Cord
- Removable Euroblock connectors
Warranty:
- 5 Year Part & Labor

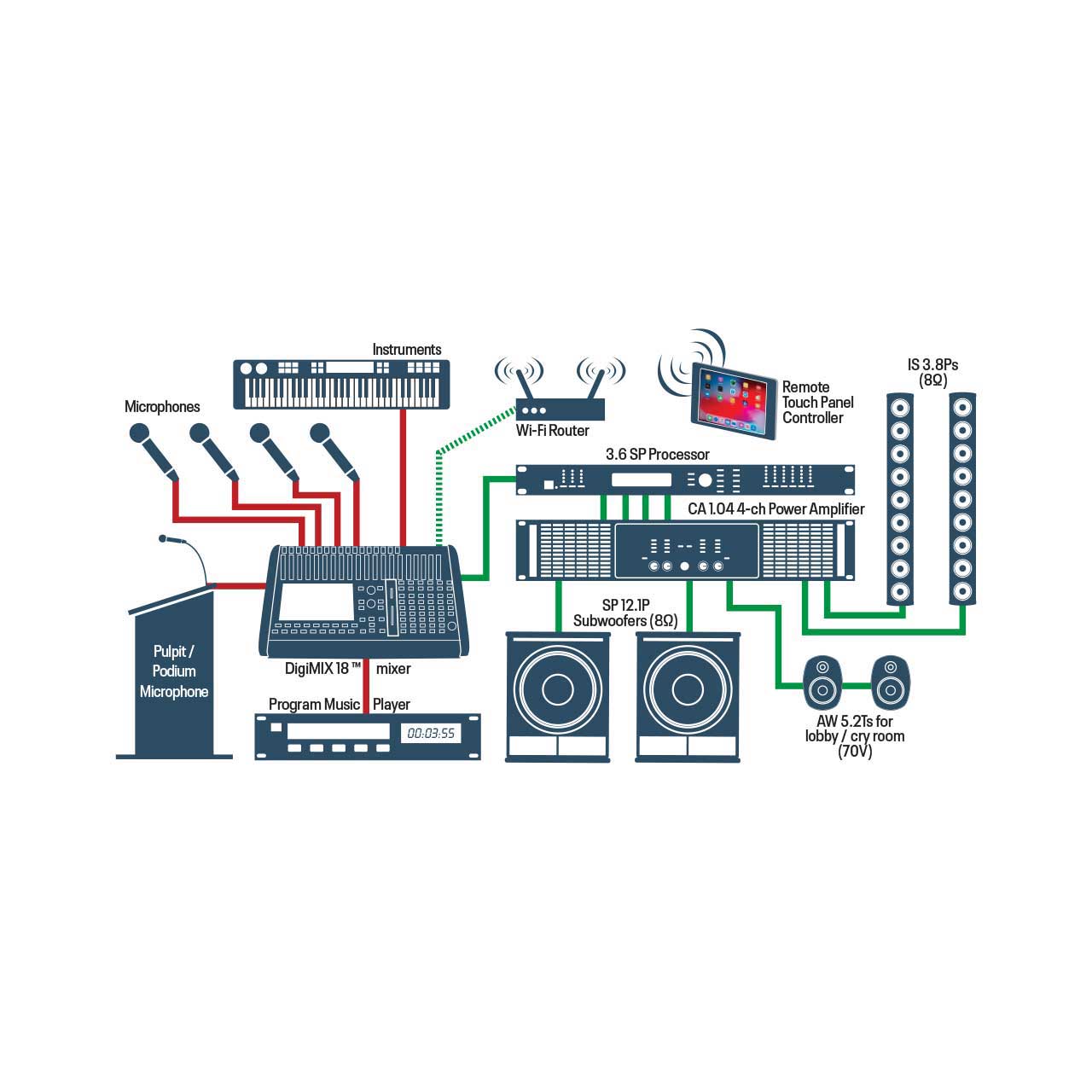

Applications:
- Large Church and Concert PA
- Airports and Terminals
- Sports Stadiums
- DJ Auditoriums and Theaters
GTIN:
0694970002708
