Astatic 40-117 Shock Base w/ LED and Push-to-Talk PTT

ITEM #: AST-40-117 MFG #: 40-117

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$159.00

Our Price:

$109.99

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


40-117 - Overview

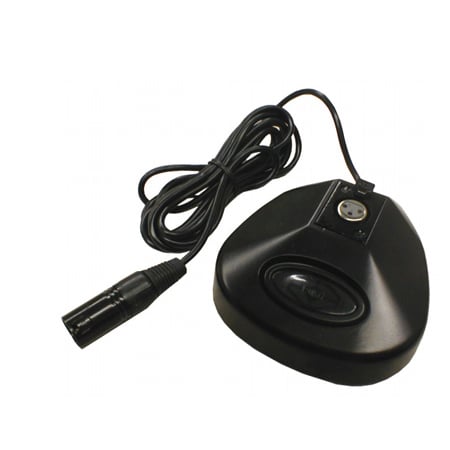

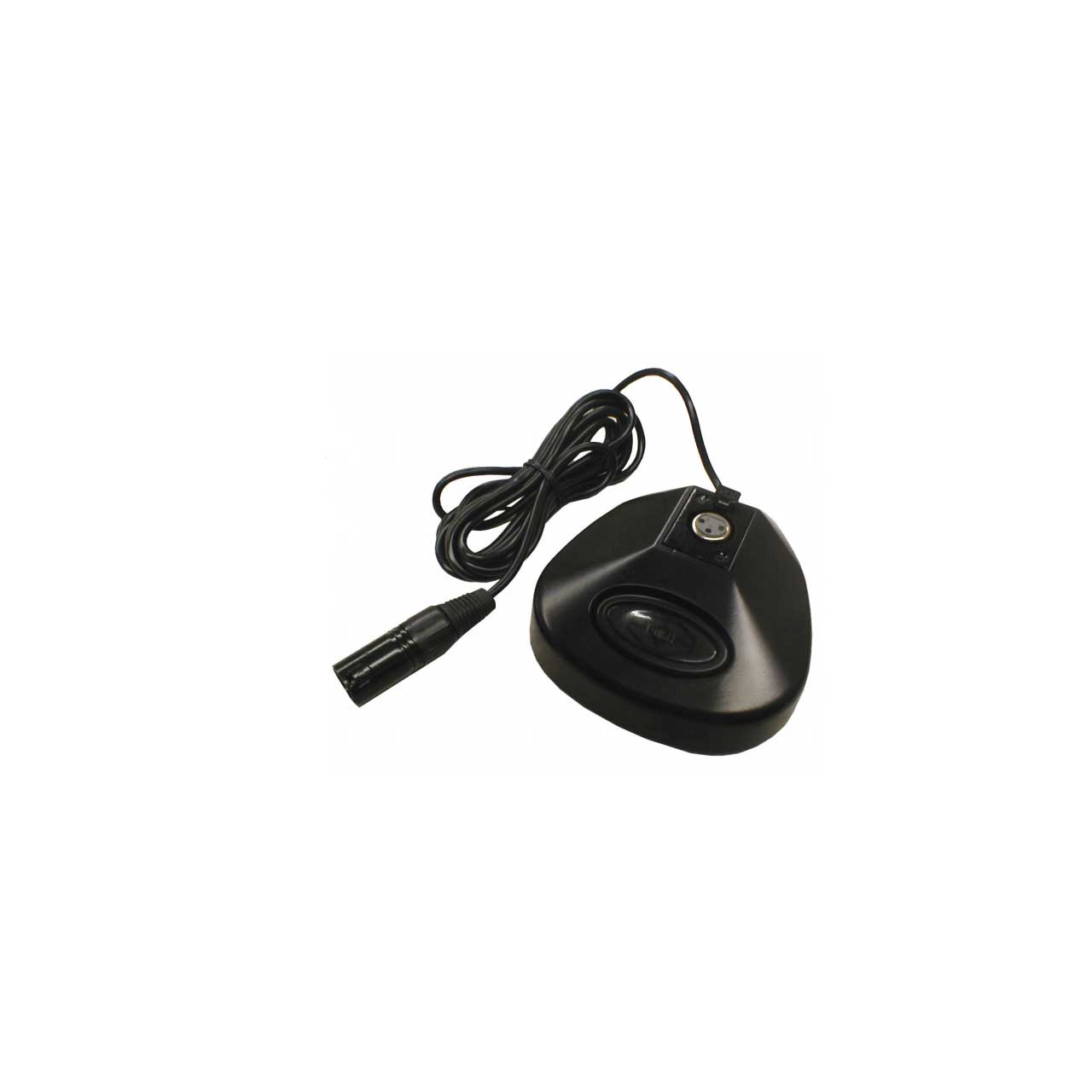

The Astatic 40117 Portable Desk Base is designed to conveniently mount the Astatic 800 and 900 series gooseneck microphones, or any third party miniature gooseneck microphone with a standard 3-pin XLR connection. The portable design enables quick and easy setup on podiums, desk tops and more.

A membrane switch features a status LED and provides Push-To-Talk and Push-To-Mute modes. A rubber shock-resistant base minimizes noise caused by shock and vibration. The 3-pin XLR female input and 7' (2.13m) XLR male output cable make installation quick and easy.

The large soft touch button on this model lets you quickly and easily switch between the four different operational modes. Select your modes by using the DIP switches on the underside of the base. The bottom features CAD's special energy absorbing shock mount compound to reduce vibration noise. There are also two keyholes for permanent mounting.

The rugged four conductor, two shielded seven foot cable is terminated with a professional 3-pin male XLR connector so you are sure to get balanced audio. The LED light makes your life just a little bit easier by illuminating only when the microphone is active, so even in low light situations you know when you're live.

  • Features:

    • Programmable Switch
    • Balanced Audio
    • LED Indicator
    • Versatile Operation
    • Shock Mounted

  • Specifications:

    • Construction: Die Cast Zinc with Steel Base Plate
    • Connectors: 3-pin Female XLR
    • Control: Programmable Button
    • Adjustments: N/A
    • Power Requirements: Phantom Power required
    • Dimensions (HxWxD): 1.7 x 4.4 x 4.5"
    • Weight: 2 lbs

  • GTIN:

    0631922101942
