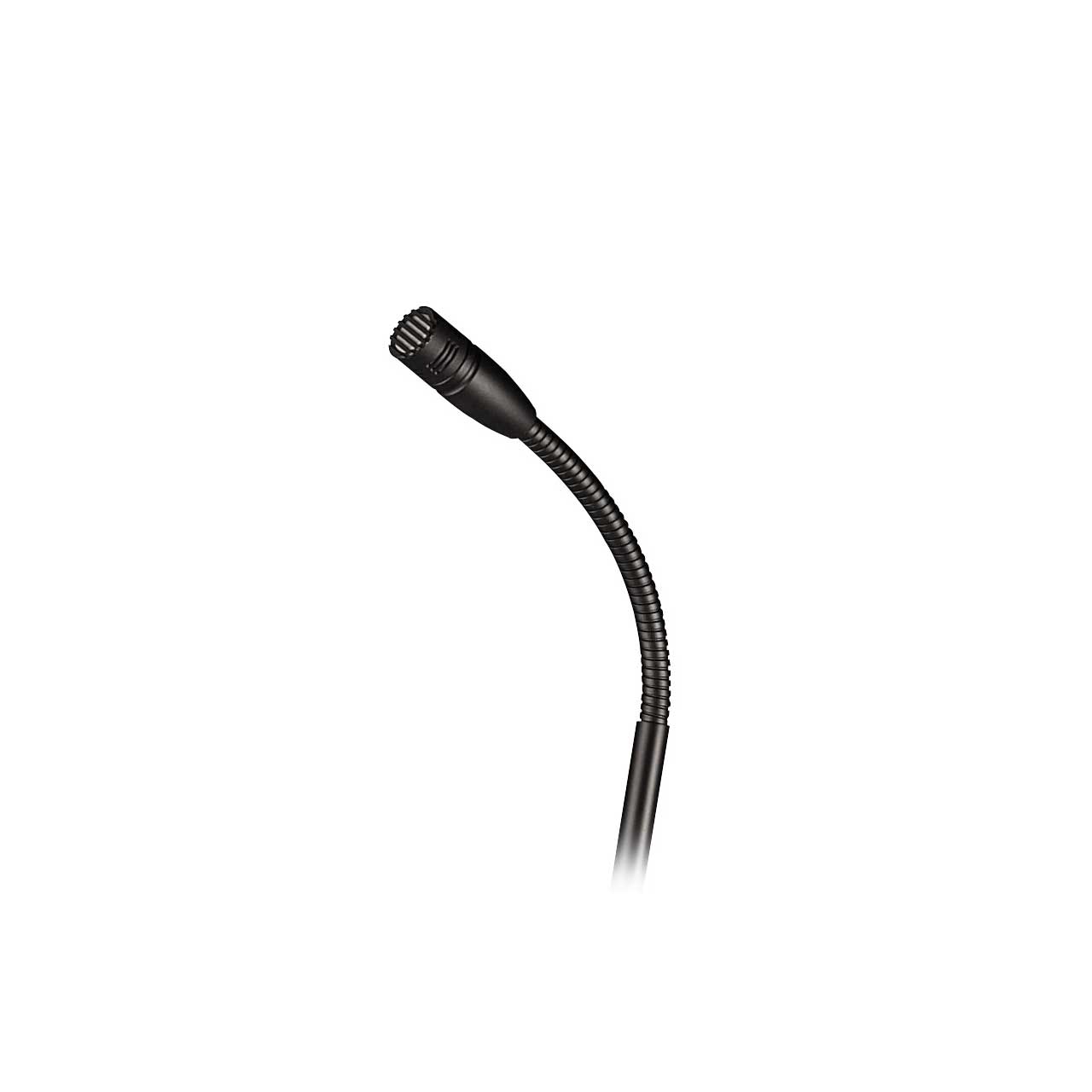

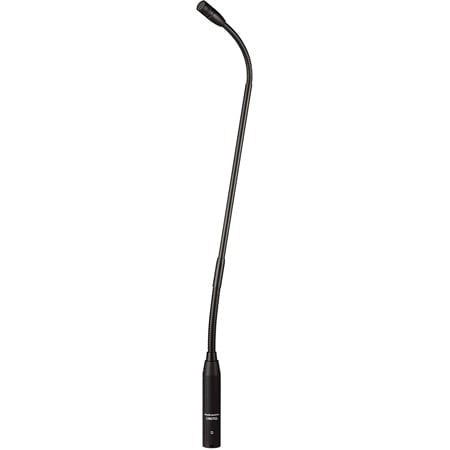

Audio-Technica U857QL Cardioid Condenser Quick-Mount Gooseneck Microphone

U857QL - Overview

• Features:

  • Designed for high-quality sound reinforcement, professional recording and broadcasting
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no "memory" permits quick positioning into desired shape
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Self-contained electronics eliminate need for external power module
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
  • Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
  • Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface


• Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 30 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Open Circuit Sensitivity: -39dB (11.2mV) re 1V @ 1Pa
  • Impedance: 250Ω
  • Maximum Input Sound Level: 139dB SPL, 1kHz @ 1% T.H.D.
  • Dynamic Range (typical): 115dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: 70dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 11 - 52V DC, 2mA typical
  • Switch: Flat, roll-off
  • Weight: 5.3oz
  • Dimensions: 18.94" long, 0.48" head diameter, 0.74" base diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
  • Audio-Technica Case Style: M34


• Item Includes:

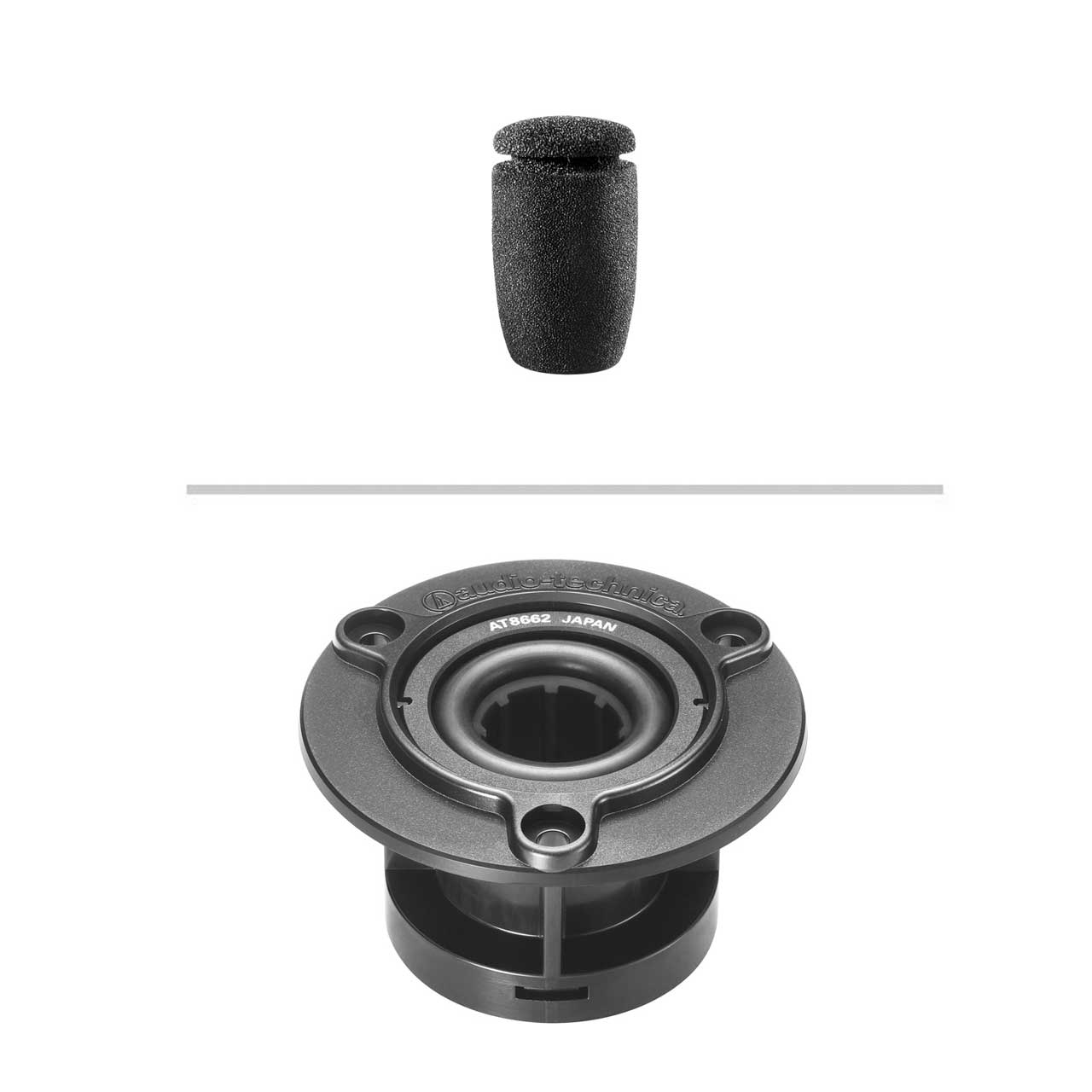

  • AT8153 two-stage foam windscreen
  • AT8662 shock mount


• Warranty:

  • 2 Year Limited End-User


• GTIN:

  0042005140831
