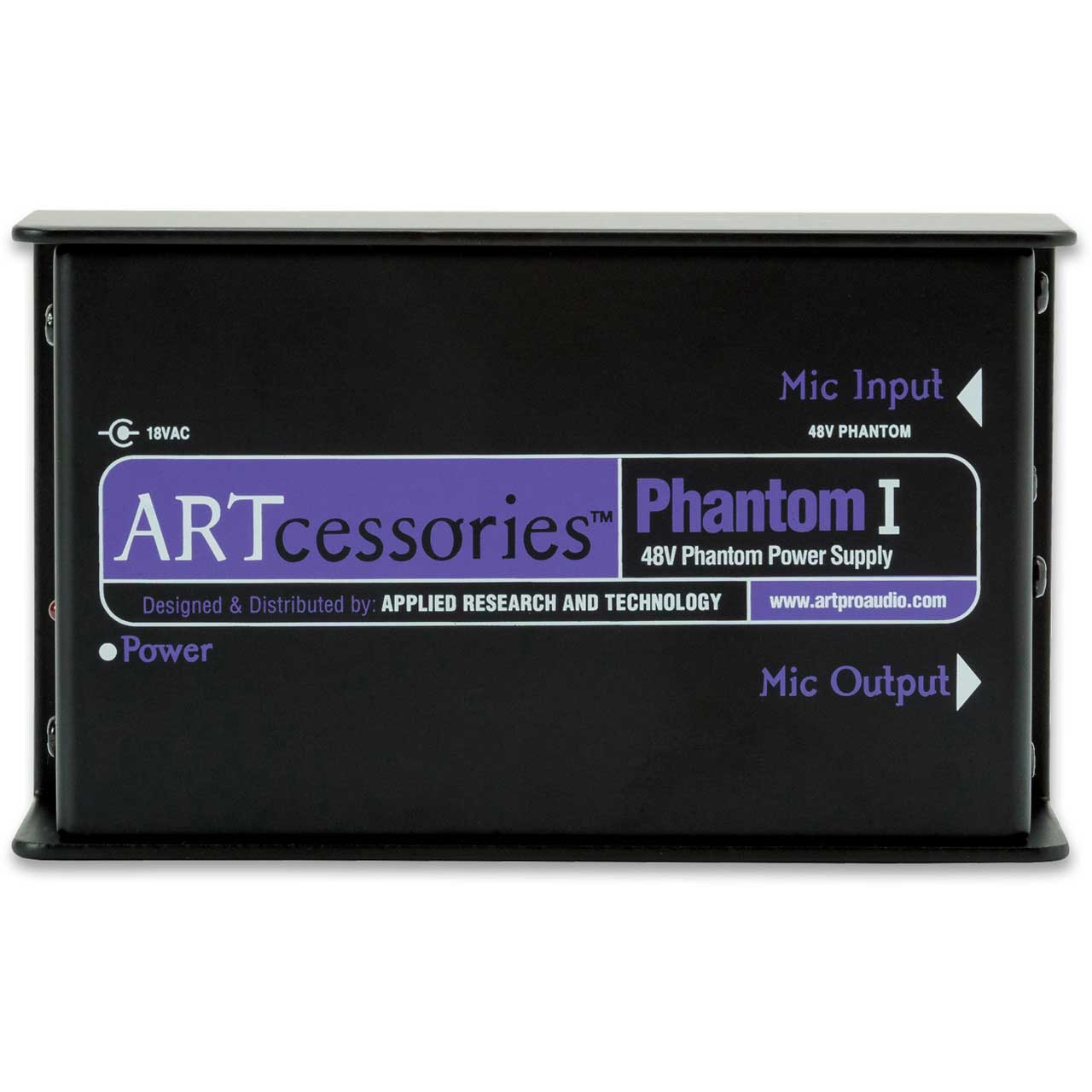

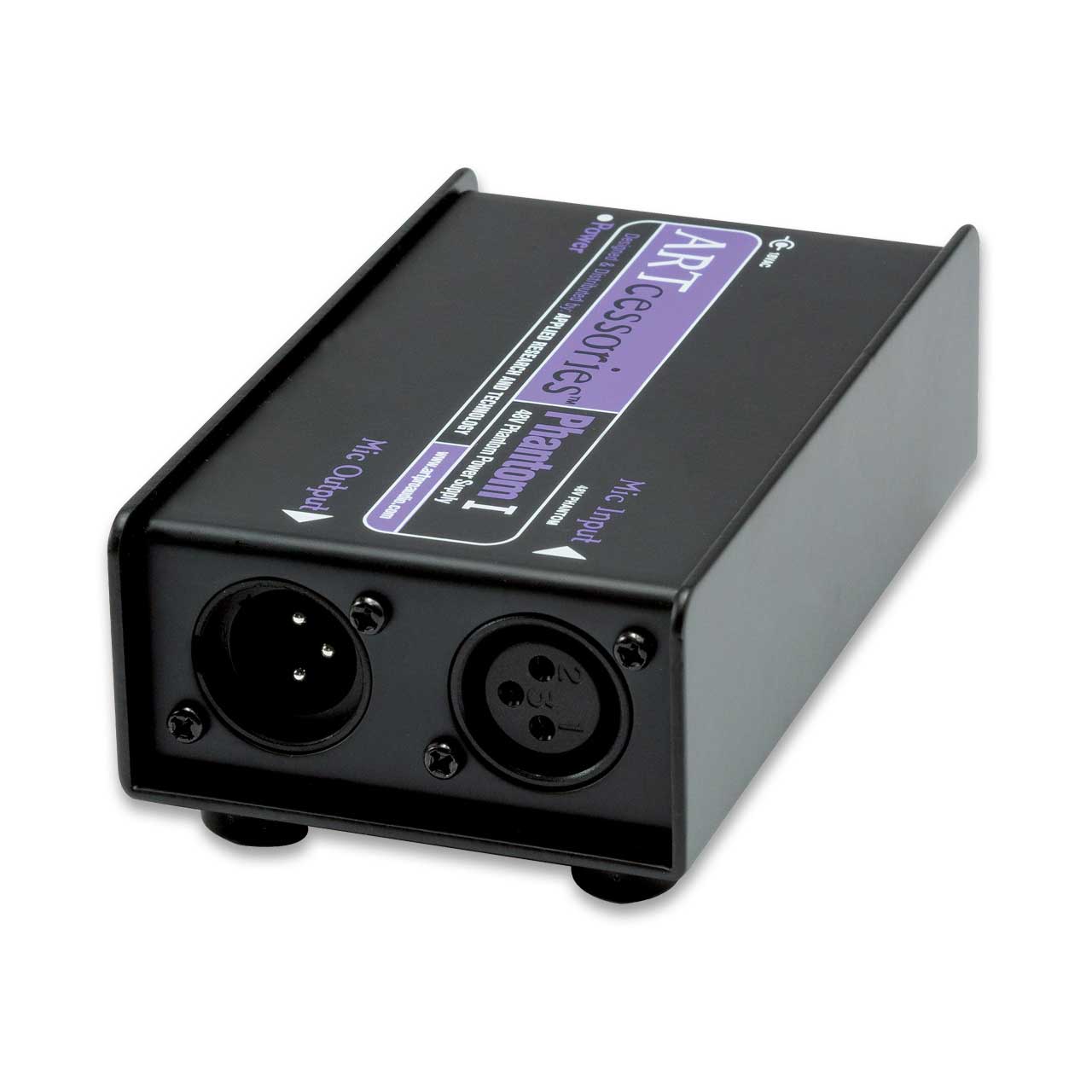

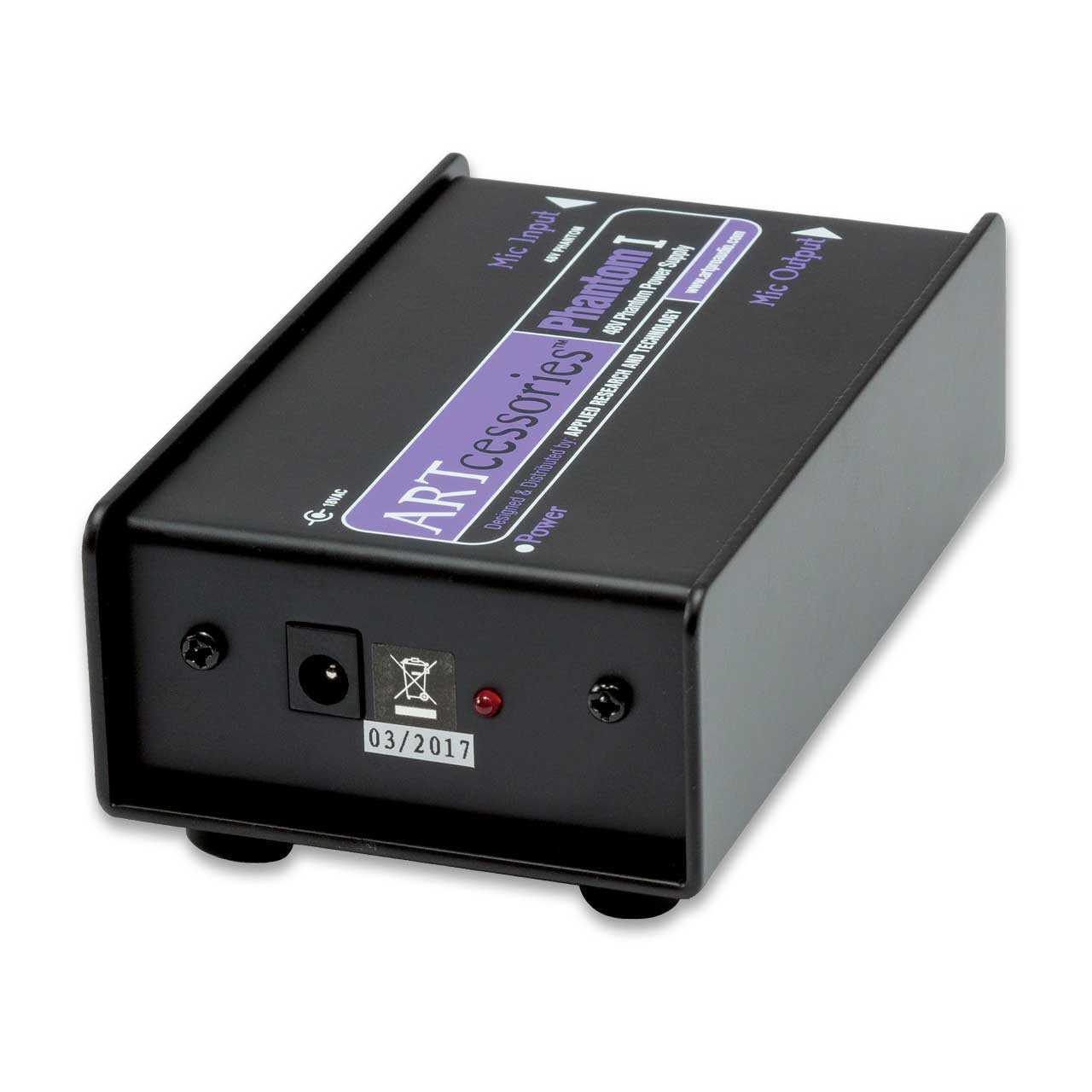

ART Phantom I - Single Channel 48V Phantom Power Supply

ITEM #: ART-PHANTOM1 MFG #: PHANTOM 1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$89.99

Our Price:

$79.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PHANTOM 1 - Overview

Different condenser microphones specify different amounts of required phantom power. As a rule these ratings can range from 48 volts all the way down to 9 volts. Fortunately, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be "more is better."

For example, a 24-volt condenser mic will run perfectly on 48 volts. In fact, mics rated at as little as 9 volts can often operate on 48 volts, but you should check with the manufacturer first. Conversely, a mic will generally perform best driven by not less than its rated voltage so, for a 48V mic, you would obtain best results with 48 volts of phantom power. The Phantom I is a great choice for the above needs.

  • Specifications:

    • Input Connectors: XLR female
    • Output Connectors: XLR male
    • Frequency Response: 10Hz - 25kHz
    • Output Phantom Power: 48V DC +/- 2V
    • Output Noise: -115 dBV
    • Current Drain: 14mA
    • Power: 18V DC (Adapter included)
    • Dimensions: 5.25 x 2.75 x 1.75 inches (130mm x 74mm x 45mm)
    • Weight: 1.3 lbs. (315g)

  • GTIN:

    0840402018339
