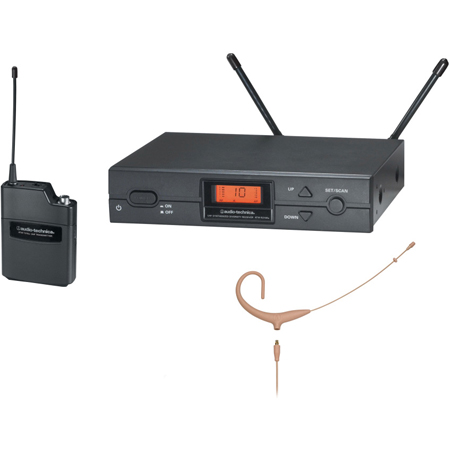

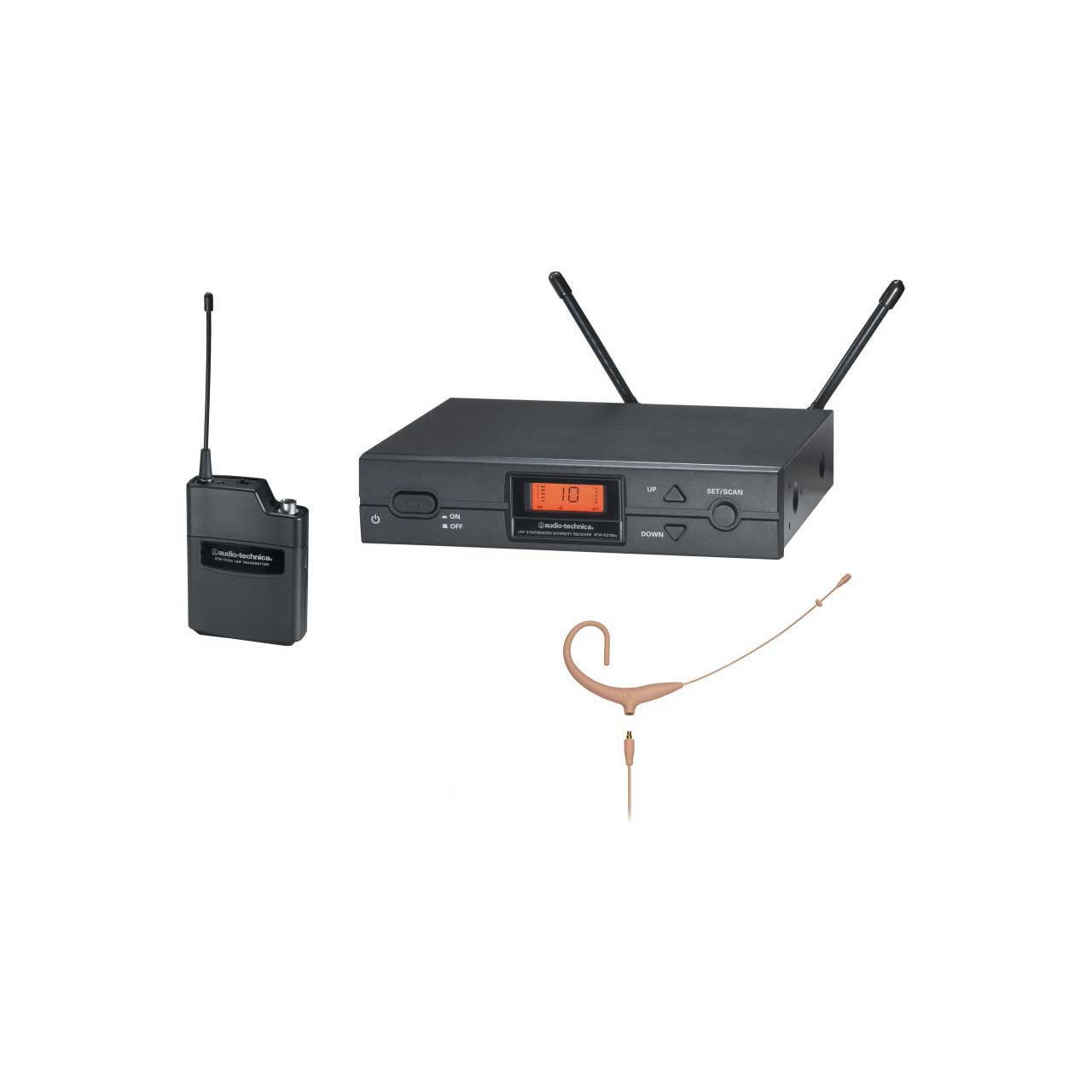

Audio-Technica ATW-2192XCITH 2000 Series Omnidirectional Headworn Microphone System - Band I (487.125 - 506.500MHz)

ITEM #: AT-ATW-2192XCITH MFG #: ATW-2192XCITH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$629.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ATW-2192XCITH - Overview

The Audio-Technica ATW-2192XCITH is a frequency-agile True Diversity UHF wireless systems deliver professional audio and RF performance unheard of in its class. Straightforward setup, automatic scanning, and other advanced wireless features brings its performance to a standard that provides the audio quality and reliability necessary for the quality sound systems of today.

The ATW-R2100b receiver features automatic frequency scanning that eliminates the need for searching for clear channels by automatically selecting the most appropriate frequency for the area in which the wireless is operating. A pre-coordinated integral channel plan allows for simultaneous operation of any of the ten channels in a given location. The flexibility in programming both the receiver and transmitters eliminates confusing frequency groups and other frequency coordination problems. Advanced Tone Lock™ adjustable squelch system fights interference.

The ATW-T210a UniPak® body-pack transmitter features a latching cover to protect the internal controls from being accidently activated and a recessed 4-pin HRS-type locking input connector to increase the life of the microphone cable. Inputs are available on the transmitter for low impedance microphone, and high impedance musical instrument or line input.

The BP892xcW-TH is an omnidirectional condenser headworn wireless microphone that is designed to provide intelligible natural audio for stage and television talent, lecturers, and worship leaders. Its flexible design enables it to be worn on either the left or right ear.

  • Features:

    • High sensitivity dual IF receiving design for dropout-free performance
    • Automatic frequency scanning finds open channel
    • High efficiency compander for flawless audio
    • 10 compatible user-switchable channels in one of two UHF frequency ranges
    • Antenna power available for powered antennas & other in-line RF devices
    • Receiver internal function menu with soft-touch controls
    • Straightforward channel selection process
    • Digital Tone Lock™ squelch
    • Adjustable receiver squelch
    • True diversity receiver with silent, automatic switching
    • Tuner operation indicator displays tuner with strongest reception
    • Receiver front panel displays for RF and AF signal levels

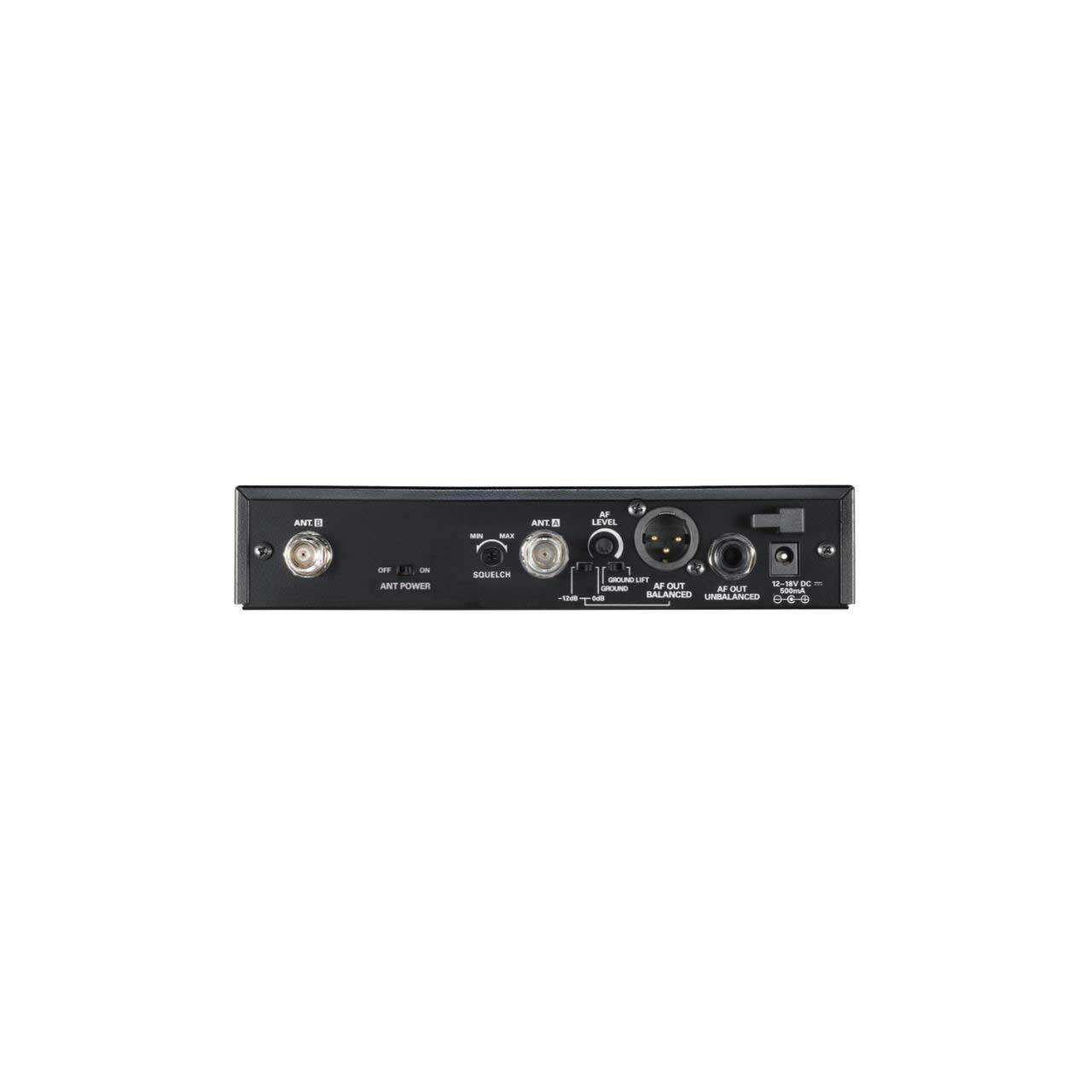

    • Balanced and unbalanced outputs
    • Output level control on the rear panel
    • Switchable transmitter power output with high and low settings offered
    • Mounts in a single rack space (1 or 2 units)
    • Simple single switch transmitter power/mute operation

      BP892xcW-TH Features:
    • Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
    • Inconspicuous, lightweight headset with capsule diameter of just 2.6mm is ideal for applications requiring minimum visibility
    • Ergonomic under-ear design-the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
    • Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
    • Handles high sound pressure levels with ease

  • Specifications:

    • Overall System
    • Operating Frequency: UHF, Band I : 487.125 - 506.500MHz
    • Number of Channels: 10 total
    • Modulation Mode: FM
    • Maximum Deviation: ±40kHz
    • Dynamic Range: >110dB (A-weighted), typical
    • Total Harmonic Distortion: <1% (@ 1kHz, ±20kHz deviation)
    • Operating Range: 300' (100m), typical
      Open range environment with no interfering signals
    • Operating Temperature Range: 41°F - 113°F (5°C - 45°C)
      Battery and LCD performance may be reduced at very low temperatures
    • Frequency Response: 100Hz - 15kHz (+1dB, -3 dB)

      ATW-R2100b Receiver
    • Receiving System: True diversity
    • Image Rejection: 60dB nominal, 55dB minimum
    • RF Sensitivity: 20dBuV @ 60dB S/N ratio (50Ω termination)
    • Antenna Input: BNC-type, 50Ω (Bias voltage 12V DC, 60mA, each)
    • Power Requirements: 12 - 18V DC, 500mA
    • Maximum Output Level:
      XLR, balanced: 9dBV
      1/4", unbalanced: 4dBV
    • Balanced Audio Output Attenuator: Two position switch: 0/-12dB
    • Dimensions (HxWxD): 1.73" x 8.27" x 6.39" (44.0mm x 210.0mm x 162.2mm)
      Not including BNC connectors or feet
    • Net Weight: 35.3oz (1.0kg), without accessories

      ATW-T210a Body-Pack Transmitter
    • RF Power Output:
      High: 30mW
      Low: 10mW (switchable), @ 50Ω
    • Input Connections: Four-pin Locking Connector
    • Batteries: 2x 1.5V AA alkaline (not included) or 2x 1.2V AA NiMH (not included)
    • Battery Life:
      High: 7 hours (alkaline)
      Low: 9 hours (alkaline)
      Depending on battery type and use pattern
    • Dimensions (HxWxD): 3.63" x 2.60" x 0.89" (92.3mm x 66.0mm x 22.5mm)
    • Net Weight: 2.9oz (81g), without batteries

      BP892xcW-TH Mic
    • Element: Fixed-change back plate, permanently polarized condenser
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20 - 20,000Hz
    • Open Circuit Sensitivity: -43dB (7.2mV) re 1V @ 1 Pa
    • Maximum Input Sound Level: 136dB SPL, 1kHz @ 3% T.H.D.
    • Signal-To-Noise Ratio: 63dB, 1kHz @ 1 Pa
    • Current Consumption: 0.2mA typical @ 5V
    • Voltage Range: 2.5 - 10V
    • Cable: Detachable 55" (1.4m) long cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style wireless body-pack transmitters
    • Audio-Technica Case Style: M31

  • Item Includes:

    • 1x ATW-R2100b receiver
    • 1x ATW-T210a body-pack transmitter with BP892xcW-TH MicroSet® omnidirectional condenser headworn microphone (beige)
    • Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.

  • Warranty:

    • U.S. Two-Year Limited End-User Warranty
