Audio Technica ATW-32101EE1 3000 Series (4th Gen) Bodypack Transmitter w/ cH-Style Screwdown 4-pin Connector 530-590MHz

ITEM #: AT-ATW-32101EE1 MFG #: ATW-32101EE1

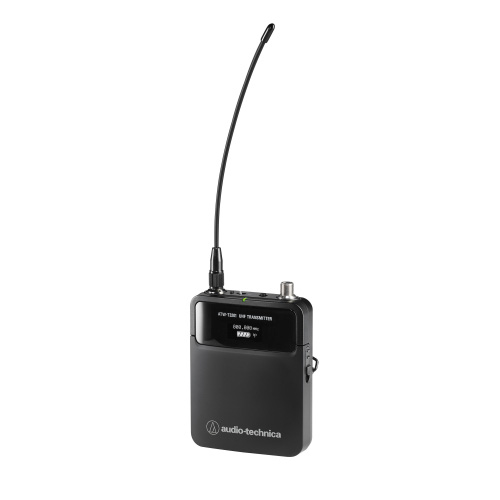

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AT-ATW-32101EE1

ATW-32101EE1 - Overview

The Audio-Technica ATW-32101EE1 fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300ft (100 m) and are available in two frequency bands - DE2 (470 - 530MHz) and EE1 (530 - 590MHz) - that provide a class-leading 60MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.

  • Features:

    • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
    • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
    • True Diversity operation reduces dropouts
    • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
    • Frequency scan and IR sync functionality for ease of setup
    • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
    • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
    • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
    • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
    • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
    • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
    • Antenna power available for powered antennas and other in-line RF devices
    • Ground-lift switch helps eliminate audible hum caused by ground loops
    • Balanced and unbalanced audio output jacks

  • Specifications:

    • RF Power Output: High: 30mW, Low: 10mW (switchable), @ 50Ω
    • Spurious Emissions: Following Federal and National Regulations
    • Input Connections: cH-style screw-down 4-pin connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +5V
    • High-pass (low-freq. roll-off): 125Hz, 12dB/octave
    • Batteries: Two 1.5V AA, not included
    • Battery Life: High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline); High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions
    • Dimensions (HxWxD): 0.91" x 2.52" x 3.22"
    • Net Weight: 3.6oz, without batteries
