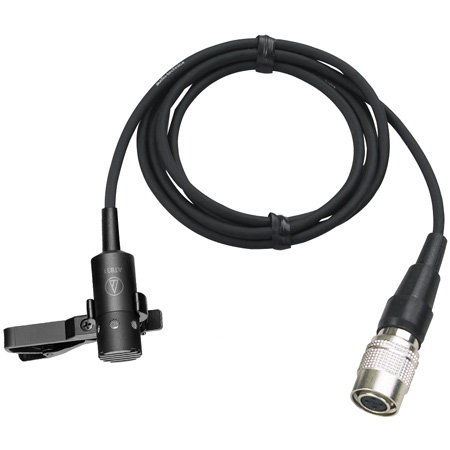

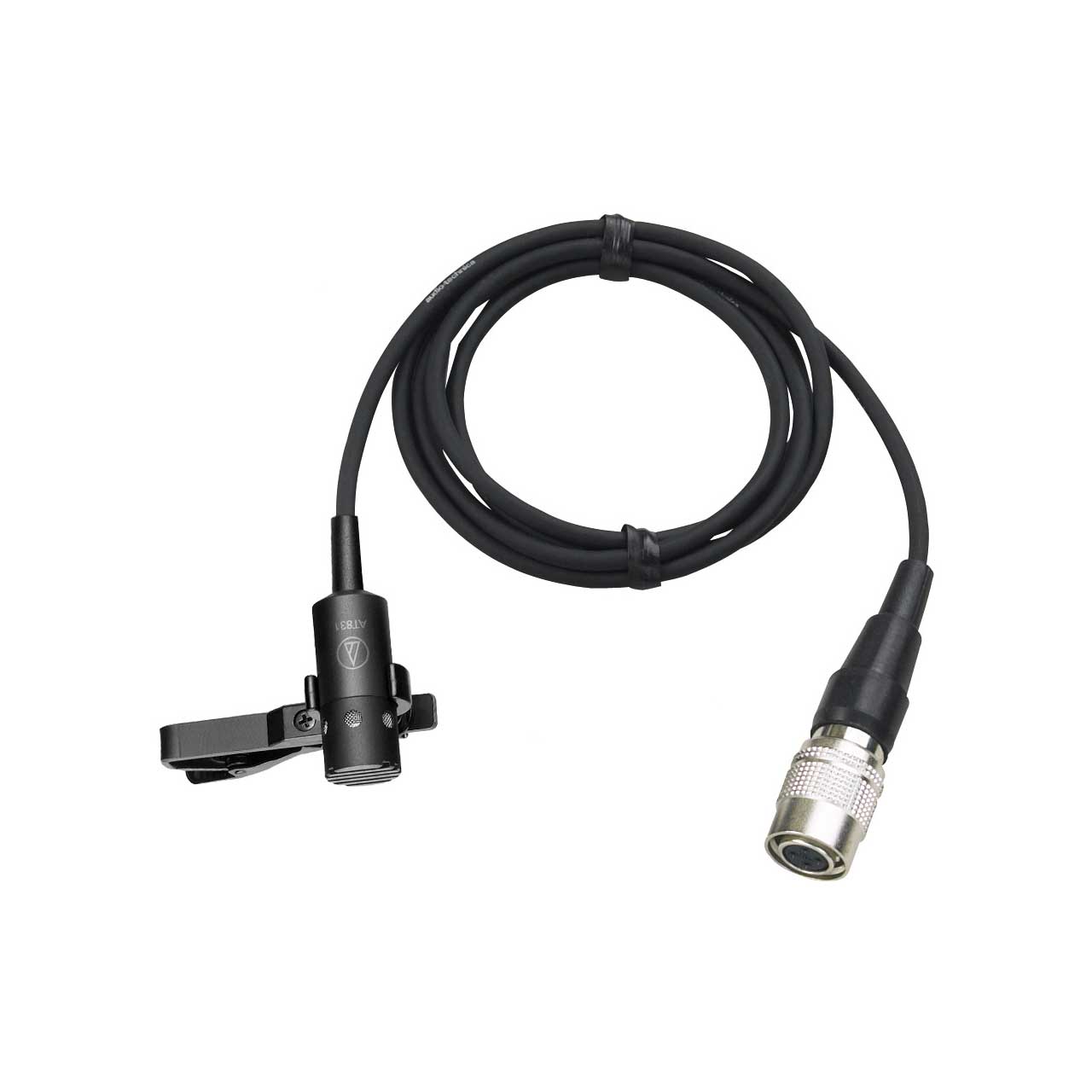

Audio-Technica AT831cW Cardioid Condenser Lavalier Mic for UniPak Transmitters

AT831CW - Overview

• Features:

  • Clip-on lavalier mic also excels in acoustic guitar applications
  • Provides crisp, full-sounding voice and instrument pickup
  • Excellent gain before feedback and suppression of background noise
  • Operates on phantom power only
  • 55" cable terminated with locking 4-pin connector for A-T UniPak® wireless systems
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances


• Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 40 - 16,000Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Open Circuit Sensitivity: -42dB (7.9mV) re 1V @ 1Pa
  • Impedance: 250Ω
  • Maximum Input Sound Level: 141dB SPL, 1kHz @ 1% T.H.D.
  • Dynamic Range (typical): 112dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: 65dB, 1kHz @ 1Pa
  • Phantom Power Reqirements: 11 - 52V DC, 2mA typical
  • Switch: Flat, roll-off
  • Weight (Microphone): 0.1oz
  • Dimensions (Microphone): 0.98" long, 0.40" diameter
  • Cable: 55" cable terminated with locking 4-pin connector for A-T UniPak® wireless systems
  • Audio-Technica Case Style: M1


• Item Includes:

  • Clothing clip
  • Windscreen


• Warranty:

  • 5 Year Limited End-User


• GTIN:

  0042005307609
