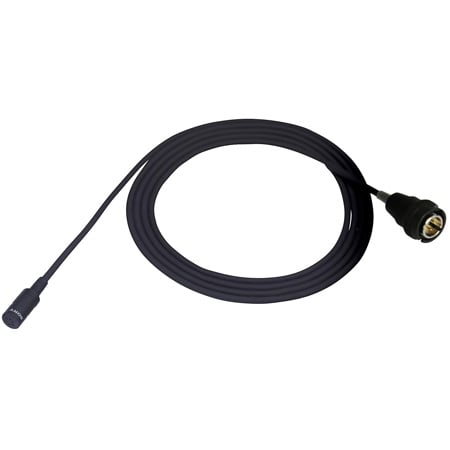

Sony ECM-77BC/9X Microphone Head (4-Pin Hirose)

ITEM #: SNY-ECM-77BC-9X MFG #: ECM-77BC/9X

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$364.00

Our Price:

$282.10

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ECM-77BC/9X - Overview

The ECM-77 is probably the most often seen lapel microphone on TV and it is used widely in both studio production and on location. Its popularity is based on a combination of excellent sound quality, robust construction and an attractive cosmetic design. This microphone is the ECM-77BC/9X supplied with a 4-pin locking plug for use with WRT-822 and WRT-8B wireless transmitters.

Hands Free, Professional Image
As a lapel microphone, the ECM-77 is an alternative to the traditional hand held microphone and being 'hands free' it allows the presenter to concentrate on her/his performance. The ECM-77 is probably the most seen microphone on TV and its compact design creates a professional image.

Easy and Familiar Operation
The ECM-77 is an essential tool for achieving good quality voice recording. The microphone's capsule is designed for voice pick-up with an extended frequency response and impressive sensitivity. The popularity of the microphone in TV production means that most sound people will be familiar with using the ECM-77.

  • Features:

    • Designed for high quality voice pick-up - The ECM-77's capsule features a voice emphasis curve, extended frequency response and sensitivity.
    • Minute size - The capsule has a diameter of only 5.6mm and is 12.5mm long.
    • Ready for wireless systems - The ECM-77BC is compatible with the WL-800 beltpack transmitters (WRT-822 and WRT-8), providing high quality wireless microphone systems for video production.

  • Specifications:

    • Audio
    • Capsule Type: Electret Condenser
    • Frequency Response: 40 Hz to 20 kHz
    • Directivity: Omni-directional
    • Sensitivity: -39.0 dB (11.2 mV)
    • Output Impedance: 2.5kΩ±30%, Unbalanced
    • Dynamic Range: 90d B or more
    • Signal-to-Noise Ratio: 64 dB or more
    • Inherent Noise: 30 dB SPL or less
    • Induction Noise From External Magnetic Field: 5 dB SPL or less
    • Wind Noise: 40 dB SPL or less (with windscreen)
    • Maximum Input Sound Pressure Level: 120 dB SPL

      General
    • Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector
    • Mic Cable: 3.9 feet (1.2 m)
    • Power Requirements: DC 1.1 V to 10.0V
    • Power Consumption: 0.4 mA or less
    • Dimensions: 1/4 x 1/2 inches (Mic head)
    • Mass: Approx. 0.9 oz

  • GTIN:

    0027242632493
