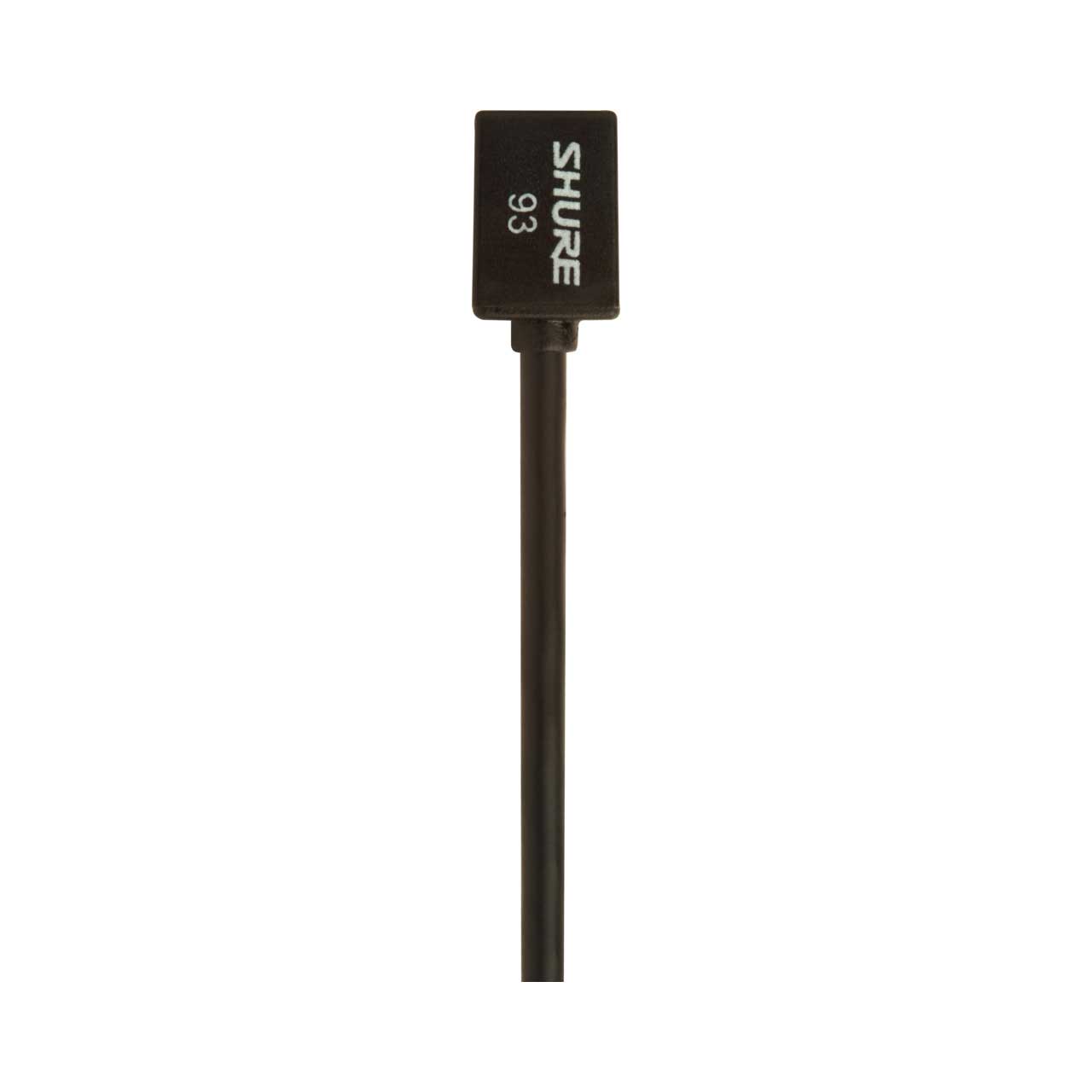

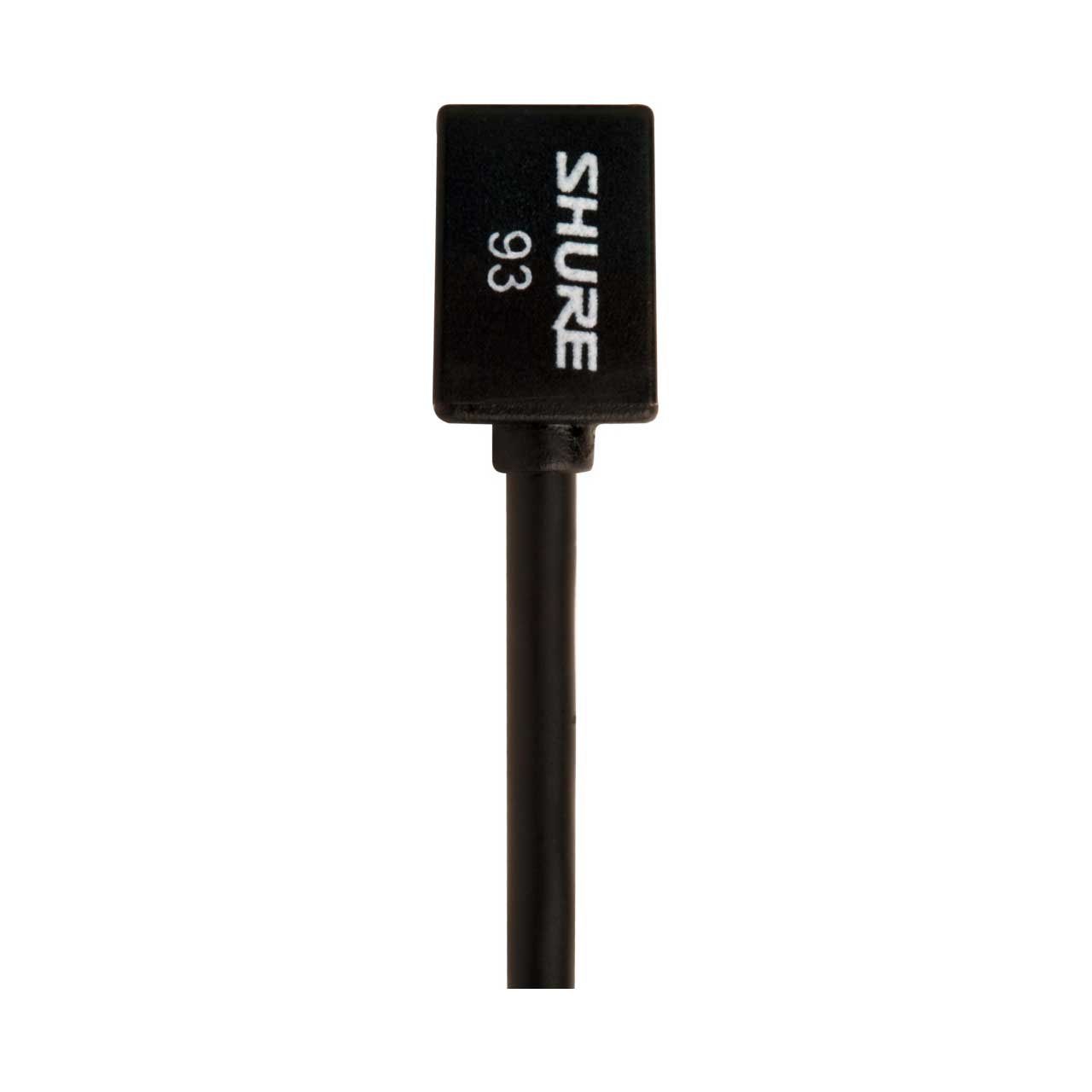

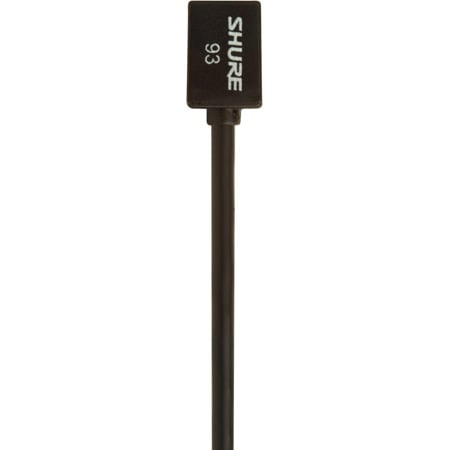

Shure WL93 Subminiature Omnidirectional Lavalier Mic - Black - 4 Foot Cable

WL93 - Overview

Subminiature Omnidirectional Lavalier Microphone - Black with 4ft Cable

• Features:

  • Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
  • Small, inconspicuous mounting hardware
  • Full, clear sound comparable to larger microphones
  • Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
  • Controlled low-frequency rolloff reduces low-frequency clothing and room noise
  • Low distortion, wide dynamic range
  • Uniform omnidirectional polar pattern
  • Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
  • Wide-range phantom powering (SM93) accepts all commonly used voltages


• Specifications:

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 20,000 Hz
  • Polar Pattern: Omnidirectional, uniform with frequency
  • Output Impedance: 3000 ohms
  • Output Level (1 Pascal = 94 dB SPL): Open Circuit Voltage: -38 dBV/Pa (13 mV)
  • Output Clipping Level (at 1,000 Hz): 0.25 V at 120 dB
  • Total Harmonic Distortion: Less than 1% at 120 dB
  • Maximum SPL: 120 dB
  • Dynamic Range (maximum SPL to A-weighted noise level): 102 dB
  • Output Noise (equivalent SPL): 18 dB typical, A-weighted
  • Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
  • Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*
    *Produces positive voltage at pin 2 of Shure wireless receiver three-pin connector
  • Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
  • Current Drain: 40 microA typical
  • Environmental Conditions:
    - Operating Temperatures: -18 to 57 degrees C (0 to 135 degrees F)
    - Storage Temperatures: -29 to 74 degrees C (-20 to 165 degrees F)
  • Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature connector type TA4F
  • Case: Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
  • Net Weight: Microphone: 16 g (0.57 oz)


• GTIN:

  0042406055338
