ATW-901A-G - Overview

Audio-Technica's ATW-901A-G System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

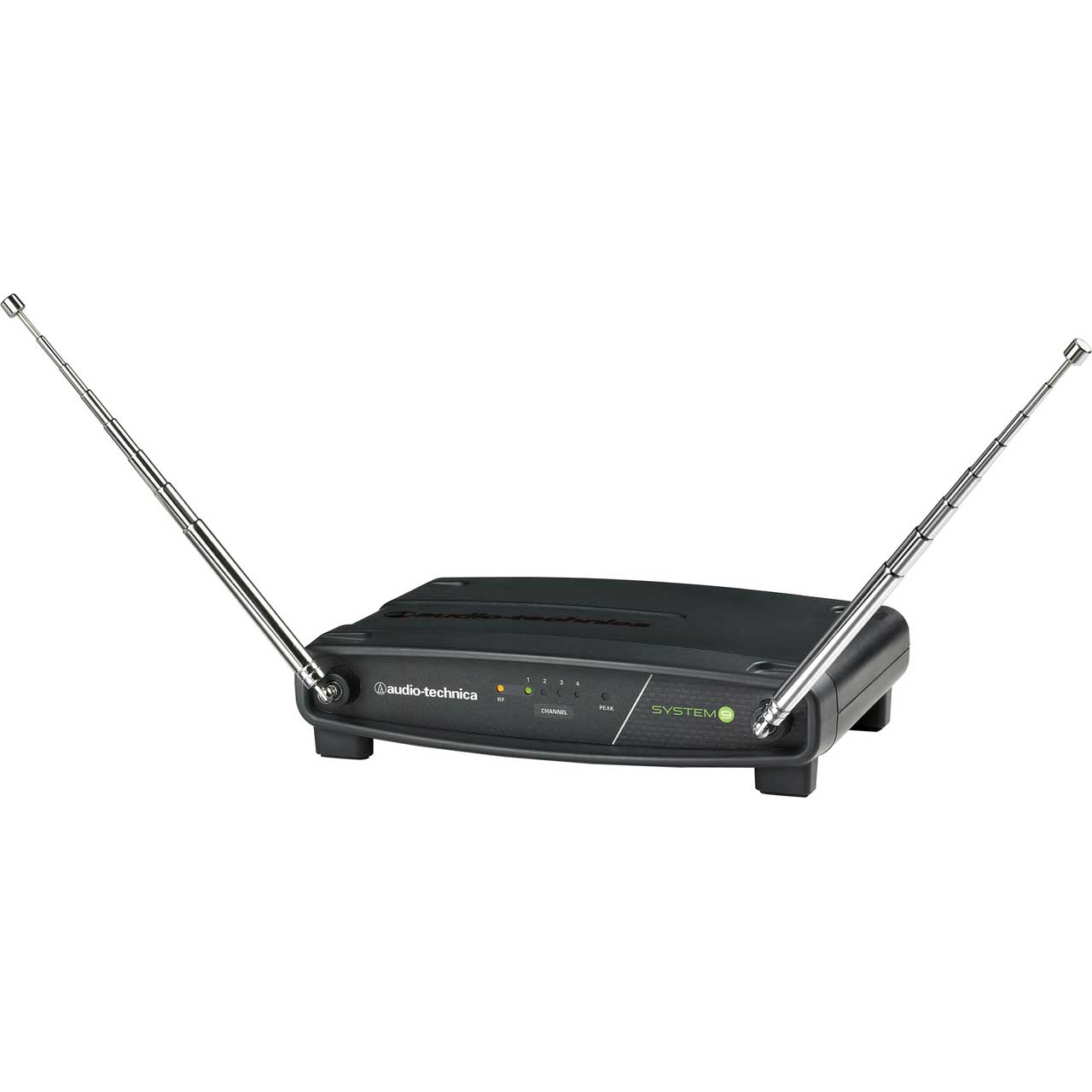

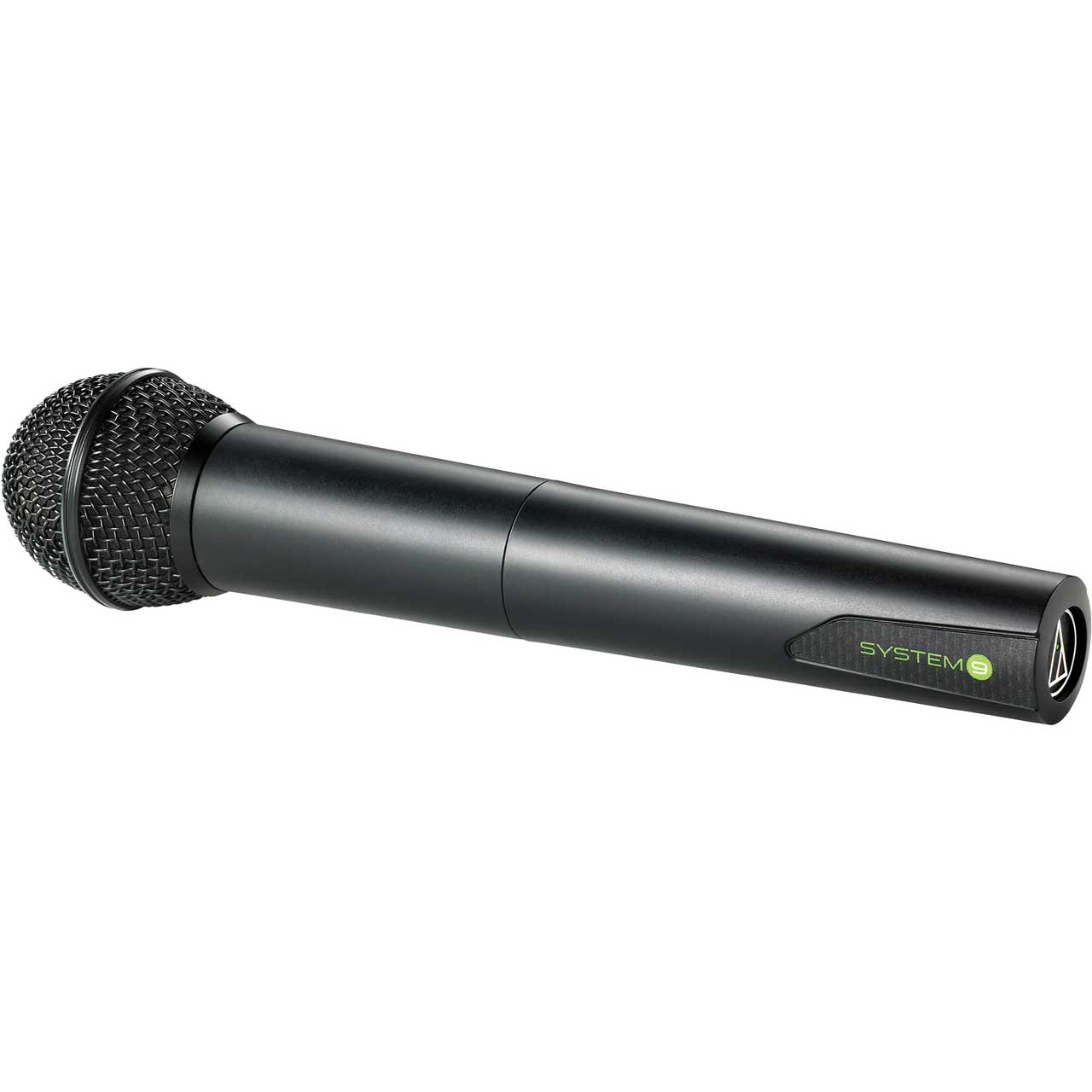

Each System 9 configuration includes the ATW-R900 receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.

  • Features:

    • Easy operation and clear, natural sound quality
    • 4 selectable frequency-coordinated VHF channels
    • Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
    • Reliable performance and durable construction
    • Advanced dipole antenna system for extended operating range


  • Specifications:

    • Overall System Specifications
    • Operating Frequencies: VHF highband, 169MHz - 172MHz
    • Modulation Mode: FM
    • Maximum Deviation: ±10kHz
    • Dynamic Range: ≥90dB (A-weighted), typical
    • Total Harmonic Distortion: <1% (@ 1kHz, ±10kHz deviation)
    • Operating Range: 200ft typical, Open range environment with no interfering signals
    • Operating Temperature Range: 40°F - 110°F, Battery performance may be reduced at very low temperatures
    • Frequency Response: 80Hz - 13kHz
    • Maximum Simultaneous Use (Recommended): 200ft minimum

      Receiver Specifications
    • Receiving System: Non-diversity, single-channel, dual antenna system
    • Image Rejection: 50dB minimum
    • RF Sensitivity: 20dBuV @ 60dB S/N ratio (50Ω termination)
    • Audio Output: Nominal Output Level; XLR, balanced: 350mV (1kHz modulation, 10kHz deviation, 100kΩ load); 1/4", unbalanced: 700mV (1kHz modulation, 10kHz deviation, 100kΩ load)
    • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC .5A (center positive) switched mode external power supply
    • Operating Temperature Range: 40°F - 110°F
    • Dimensions (HxWxD): 1.82" x 7.48" x 5.06"
    • Net Weight: 12.0oz

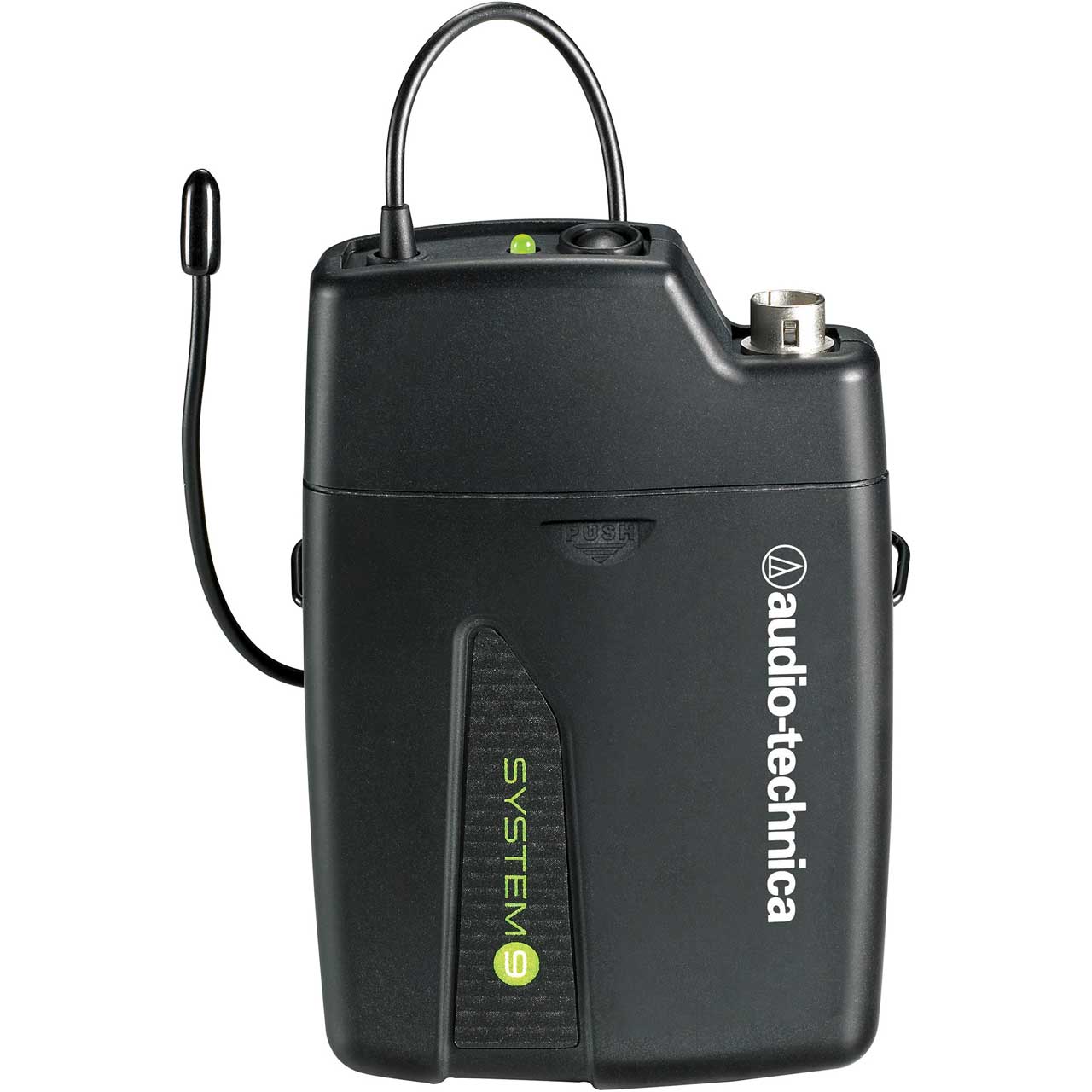

      Body-Pack Transmitter Specifications
    • RF Power Output: 10mW
    • Spurious Emissions: Following federal and national regulations
    • Input Connections: Four-pin Locking Connector; Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
    • Batteries: Two 1.5V AA, not included
    • Battery Life: 8 hours (alkaline), Depending on battery type and use pattern
    • Dimensions (HxWxD): 4.08" x 2.76" x 0.98"
    • Net Weight: 2.8oz, without batteries

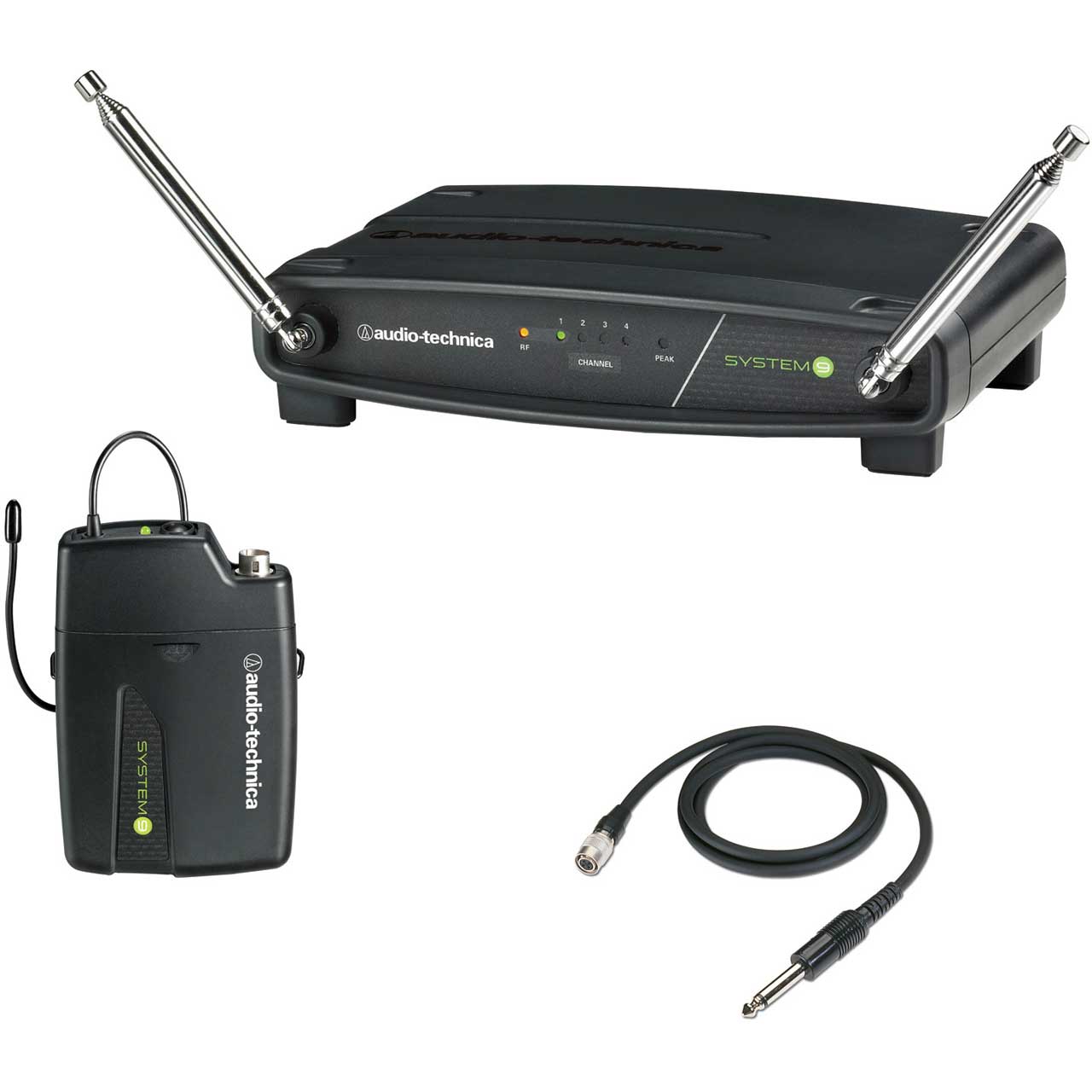

  • Item Includes:

    • Power supply
    • ATW-R900a Receiver
    • ATW-T901a Body-pack transmitter
    • AT-GcW Guitar/Instrument input cable


  • Warranty:

    • 2 Year Limited End-User


  • GTIN:

    0042005194889
