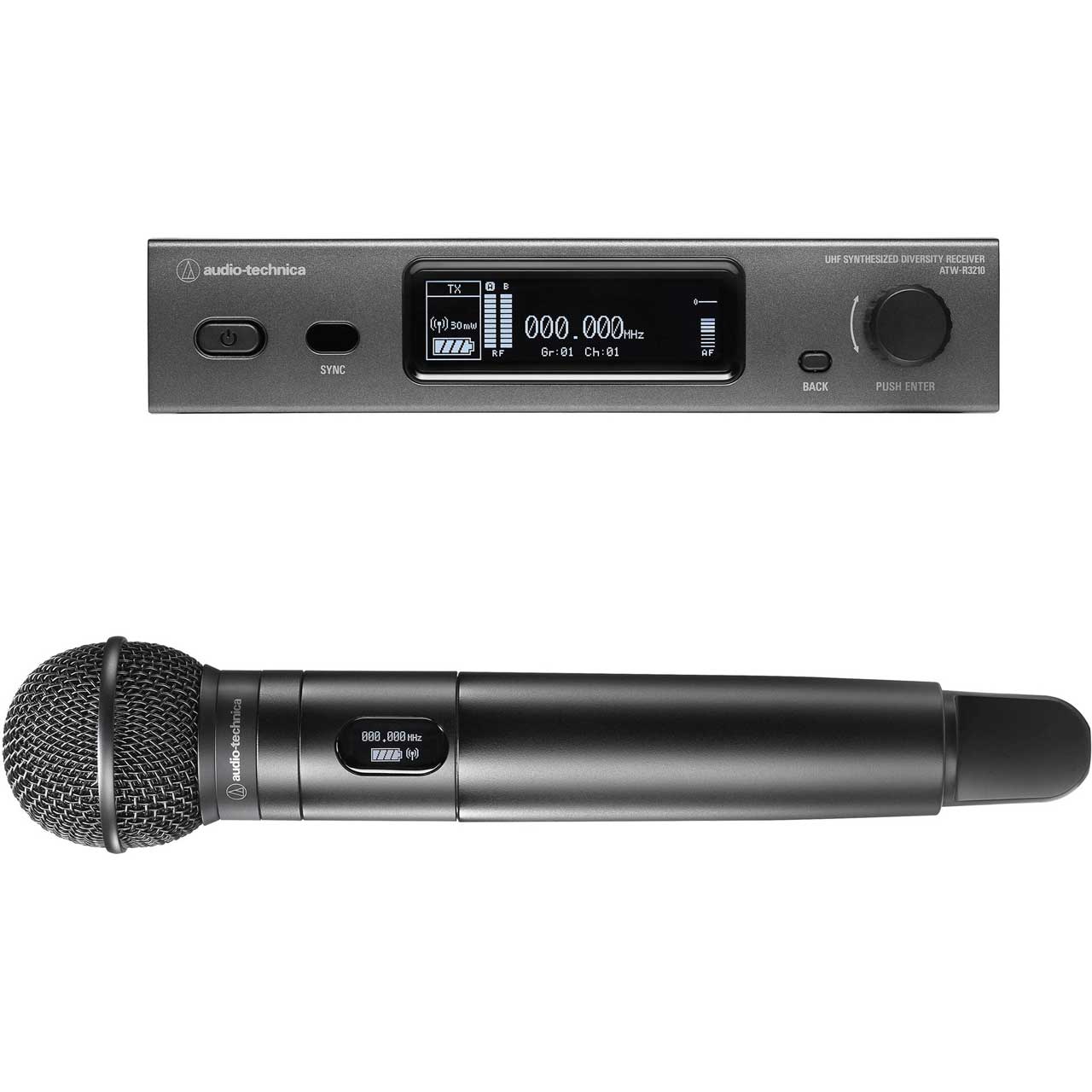

Audio-Technica ATW-3212/C510EE1 Wireless System R3210 Receiver T3202 Handheld Transmitter C510 Mic Capsule 530-590 MHz

ITEM #: AT-ATW3212C510EE MFG #: ATW-3212/C510EE1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$599.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ATW-3212/C510EE1 - Overview

The Audio-Technica ATW-3212/C510EE1 wireless microphone system with ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 cardioid dynamic microphone capsule is part of the fourth-generation 3000 Series wireless systems that give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands - DE2 (470-530 MHz) and EE1 (530-590 MHz) - that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference. Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.

  • Features:

    • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
    • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
    • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
    • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
    • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
    • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
    • Antenna power available for powered antennas and other in-line RF devices
    • Ground-lift switch helps eliminate audible hum caused by ground loops
    • Balanced and unbalanced audio output jacks

  • Specifications:

    • Overall System Specifications
    • Operating Frequencies: Band EE1: 530.000 - 589.975MHz (2400 frequencies), Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth/transmitting power due to local regulations
    • Minimum Frequency Step: 25kHz
    • Modulation Mode: FM
    • Maximum Deviation: ±36kHz (THD:10%)
    • Dynamic Range: >115dB (A-weighted), typical
    • Total Harmonic Distortion: <1.0% (@ 1kHz, ±17.5kHz deviation)
    • Operating Range: 328ft, Open range environment with no interfering signals
    • Operating Temperature Range: 23°F - 113°F
    • Frequency Response: 25Hz - 16,700Hz, Frequency response depends on attached microphone element
    • Maximum Simultaneous Use (Recommended): 40 Channels per band

      Receiver Specifications
    • Receiving System: True Diversity
    • Image Rejection: 60dB nominal
    • RF Sensitivity: 20dBuV @ 60dBA S/N ratio (50Ω termination)
    • Antenna Power: 12V DC, 160mA (combined)
    • Maximum Output Level: XLR, balanced: +14dBV; 1/4", unbalanced: +8dBV
    • Antenna Input: BNC-type, 50Ω
    • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC 1A (center positive) switched mode external power supply
    • Dimensions (HxWxD): 1.71" x 8.27" x 7.52"
    • Net Weight: 38.8oz, without accessories

      Handheld Transmitter Specifications
    • RF Power Output: High: 30mW, Low: 10mW (switchable), @ 50Ω
    • Spurious Emissions: Following Federal and National Regulations
    • Microphone Capsule: Interchangable industry standard thread
    • Batteries: Two 1.5V AA, not included
    • Battery Life: High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline); High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions
    • Dimensions: 10.43" long, 2.13" maximum diameter
    • Net Weight: 11.6oz, without batteries

  • Item Includes:

    • Two flexible UHF antennas
    • AC adapter (country dependent)
    • Rack-mount adapters

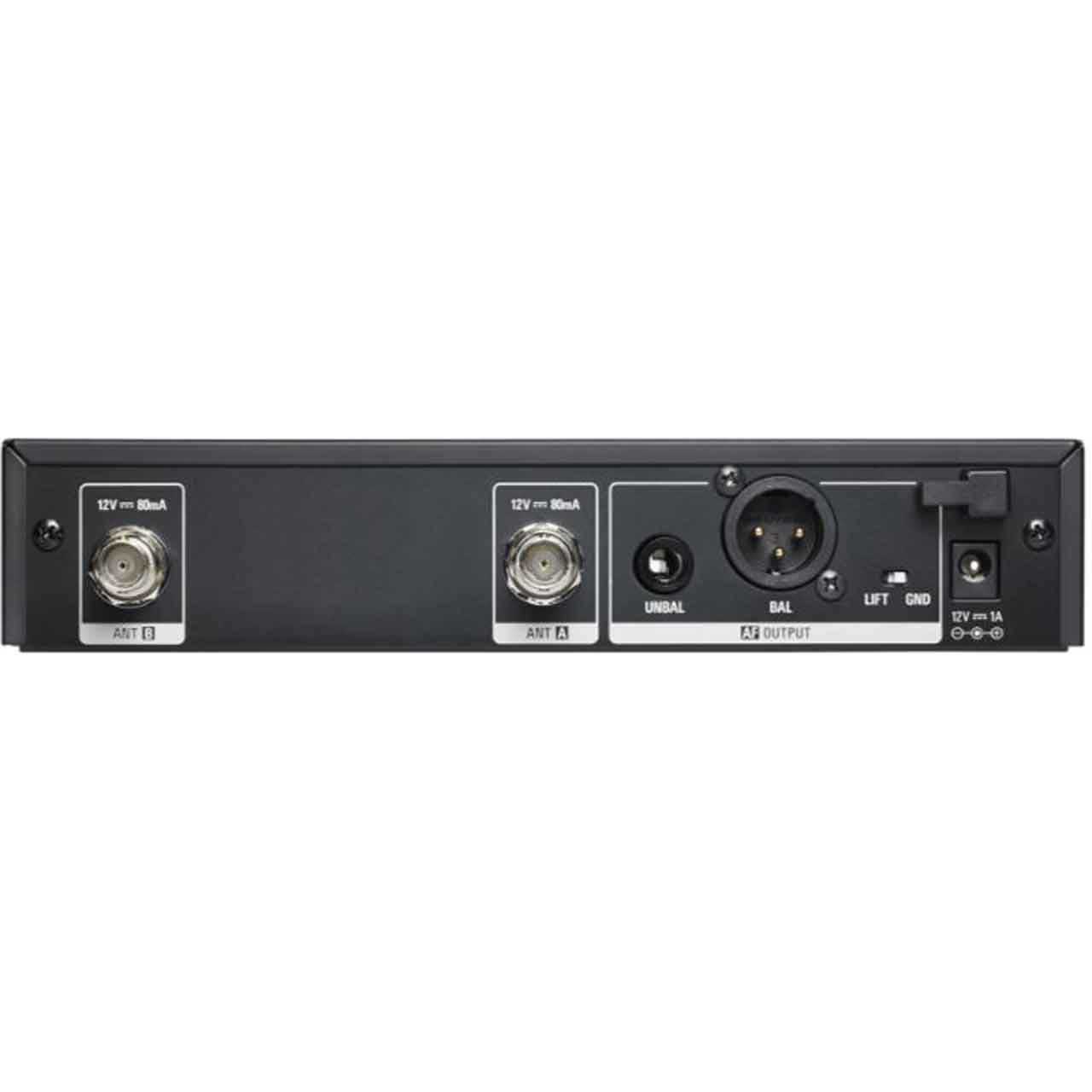

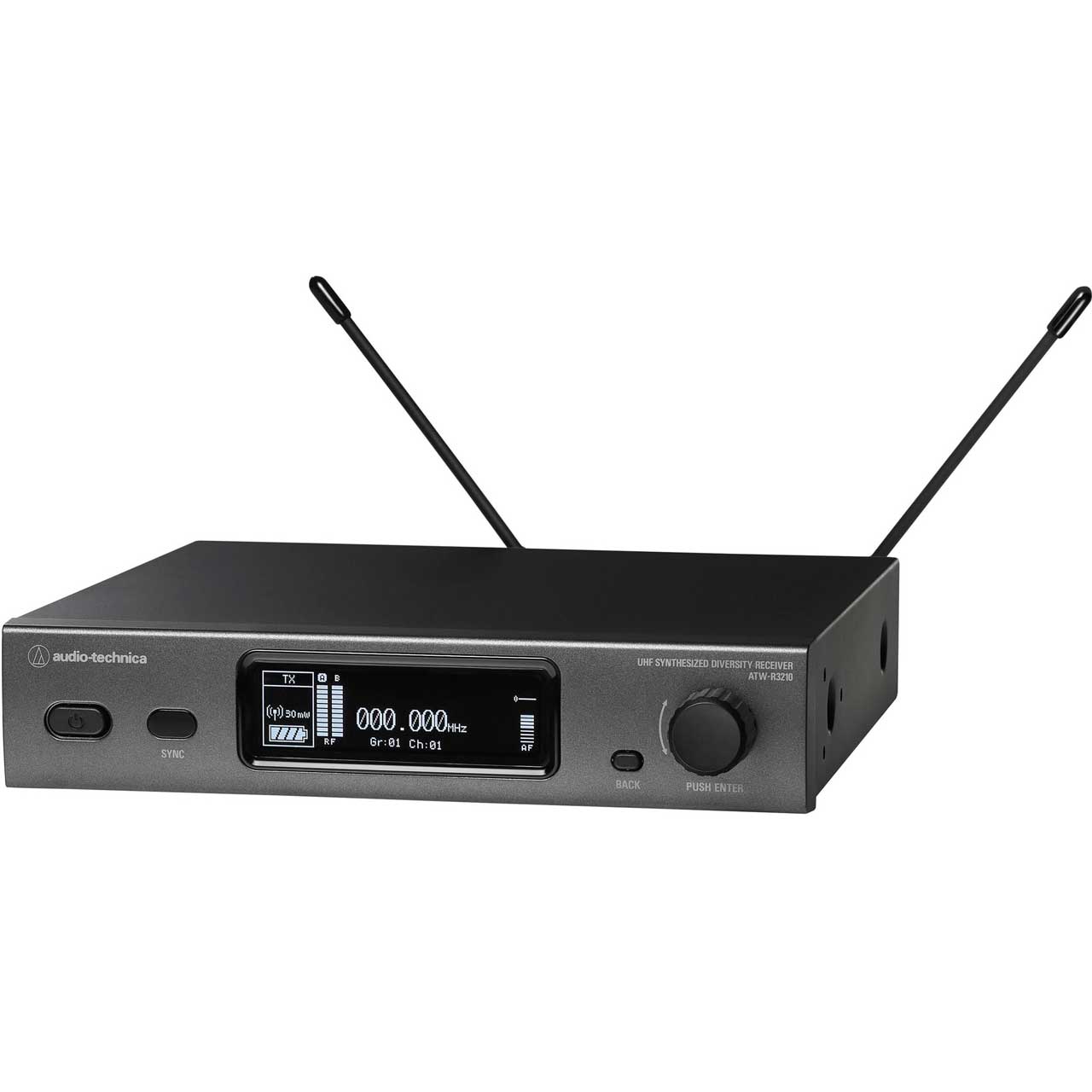

    • ATW-R3210 Receiver

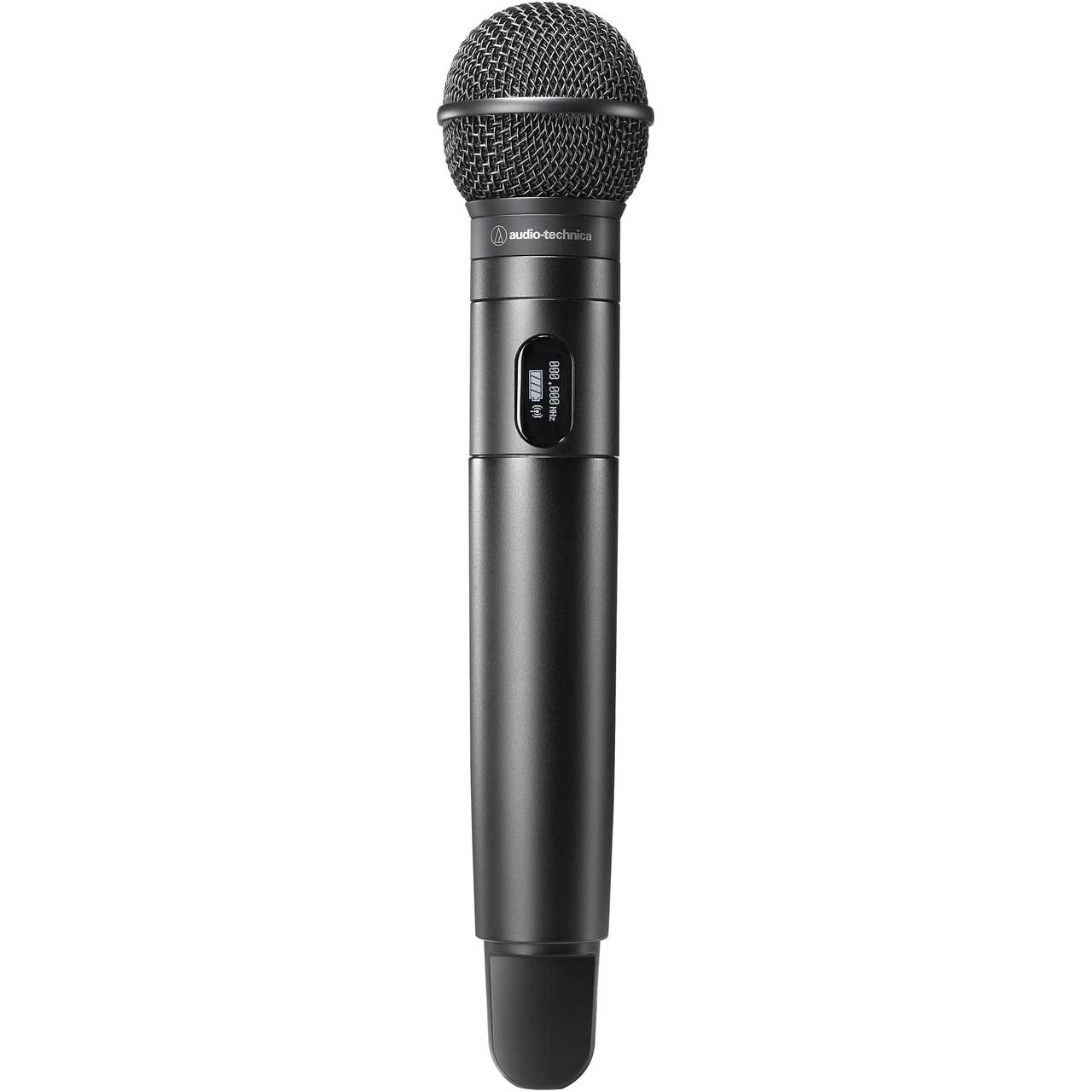

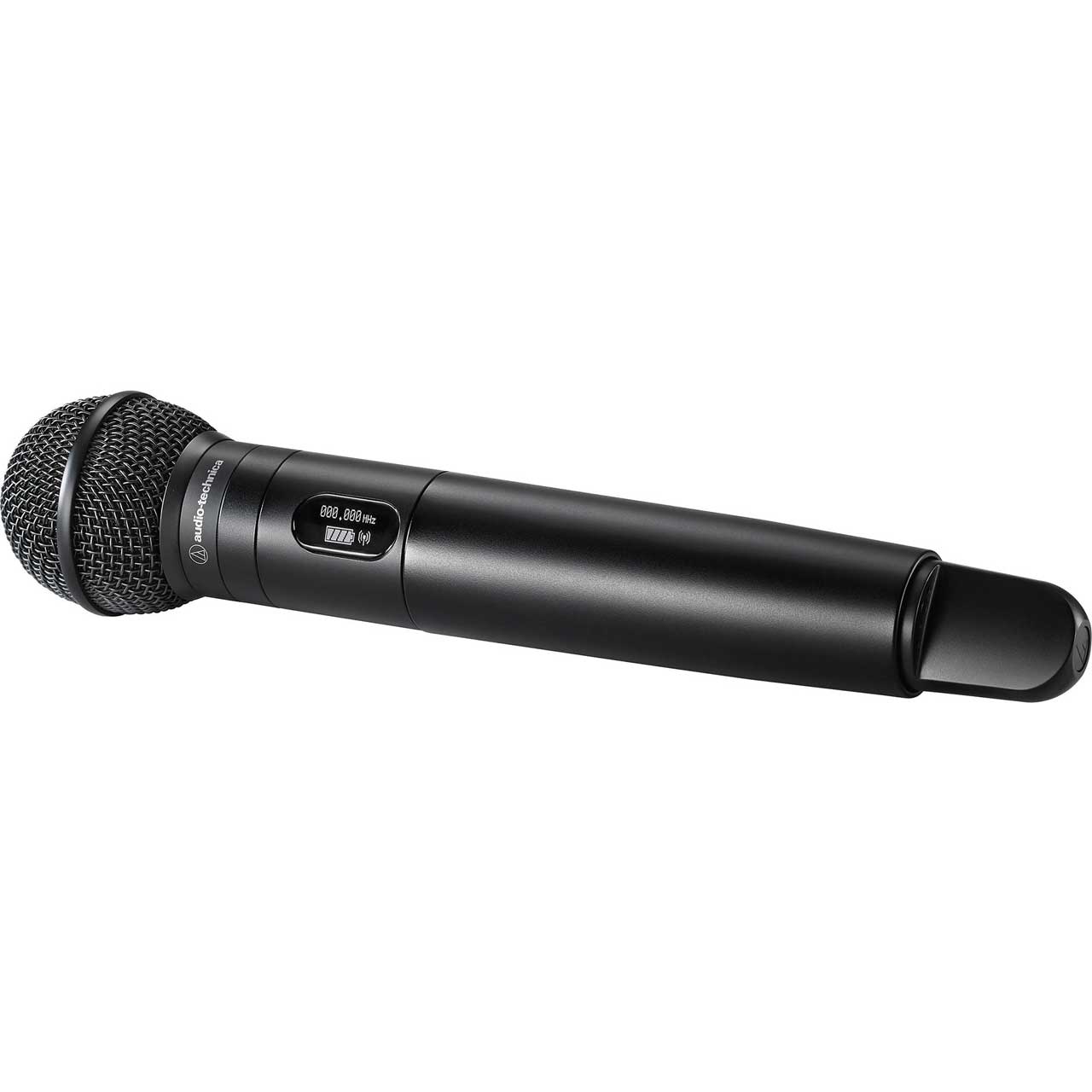

    • ATW-T3202 Handheld transmitter
    • ATW-C510 Cardioid dynamic microphone capsule

  • GTIN:

    4961310143497
