Audio-Technica AT4050ST Stereo Condenser Microphone

AT4050ST - Overview

• Features:

  • Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement
  • Independent cardioid and figure-of-eight condenser elements
  • Switch selection of Mid-Side mode and two internally matrixed stereo modes

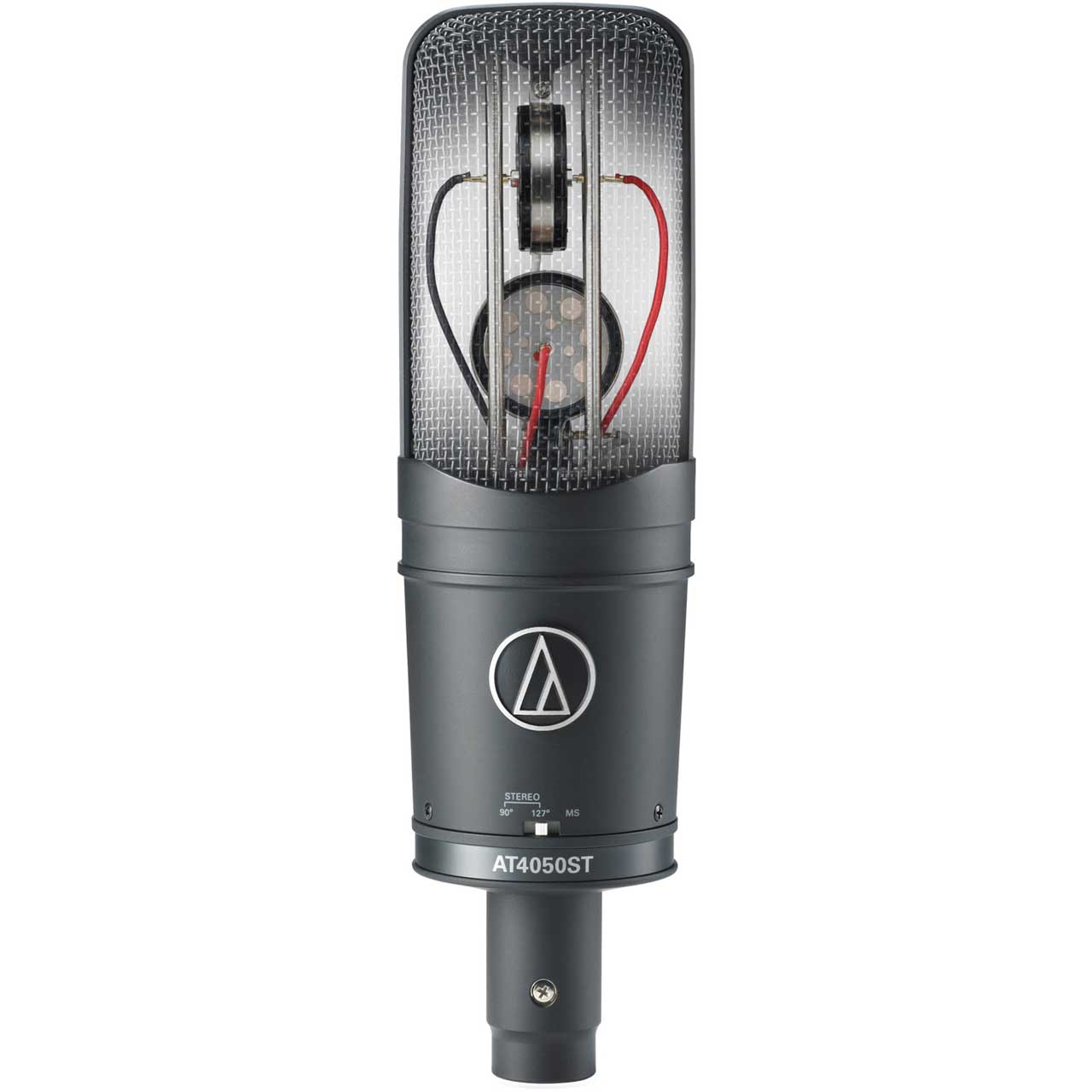

  • Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • Integral 80Hz high-pass filter switch and 10dB pad switch
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards

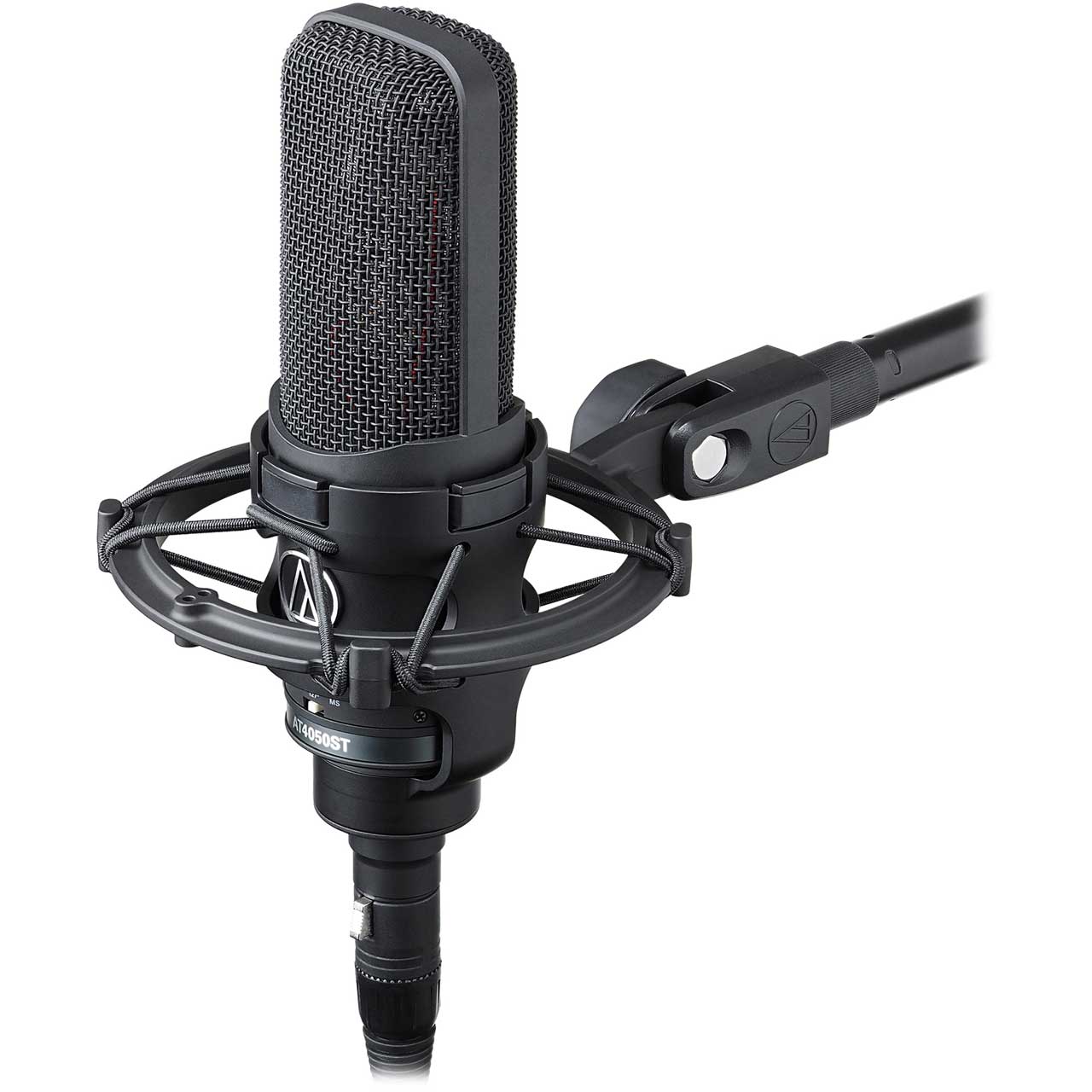

  • Custom shock mount provides superior isolation
  • Certified by the METAlliance (Music Engineering and Technology Alliance)


• Specifications:

  • Element: Externally-polarized (DC bias) condenser
  • Polar Pattern: Cardioid and Figure-of-eight
  • Frequency Response: 20 - 18,000Hz
  • Low Frequency Roll-Off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: Stereo 90°: -42dB (7.9mV) dB re 1V @ 1Pa; Stereo 127°: -41dB (8.9mV) dB re 1V @ 1Pa; Mid: -36dB (15.8mV) dB re 1V @ 1Pa; Side: -36dB (15.8mV) dB re 1V @ 1Pa
  • Impedance: 50Ω
  • Maximum Input Sound Level: Mid and Side: 149dB SPL, 1kHz @ 1% T.H.D.; 159dB SPL, with 10dB pad (nominal)
  • Noise: Stereo 90°: 25dB SPL; Stereo 127°: 16dB SPL; Mid: 15dB SPL; Side: 17dB SPL
  • Dynamic Range (typical): Mid: 134dB, 1kHz @ Max SPL; Side: 132dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: Stereo 90°: 69dB, 1kHz @ 1Pa; Stereo 127°: 78dB, 1kHz @ 1Pa; Mid: 79dB, 1kHz @ 1Pa; Side: 77dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 48V DC, 6.4mA typical (both channels total)
  • Swithces: 90°, 127°, M-S; Flat, roll-off; 10dB pad (nominal)
  • Weight: 18.2oz
  • Dimensions: 7.60" long, 2.10" maximum body diameter
  • Output Connector: Integral 5-pin XLRM-type
  • Cable: 16.5ft long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
  • Audio-Techinca Case Style: R1

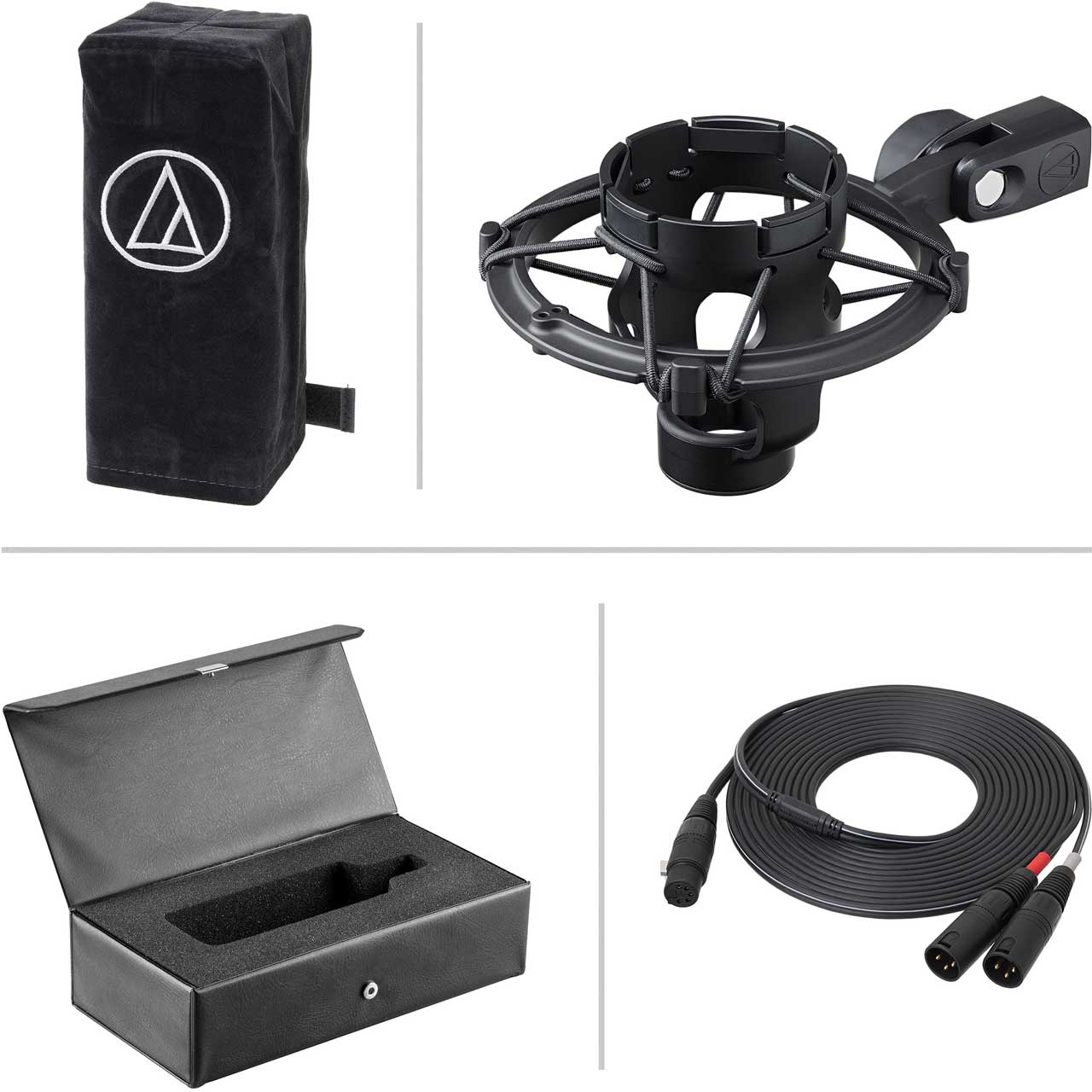

• Item Includes:

  • AT8449a shock mount for 5/8"-27 threaded stands
  • Microphone dust cover
  • Protective carrying case


• Warranty:

  • 5 Year Limited End-User


• GTIN:

  4961310106676
