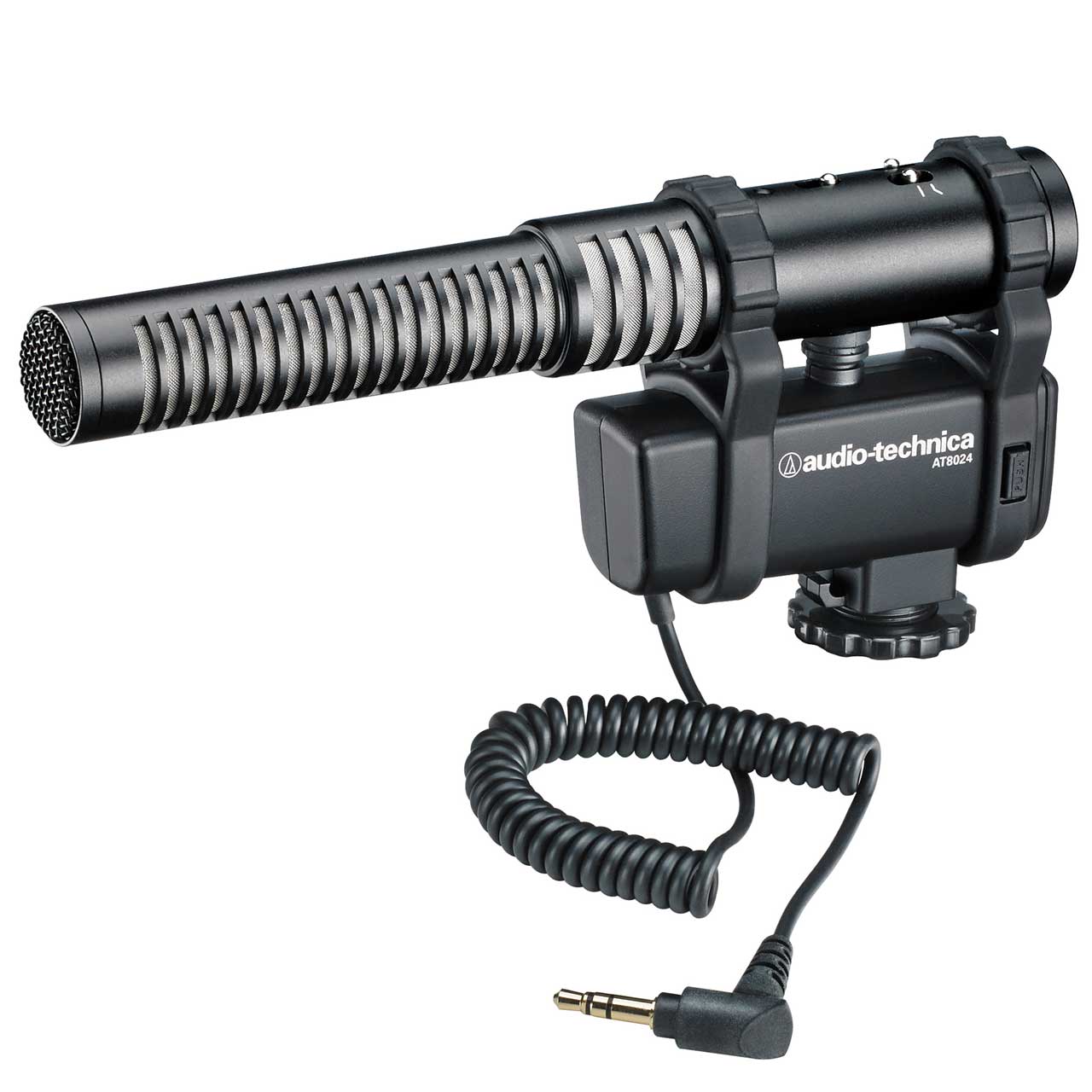

Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone

ITEM #: AT8024 MFG #: AT8024

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$249.00

Availability: In Stock
iAvailability Description Popup


AT8024 - Overview

With its lightweight yet feature-rich design, the Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone offers a simple, powerful solution for capturing high-resolution audio for video. Selectable line-cardioid mono and internally matrixed mid-side stereo modes provide the flexibility to focus the recording on a single sound source or to widen the field for outstanding sonic realism. In either mode, the AT8024 delivers audio that is dramatically better than that supplied by the camera's internal microphone.

The AT8024 camera-mount microphone also comes equipped with a three-position adjustable attenuator (-20dB, -10dB, 0dB) to capture even soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches quickly to DSLRs and shoe-equipped camcorders.

  • Features:

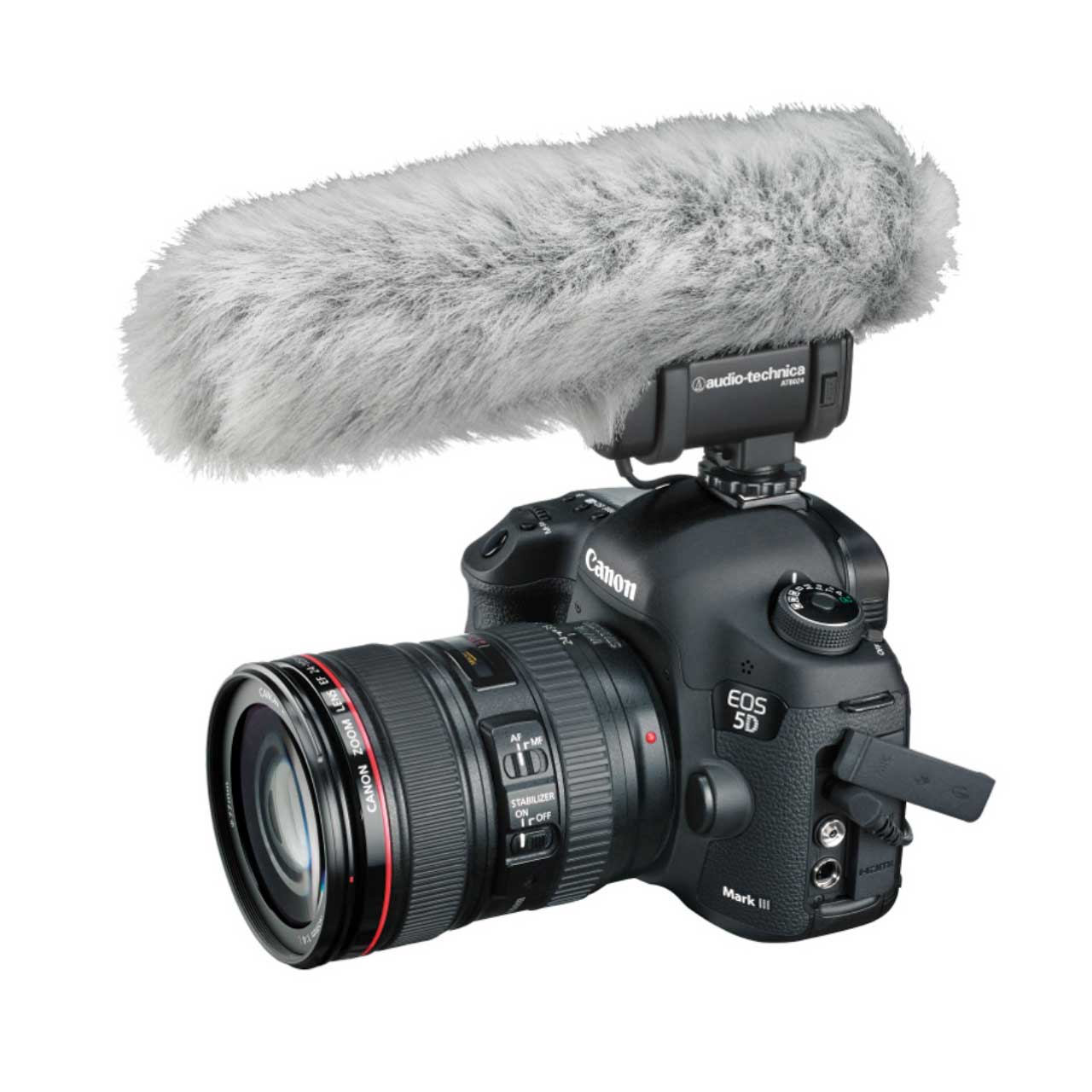

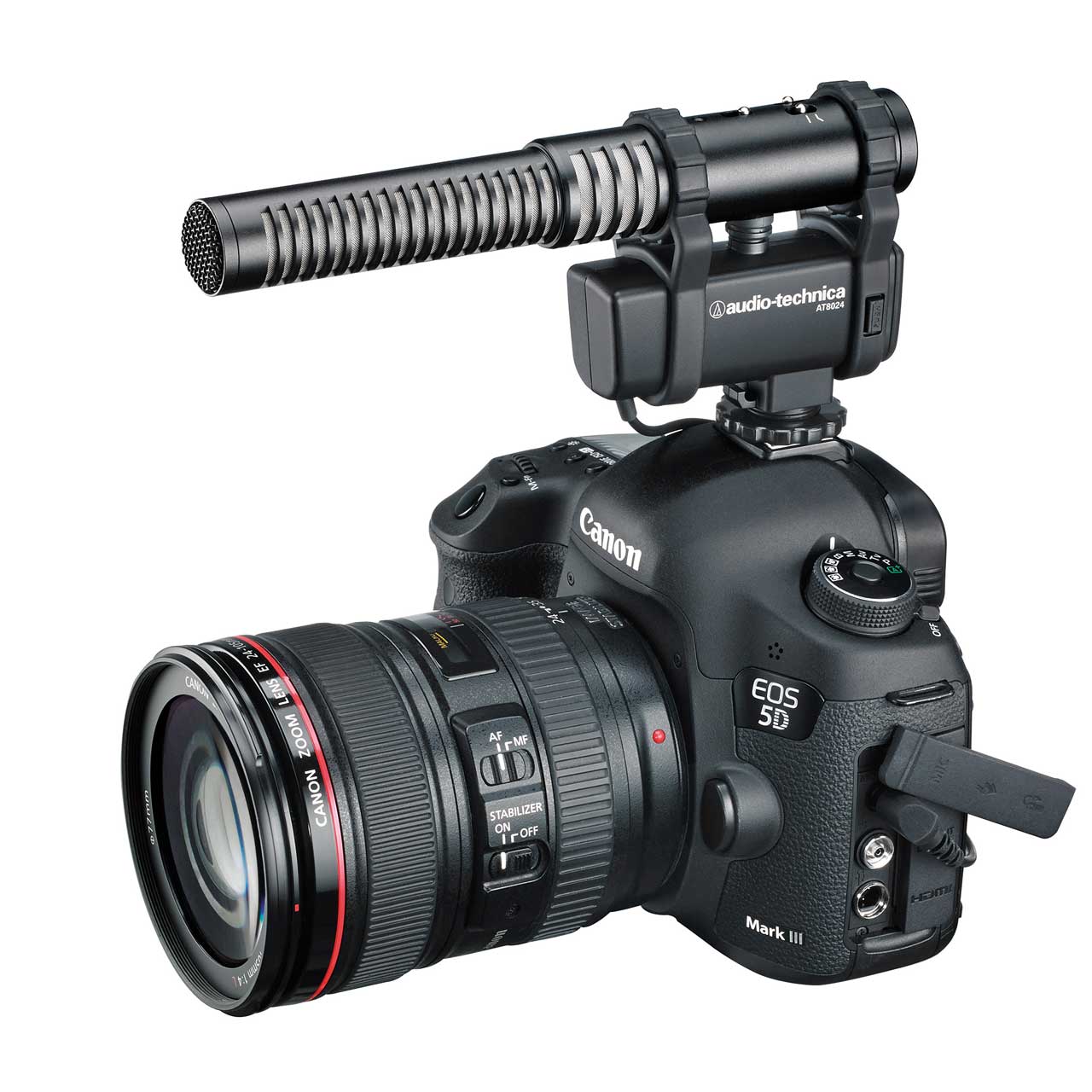

    • Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera's internal microphone
    • Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
    • Handles loud sound sources without distortion
    • Three-position adjustable attenuator and switchable low-frequency roll-off
    • Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
    • Compact, lightweight design with integral shoe mount
    • Red/green LED power indicator

  • Specifications:

    • Elements: Fixed-charge back plate, permanently polarized condenser
    • Polar Patterns: Line-cardioid, LR stereo
    • Frequency Response: 40 - 15,000Hz
    • Low Frequency Roll-Off: 80Hz, 12dB/octave
    • Open Circuit Sensitivity: -37dB (14.1mV) re 1V @ 1Pa (Mono & LR Stereo)
    • Impedance: 50Ω
    • Maximum Input Sound Level: 128dB SPL, 1kHz @ 1% T.H.D.
    • Dynamic Range (typical): Mono: 106dB, 1kHz @ Max SPL; Stereo: 104dB, 1kHz @ Max SPL
    • Signal-To-Noise Ratio: Mono: 72dB, 1kHz @ 1Pa; Stereo: 70dB, 1kHz @ 1Pa
    • Battery Type: One 1.5V AA (included); Life: 80 hours, typical
    • Switches: Mono, M-S Stereo; Three-position attenuator; Flat, roll-off
    • Weight: 4.0 oz
    • Dimensions: 6.77" long, 0.94" maximum body diameter
    • Output Connector: 3.5mm stereo mini-plug on cable
    • Audio-Technica Case Style: CM1

  • Item Includes:

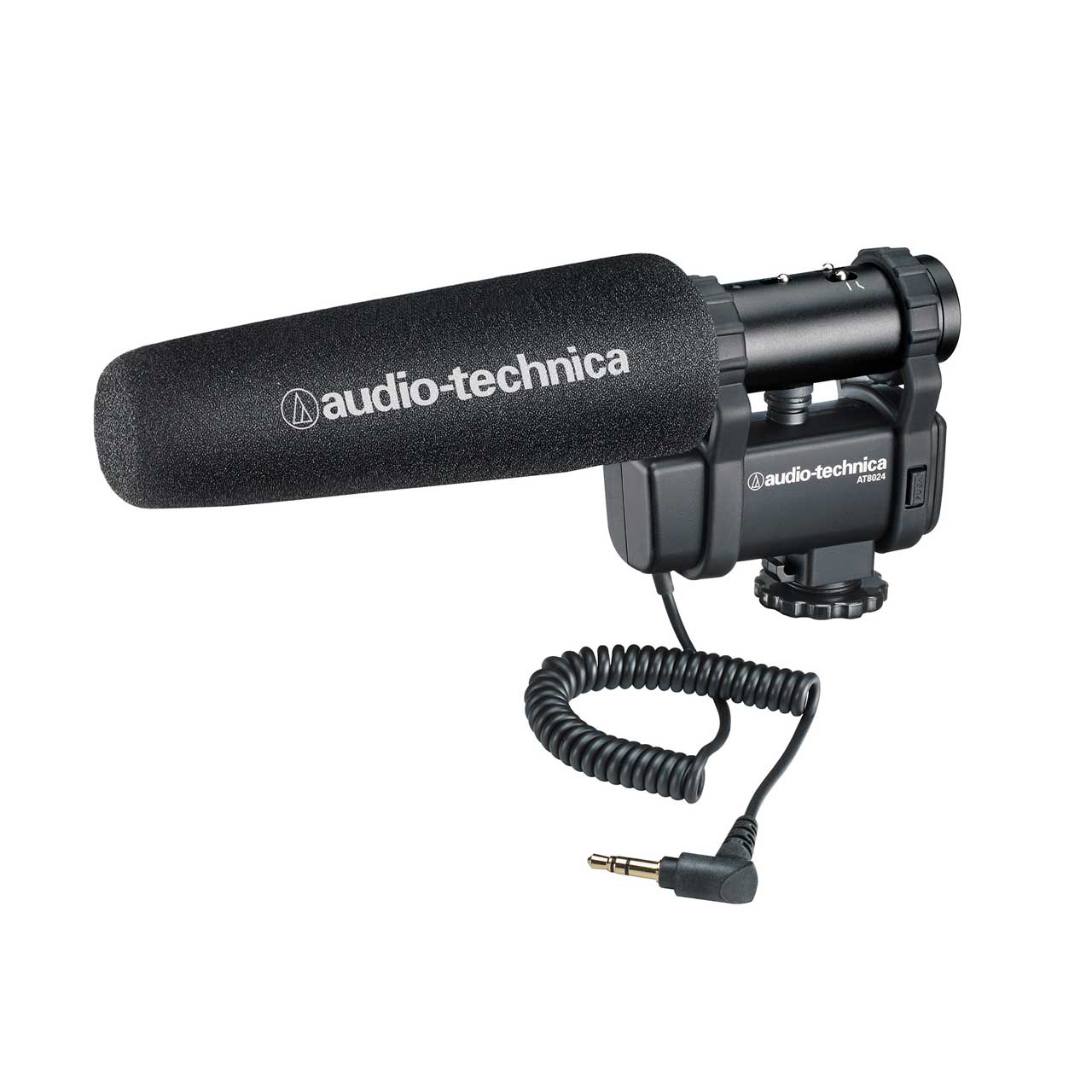

    • Windscreen
    • Fuzzy windscreen
    • AA battery

  • Warranty:

    • 5 Year Limited End-User

  • GTIN:

    4961310127657
