Audio-Technica AT8539 Power Module

ITEM #: AT8539 MFG #: AT8539

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$129.00

Our Price:

$89.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AT8539 - Overview

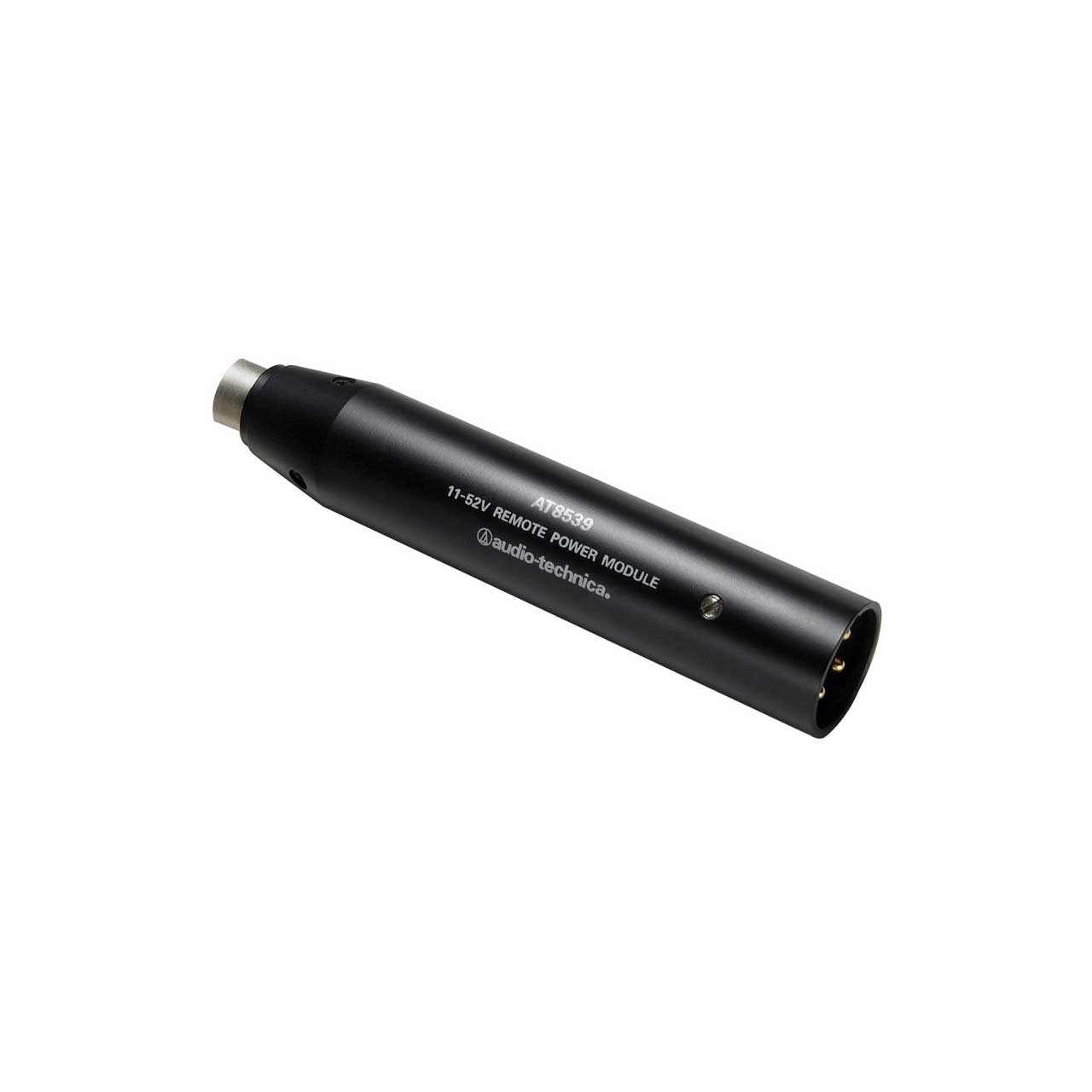

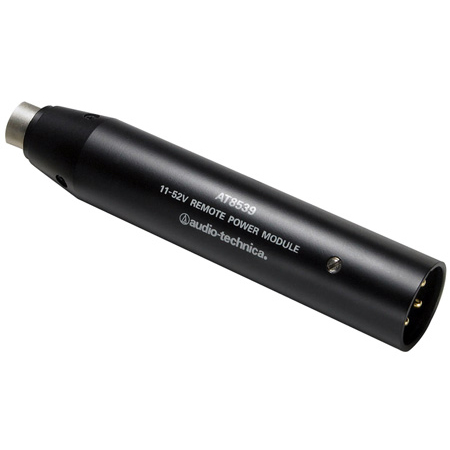

The Audio-Technica AT8539 power module allows any Audio-Technica Wireless Essentials® microphone to operate as a wired microphone. The power module's HRS-type 4-pin input connector mates with any Audio-Technica Wireless Essentials® (wireless microphone with model number ending in a cW); its output is a standard 3-pin XLRM-type connector.

It offers a low-cut filter to help minimize the pickup of unwanted low frequencies. To engage the low-cut filter, use the end tip of a paperclip or other small pointed instrument to slide the switch toward the "bent" line.

The power module is constructed of rugged steel for maximum durability and optimum shielding from hum.

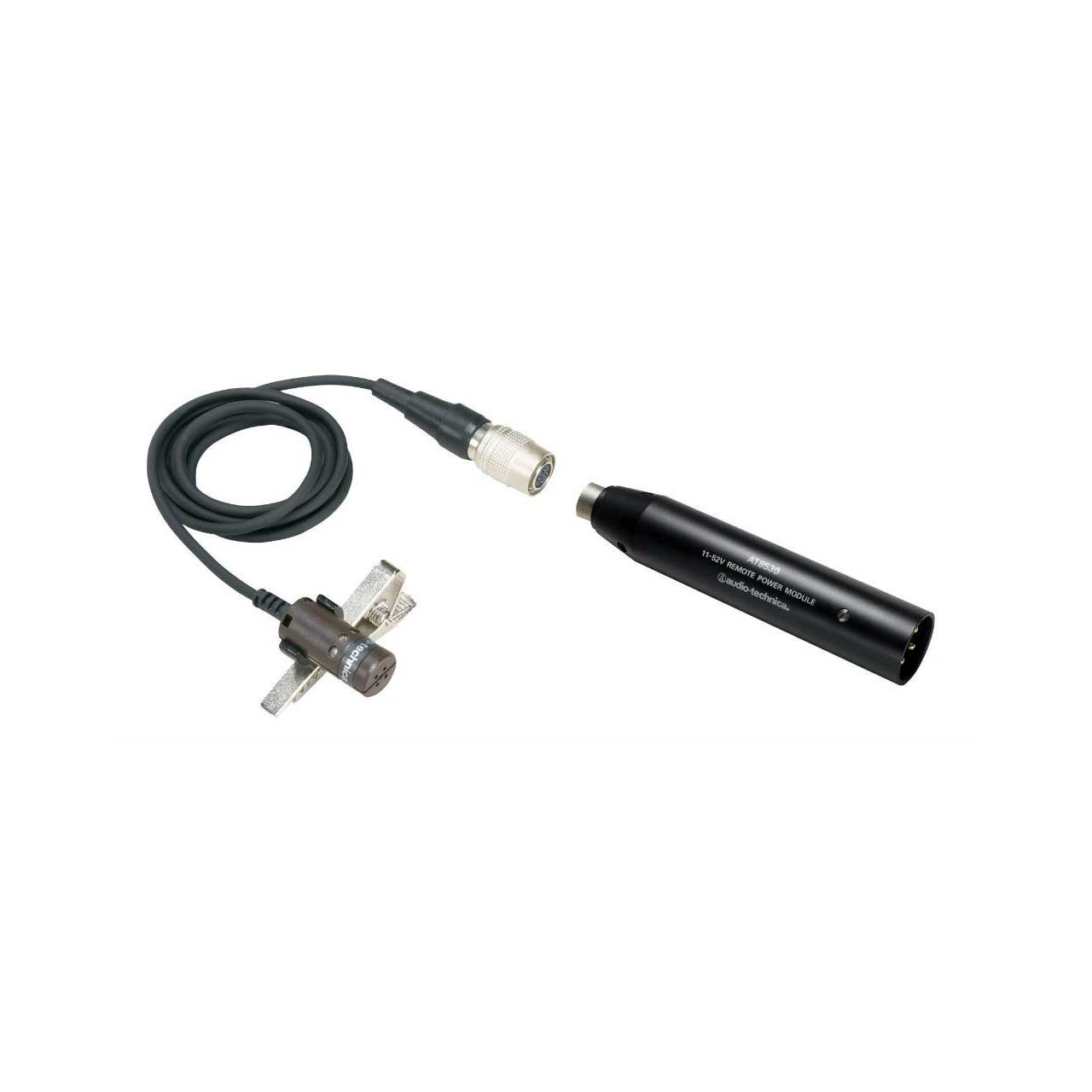

Shown above with the Audio Technica ES943C mic (not included).

  • Features:

    • HRS-type input connector allows any A-TWireless Essentials® microphone to function as a wired model
    • Switchable low-cut filter minimizes pickup of unwanted low frequencies
    • XLRM-type output connector
    • Designed to plug directly into an XLR-type chassis connector
    • Rugged steel case construction

  • Specifications:

    • Input/Output Connectors: HRS-type 4-pin/XLRM-type
    • Frequency Response: Microphone dependent
    • Impedance: 250Ω
    • Low-Cut Filter: 80Hz, 18dB/octave
    • Phantom Power: 11 - 52V DC, 2mA typical
    • Switch: Flat/Roll-off
    • Dimensions: 3.84" long, 0.74" diameter

  • Item Includes:

    • Snap-on belt clip

  • Warranty:

    • 2 Year Limited End-User

  • GTIN:

    0042005152612
