Audio-Technica AT8666RSC Microphone Desk Stand with Switch and External Contact Closure

ITEM #: AT8666RSC MFG #: AT8666RSC

Primary Image
Audio-Technica
Free Shipping with $49 Minimum Order
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AT8666RSC - Overview

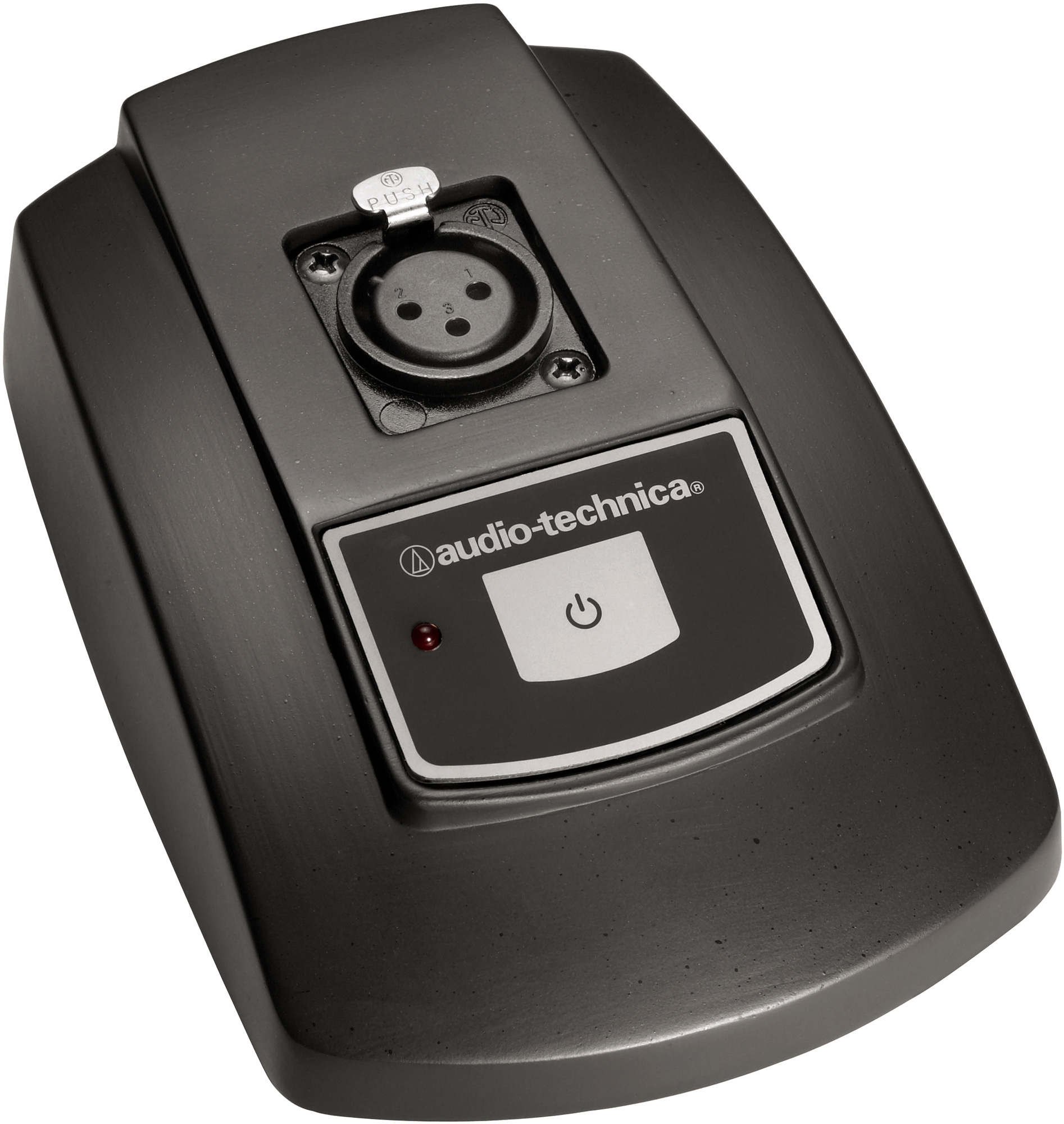

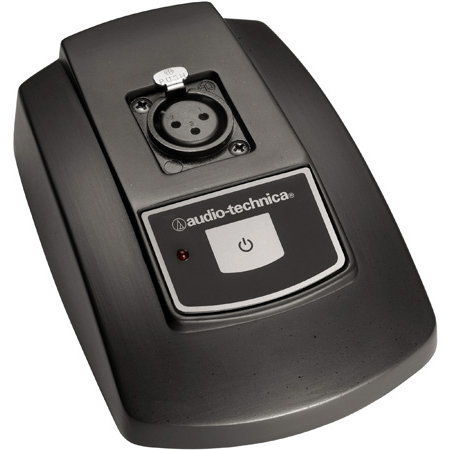

The Audio-Technica AT8666RSC desk stand features a touch-sensitive on/off switch, indicator LED and external contact closure ability for controlling remote devices. The sturdy metal base is equipped with a three-pin XLRF-type in, and a five-pin XLRM-type output connector. It is designed to fit any phantom-powered gooseneck microphone with a three-pin XLRM-type output.

The AT8666RSC requires 11V to 52V phantom power for operation. The electronics in the desk stand take up to 30 seconds to stabilize after power is applied; during this start-up period, some sonic disturbances may be heard upon switching if the system is "live."

The touch-sensitive on/off switch can be configured for touchon/touch-off, momentary on ("press to talk"), or momentary off ("press to mute"). Slide the switch marked "SW. FUNCTION" (located on the bottom of the unit) to the appropriate mode. The indicator LED and external contact closure follow the operation of the touch switch, when in the local mode.

Fits Audio-Technica Case Style(s): M9, M11, M23, M26, M27, M34, M35

  • Features:

    • Quick-mount plug-in desk stand for any phantom-powered gooseneck microphone with 3-pin XLRM-type output
    • Ultra-quiet electronic switch with three operating modes: "touch-on/touch-off," "touch-to-talk" and "touch-to-mute"
    • External contact closure capability permits control of remote devices from desk stand switch
    • Local/remote switching operation allows for use with Acoustic Echo Cancellers (AEC) or other devices requiring independent microphone and control outputs
    • External LED control allows for accurate depiction of the live status of the microphone
    • Operates on 11V - 52V DC phantom power
    • 3-pin XLR-type connector for microphone, 5-pin XLR-type connector for output
    • Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the unit
    • Low-profile design with low-reflectance black finish for minimum visibility


  • Specifications:

    • Switches: Touch-sensitive control: on/off; Switch function: touch on/off, momentary on, momentary off; Control: local, remote, LED remote
    • Weight: 29.7oz
    • Dimensions: 5.23" maximum length, 3.58" maximum width, 1.49" maximum height
    • Input Connector: 3-pin XLRF-type
    • Output Connector: 5-pin XLRM-type
    • Off Attenuation: 44dB minimum
    • Phantom Power Requirements: 11 - 52V DC, 2mA typical
    • Closure I/O Voltage: -0.5V - 5.5V
    • Closure Through Current: 100mA
    • Power Dissipation: 720mW
    • On Resistance: 20 ±8Ω
    • I/O Leakage Current: 400nA
    • LED Input: Active when high (+5V DC) TTL compatible
    • Maximum Input Voltage: -0.5V - 5.5V


  • Warranty:

    • 2 Year Limited End-User


  • GTIN:

    0042005139965
