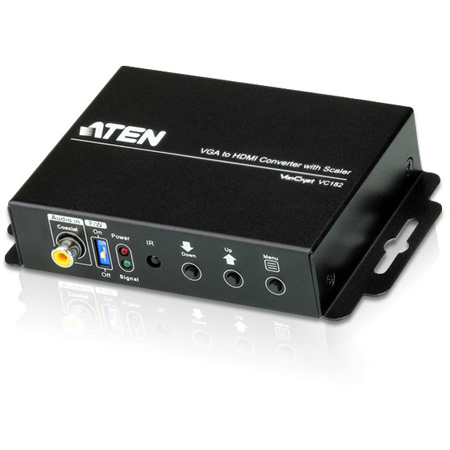

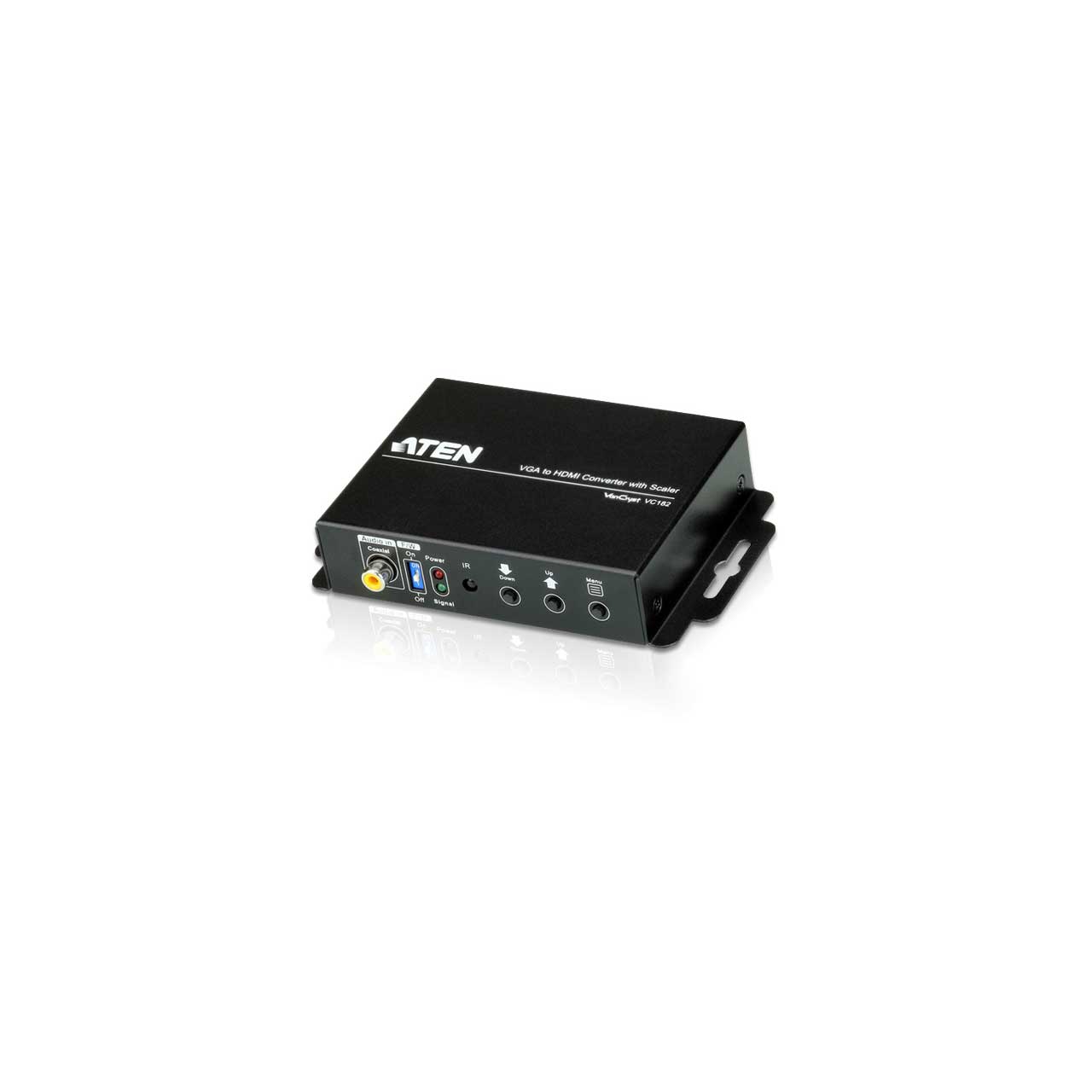

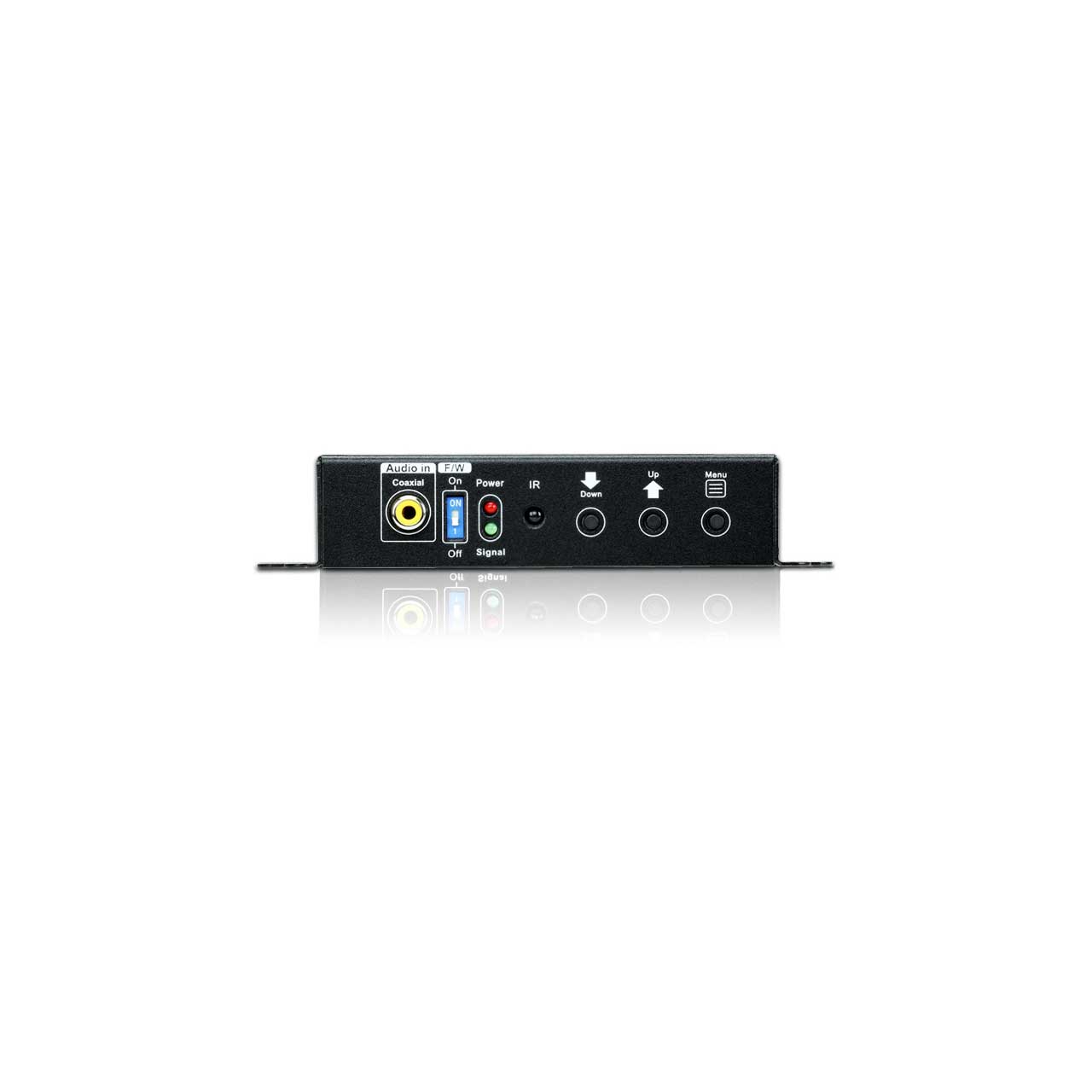

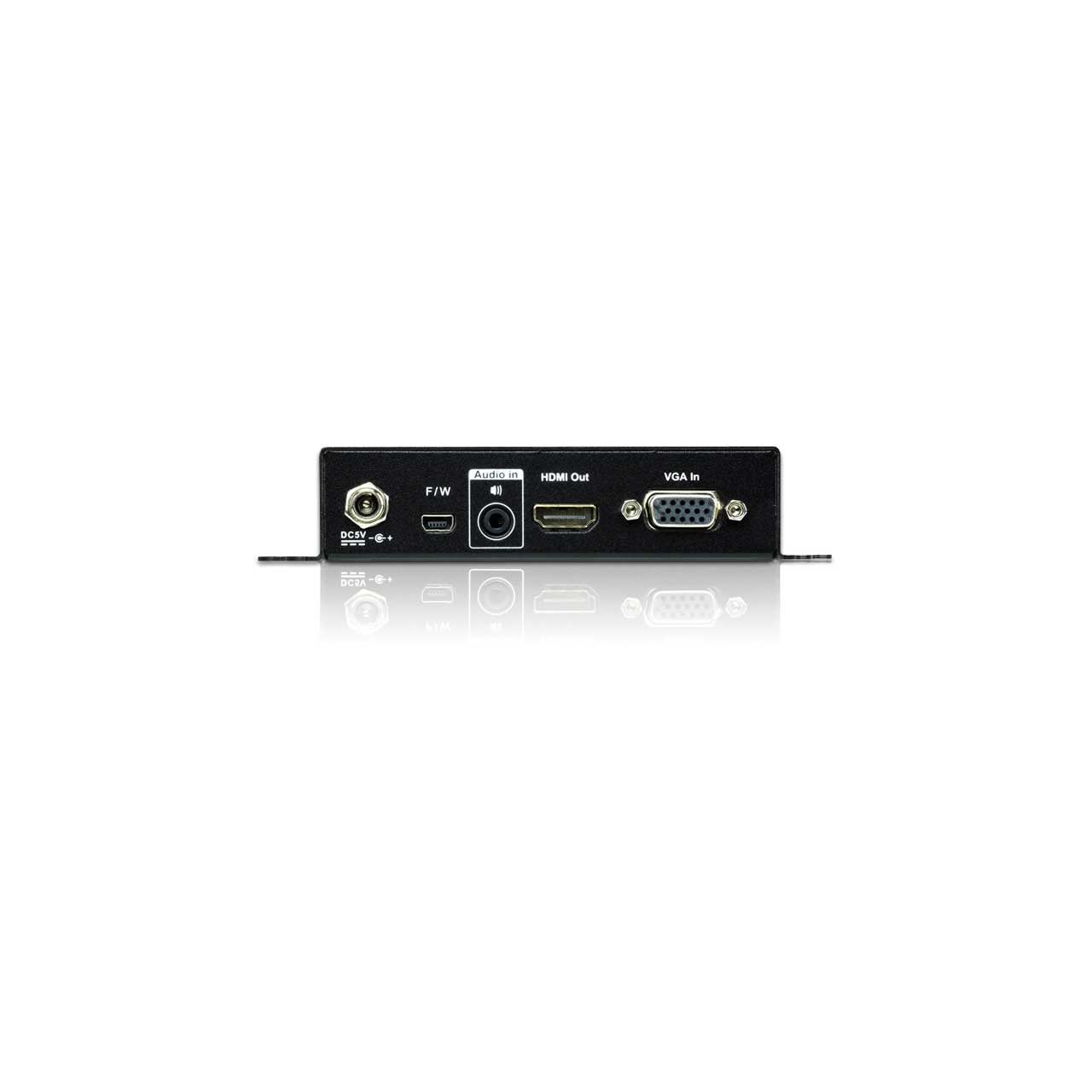

ATEN VC182 VGA to HDMI Converter with Scaler

VC182 - Overview

• Features:

  • Converts VGA signals to HDMI output
  • Supports analog / digital audio
  • Superior video quality – up to 1080p, 1920 x 1200
  • Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
  • 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
  • Features a built in high-performance scaler function for best image quality
  • Features a superior de-interlacer function for smooth video playback quality
  • Built-in OSD function for video and system settings confi guration
  • Integrated superior video noise reduction
  • Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
  • Automatically detects video input signals
  • LED indication of power status and source device
  • No software required – eliminates incompatibility and installation issues
  • Device configuration using a utility tool via mini USB port
  • Supports 16:9 and 4:3 video aspect ratios
  • Multiple selectable video resolutions
    Impedance 75Ω
  • Video Output
  • Interfaces 1 x HDMI Type A Female (Black)
  • Impedance 100Ω
  • Video
  • Max. Pixel Clock 165 MHz
  • Max. Resolution Up to 1080p
  • Scaler Resolutions 480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024;
  • 1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050;
  • 1080i; 1080p; 1920 x 1200
  • Audio
  • Input Analog: 1 x Mini Stereo Jack Female (Black)
  • Digital: 1 x RCA (Yellow)
  • Power
  • Connectors 1 x DC Jack
  • Consumption 5 VDC, 5W
  • Environmental
  • Operating Temperature 0 - 40 °C
  • Storage Temperature -20 - 60 °C
  • Humidity 20 - 90% RH, Non-Condensing


• Specifications:

  • Video Input
  • Interfaces 1 x HDB-15 Female (Blue)
  • Impedance 75Ω
  • Video Output
  • Interfaces 1 x HDMI Type A Female (Black)
  • Impedance 100Ω
  • Video
  • Max. Pixel Clock 165 MHz
  • Max. Resolution Up to 1080p
  • Scaler Resolutions 480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024;
  • 1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050;
  • 1080i; 1080p; 1920 x 1200
  • Audio
  • Input Analog: 1 x Mini Stereo Jack Female (Black)
  • Digital: 1 x RCA (Yellow)
  • Power
  • Connectors 1 x DC Jack
  • Consumption 5 VDC, 5W
  • Environmental
  • Operating Temperature 0 - 40 °C
  • Storage Temperature -20 - 60 °C
  • Humidity 20 - 90% RH, Non-Condensing


• Item Includes:

  • 1x VC182 VGA to HDMI Converter with Scaler
  • 1x Power Adapter
  • 1x Software CD
  • 1x User Instructions


• Warranty:

  • 3 Years


• GTIN:

  0672792005404
