VE156 - Overview

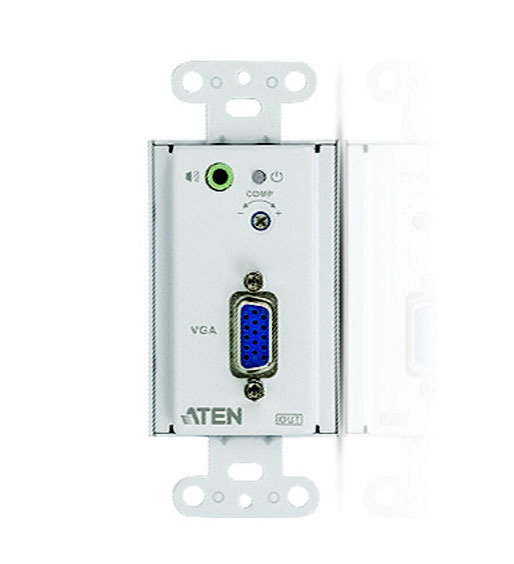

The VE156 VGA Over Cat 5 Extender Wall Plate extends VGA and audio signals up to 500 feet (150m) using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.

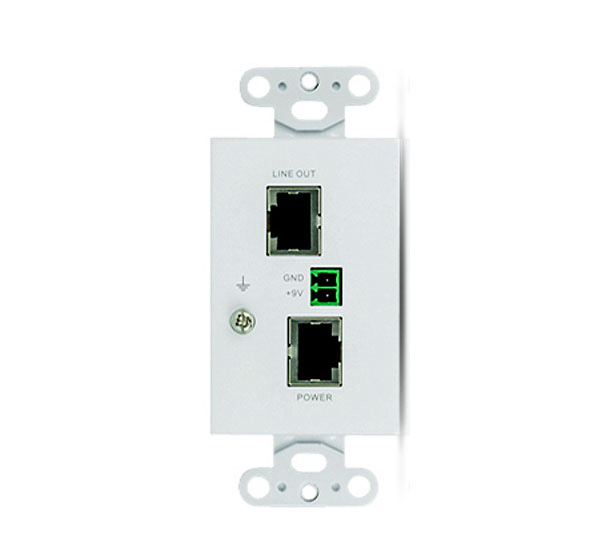

The VE156 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE156’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

  • Features:

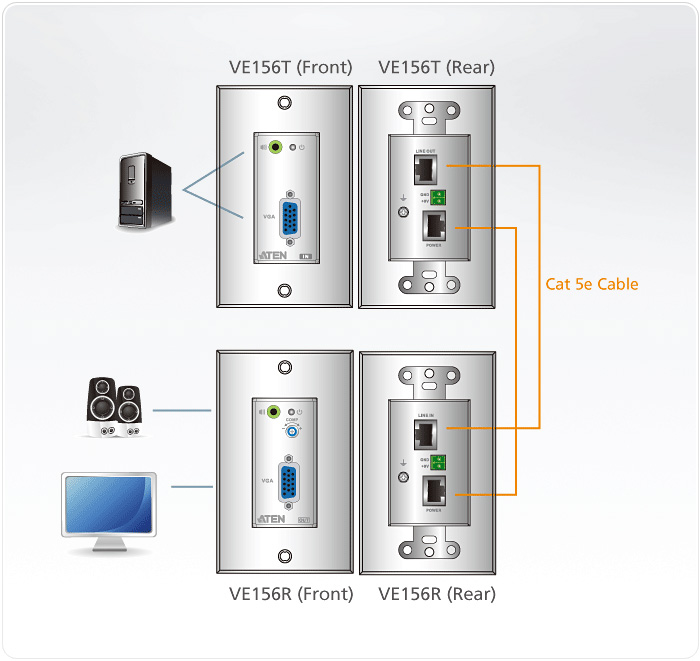

    • Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio; and another for power*
    • Remotely powered from either the Transmitter or Receiver side**
    • Extends the distance between VGA source and VGA display
    • Superior video quality - up to 1920 x 1200@60Hz 100 feet(30 m), 1280 x 1024@60Hz 500 feet(150m)
    • Adjustable Gain Control - manually adjusts signal strength to compensate for distance
    • Supports wide screen formats
    • Supports hot-plugging
    • Decora type design is easily configurable to fit various wall plates
    • LED indication of power sources / connection status
    • Supports stereo audio
    • Built-in 8KV/15KV ESD protection
    • Easy installation
    • Wall mountable type for a neat and cleaner installation
    • Plug-and-play - no software installation required
    • Note:
    • The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
    • **A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.


  • Specifications:

    • Function VE156R VE156T
    • Video Input
    • Interface N/A 1 x HDB-15 Female (Blue)
    • Impedance N/A 100 Ω
    • Video Output
    • Interface 1 x HDB-15 Female (Blue) N/A
    • Impedance 100 Ω N/A
    • Video
    • Max. Bandwidth 300 MHz 300 MHz
    • Max. Resolutions / Distance Up to 1920 x 1200@30m; 1280 x 1024@150m Up to 1920 x 1200@30m; 1280 x 1024@150m
    • Audio
    • Input N/A 1 x Mini Stereo Jack Female (Green)
    • Output 1 x Mini Stereo Jack Female (Green) N/A
    • Power
    • Connectors 1 x Terminal Block (Green) 1 x Terminal Block (Green)
    • Consumption 9 VDC, 3.2W 9 VDC, 3.2W
    • Environmental
    • Operating Temperature 0 - 50°C 0 - 50°C
    • Storage Temperature -20 - 60°C -20 - 60°C
    • Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing


  • Item Includes:

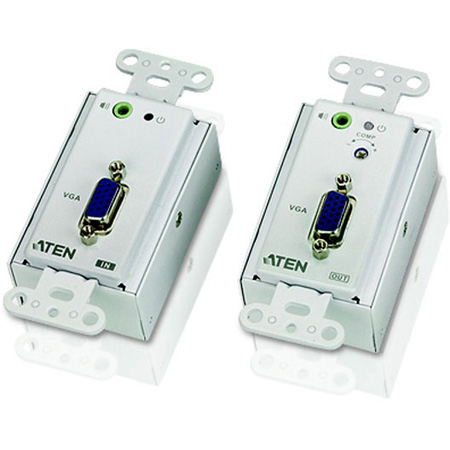

    • VE156R and VE156T


  • Warranty:

    • 3 Years


  • GTIN:

    0672792004643
