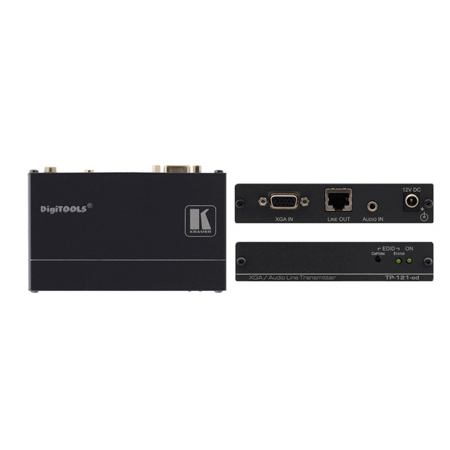

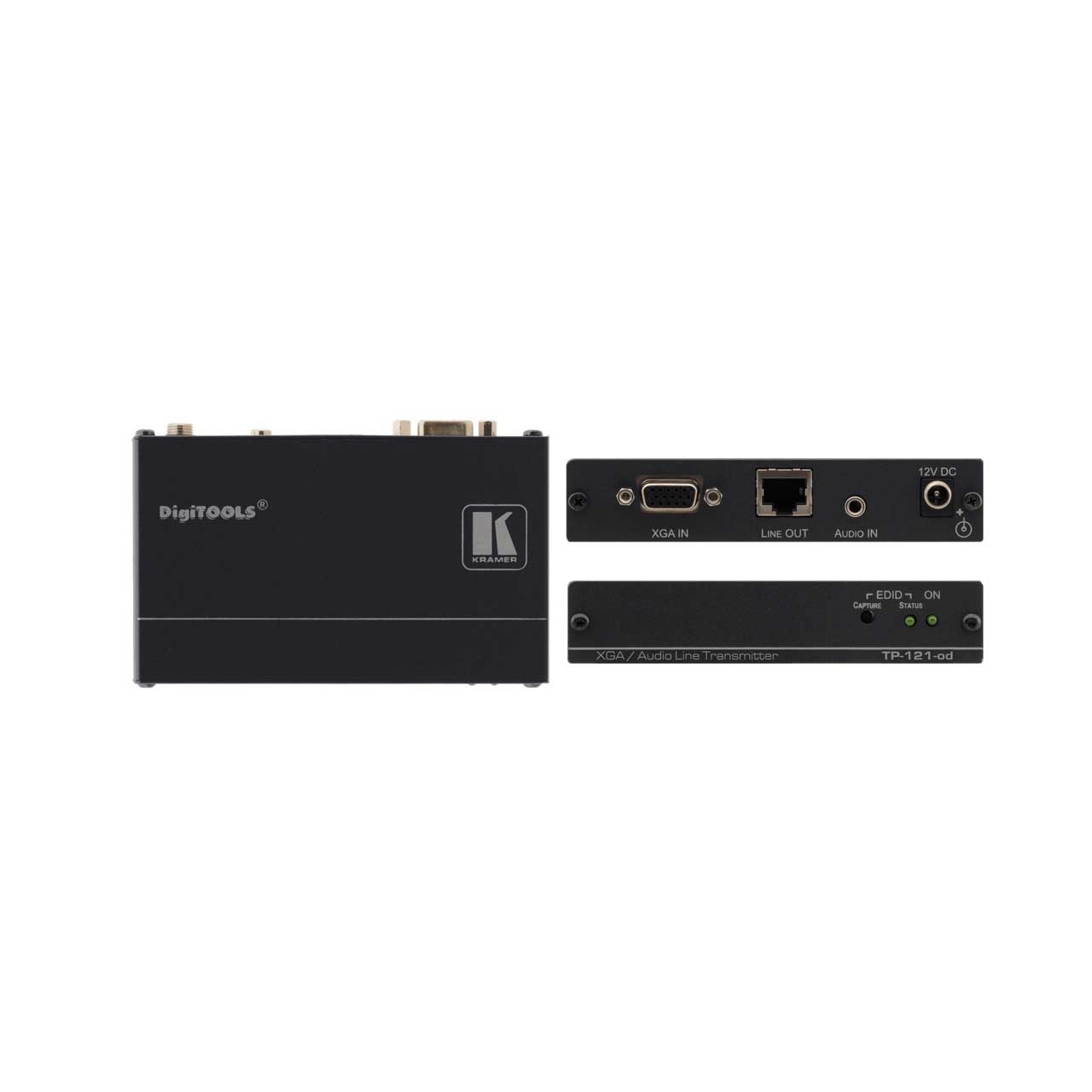

Kramer TP-121XL Computer Graphics Video & Stereo Audio over Twisted Pair Transmitter

TP-121XL - Overview

Long range graphics distribution

• Features:

  • Max. Resolution - WUXGA & 1080p.
  • HDTV Compatible.
  • EDID Capture - Captures EDID from the display or uses pre-programmed default EDID.
  • Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments.
  • System Range - More than 250m (more than 820ft)
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
  • Power Connect™System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.


• Specifications:

  • INPUTS
  • 1 VGA on a 15-pin HD connector
  • 1 unbalanced stereo audio on a 3.5mm mini jack


  • OUTPUT
  • 1 twisted pair on an RJ-45 connector


  • RESOLUTION
  • Up to WUXGA and 1080p


  • AUDIO BANDWIDTH (-3DB)
  • 20Hz to 20kHz @-3dB


  • AUDIO S/N RATIO
  • 84dB


  • TOTAL GAIN
  • Audio: Analog/analog: 0dB
  • Analog/SPDIF: - 12dBFS


  • COUPLING
  • AC


  • THD+N
  • Audio:<0.02%


  • POWER CONSUMPTION
  • 12V DC, 190mA (370mA when powering both devices)


• Item Includes:

  • TP-121xl Transmitter
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063060909
