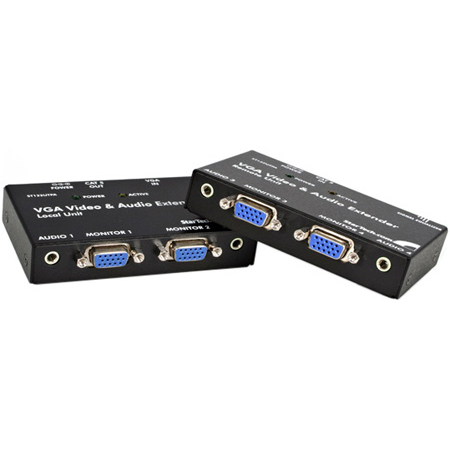

ST122UTPA - Overview

The StarTech ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.

The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.

Applications
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Ideal for digital signage applications in financial, educational, and business sectors
Extend your display across harsh environment industrial sites

Features:
- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends VGA and analog audio up to 500ft / 150m
- Included mounting brackets
- Pure hardware design, no software or drivers required
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Specifications:
- Connector(s)
- 2 - Local Unit Connectors: VGA (15 pin, High Density D-Sub), 3.5 mm Mini-Jack (3 Position)
- 1 - Local Unit Connectors: VGA (15 pin, High Density D-Sub), RJ-45
- 2 - Remote Unit Connectors: VGA (15 pin, High Density D-Sub), 3.5 mm Mini-Jack (3 Position)
- 1 - Remote Unit Connectors: RJ-45

  Hardware
- Ports: 2
- Cabling: Cat 5e UTP or better
- Audio: Yes
- Daisy-Chain: No

  Packaging Information
- Package Height: 3.6 in [91 mm]
- Package Length: 7.3 in [18.6 cm]
- Shipping (Package) Weight: 30.5 oz [864 g]
- Package Width: 9.5 in [24.1 cm]

  Performance
- Maximum Cable Length: 500.0 ft [152.4 m]
- Max Distance: 150 m / 500 ft
- Supported Resolutions: 1440x900 @ 150ft / 50m, 1280x1024 @ 300ft / 100m, 1024x768 @ 500ft / 150m

  Physical Characteristics
- Weight of Product: 14.2 oz [402 g]
- Color: Black
- Material: Aluminum
- Product Length: 2.4 in [60 mm]
- Product Width: 3.3 in [83 mm]
- Product Height: 0.8 in [2 cm]

  Power
- Power Source: AC Adapter Included
- Output Voltage: 12V DC
- Output Current: 0.5A
- Center Tip Polarity: Positive
- Power Consumption (In Watts): 6
Item Includes:
- Local VGA Extender Unit
- Remote VGA Extender Unit
- Mounting Bracket Kit (w/ screws)
- Instruction Manual
- 2 - Sets Rubber Feet
- Power Adapter
GTIN:
0065030811408
