NTI ST-C5V-R-600 VGA Receiver - Remote unit

ITEM #: ST-C5V-R-600 MFG #: ST-C5V-R-600

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Network Technologies Inc
Free Shipping with $49 Minimum Order

List Price:

$295.00

Our Price:

$280.25

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ST-C5V-R-600 - Overview

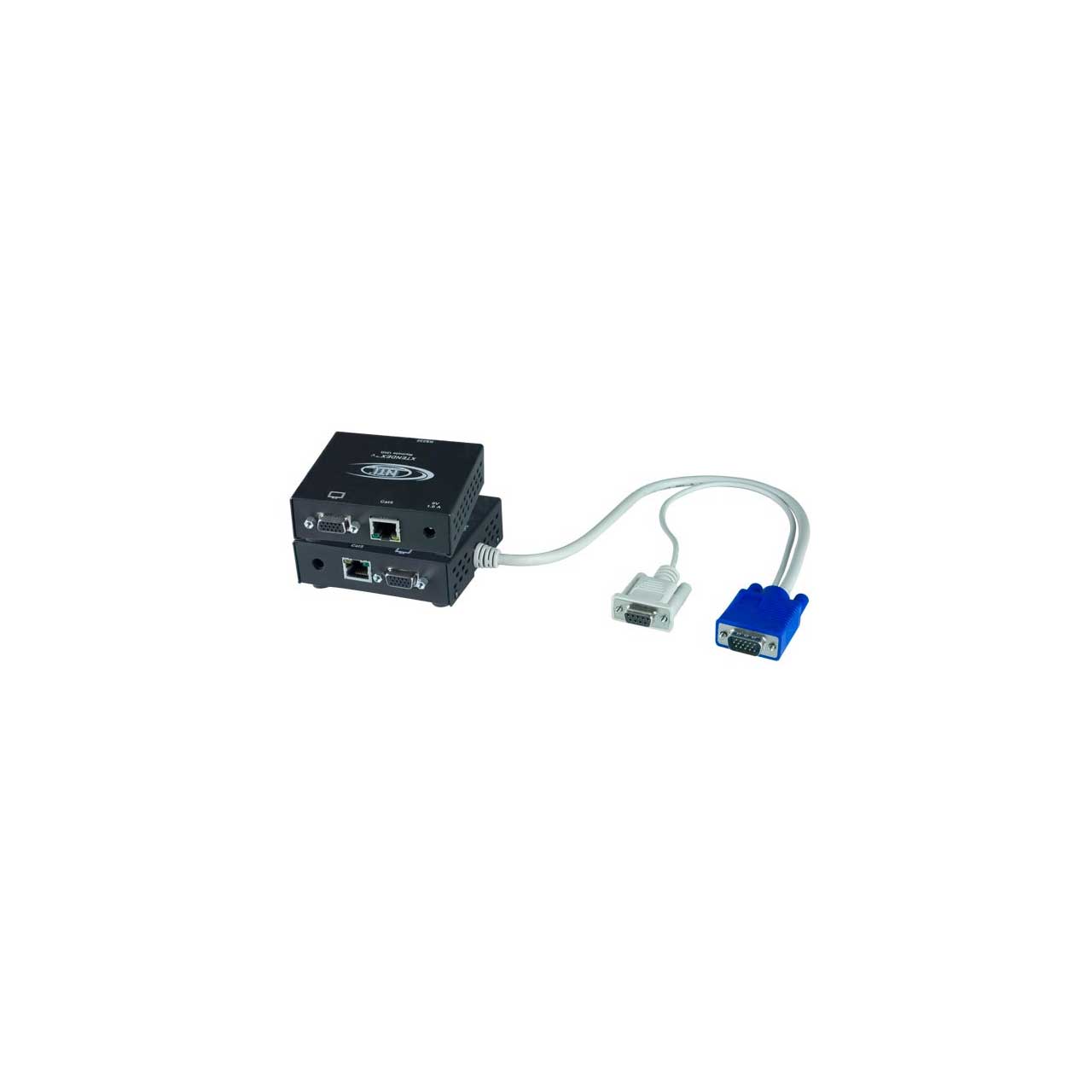

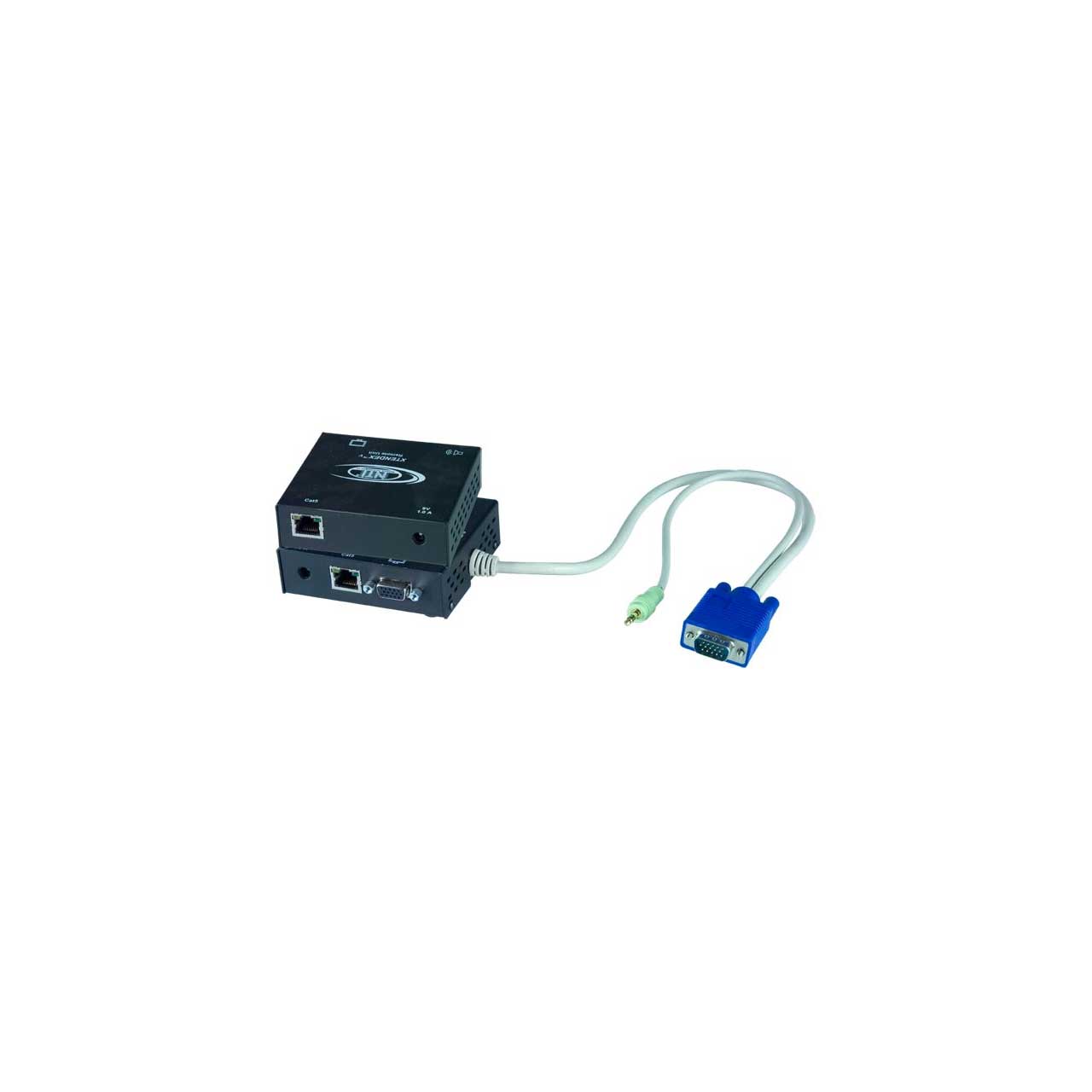

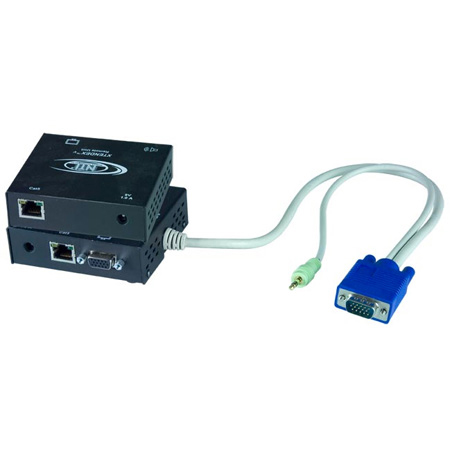

The NTI ST-C5V-R-600 is a VGA, video only, Remote Receiver. The ST-C5V-R-600 works with the NTI CAT5 transmitters and KVM Switches (see accessories) to create a high performance video signal routing system with a maximum extension of 600 feet between the local and remote units.

  • Features:

    • Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually
    • When using CAT6, some degradation may be experienced depending on the length of the cable.


  • Specifications:

    • Connector: Female 15-pin HD
    • Supported resolution: up to 1920x1440
    • Output impedance: 75 Ohms.
    • Maximum output level: 1.45Vp-p.
    • Operating Voltage: 110 or 220 VAC
    • Power Frequency: 50 or 60 Hz via AC adapter
    • Power Consumption: 10W
    • MTBF: 80,625 hrs.
    • Operating temperature: 32°F to 100°F (0°C to 38°C)
    • Storage temperature: -20°F to 140°F (-30°C to 60°C)
    • Relative Humidity: 17 to 90% non-condensing RH
    • Regulatory Approvals: CE
