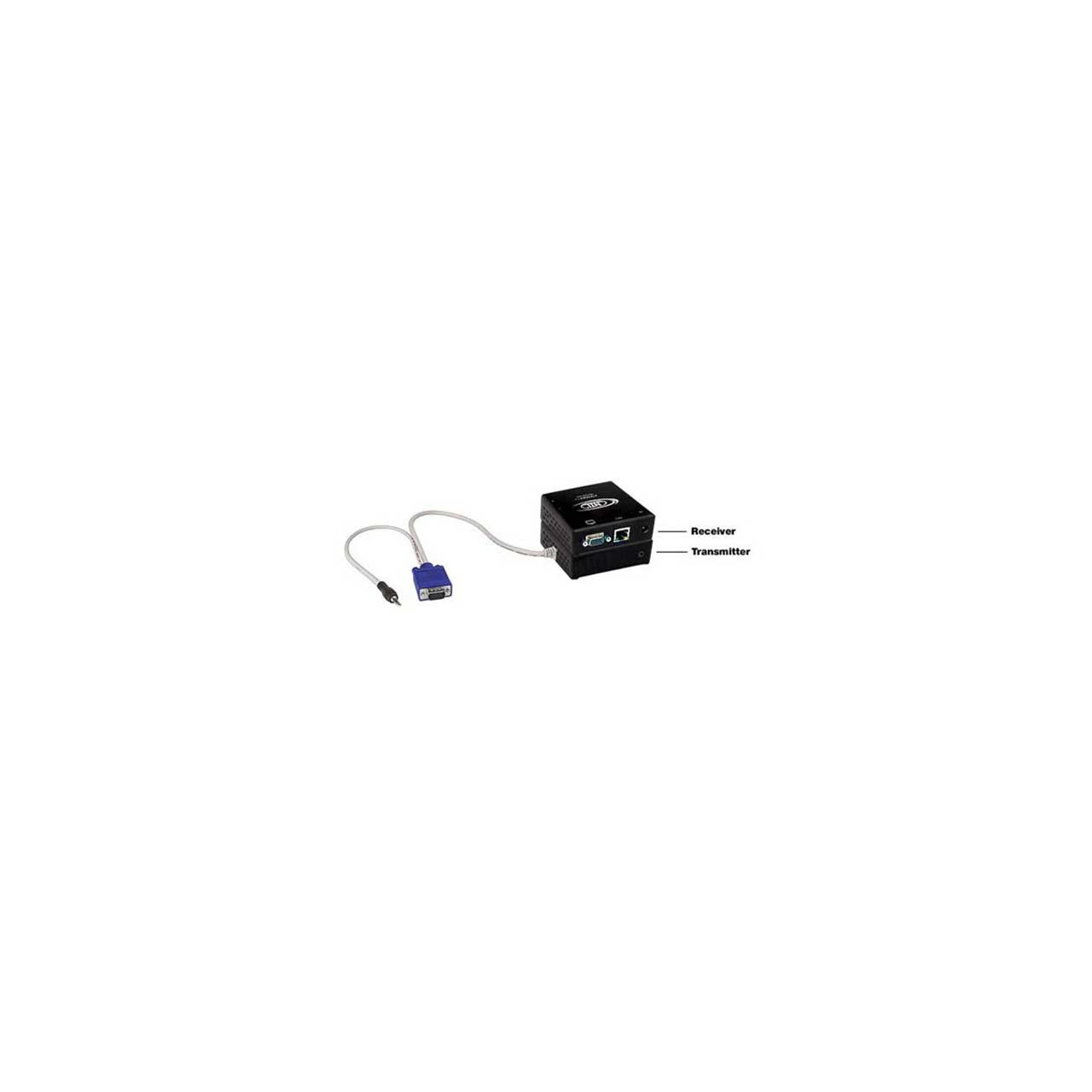

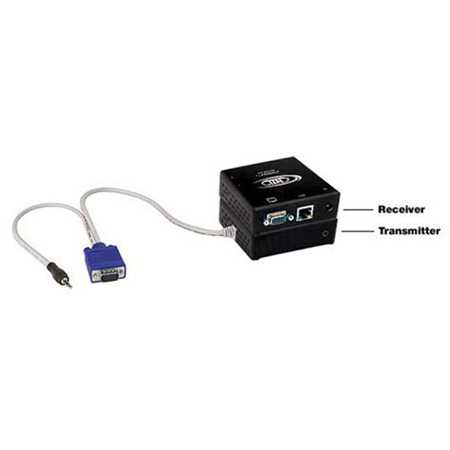

NTI ST-C5VA-R-600 VGA Plus Audio Remote Receiver

ST-C5VA-R-600 - Overview

• Features:

  • Ideal solution for digital signage applications
  • Supports local and remote VGA monitors
  • Supports resolutions to 1920x1440
  • Available with optional stereo audio or RS232 control
  • Built-in surge protection
  • Sharpest and clearest VGA quality over CAT5 of any manufacturer
  • Use in-house CAT5/5e/6/6a phone wiring to locate a monitor remotely
  • Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor


• Specifications:

  • Video
  • Video Compatibility: XGA, VGA
  • Video Coupling: DC
  • Video Connectors: HD15 female to monitor
  • Input/Output Impedance: 75 Ohms
  • Input Horizontal Frequency Range: 15kHz - 130Hz
  • Input Vertical Frequency Range: 30Hz - 150Hz
  • Sync Types Supported: Separate and composite TTL Level and sync on green
  • Video Maximum: I/O Levels 1.45Vp-p

    Audio
  • Audio Connectors: 3.5mm stereo plug to CPU (VGA Video Models)
  • Signal Type: Line Level, stereo, unbalanced
  • Audio Frequency Response: 20Hz - 20Khz, +1dB
  • Signal-to-Noise Ratio: 76 dBA
  • Total Harmonic Distortion and Noise: 0.017%
  • Stereo Crosstalk: -70dB
  • Audio Maximum I/O Levels: 3.1Vp-p
  • Output Impedance: Max 2K Ohms, unbalanced
  • THD+N: 0.017%,F=20-20KHz, RL=2K Ohm, Vout=1 Vrms

    General
  • Interconnect Cable: CAT5/5e/6 Solid UTP EIA/TIA 568 B wiring w/ male RJ45 connectors
  • Remote and Local Unit Power: 120V or 240V at 50 or 60Hz-9VDC/1.0A via AC Adapters (2)
  • Dimensions WxDxH (Local or Remote): 3.5" x 3.1" x 1.2"
