ST-C5VA-L-600 - Overview

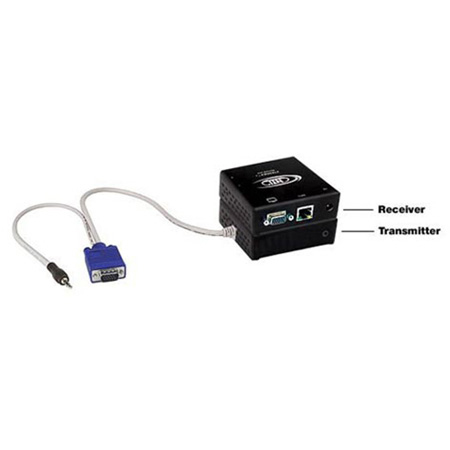

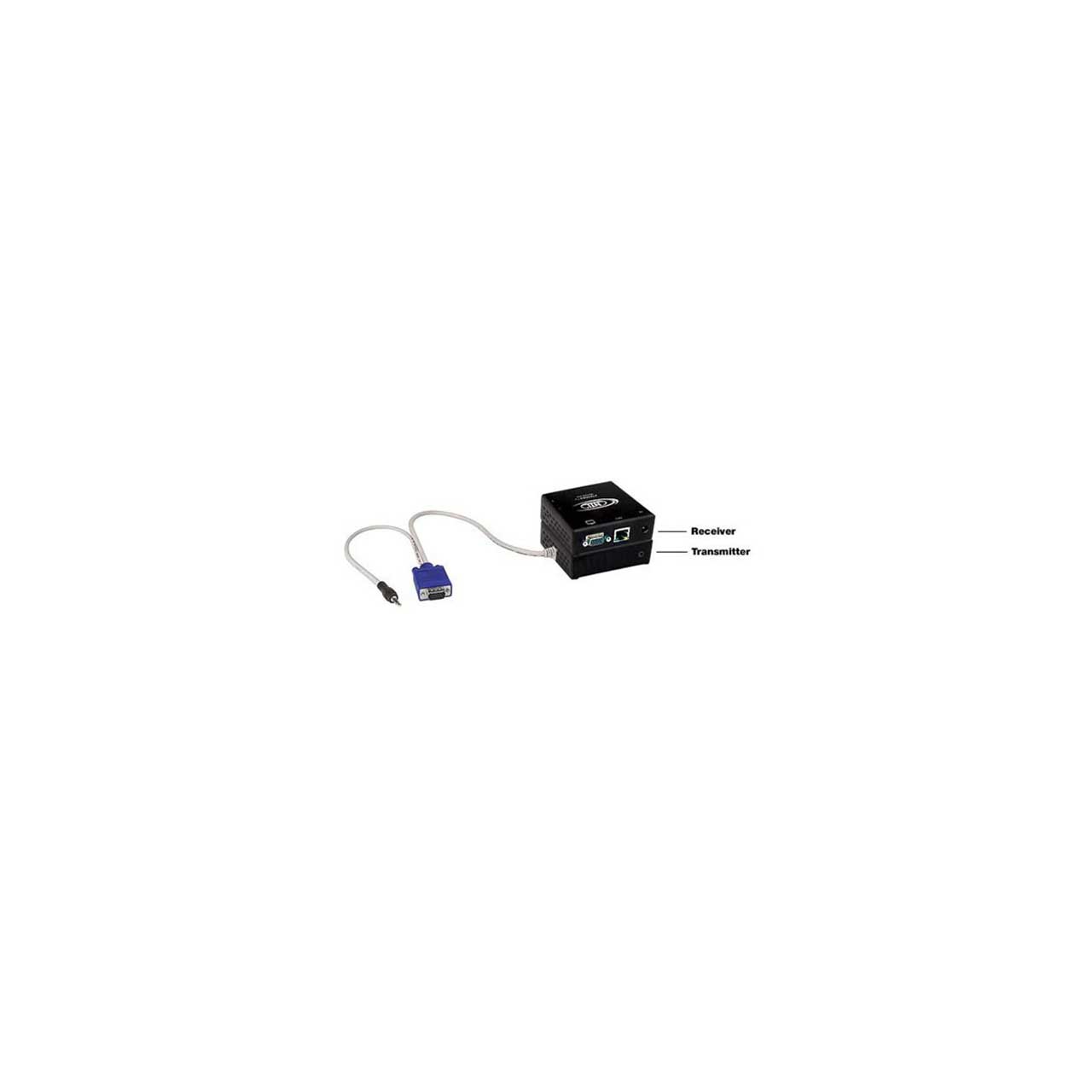

The NTI ST-C5VA-L-600 is a VGA & Audio Transmitter, Local Unit. The ST-C5VA-L-600 works together with the NTI CAT5 receivers and KVM Switches to create a high performance audio/video signal routing system with a maximum extension of 600 feet between the local and remote units.

  • Specifications:

    • Video
    • Connector: Male 15-pin HD
    • Compatible with: SVGA, XGA, and VGA
    • Input impedance: 75 Ohms.
    • Maximum input level: 1.45Vp-p.
    • Input Sync frequency ranges :Horizontal: 15 kHz to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
    • Supports Separate and Composite TTL level sync.
    • Video is DC coupled.
      Audio
    • Stereo audio plug: 3.5mm
    • Input impedance: 10k Ohms.
    • Maximum input levels: 3.1Vp-p (line level)
      Power
    • Operating Voltage: 110 or 220 VAC
    • Power Frequency: 50 or 60 Hz via AC adapter
    • Power Consumption: 10W
    • Add the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.
      MTBF
    • 84,189 hrs.
      Environmental
    • Operating temperature: 32°F to 100°F (0°C to 38°C)
    • Storage temperature: -20°F to 140°F (-30°C to 60°C)
    • Relative Humidity: 17 to 90% non-condensing RH
    • Regulatory Approvals CE
