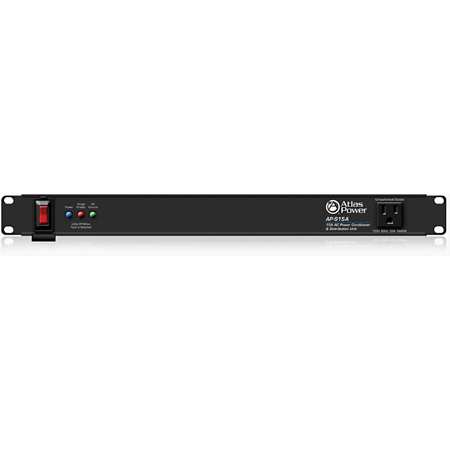

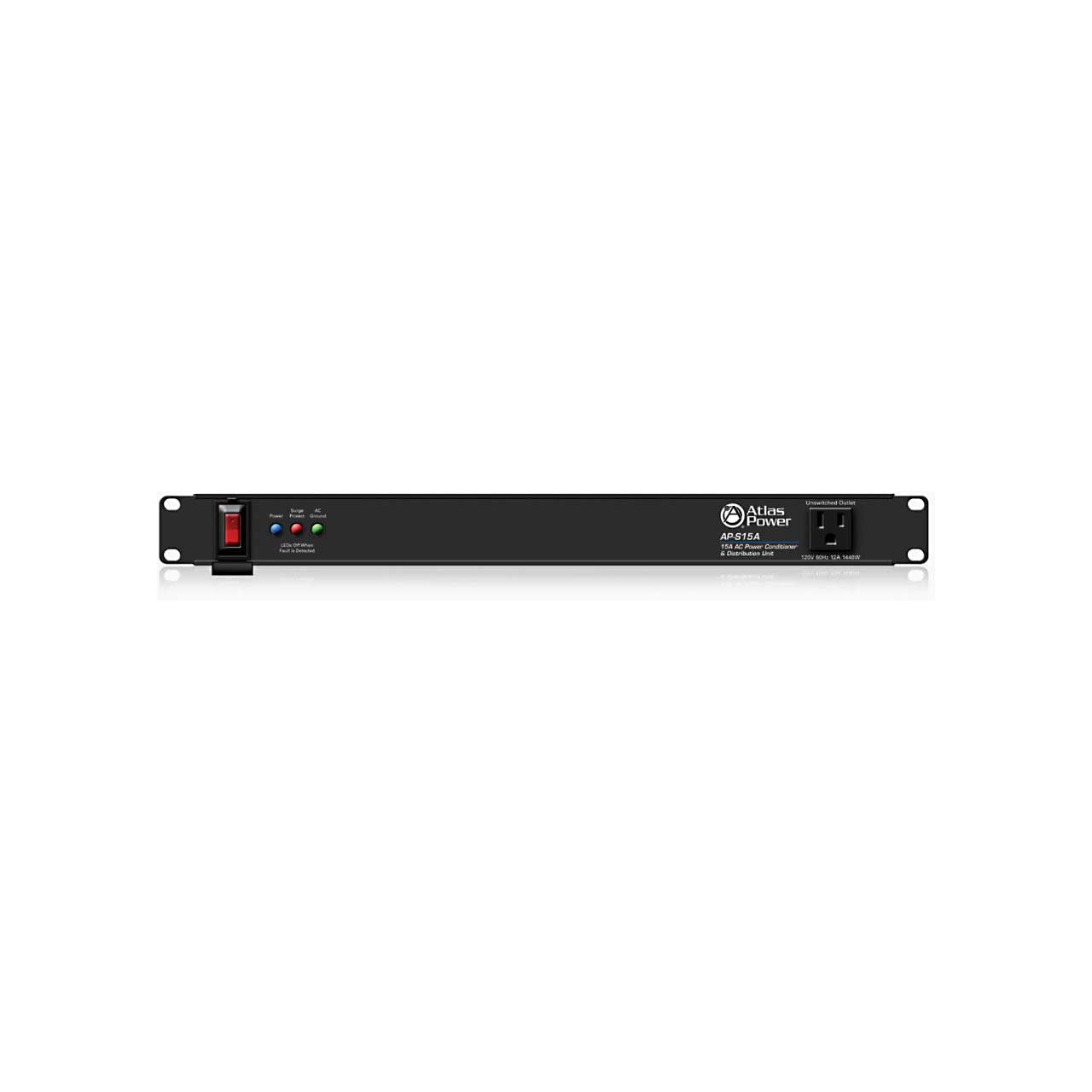

Atlas AP-S15A 15A Power Conditioner and Distribution Unit with IEC Power Cord

ITEM #: ATL-AP-S15A MFG #: AP-S15A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$180.99

Our Price:

$145.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


AP-S15A - Overview

The AP-S15A is a 15 amp power conditioner and distribution unit with IEC power cord. The AP-S15A features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15A includes a 12 foot removable IEC cord with retainer.

  • Features:

    • 9 Total Outlets
    • 8 Rear Panel Outlets: 7 Switched and 1 Unswitched
    • 1 Front Panel Outlet, Unswitched
    • Radio Frequency and Electromagnetic Interference Filtering
    • Circuit Breaker Protection @ 15A
    • Spike Suppression Up to 6000V
    • Removable 12' IEC Cord

  • Specifications:

    • Current Rating: 15 Amps
    • Certified to Safety Listing: MET (UL 1449)
    • Operating Voltage: 102-132VAC
    • Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
    • Maximum Spike Clamping Voltage: 6000V
    • Power Consumption: 6 Watts
    • AC Mains Power Cord: 12' (4m)
    • Dimensions (H x W x D): 1.75" x 19" x 5"
    • Weight: 5 lbs.

  • GTIN:

    0612079190645
