Atlas Sound Time Saving Devices are designed to solve some of the common audio system problems in the easiest and in the most efficient and cost-effective way. Utilizing the highest quality components and inspired by real world installation issues, the Atlas Sound TSDs include mixers, amplifiers, preamps, and other distribution and control devices to simplify your connections, provide specific application needs, and add flexibility in expansion and changes that prevent expensive system overhauls

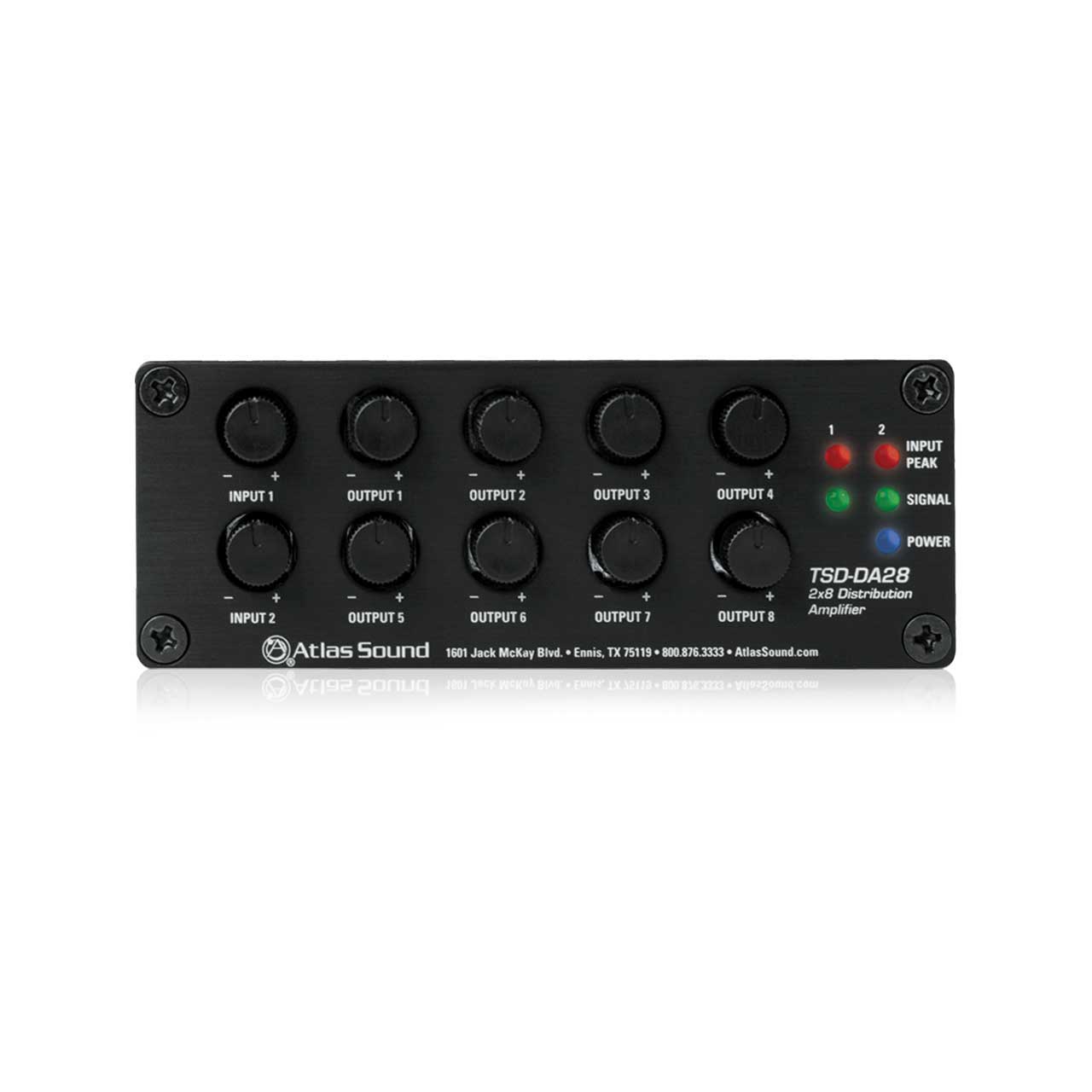

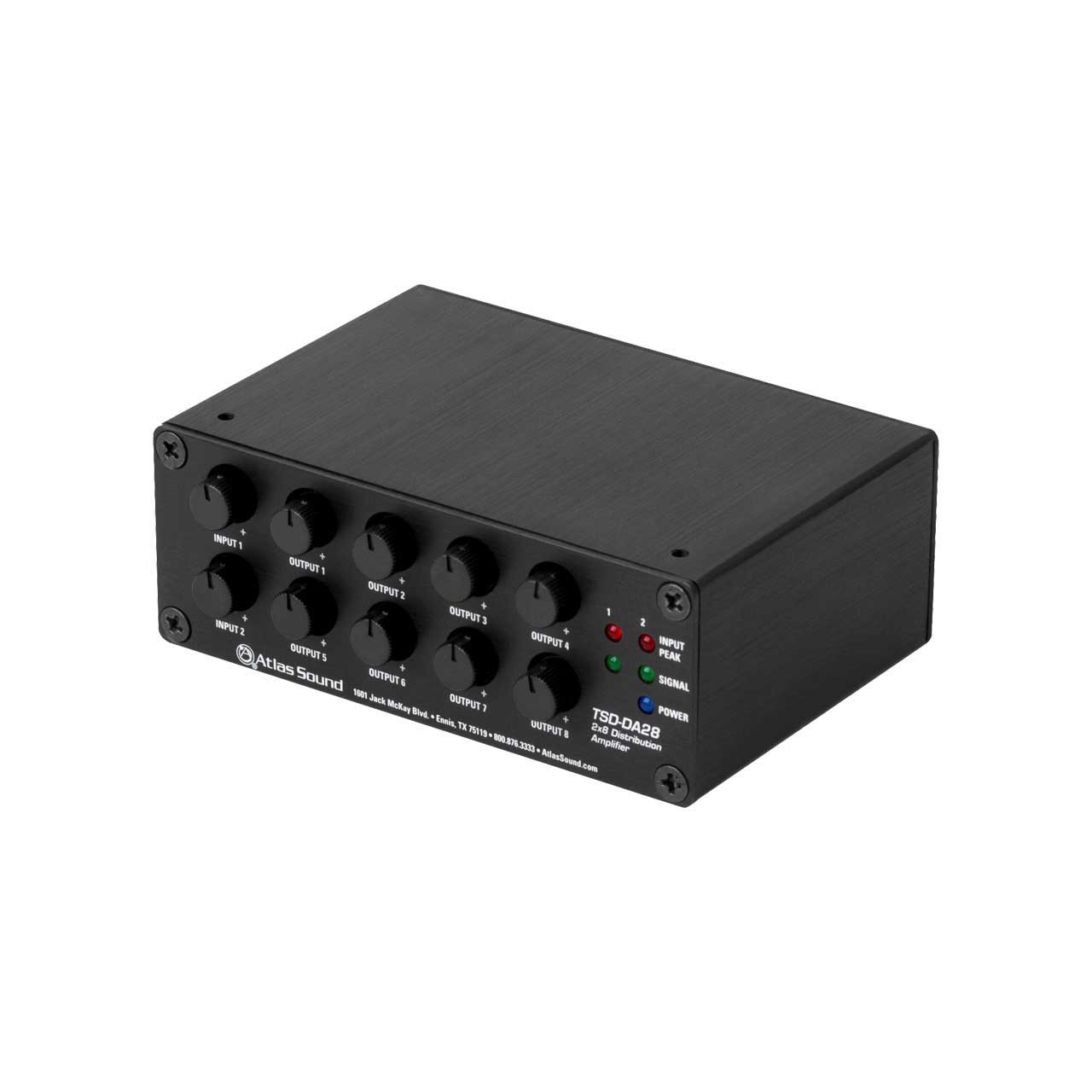

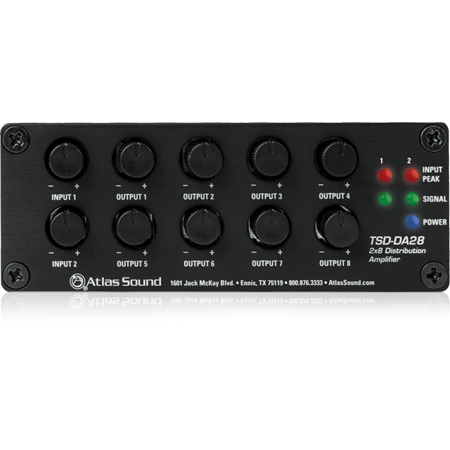

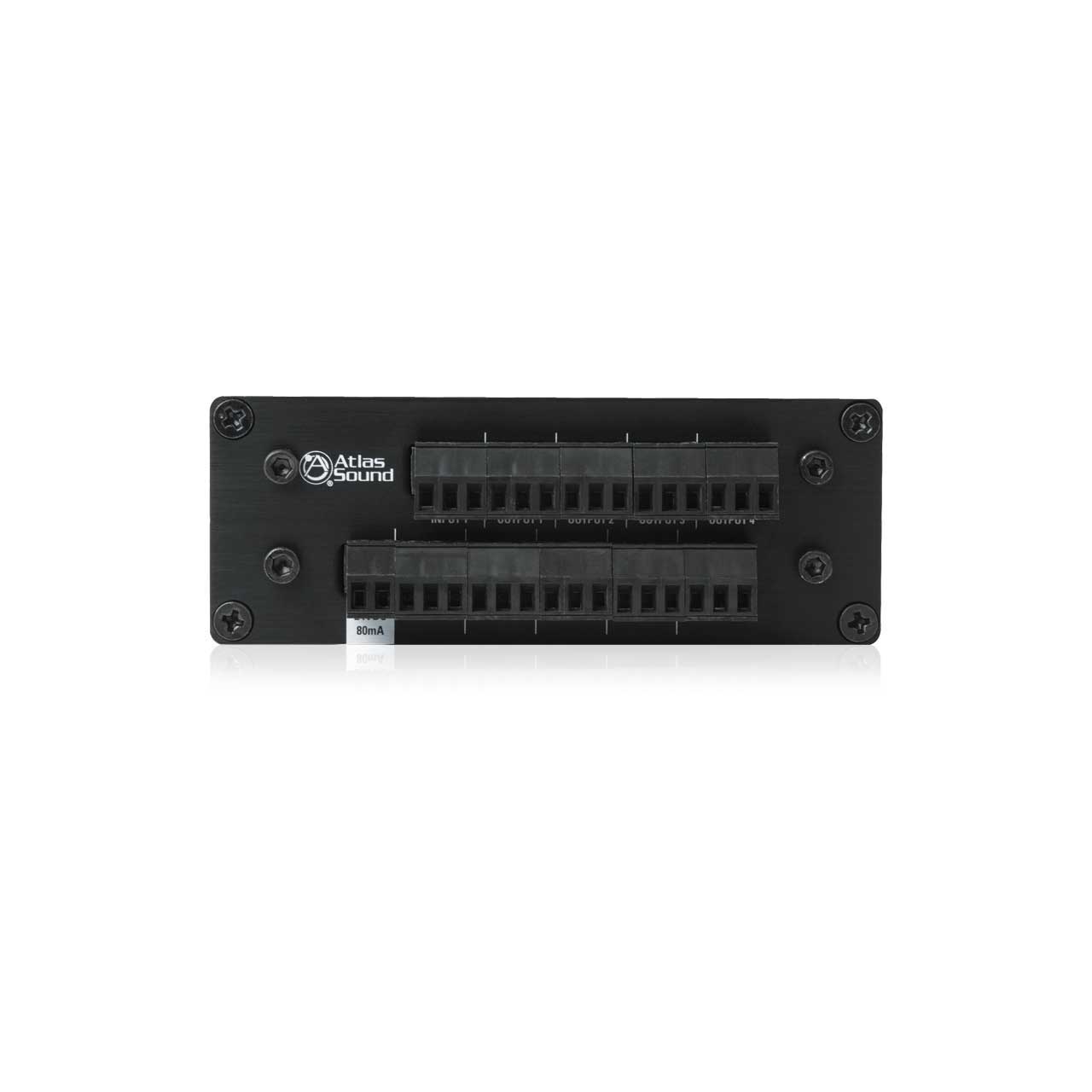

The Atlas Sound TSD-DA28 2x8 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities. Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. All I/O is via Phoenix style connectors for installation convenience and inputs may be easily paralleled for 1 in / 8 out configuration. The TSD-DA28 is highly efficient and meets Energy Star™ standards as one 24V DC power supply (power supply sold separately) can power multiple Atlas Time Saving Devices.
Audio Applications
Line Preamp
Line Driver
Zone Divider
Broadcast
Installation
Churches
Restaurants
Sports Bars
Schools
Industrial Facilities
House of Worship
Please Note! Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 80mA so any of the available TSD power supplies can be used with the unit.
