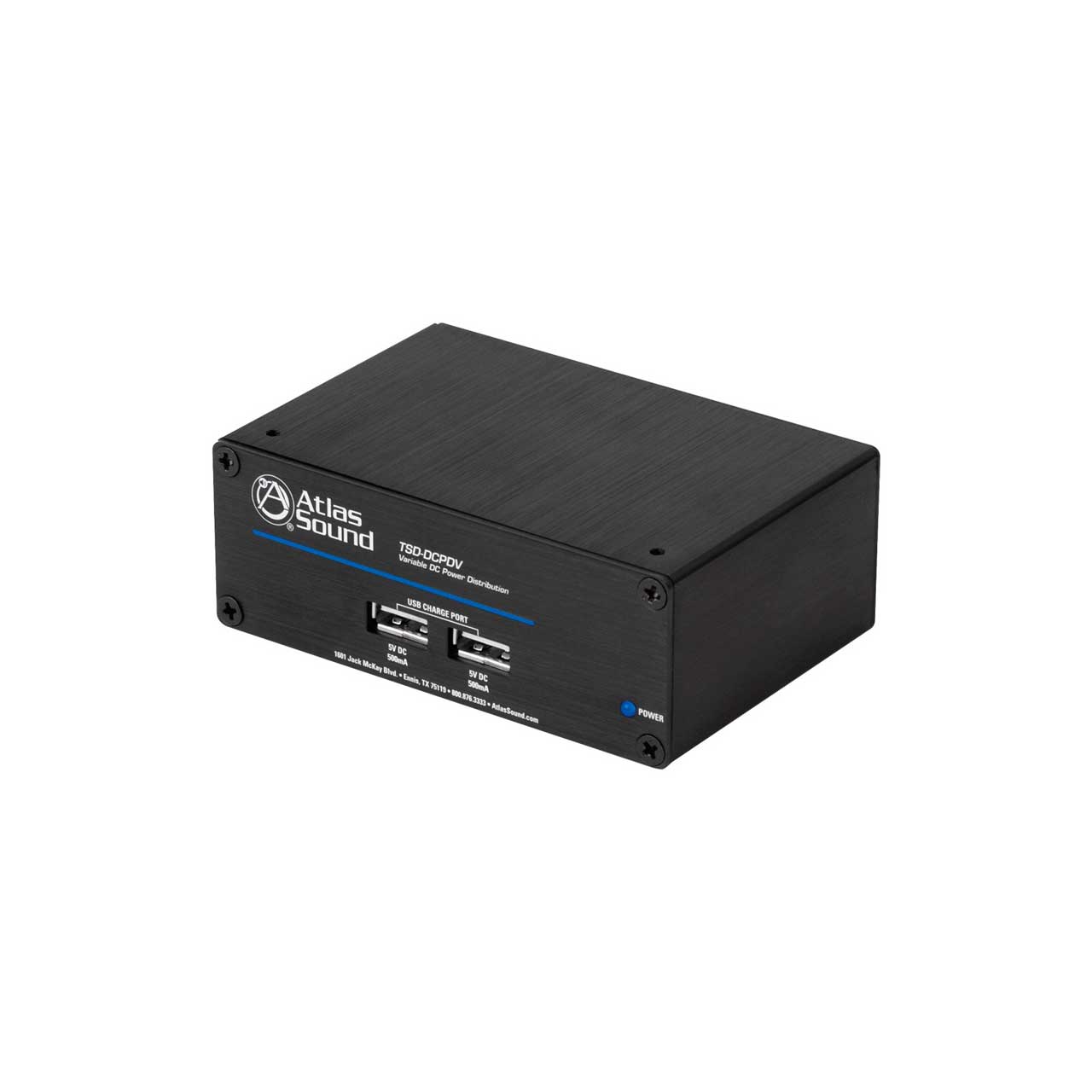

Atlas TSD-DCPDV Variable DC Power Distribution

Name: Atlas TSD-DCPDV Variable DC Power Distribution
Brand: AtlasIED
SKU: ATL-TSD-DCPDV
Price: 100.99 USD
Availability: PreSale

ITEM #: ATL-TSD-DCPDV MFG #: TSD-DCPDV

AtlasIED

List Price:

$123.99

Our Price:

$100.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TSD-DCPDV - Overview

The TSD-DCPDV is designed to distribute power to TSD devices or other equipment requiring DC power and is also ideal for use with wireless microphones that typically require 12-18VDC PSUs.
Rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting.

Features:
- Power Distribution for Multiple TSD's From a Single Power Supply
- 1 in 6 Out Configuration
- Four (4) Independent 24V Outputs
- Two (2) 5V to 24V Variable Outputs
- Two (2) 5V DC USB Charge Ports
- DC Filtering and Isolation Per Channel
- Output Voltage - Variable & Fixed Ports
- Output Current: Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPDV and their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
- Separate Ground Connections
- Energy Efficient
Specifications:
- DC Voltage Input: 1A-3A, 24V DC, 3A Max
- DC Voltage Output Fixed: 24V DC, Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
- DC Voltage Output Fixed USB: 5V DC, 500mA Each Power Supply and Load
- DC Voltage Variable: Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC
- Height: 1.5" (3.81 cm)
- Width: 4" (10.16 cm)
- Depth: 2.5" (6.35 cm)
- Weight: 6oz., .165kg
GTIN:
0612079187799
