Atlas WPD-SWCC Wall Plate Push Button Switch - Hard Contact Closure

ITEM #: ATL-WPD-SWCC MFG #: WPD-SWCC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$65.99

Our Price:

$54.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WPD-SWCC - Overview

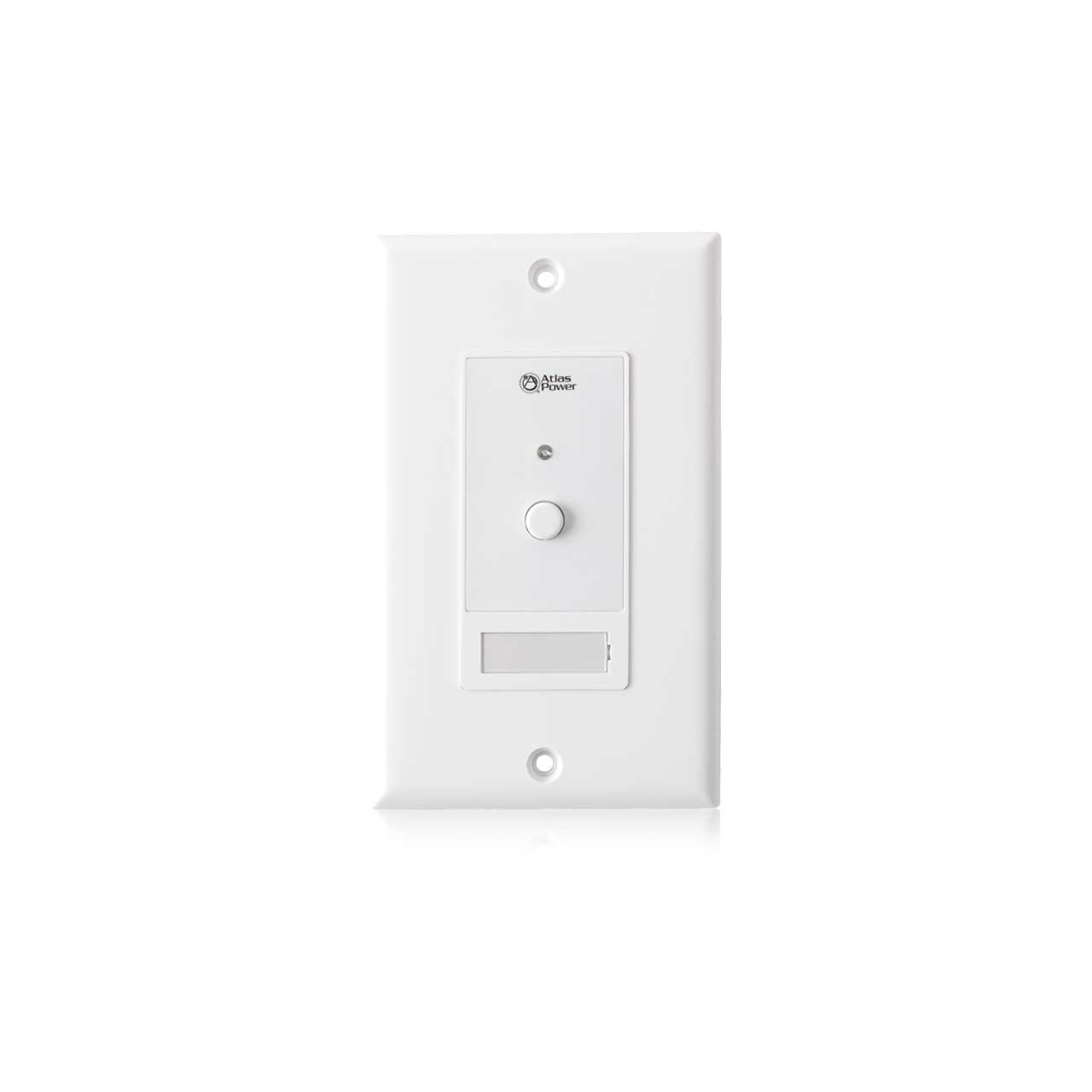

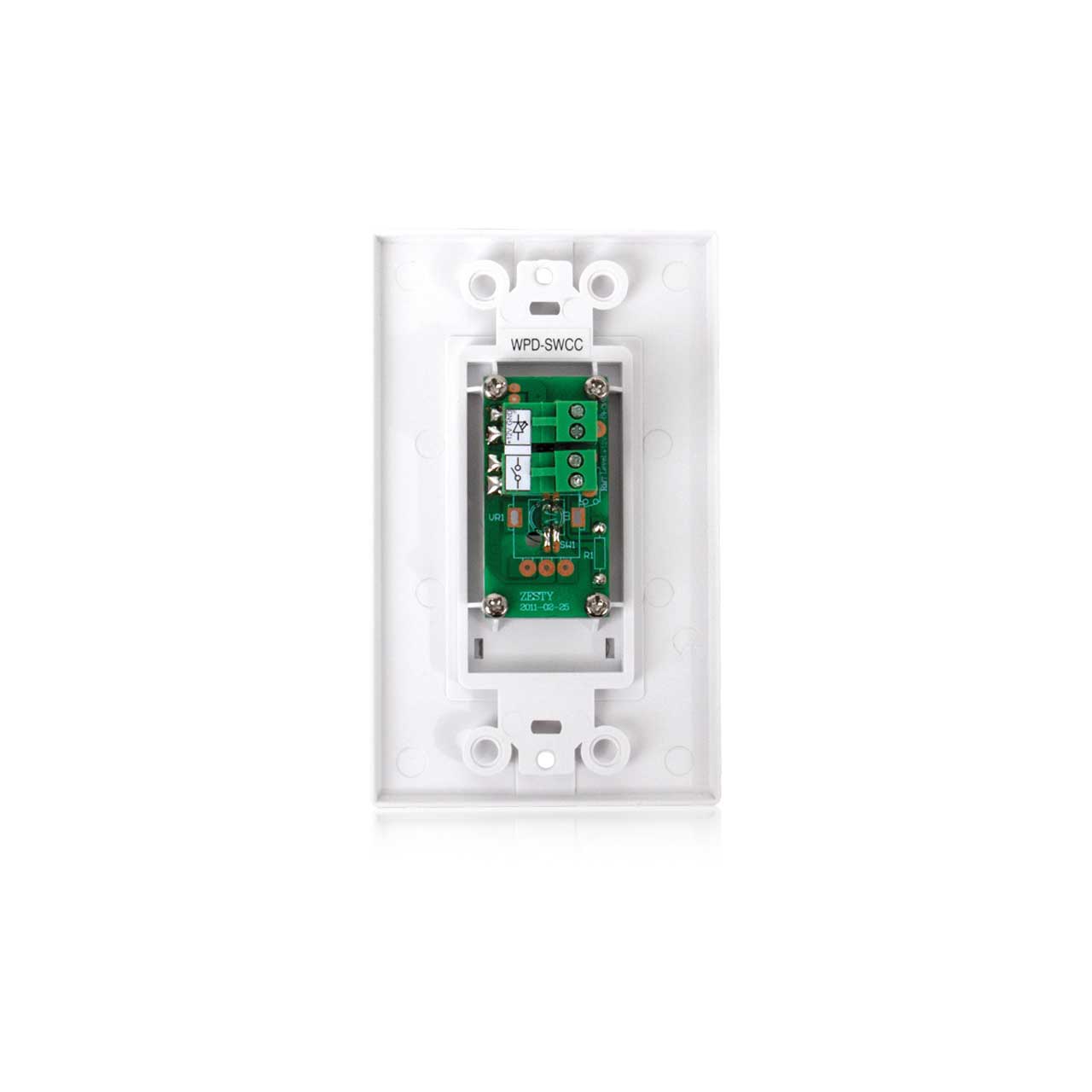

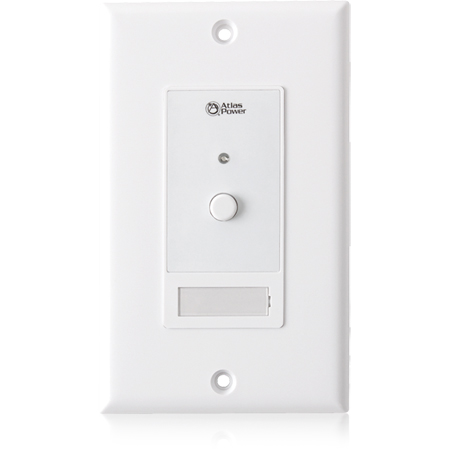

The AtlasIED WPD-SWCC is a decor style wall plate featuring a push button switch that activates/deactivates a hard latch contact closure. This product is designed to be used with compatible Atlas Power products that are designed to be remotely activated such as as the ECS-6RM, TSD-SEQ6, and ECS-3 sequencers. The unit is constructed of durable ABS material and includes a red LED system status indicator as well as a removable label guard for easy and clean designation of key switch function. The unit has a four conductor interface connection designed to work with the included Phoenix style connector. This unit can function in remote activation scenarios up to 200 feet from the controlled unit using 22-gauge wire.

  • Features:

    • White Decor Style Plate, ABS Material
    • Fits a Single Gang Electrical Outlet
    • Red LED System Status Indicator
    • 4-Conductor Interface Connection
    • Removable 4 Position Phoenix Style Connector, 5.08mm Pin Spacing
    • Push Button Switch Type
    • Removable Label Guard Allows for Clean Identification

  • Specifications:

    • Height: 4.5" (114mm)
    • Width: 2.5" (63mm)
    • Depth: 0.24" (6.4mm)

  • Warranty:

    • 5 years
