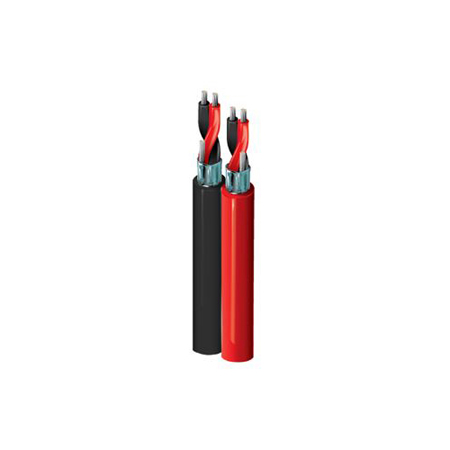

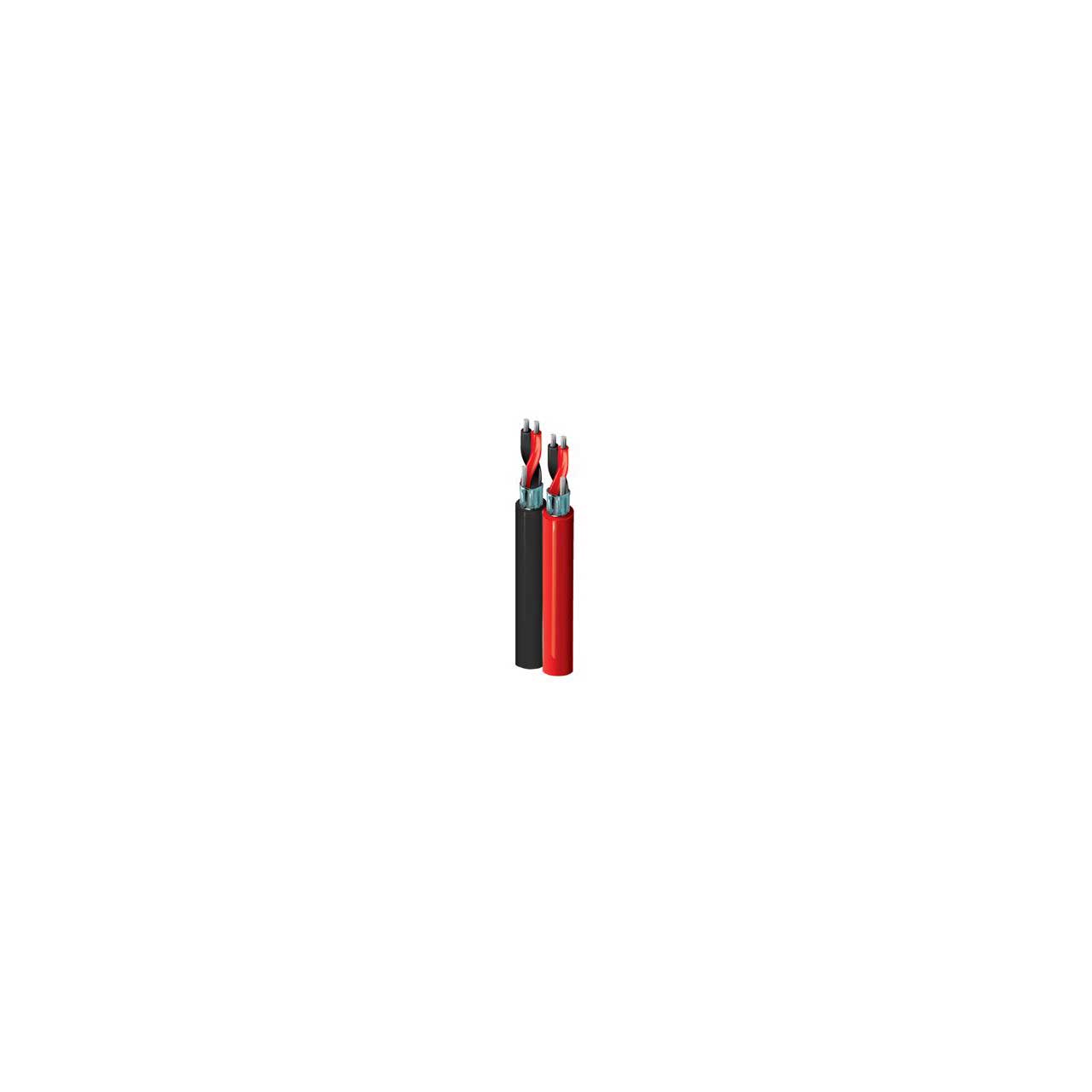

Belden 9451D CMR 2 Parallel Pr Low Voltage Line Level Audio & Control Cable Shld/Str/TC 22AWG - Black/Red - Per Foot

9451D J77U FT - Overview

• Features:

  • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
  • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
  • Improved Performance: Shorting fold technique to maintain metal-to-metal contact


• Specifications:

  • Conductor Number of Pairs: 2
  • Total Number of Conductors: 4
  • Conductor AWG: 22
  • Conductor Stranding: 7x30
  • Conductor Material: TC- Tinned Copper
  • Insulation Material: FEP - Fluorinated Ethylene Propylene
  • Insulation Nom. Thickness: 0.009 in (0.23 mm)
  • Insulation Nom. Insulation Diameter: 0.046 in (1.2 mm)
  • Insulation Color Code: Black & Red
  • Outer Shield Drainwire Type: 22 AWG (7x30) TC
  • Outer Shield Material Type: Tape
  • Outer Shield Material: Bi-Laminate (Alum+Poly)
  • Outer Shield Coverage: 100%
  • Outer Jacket Nom. Diameter: 0.135 in (3.43 mm)
  • Outer Jacket Nom. Thickness: 0.020 in (0.51 mm)
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Cable Diameter (Nominal): 0.270 in (6.86 mm)
  • UL Voltage Rating: 300 V (CMP)
  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, N/A, IEC 60332-1-2, FT4
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMR
  • Cable Notes: Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
  • Plenum: No
  • Plenum Version: 9451DP


• Item Includes:

  • Belden 9451D 4-Conductor Double Paired Microphone Cable - Black & Red - Per Foot


• Warranty:

  • 10 Year Limited Warranty
