Atlas IED X-ZPS Atmosphere Zone Paging Station

ITEM #: ATL-X-ZPS MFG #: X-ZPS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$799.99

Our Price:

$640.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


X-ZPS - Overview

The Atmosphere X-ZPS is a paging station with a 4.3" touchscreen for the Atmosphere AZM and AZMP audio processors. It comes equipped with a high-quality gooseneck microphone and provides zone paging, all call, and custom group paging to an Atmosphere AZM or AZMP audio processor. The X-ZPS also serves as a system controller for volume, source selection, message recall, and more.

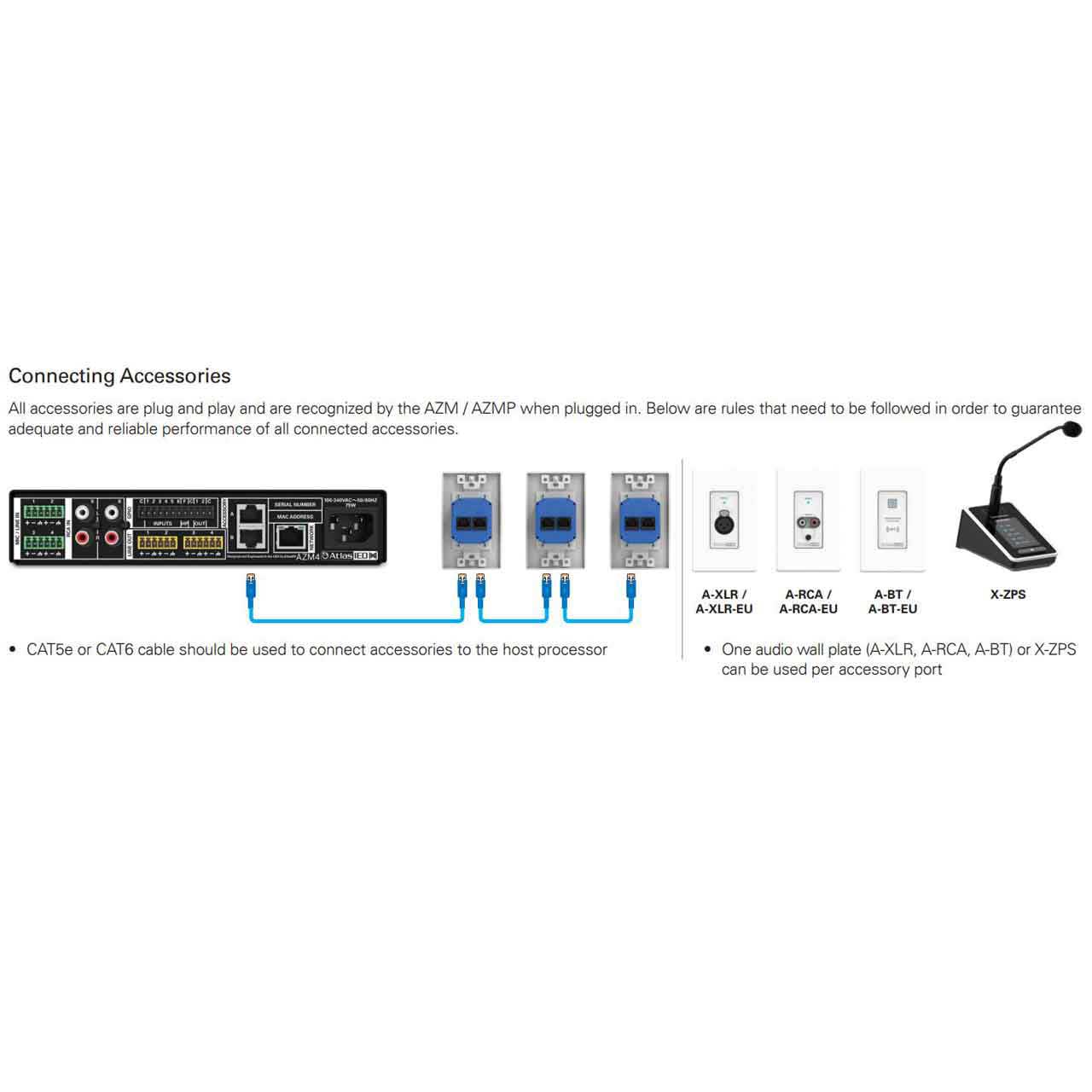

Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port

  • Features:

    • 4.3" Color LCD Touchscreen
    • 16" Gooseneck Mic

  • Specifications:

    • Screen Type: 4.3" TFT capacitive touch
    • Mic Connector: Neutrik brand female XLR
    • Mic Input Sensitivity: +4dBu
    • XLR Retaining Clip: Yes
    • Phantom Power: +48VDC 10mA
    • Input Gain Range: 0 - 60dB
    • Maximum Voltage Input: +20dBu
    • Input Impedance: 3.4kΩ
    • EIN: 117dBu at 150Ω, 20kHz BW
    • CMRR: Typically 50dB at 1kHz
    • Included Mic Polar Pattern: Cardioid
    • SPL Maximum: 120dB
    • Frequency Response: 70Hz - 16kHz
    • Dynamic Range: >90 dB
    • Light Ring: RGB

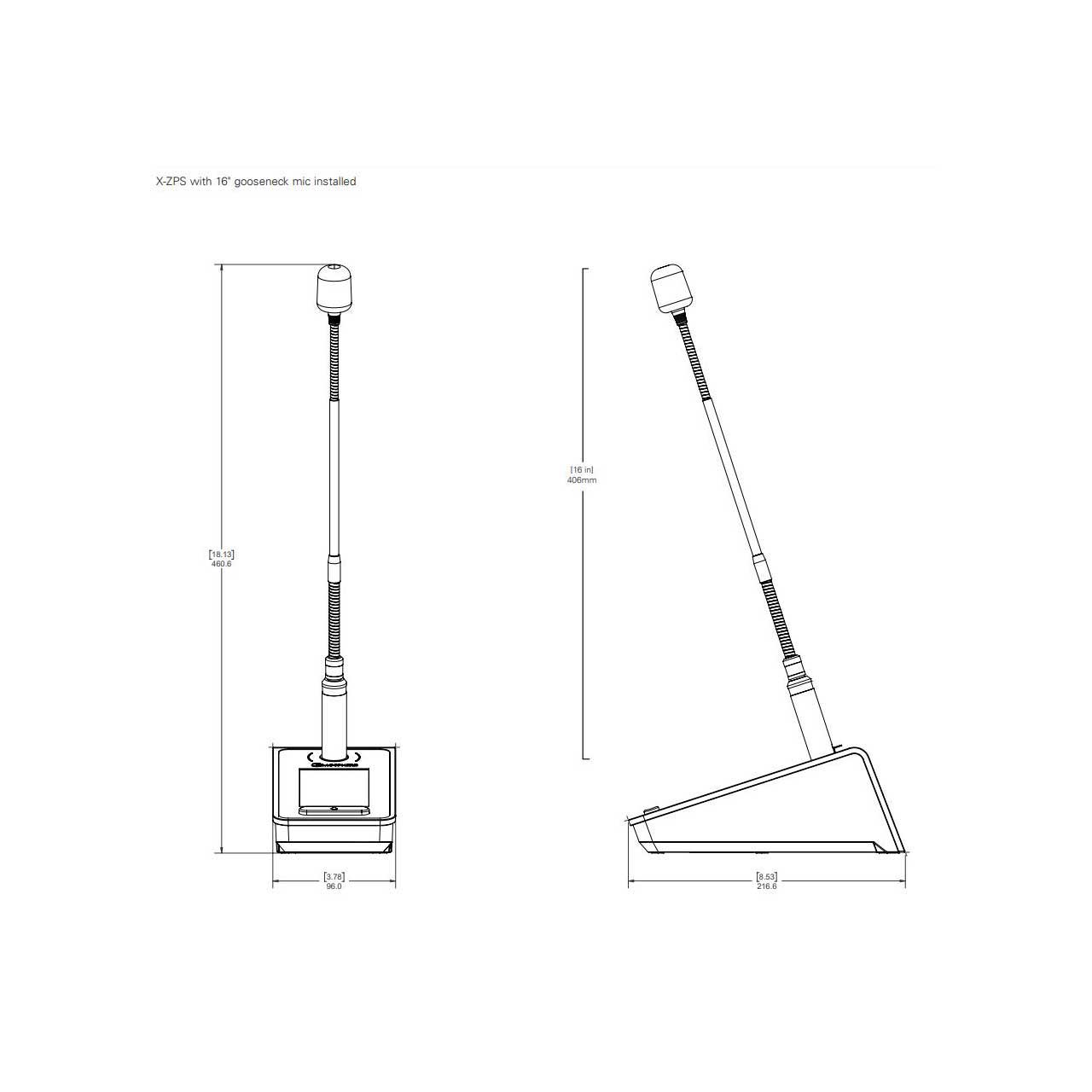

    • Dimensions: 3.33" x 3.78" x 8.53"
    • Housing Type: Cast aluminum
    • Mounting: Table top or snap in plate

  • Warranty:

    • 36 months from date of purchase


X-ZPS - Required Accessories
