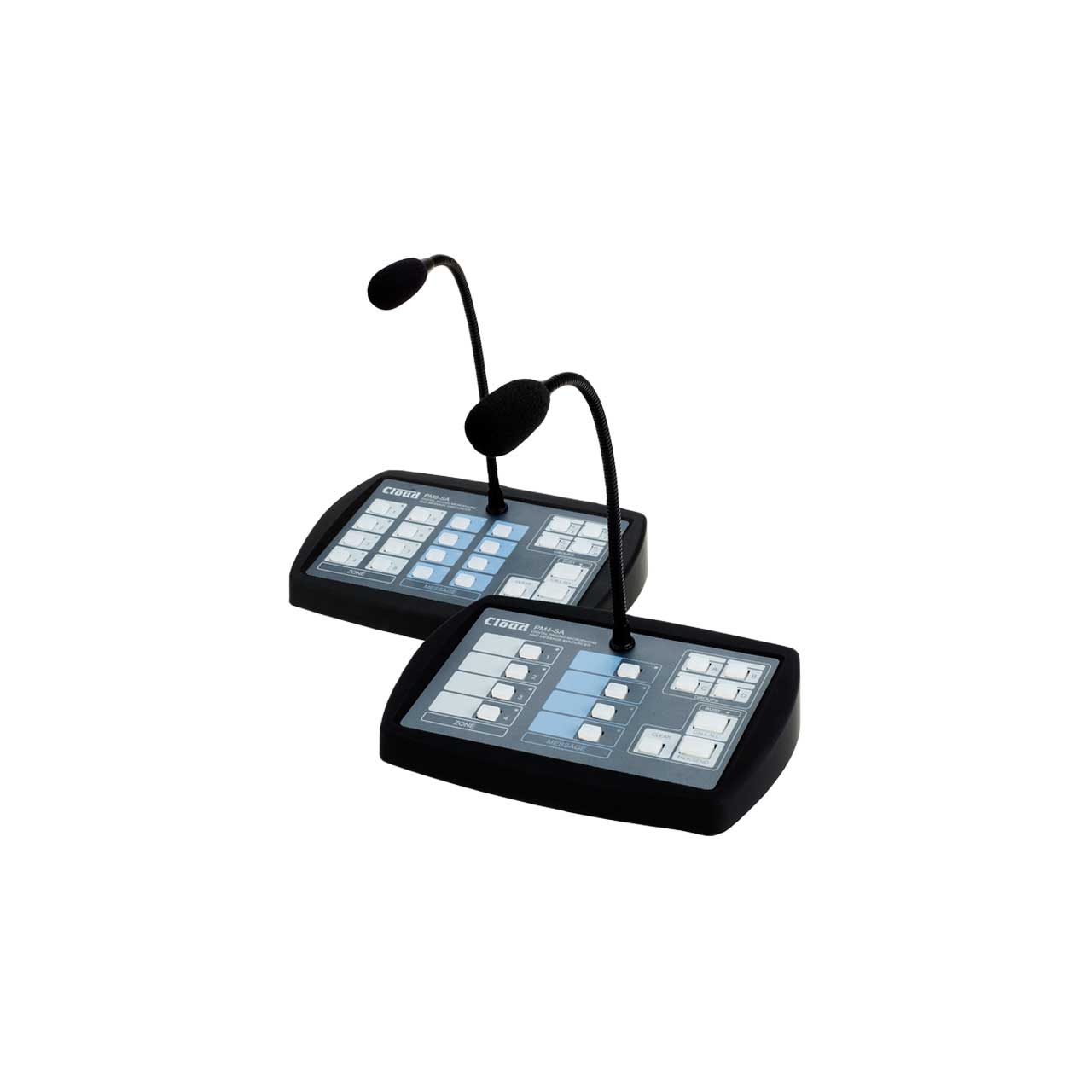

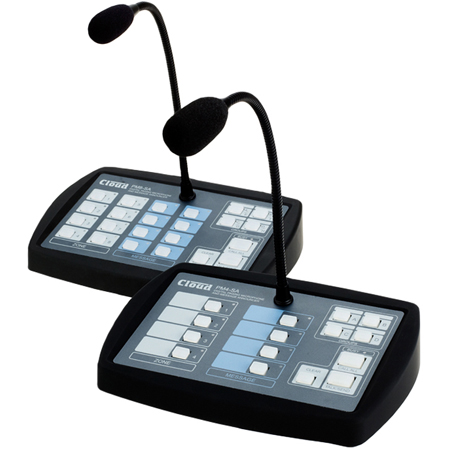

Cloud Electronics PM4-SA 4-Zone Paging Microphone with Spot Announcer / Internal SD Card and MP3 Player

ITEM #: CLE-PM4-SA MFG #: PM4SA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$481.00

Our Price:

$433.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


PM4SA - Overview

The Cloud PM-SA range of Digital Paging Microphones have been developed from the recently-introduced PM range, which were themselves designed to improve on the well-known CDPM Series. As well as being a simple-to-use and elegant paging mic, the PM-SA models incorporate a digital sound store for pre-recorded messages. These can be triggered either manually, or via external contacts from third-party equipment, such as PIR sensors, timing systems, or similar. The PM-SA models have a powerful range of options that make them suitable for almost any situation, yet are easy to install and configure.

Spot Announcer messages are stored on a standard SD memory card, and can be in the form of either WMA or MP3 files, at most common sample and bit rates. Pre-announcement chimes are also stored on the card in the same formats, and the unit may be configured to precede paged and pre-recorded announcements with different chimes.

An important feature of the PM-SA is its ability to store specific messages (and chimes, if wished) as part of the PM's zone group feature. A zone group allows multiple zones to be selected for paging or messaging with a single key press. When a message is programmed as part of a group definition, the message may be triggered by an external command, when it will be automatically broadcast in all the zones forming that group. This opens up many possibilities for automatic messaging, such as connecting the external trigger inputs to third-party timers to automatically repeat messages at fixed time intervals, or to PIR sensors for security applications.

  • Features:

    • Individual and Multiple Zone Selection by Mic or Message
    • Remote Message Trigger Contacts (NO/NC Contacts) for PIRs, Timer, DVR/Cameras
    • User Definable .WMA & .MP3 Recordable Message - any length
    • Definable Zone Groups with Group Selection
    • Pre-Announcement Chime (recordable on SD Card)
    • TALK & CALL ALL Buttons
    • BUSY LED
    • Configurable 2-Layer Announcement Priority
    • Auto Zone Reset after Announcement
    • Zone Disable Function

  • Specifications:

    • Microphone
    • Capsule Type: Condenser
    • Polar Pattern: Cardioid
    • Gooseneck length: 300 mm (standard); 140 mm (alternative Part No. MI100166)

      Zones
    • Number of Zones: 4

      Chime
    • Number of Chimes 4 (derived from SD card); internal speaker

      Interface
    • Digital: Cloud Digital Paging Interface (RJ45)
    • Analog: Zone Access Output (Short to Ground), Audio Output

      Messages
    • Number of messages: 4; internal speaker
    • Card format: SD/SDHC, MiniSD/SDHC*, MicroSD/SDHC*
    • File system: FAT16 or FAT32
    • File types: MP3 or WMA

      Power input - Current consumption
    • 120 mA (PM4-SA, idle mode)
    • 220 mA (PM4-SA, message mode)

  • Item Includes:

    • 1x Cloud Electronics PM4-SA 4-Zone Digital Message Announcers with Paging Mic / Internal SD Card and MP3 Player
