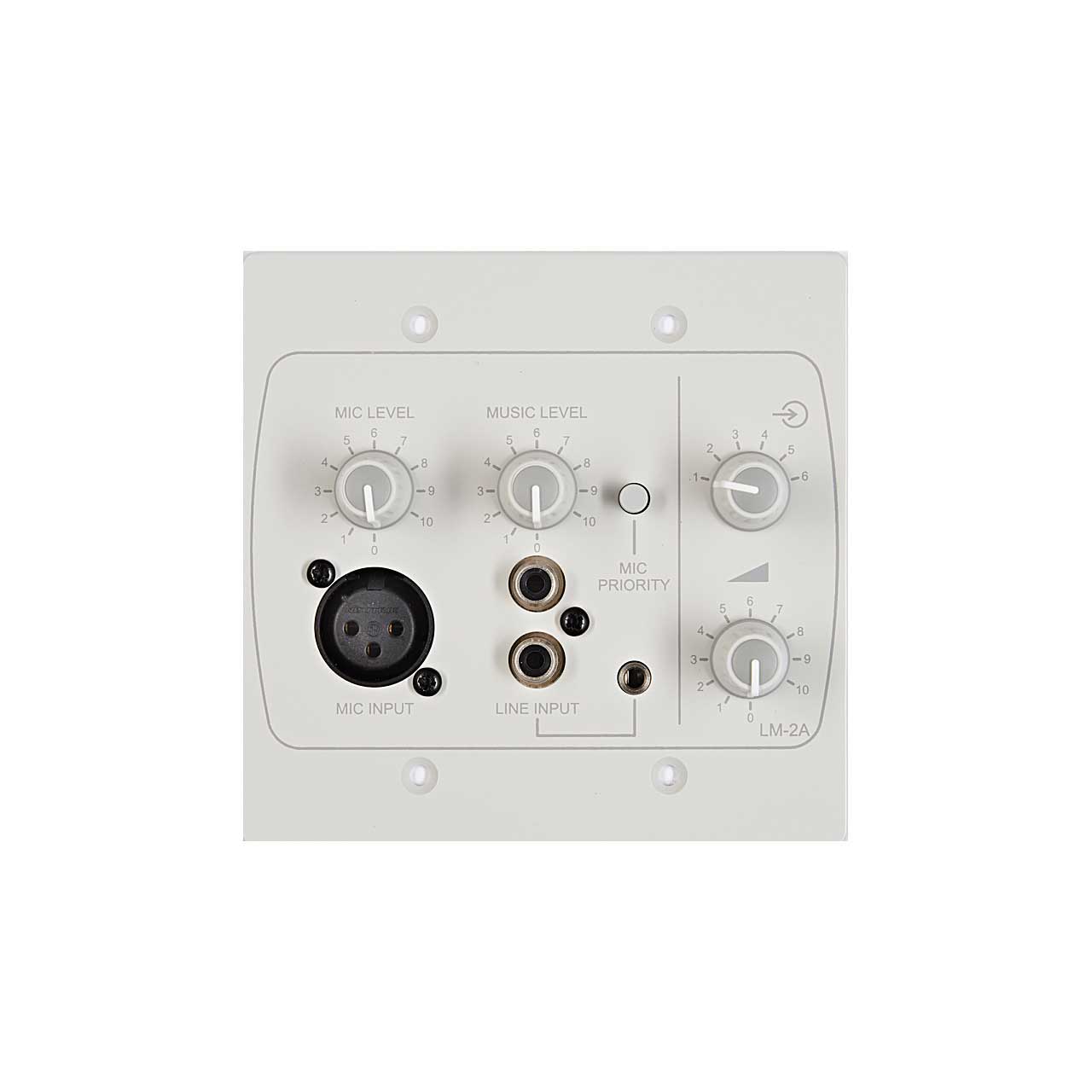

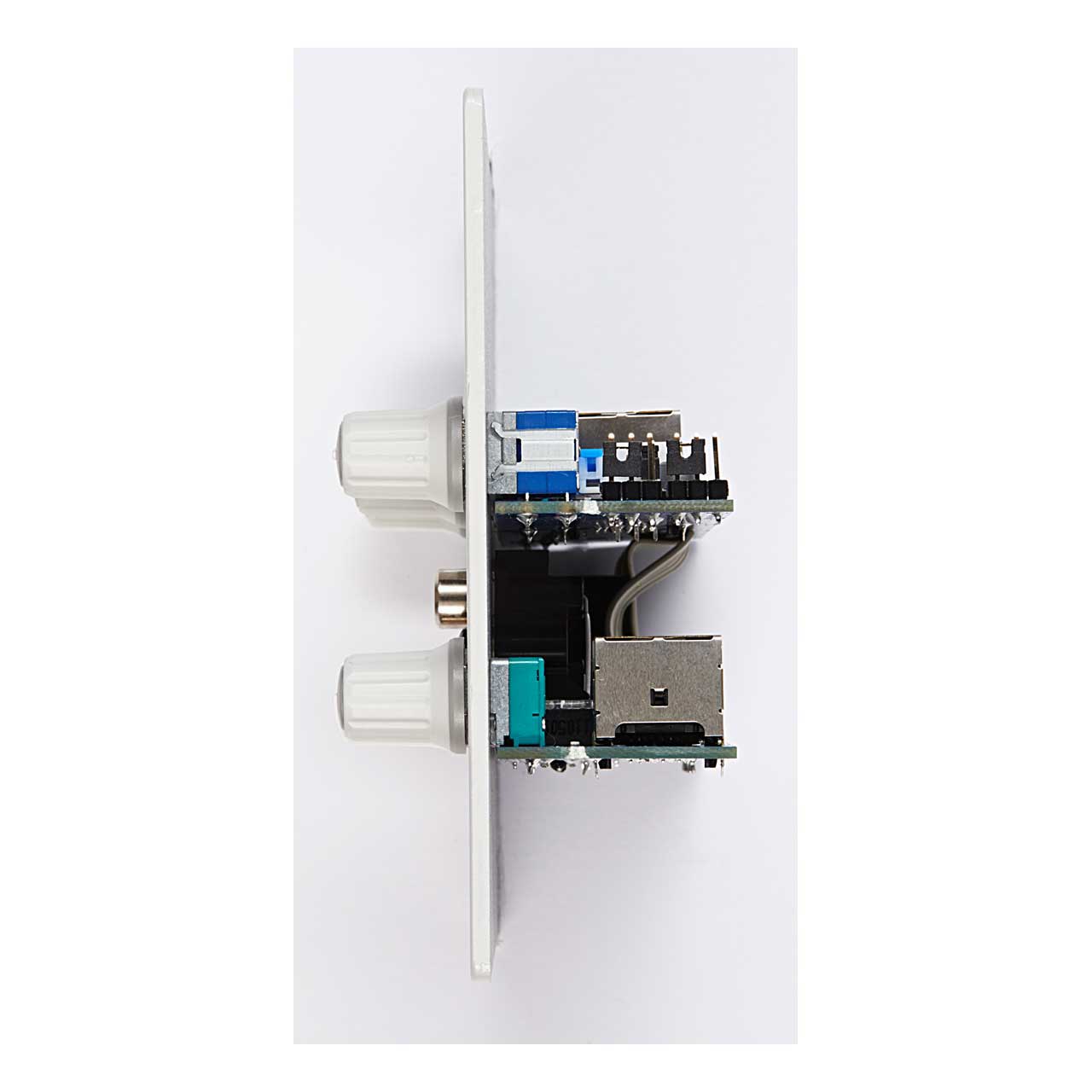

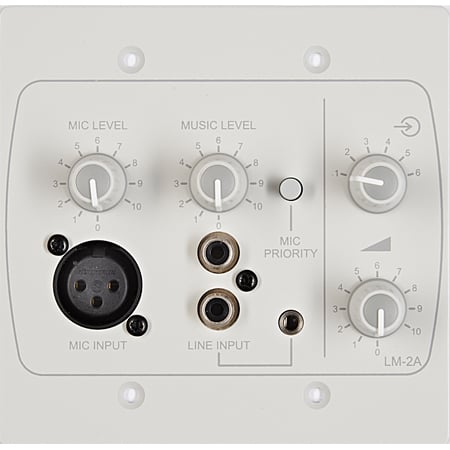

The LM-2A is a 2-Gang variant of the LM-2. This Active Input Plate allows easy connection of a Microphone and/or Line Level Input with Remote Source and Volume Control. Available in Black or White and connects directly via RJ45 connector to any Cloud model with a Facility Port Socket.
Due to the simplistic topology, the cable runs can be up to 4900 feet long.

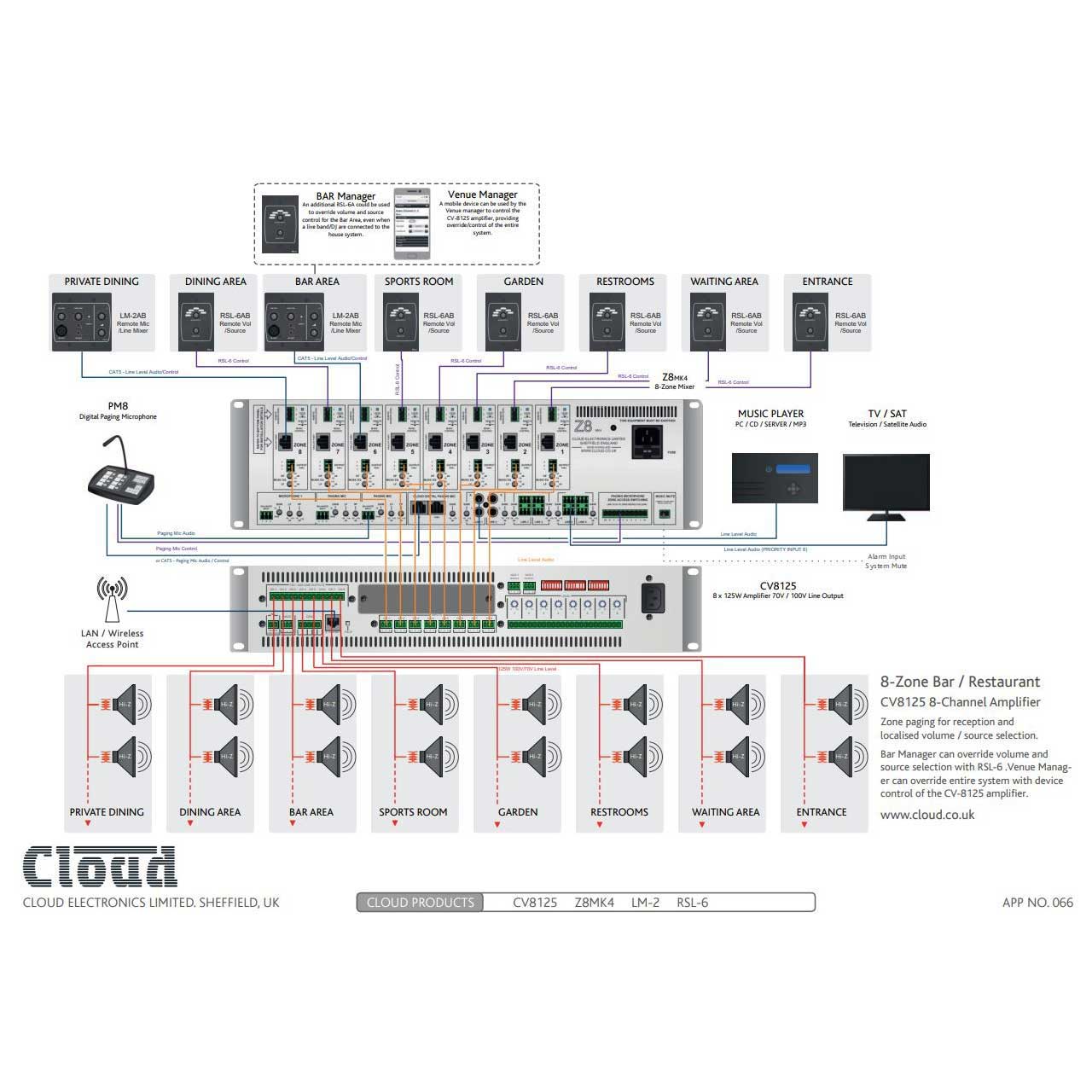

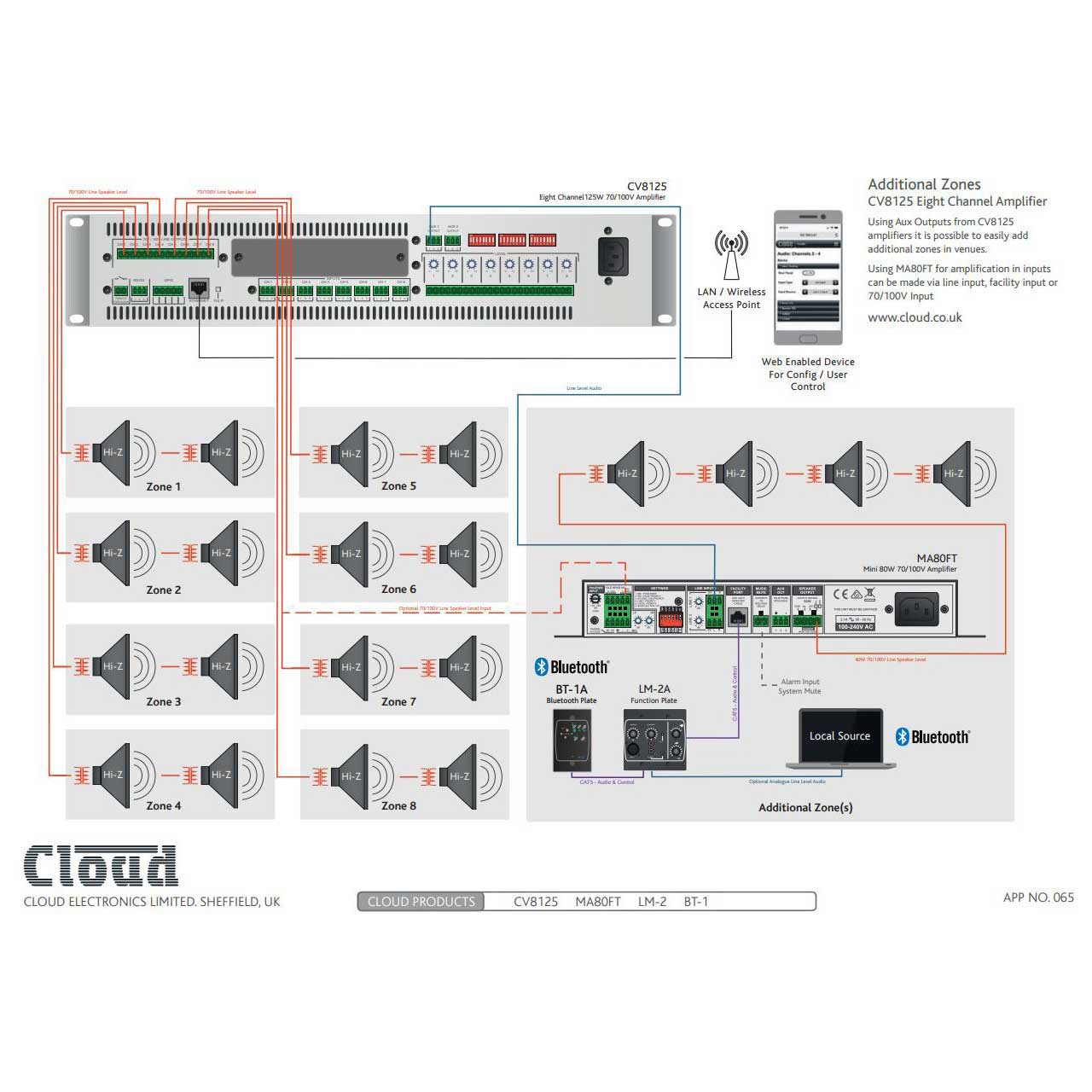

The first RJ45 socket allows an LM-2A Active Wall Plate to be connected per zone via Screened Cat-5 cabling. The second RJ-45 socket allows a second LM-2A or any other Facility Ported product such as BT-1 to be daisy chained using the LINK function and sums the audio in the zone.
The LM-2A is regularly used for presentations in seminar and conference suites, hotel ballrooms, multipurpose hospitality application, outdoor events, health and fitness application or lecturers in a classroom situation.
IP Rated Weatherproof/Outdoor Boxes can be sourced from your favorite hardware supplier.
Multiple LM-2s may be "daisy-chained" together to provide additional input/control points in the same Zone; a second RJ45 LINK connector is provided for this purpose. Only one LM-2 in such a chain may control background music source selection and level; further jumpers may be set to determine which LM-2 has control. Standard Cloud RSL-6 or RL-1 remote control plates may be daisy-chained to LM-2s in the same way.
