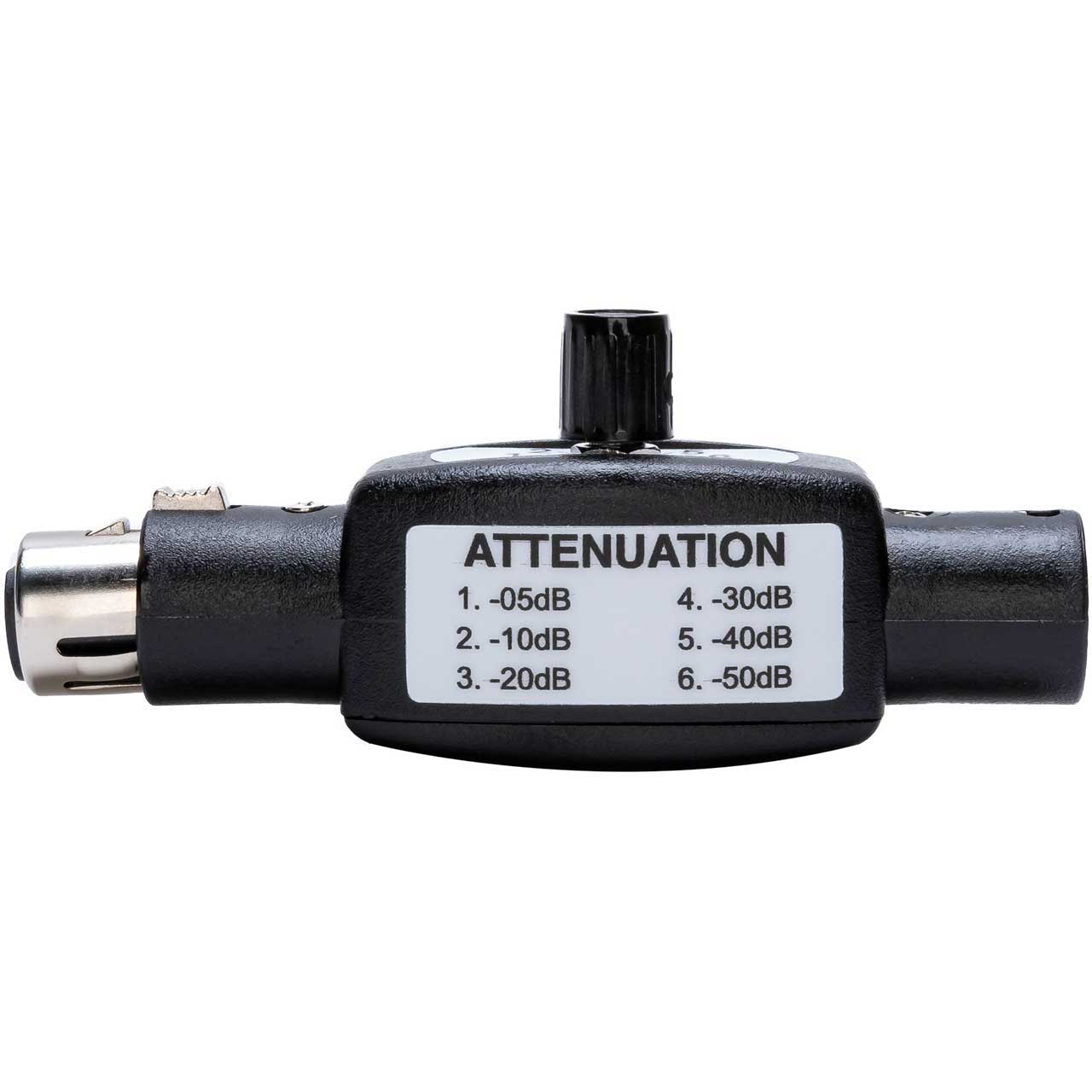

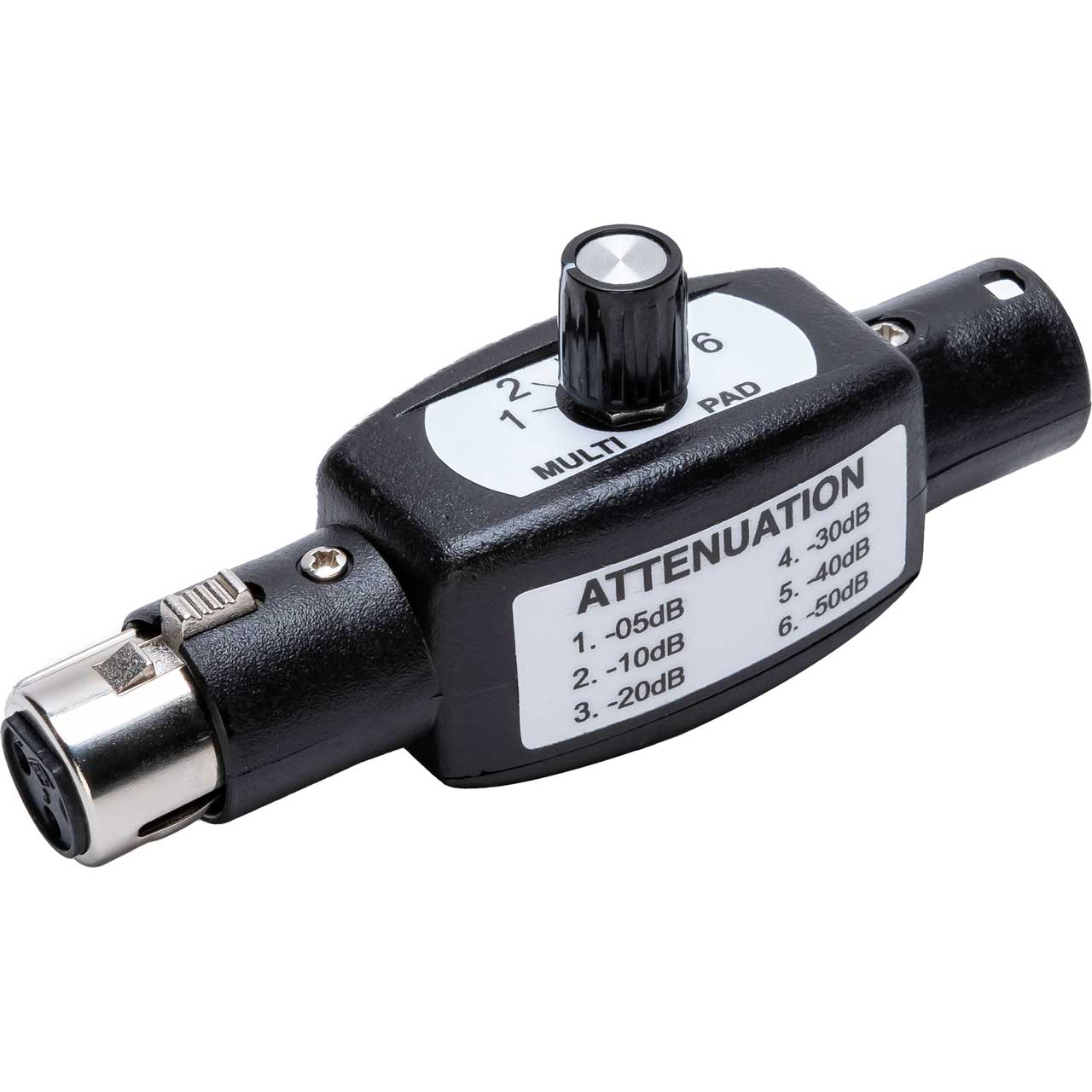

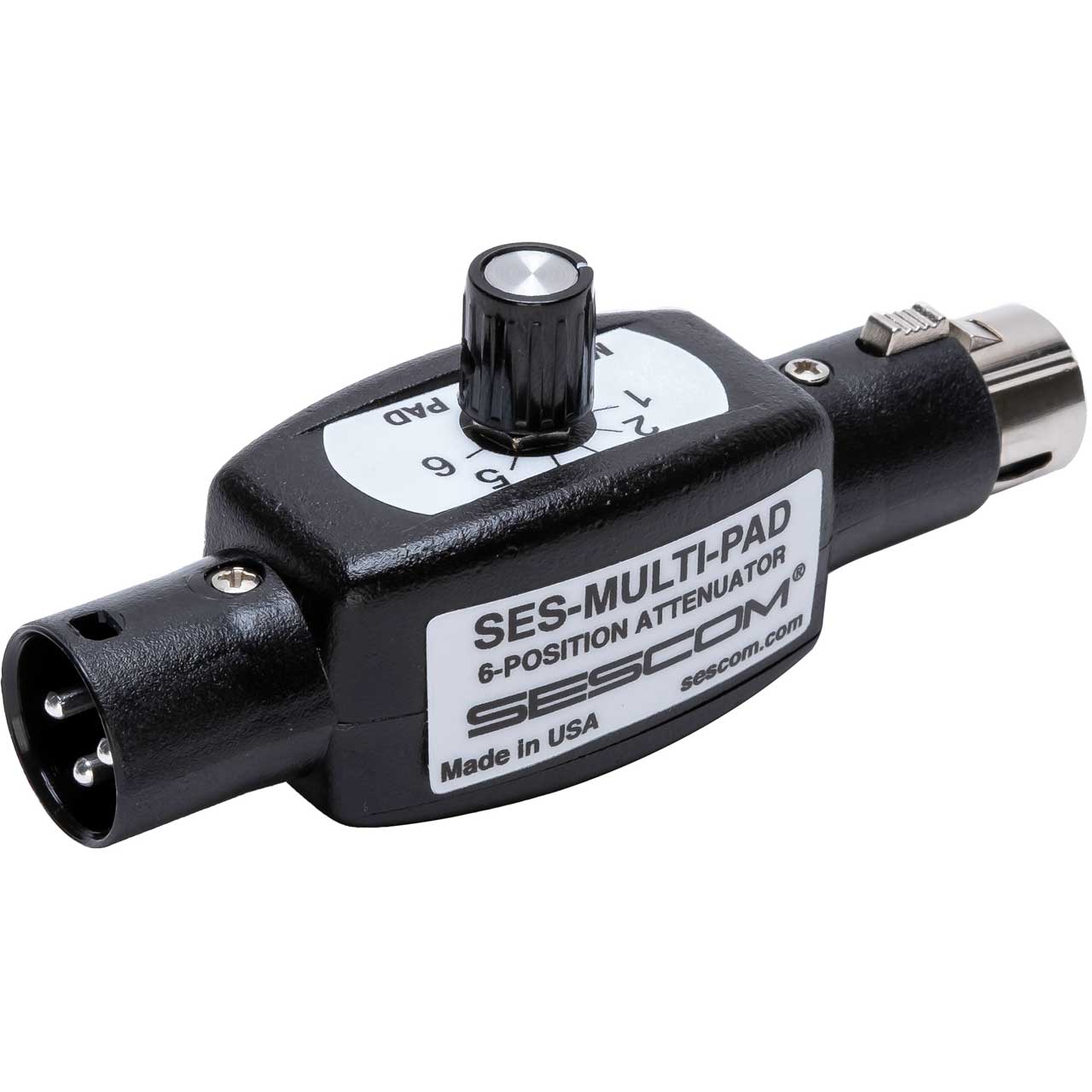

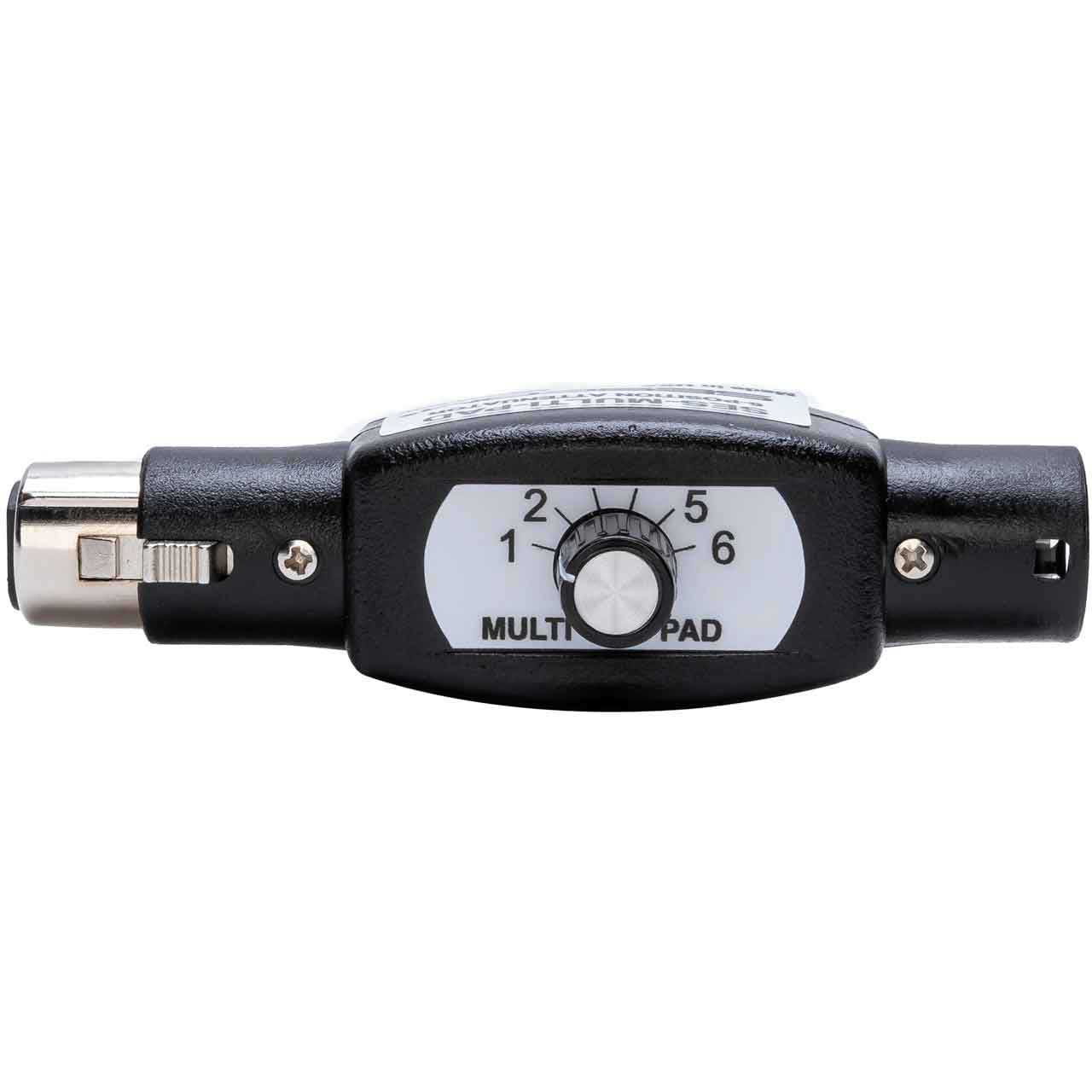

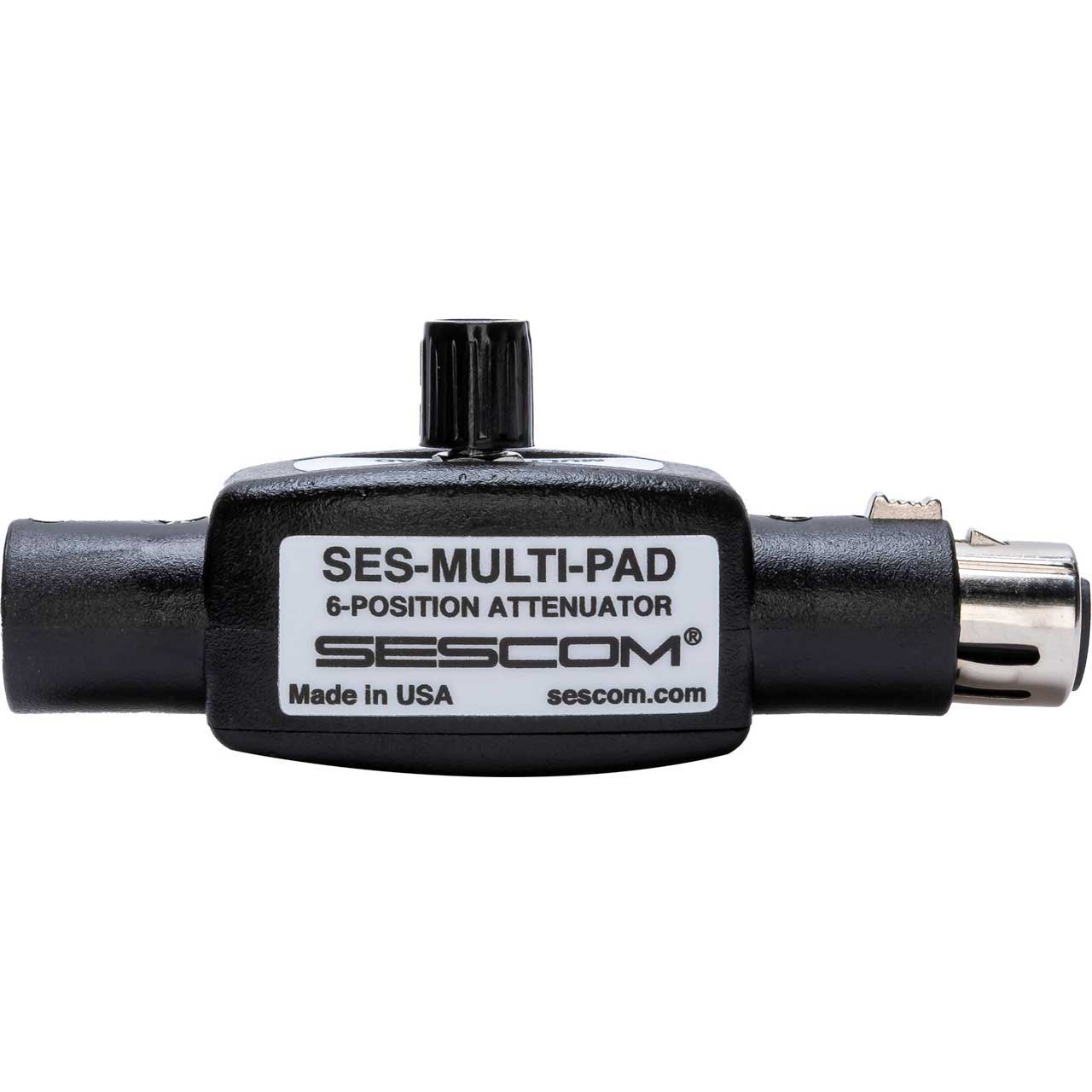

Sescom 6-Position Variable 3-Pin XLR Inline Attenuator

ITEM #: SES-MULTI-PAD MFG #: SES-MULTI-PAD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Sescom
Free Shipping with $49 Minimum Order

List Price:

$62.49

Our Price:

$57.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SES-MULTI-PAD - Overview

The Sescom SES-MULTI-PAD is the Ultimate Selectable Level Cut Balanced Audio Attenuator Pad that Plugs into Your Equipment I/O's or Inline Cables!

The Sescom SES-MULTI-PAD attenuator reduces the power of your signal in selectable decibel increments of -5dB, -10dB, -20dB, -30dB, -40dB and -50dB without appreciably distorting signal waveform. It is housed in the same do-it-all enclosure as Sescom's flagship IL-19 and is ready to plug directly into other equipment's outputs or inputs with its built in XLR connectors. A long time requested design that's useful as an audio engineering tool as much as a problem solver in the field or in the studio. Can also be used with adapters to attenuate unbalanced audio in a pinch with no ill effects.

Set the level of attenuation YOU NEED and ELIMINATE DISTORTION from hot audio signals with the SES-MULTI-PAD today!

Not intended for use with phantom power

  • Features:

    • Six Position rotary switch allows Precision attenuation amounts of -5, -10, -20, -30, -40 and -50 decibels
    • Stops overloading peaks and distortion - Provides totally Flat, Full-Bandwidth across-the-board level cut; lowering the signal to the level you need
    • Inline design with Built-In Male and Female XLRs right in the housing: Plugs directly into equipment's inputs OR outputs; it can also be used between (2) XLR cables due to its "pluggable" form factor


  • Specifications:

    • Product Dimensions: 3.75" x 1.06" x 1.63"

    • Attenuation Value:
      -5 dB
      -10 dB
      -20 dB
      -30 dB
      -40 dB
      -50 dB

    • Frequency Response Deviation (20Hz-20kHz):
      -5 dB through -50 dB: <0.1 dB

    • Signal to Noise Ratio 0dBFS, A-Weighted:
      -5 dB: 113 dB
      -10 dB: 109 dB
      -20 dB: 98 dB
      -30 dB: 89 dB
      -40 dB: 79 dB
      -50 dB: 68 dB

    • Total Harmonic Distortion 1KHz, 0 dBFS:
      -5 dB: <0.001%
      -10 dB: <0.001%
      -20 dB: <0.001%
      -30 dB: <0.001%
      -40 dB: 0.002%
      -50 dB: 0.008%

    • Maximum Input Level:
      -5 dB through -50 dB: >24 dB

    • Maximum Output Level:
      -5 dB: >19 dB
      -10 dB: >14 dB
      -20 dB: >4 dB
      -30 dB: >-3 dB
      -40 dB: >-15 dB
      -50 dB: >-27 dB

    • Dynamic Range:
      -5 dB: >132 dB
      -10 dB: >123 dB
      -20 dB: >103 dB
      -30 dB: >86 dB
      -40 dB: >64 dB
      -50 dB: >41 dB

    • Gain:
      -5 dB: -5dB
      -10 dB: -10dB
      -20 dB: -20dB
      -30 dB: -29dB
      -40 dB: -39dB
      -50 dB: -51dB

    • Input Impedance:
      -5 dB: 1.3k Ohms
      -10 dB: 2.1k Ohms
      -20 dB: 4.6k Ohms
      -30 dB: 7.1k Ohms
      -40 dB: 8.8k Ohms
      -50 dB: 9.7k Ohms

    • Output Impedance:
      -5 dB: 910 Ohms
      -10 dB: 940 Ohms
      -20 dB: 940 Ohms
      -30 dB: 960 Ohms
      -40 dB: 980 Ohms
      -50 dB: 990 Ohms

    • Phase Deviation:
      -5 dB through -50 dB: <.1 deg


  • Warranty:

    • 1 Year
