Bulit for Production, Rugged construction. Flexible mounting

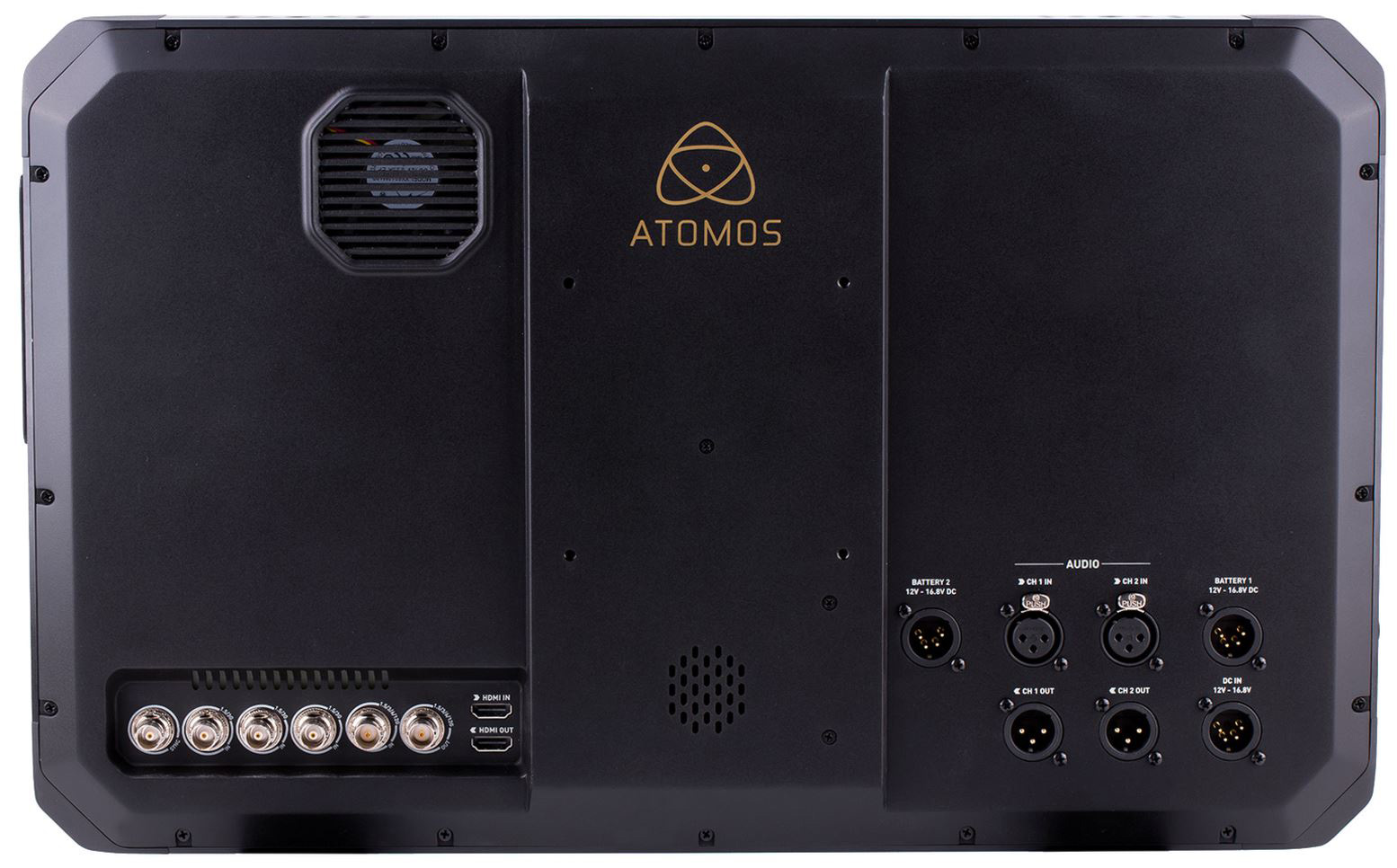

The Aluminium alloy chassis with built-in armor houses ten mounting points around the top/bottom/side, a rear panel VESA mount and an included stand for a variety of mounting configurations. Alongside of the XLR connections for power and balanced audio, there is a 3.5mm stereo headphone jack and built-in speakers. The optional mounting plates connect dual V-Lock or Anton Bauer batteries work in tandem with our patent pending continuous power system. This allows batteries to be hot swapped to ensure you are never without power in the field.
Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device and convert between HDMI 2.0 and SDI (3G QuadLink/6G/12G) in any combination. Quad SDI inputs connect cameras with multiple 1.5 or 3G SDI outputs without the need for converters. HDMI 2.0 supports up to 4Kp60 input/output along with the very latest Atomos open protocol that supports HDR automation including importing of camera settings. There is also support for Genlock and LTC timecode.
Professional Recording-12-bit Raw, 10-bit ProRes/DNxHR up to 4Kp60
Capture the RAW output from Sony FS5/FS7/FS700, Canon C300MKII/ C500 or Panasonic Varicam LT over SDI up to 12-bit 4Kp30 as CDNG or 10-bit Apple ProRes / Avid DNxHR up to 4Kp60 / 2Kp240 depending on the camera's capability. The processing power of Sumo preserves pristine quality direct from the sensor with data rates of up to 3.2 Gbps.
Monitor. Switch. Record
Live Switch and Record up to four 1080/60p channels, 4 x ISO record and playback. Make working with multi-cam a breeze. Switch and mix a live record and stream or record 4 x HD ISO recordings using the QuadLink SDI connections. Switch between feeds on screen with cueing, cross fade and hard cuts from the locked sources or tag and adjust final edits with advanced metadata tagging preserving ISO feeds, with the desired final result infinitely editable.
Choose the SSD to Suit Your Workflow
Sumo records using our patented Master Caddy system. High capacity and widely available 2.5" SSD's provide an affordable solution for long recording times. We've tested and approved over 20 drives for Sumo (atomos.com/drives) that neatly slot into the provided Master Caddy or use the custom Atomos caddy from G-Technology to integrate directly into their EV series of Raid and desktop solutions for the ultimate in workflow efficiency.
Please note: When using SSDmini drives with the SUMO19 the Atomos ATOMXSSDH1 mini handle is required for easy insertion and retrieval.
