Audio-Technica ATW-1101/H System 10 Digital Wireless PRO 8HEcW Headworn System

ITEM #: ATW-1101-H MFG #: ATW-1101/H

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$399.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ATW-1101/H - Overview

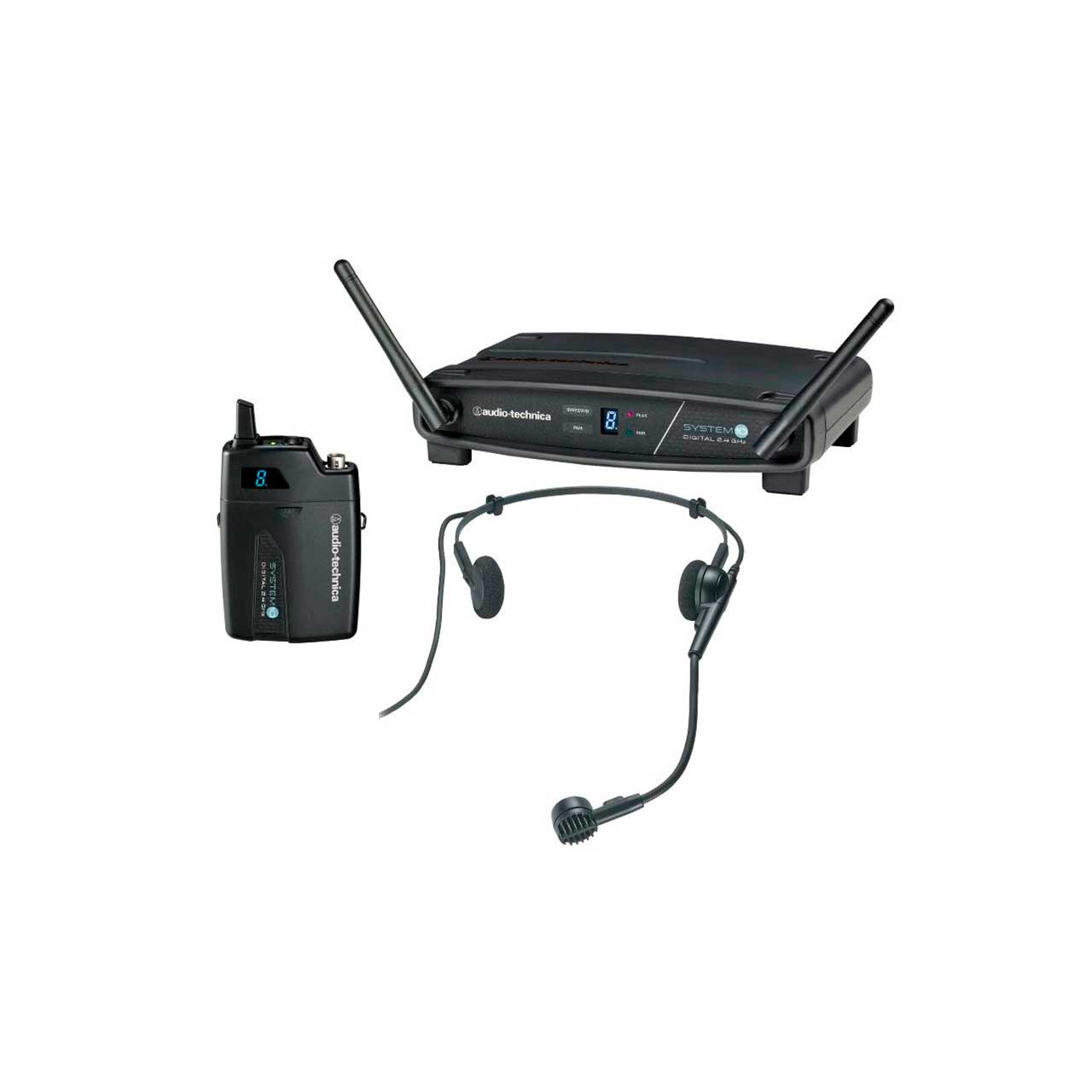

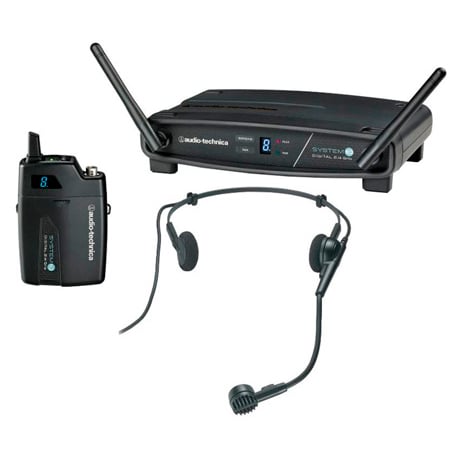

    The Audio-Technica ATW-1101/H consists of an ATW-R1100 receiver and the ATW-T1001 UniPak transmitter with a PRO 8HEcW headworn microphone.

    Audio-Technica's System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

    System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

    Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.


    Please note: There are several models in this series. They are as follows......

    ATW-1101
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.

    ATW-1101/G
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with AT-GcW guitar/instrument input cable.

    ATW-1101/H
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 8HEcW headworn microphone. (listed here)


    ATW-1101/H92
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 92cW headworn microphone.

    ATW-1101/H92-TH
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 92cW-TH headworn microphone (beige).

    ATW-1101/L
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with MT830cW omnidirectional lavalier microphone.

    ATW-1102
    ATW-R1100 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp.

    • Features:

      • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
      • 2.4GHz range - completely free from TV interference
      • Three levels of diversity assurance: frequency, time and space
      • Automatic frequency selection for seamless, interference-free operation
      • Extremely easy operation with instantaneous channel selection, sync, and set-up
      • State-of-the-art digital receiver for reliable performance

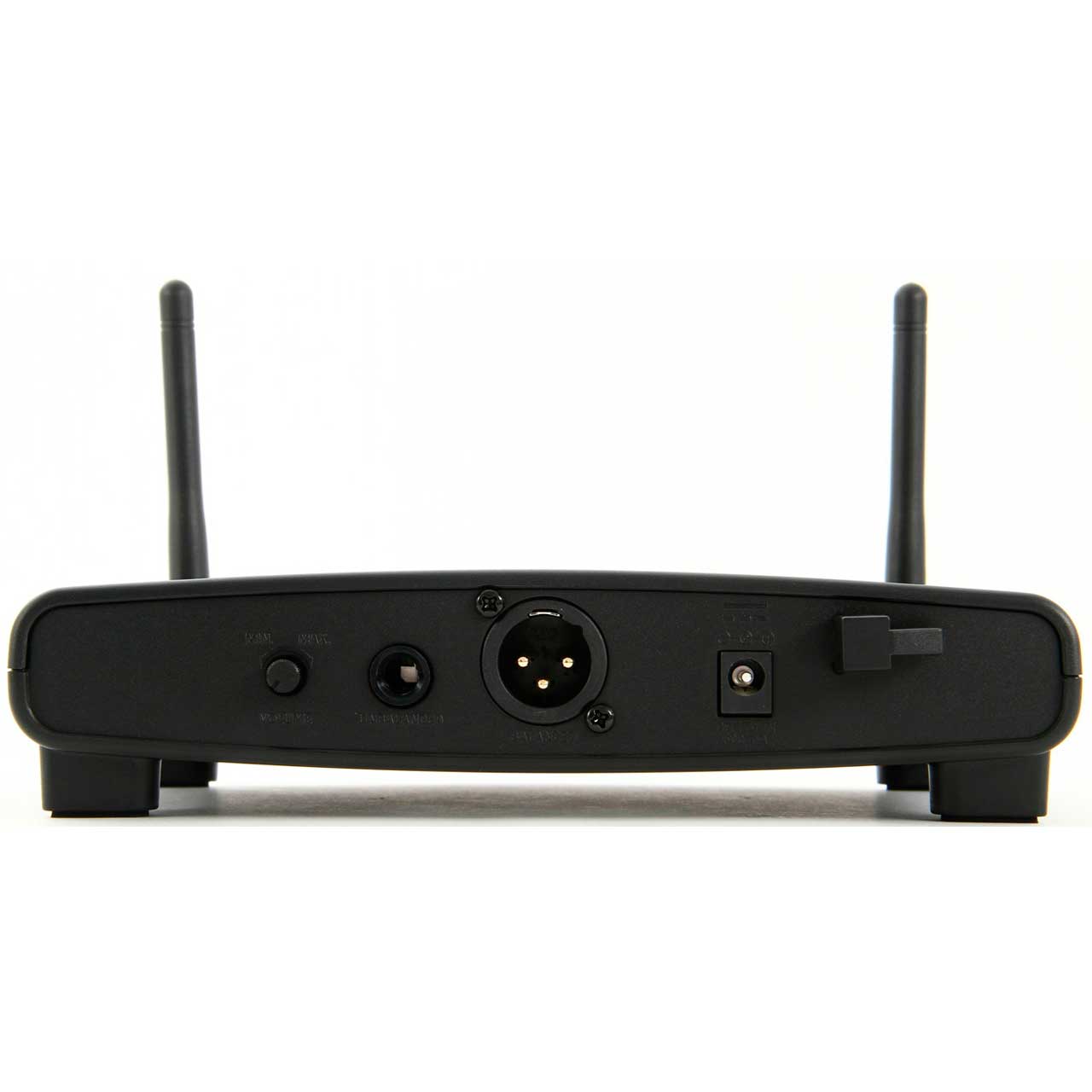

      • Balanced XLR and unbalanced 1/4" output jacks with level control

    • Specifications:

      • Overall System Specifications
      • Operating Frequencies: 2.4GHz ISM band (2400 - 2483.5MHz)
      • Dynamic Range: >109dB (A-weighted), typical
      • Total Harmonic Distortion: <0.05% typical
      • Operating Range: 100ft typical, Open range environment with no interfering signals
      • Operating Temperature Range: 32°F - 104°F, Battery performance may be reduced at very low temperatures
      • Frequency Response: 20Hz - 20kHz, Depending on microphone type
      • Maximum Simultaneous Use (Recommended): 200ft minimum

        Receiver Specifications
      • Receiving System: Diversity (frequency/time/space)
      • Maximum Output Level: XLR, balanced: 0dBV; 1/4", unbalanced: +6dBV
      • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC .5A (center positive) switched mode external power supply
      • Operating Temperature Range: 40°F - 110°F
      • Dimensions (HxWxD): 1.82" x 7.48" x 5.06"
      • Net Weight: 10.2oz

        Body-Pack Transmitter Specifications
      • RF Power Output: 10mW
      • Spurious Emissions: Following federal and national regulations
      • Input Connections: Four-pin Locking Connector; Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
      • Batteries: Two 1.5V AA, not included
      • Battery Life: >7 hours (alkaline), Depending on battery type and use pattern
      • Dimensions (HxWxD): 4.21" x 2.76" x 0.98"
      • Net Weight: 3.5oz, without batteries

        Microphone Specifications
      • Element: Dynamic
      • Polar Pattern: Hypercardioid
      • Frequency Response: 200 - 18,000Hz
      • Open Circuit Sensitivity: -55dB (1.7mV) re 1V @ 1Pa
      • Impedance: 600Ω
      • Weight: 2.1oz
      • Dimensions (Microphone): 0.80" diameter
      • Dimensions (Headset): 4.72" nominal at widest point,
      • 3.17" flexible boom
      • Output Connector: 3-pin XLRM-type on cable
      • Cable: 55" cable terminated with locking 4-pin connector for A-T UniPak® wireless systems
      • Audio-Technica Case Style: M19

    • Item Includes:

      • Power supply
      • ATW-R1100 Receiver
      • ATW-T1001 Body-pack transmitter
      • PRO 8HEcW Headworn microphone

    • Warranty:

      • 2 Year Limited End-User

    • GTIN:

      0042005175376
