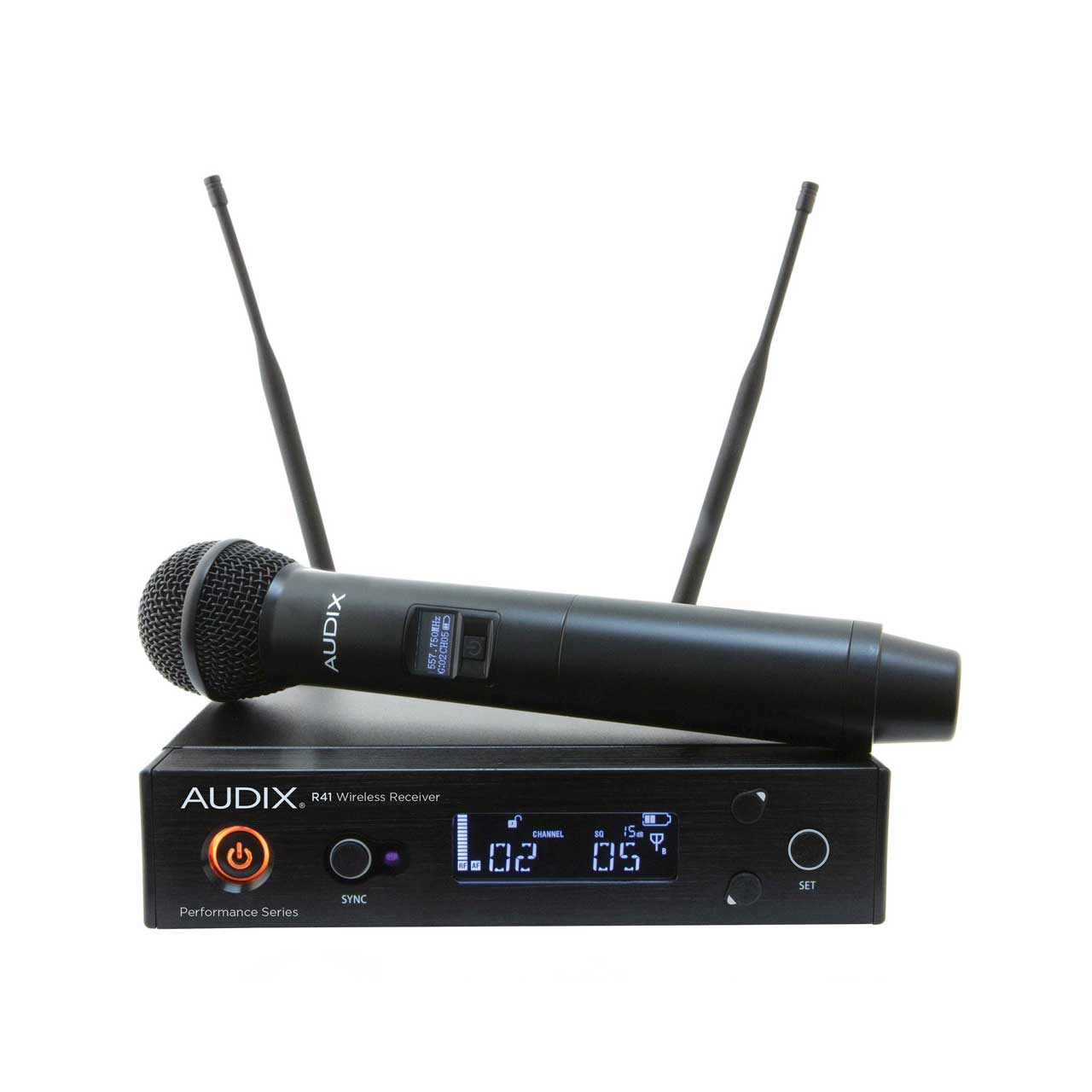

Audix AP41 OM2 Wireless Mic System with R41 Diversity Receiver and H60/OM2 Handheld Transmitter - 522MHz - 554MHz

AP41 OM2 A - Overview

• Features:

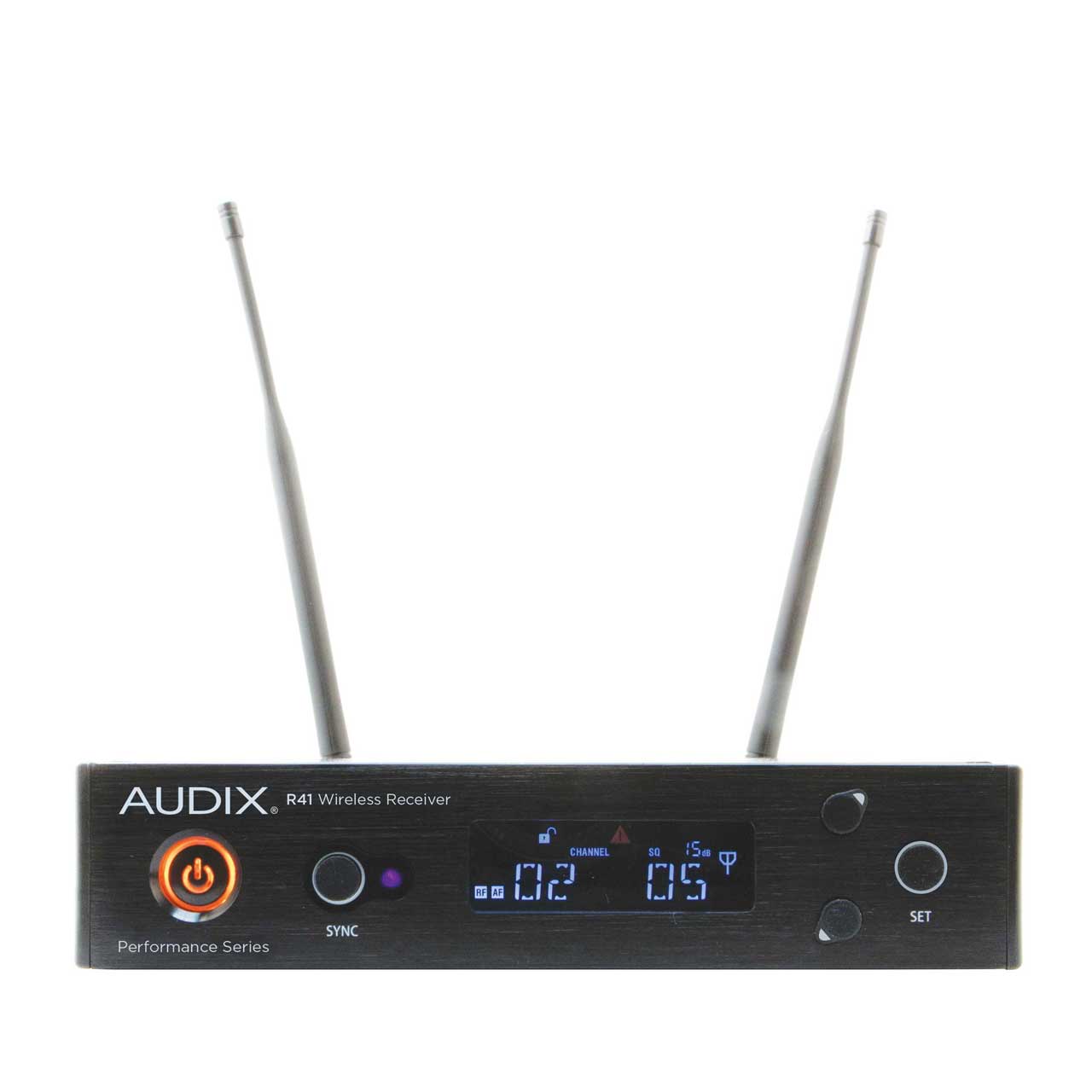

  • R41 Diversity Receiver
  • 32 MHz Wide spectrum receiver
  • 106 Pre-coordinated frequencies for quick, easy and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

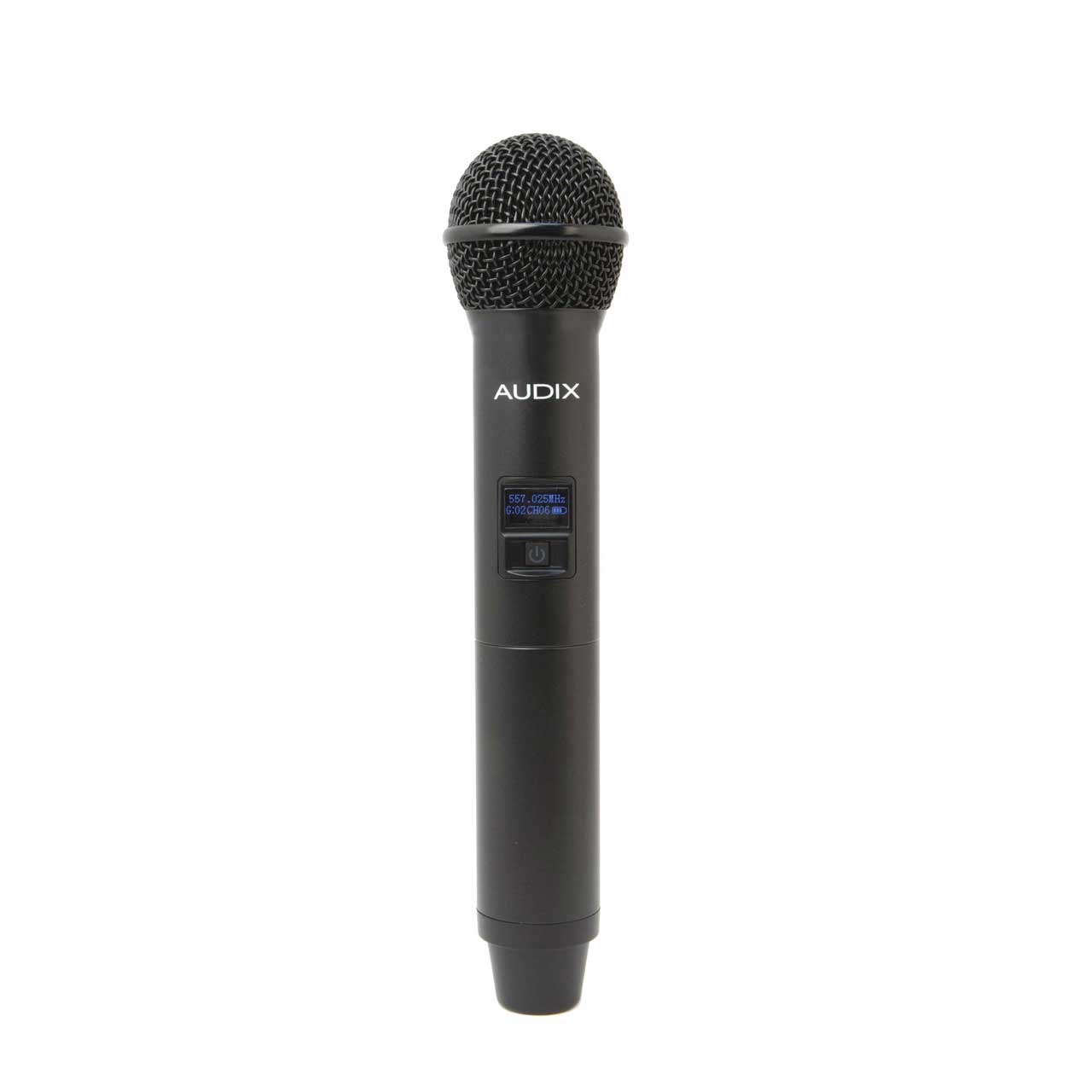

    H60 OM2 Handheld Microphone
  • 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
  • Durable metal housing
  • 14 Hour run time - AA batteries


• Specifications:

  • R41
  • Frequency Range: 522 MHz - 554 MHz
  • Bandwidth: 32 MHz
  • Compatible Systems: 16 Compatible system operation
  • Switchable Frequencies: 106 Preset frequencies
  • Manual Mode: n/a
  • Frequency Response: 45 Hz - 18 kHz
  • Compander System: 2:1
  • Pilot Tone: 32 kHz
  • Receiving System: Single tuner, diversity
  • Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
  • Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
  • Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
  • Audio Output (AF=0): Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load / 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
  • Output Connectors: 1/4", XLR
  • Audio Level Adjust: Balanced: -12 to +9 dBu / Line: -24 to +4 dBu (adjustable in 3 dB-steps)
  • Range: 300 Feet
  • Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
  • Dimensions: 205 mm (W) x 206 mm (D) x 44 mm (H)
  • Net Weight: 1.92 lbs.

    H60
  • RF Power Output: 10 mW, 40 mW
  • Frequency Bandwidth: 64 MHz
  • Gain Controls: 0 dB, -6 dB, -12 dB
  • Input Connector: n/a
  • Batteries Included: 2 AA 1.5 V
  • Input Impedance: n/a
  • Max Sound Pressure Level: >140 dB (depending on capsule)
  • Dimensions: 2.1" diameter body, 10.43" (L)
  • Net Weight: 11 oz. (without battery)


• Item Includes:

  • 1 x R41 32 MHz Diversity Receiver
  • 1 x H60 Handheld Transmitter with OM2 Capsule Module
  • 2 x Antennas
  • 1 x Audio Cable
  • 1 x Clip
  • 1 x Pouch
  • 2 x AA Batteries
  • 1 x Carrying Case
  • 1 x Power Supply
  • 1 x User Guide


• GTIN:

  0687471701003
