Audix AP41BPB Wireless Mic System with R41 Receiver and B60 Bodypack Transmitter - 554MHz - 586MHz

ITEM #: AUD-AP41BPB MFG #: AP41BPB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$679.00

Our Price:

$569.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AP41BPB - Overview

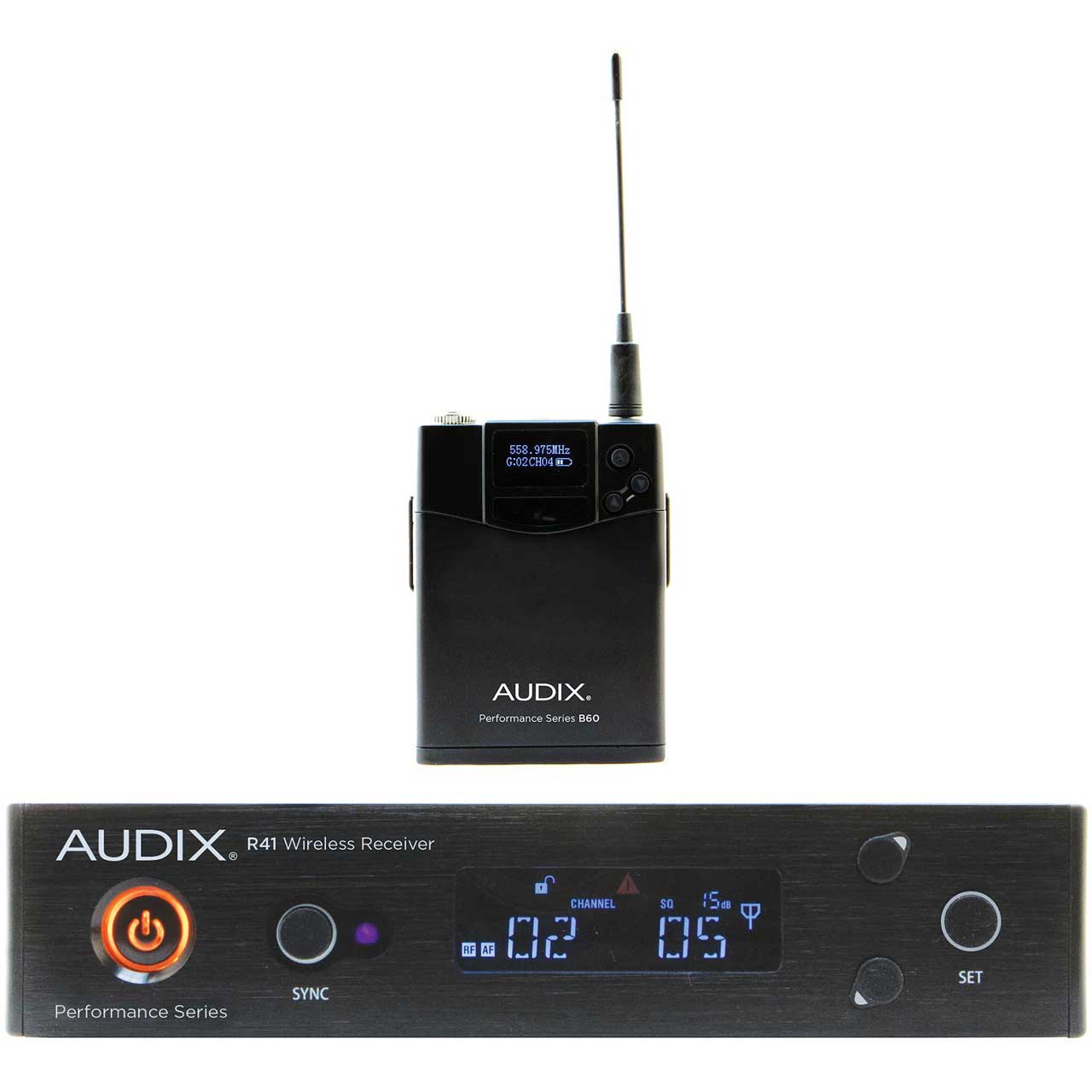

The Audix AP41BPB is a wireless diversity microphone system consisting of the R41 diviersity receiver and the B60 bodypack transmitter.

The R41 allows a custom system to be configured according to one's unique application. The B60 bodypack may be used with any lavalier, headworn or instrument microphone in the Audix line, as well as guitar and bass. Optional accessories include single space rack mount kit with BNC cables for front mounting antennas, rack mount kit for mounting two systems in one rack space, active directional antennas and antenna distribution system for up to four systems (4 channels).

  • Features:

    • R41 Diversity Receiver
    • 32MHz Wide spectrum receiver
    • 106 Pre-coordinated frequencies for quick, easy and reliable set up
    • One-touch auto scan searches for clear channel
    • One-touch sync links transmitter to receiver via infrared beam

      B60 Bodypack Transmitter
    • 64MHz Wide spectrum transmitter
    • Durable metal housing
    • 14 Hour run time using AA batteries

  • Specifications:

    • Frequency Range: 554 MHz - 586 MHz
    • Compatible Systems: 16 Compatible system operation
    • Switchable Frequencies: 106 Preset frequencies
    • Manual Mode: n/a
    • Frequency Response: 45 Hz - 18 kHz
    • Compander System: 2:1
    • Pilot Tone: 32 kHz
    • Receiving System: Single tuner, diversity
    • Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
    • Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
    • Sensitivity: 5 dBuV (S/N 60 dB at 25 kHz deviation, A-weighted)
    • Audio Output (AF=0): Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
    • Output Connectors: 1/4", XLR 1/4", XLR
    • Audio Level Adjust: Balanced: -12 to +9 dBu, Line: -24 to +4 dBu (adjustable in 3 dB-steps)
    • Range: 300 Foot, (91 M) 450', (137 M)
    • Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
    • Net Weight: 1.92 lbs

  • Item Includes:

    • 1x R41 32MHz Diversity Receiver
    • 1x B60 Bodypack Transmitter
    • 2x Antennas
    • 1x Audio Cable
    • 2x AA Batteries
    • 1x Carrying Case
    • 1x Power Supply
    • 1x User Guide
    • 1x Rackmount Hardware

  • GTIN:

    0687471721070
