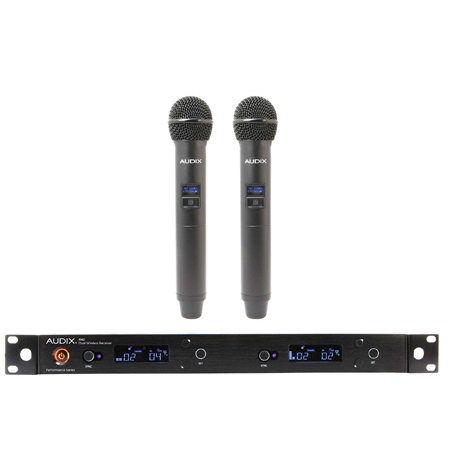

Audix AP42 OM5 R42 Two Channel Diversity Wireless Mic Receiver with Two H60/OM5 Handheld Transmitters - 522mhz-554mhz

AP42 OM5 A - Overview

• Features:

  • R42 Two Channel Diversity Receiver
  • 32 MHz Wide spectrum tuning receiver
  • 106 Pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

    H60 OM5 Handheld Transmitter
  • 64 MHz Wide spectrum transmitter with OM5 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries


• Specifications:

  • R42
  • Frequency Range: 522 MHz - 554 MHz
  • Bandwidth: 32 MHz
  • Compatible Systems: 16 Compatible system operation
  • Switchable Frequencies: 106 Preset frequencies
  • Manual Mode: n/a
  • Frequency Response: 45 Hz - 18 kHz
  • Compander System: 2:1
  • Pilot Tone: 32 kHz
  • Receiving System: Single tuner, diversity
  • Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
  • Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
  • Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
  • Audio Output (AF=0): Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load / 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
  • Output Connectors: 1/4", XLR
  • Audio Level Adjust: Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps)
  • Range: 300 Feet
  • Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
  • Dimensions: 406 mm (W) x 209 mm (D) x 44 mm (H)
  • Net Weight: 4.4 lbs.

    H60
  • RF Power Output: 10 mW, 40 mW
  • Frequency Bandwidth: 64 MHz
  • Gain Controls: 0 dB, -6 dB, -12 dB
  • Input Connector: n/a
  • Batteries Included: 2 AA 1.5 V
  • Current Consumption: 110 mA typical
  • Battery Life: 14 hours
  • Input Impedance: n/a
  • Max Sound Pressure: Level >140 dB (depending on capsule)
  • Dimensions: 2.1" diameter body, 10.43" (L)
  • Net Weight 11.0 oz (without battery)


• Item Includes:

  • 1x R42 32 MHz Two Channel Diversity Receiver
  • 2x H60 Handheld Transmitter with OM5 Capsule Module
  • 2x Antennas
  • 1x Audio Cable
  • 1x Clip
  • 1x Pouch
  • 1x Rackmount Hardware
  • 1x BNC Coax Cables
  • 4x AA Batteries
  • 1x Power Supply
  • 1x User Guide
