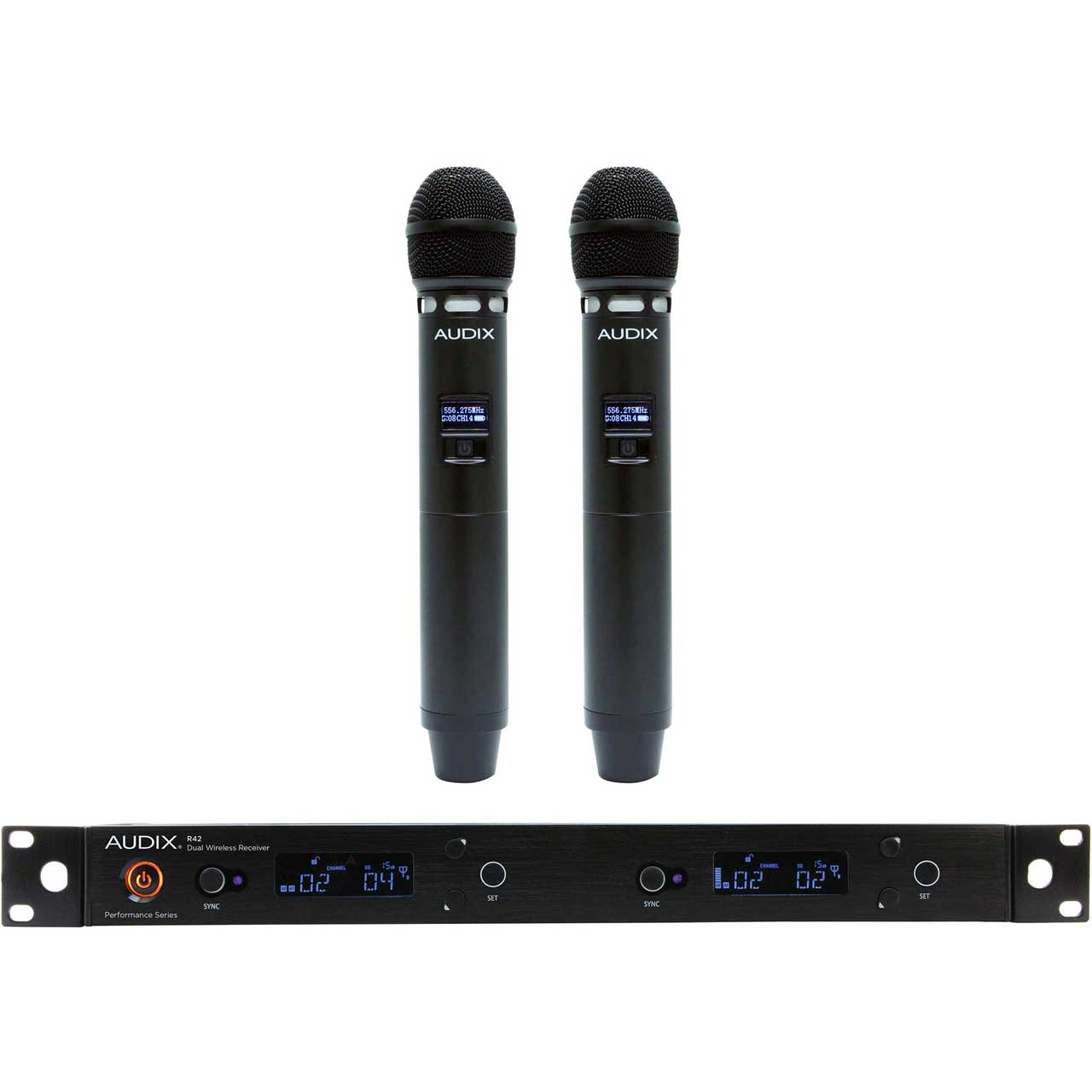

Audix AP62 VX5 R62 Two Channel True Diversity Receiver with Two H60/VX5 Handheld Transmitters - 522 MHz - 586 MHz

AP62 VX5 - Overview

• Features:

  • R62 Two Channel True Diversity Receiver
  • 64 MHz Wide spectrum tuning receiver
  • 2560 Tunable frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam


    H60 VX5 Handheld Transmitter
  • 64 MHz Wide spectrum transmitter with VX5 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries


• Specifications:

  • H60 VX5
  • RF Power Output: 10 mW, 40 mW 10 mW, 40 mW
  • Frequency Bandwidth: 64 MHz
  • Gain Controls: 0 dB, -6 dB, -12 dB
  • Batteries Included: 2 AA 1.5 V
  • Current Consumption: 110 mA typical
  • Battery Life: 14 hours
  • Max Sound Pressure Level: >140 dB (depending on capsule)
  • Dimensions: 2.1" diameter body, 10.43" (L), 53 mm diameter body, 265 mm (L)
  • Net Weight: 11.0 oz / 312 g (without battery)


• Item Includes:

  • 1 x R62 64 MHz Two Channel True Diversity Receiver
  • 2 x H60 Handheld Transmitters with VX5 Capsule Modules
  • 2 x Antennas
  • 1 x Audio Cable
  • 2 x Clips
  • 2 x Pouches
  • 4 x AA Batteries
  • 1 x Power Supply
  • 1 x User Guide
  • 1 x Rackmount Hardware
  • 2 x BNC Cables


• GTIN:

  0687471821053
