Audix AP62C210 Performance Series Wireless Mic Kit with R62 RX/OM2 Handheld/B60 Bodypack/ADX10 Lav - 522 - 586MHz

Name: Audix AP62C210 Performance Series Wireless Mic Kit with R62 RX/OM2 Handheld/B60 Bodypack/ADX10 Lav - 522 - 586MHz
Brand: Audix Corporation
SKU: AUD-AP62C210
Price: 1689.00 USD
Availability: InStock

ITEM #: AUD-AP62C210 MFG #: AP62C210

Audix Corporation

List Price:

$2,029.00

Our Price:

$1,689.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AP62C210 - Overview

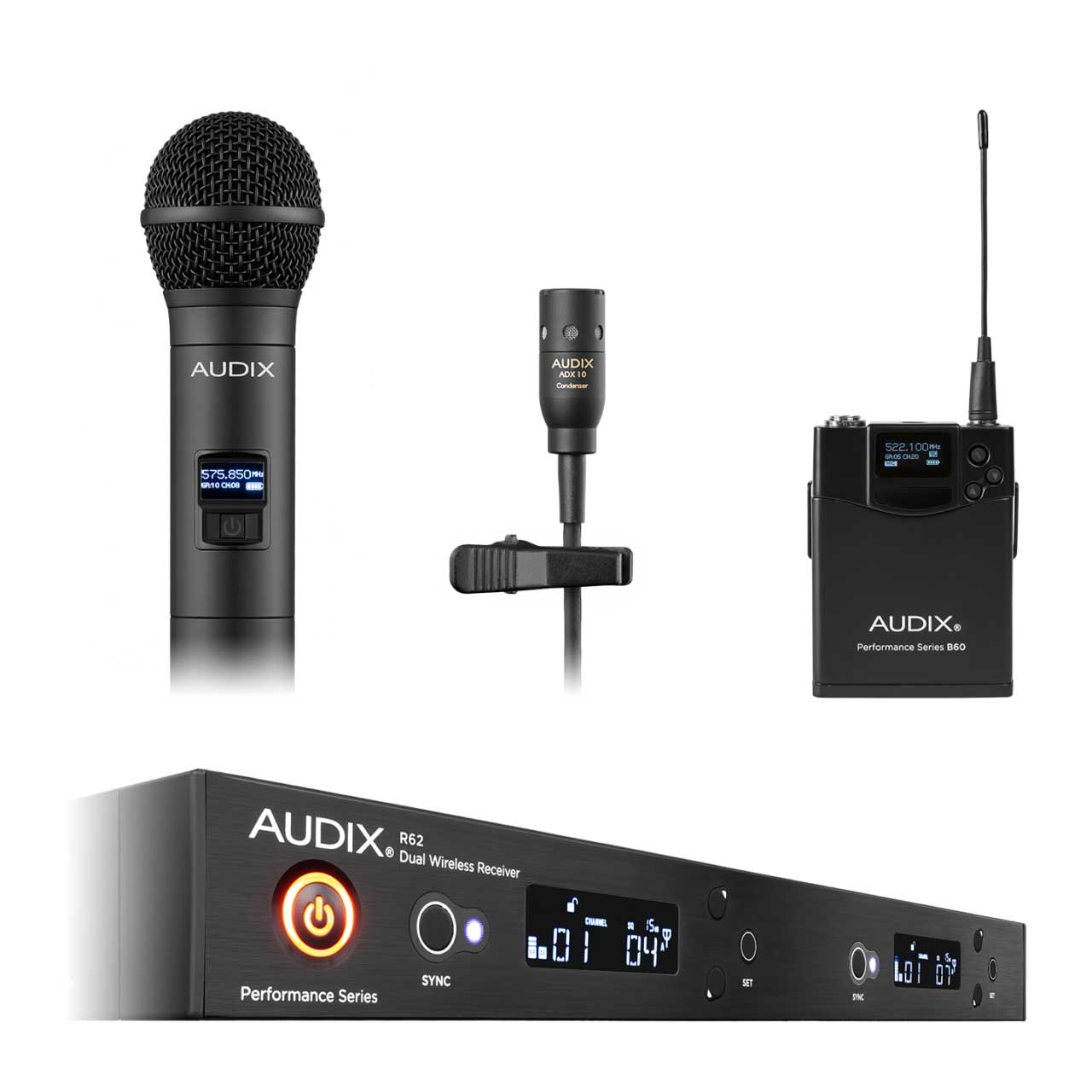

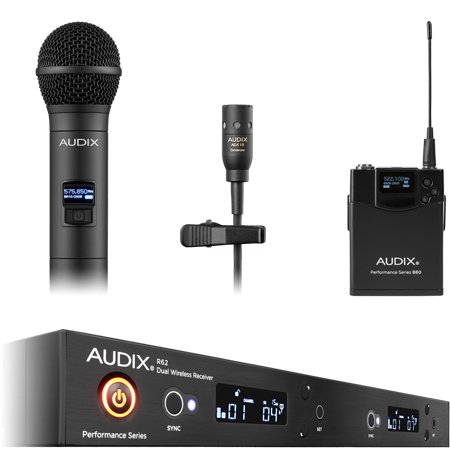

The Audix AP62C210 Wireless Microphone System includes a R62 Two-Channel True Diversity Receiver, one H60/Om2 Handheld Transmitter and B60 Bodypack Transmitter with ADX10 Lavalier Microphone.

This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings, or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and an antenna distribution system for up to four systems (8 channels).

Features:
- R62 Two-Channel True Diversity Receiver
- 64 MHz Wide spectrum tuning receiver
- 2560 Tunable frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam

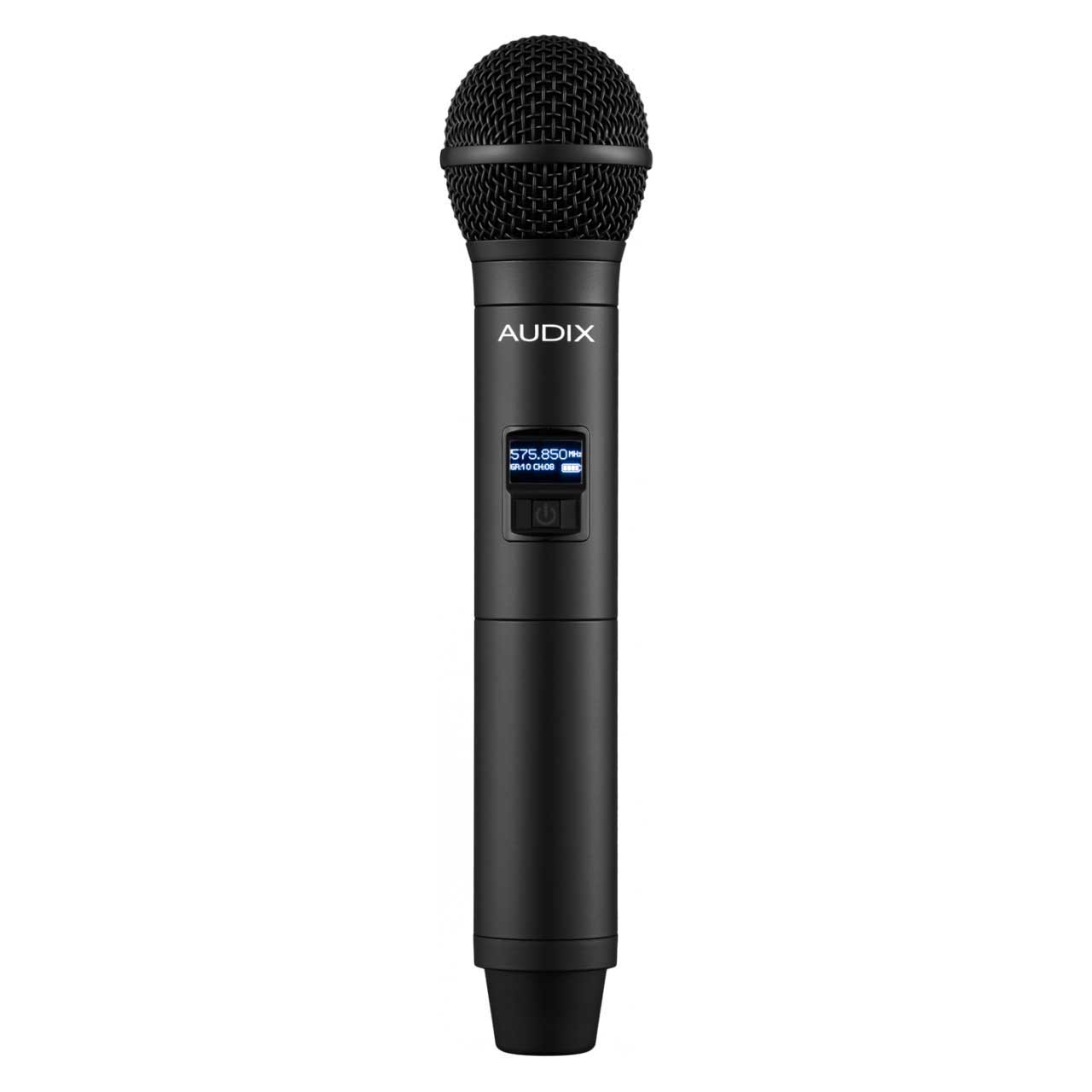

- H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
- Durable metal housing
- 14 Hour run time - AA batteries
- B60 L10 Bodypack Transmitter

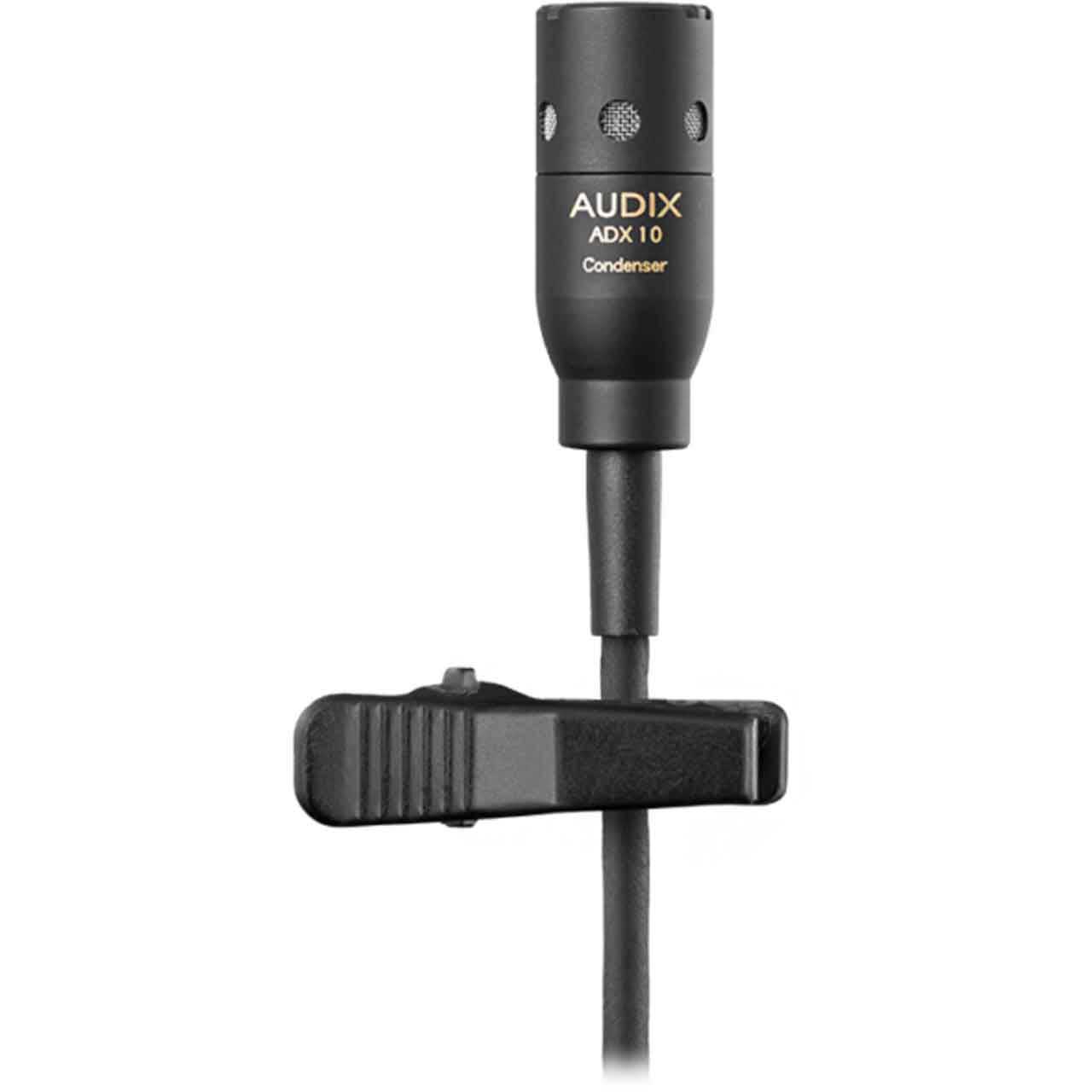

- 64 MHz Wide spectrum transmitter with ADX10 lavalier microphone
- Durable metal housing
- 14 Hour run time - AA batteries
Specifications:

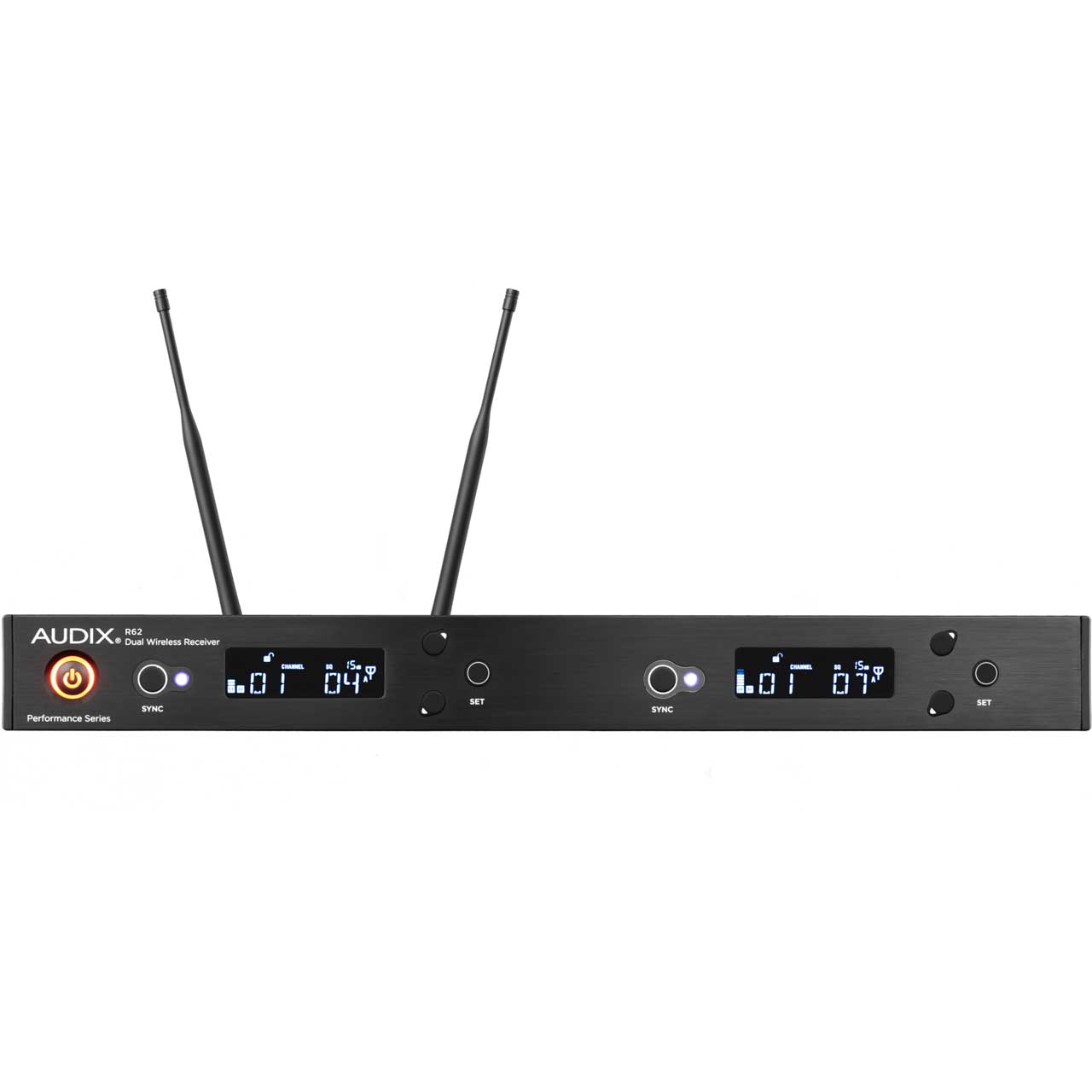

- R62 Receiver
- Frequency Range: 522 MHz - 586 MHz
- Bandwidth: 64 MHz
- Compatible Systems: 20 Compatible system operation
- Switchable Frequencies: 207 Preset frequencies
- Manual Mode: 2560 Frequencies (spaced 25 kHz apart)
- Frequency Response: 45 Hz - 18 kHz
- Compander System: 2:1
- Pilot Tone: 32 kHz
- Receiving System: Single tuner, true diversity
- Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
- Total Harmonic Distortion: =.4% (33 kHz deviation at 1 kHz)
- Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output: Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load, 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjust: Balanced: -12 to +9 dBu, Line: -24 to +4 dBu (adjustable in 6 dB-steps)
- Range: 450', (137 M)
- Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Dimensions: 205 mm (W) x 209 mm (D) x 44 mm (H)
- Net Weight: 4.65 lbs. / 2.12 kg
- H60 Handheld Transmitter
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0 dB, -6 dB, -12 dB
- Input Connector: n/a
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: Approximately 14 hours (depending on battery type and usage)
- Input Impedance: n/a
- Max Sound Pressure Level: >140 dB (depending on capsule)

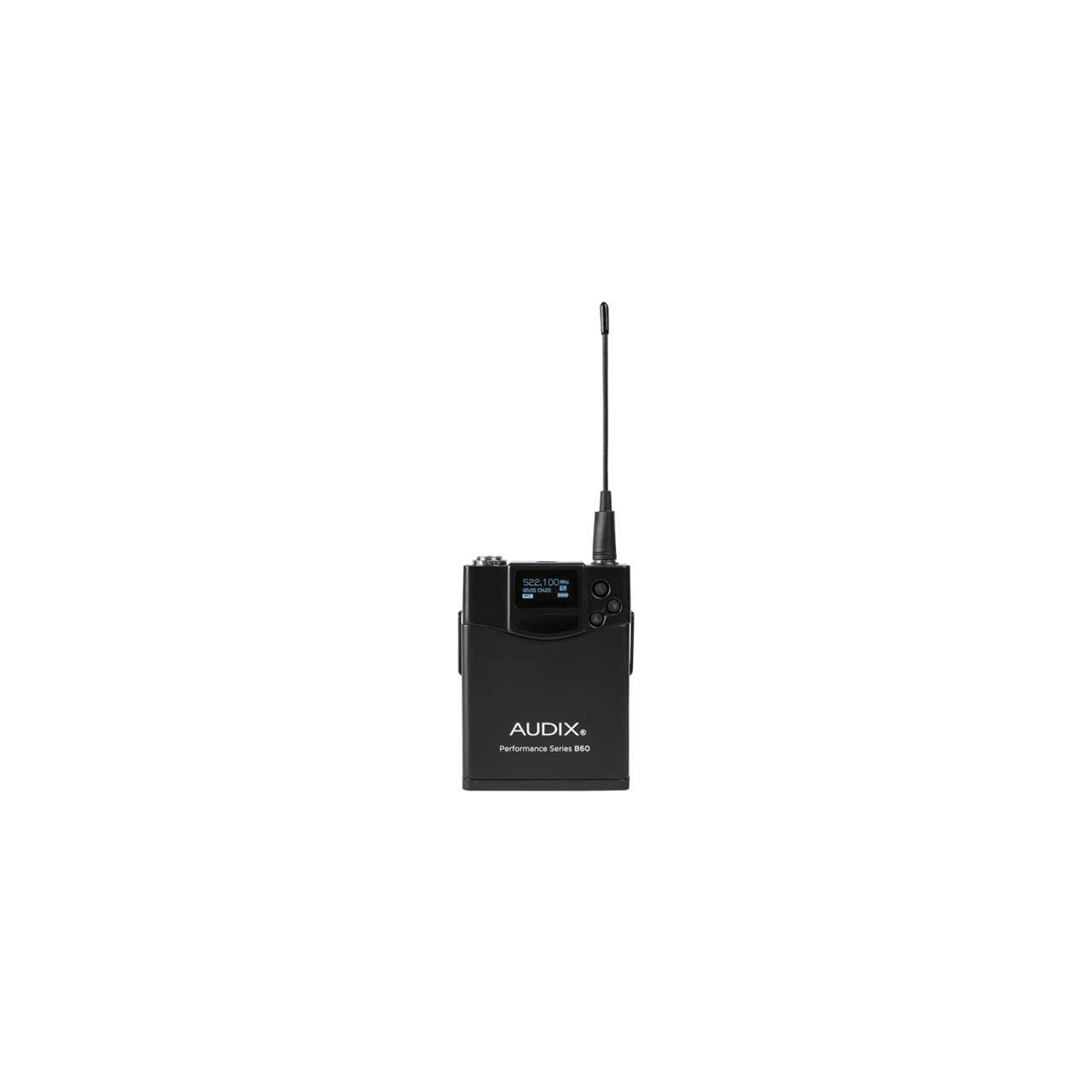

- B60 Bodypack Transmitter
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0 db, -6 dB, -12 dB, -24dB
- Input Connector: 3 pin mini-XLR
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: Approximately 14 hours (depending on battery type and usage)
- Input Impedance Mic: 10 k ohm, Line: 1 M ohm
- Max Sound Pressure Level: Approx. 128 db to140 dB (depending on microphone)
Item Includes:
- 1x R62 64 MHz Two-Channel True Diversity Receiver
- 1x H60 Handheld Transmitter with OM2 Capsule Module
- 1x B60 Bodypack Transmitter with ADX10 Lavalier Mic
- 2x Antennas
- 1x Audio Cable
- 1x WS10 Windscreen
- 1x Clip
- 1x Pouch
- 4x AA Batteries
- 1x Power Supply
- 1x User Guide
- 1x Rackmount Hardware
- 2x BNC Cables
GTIN:
0687471931042
