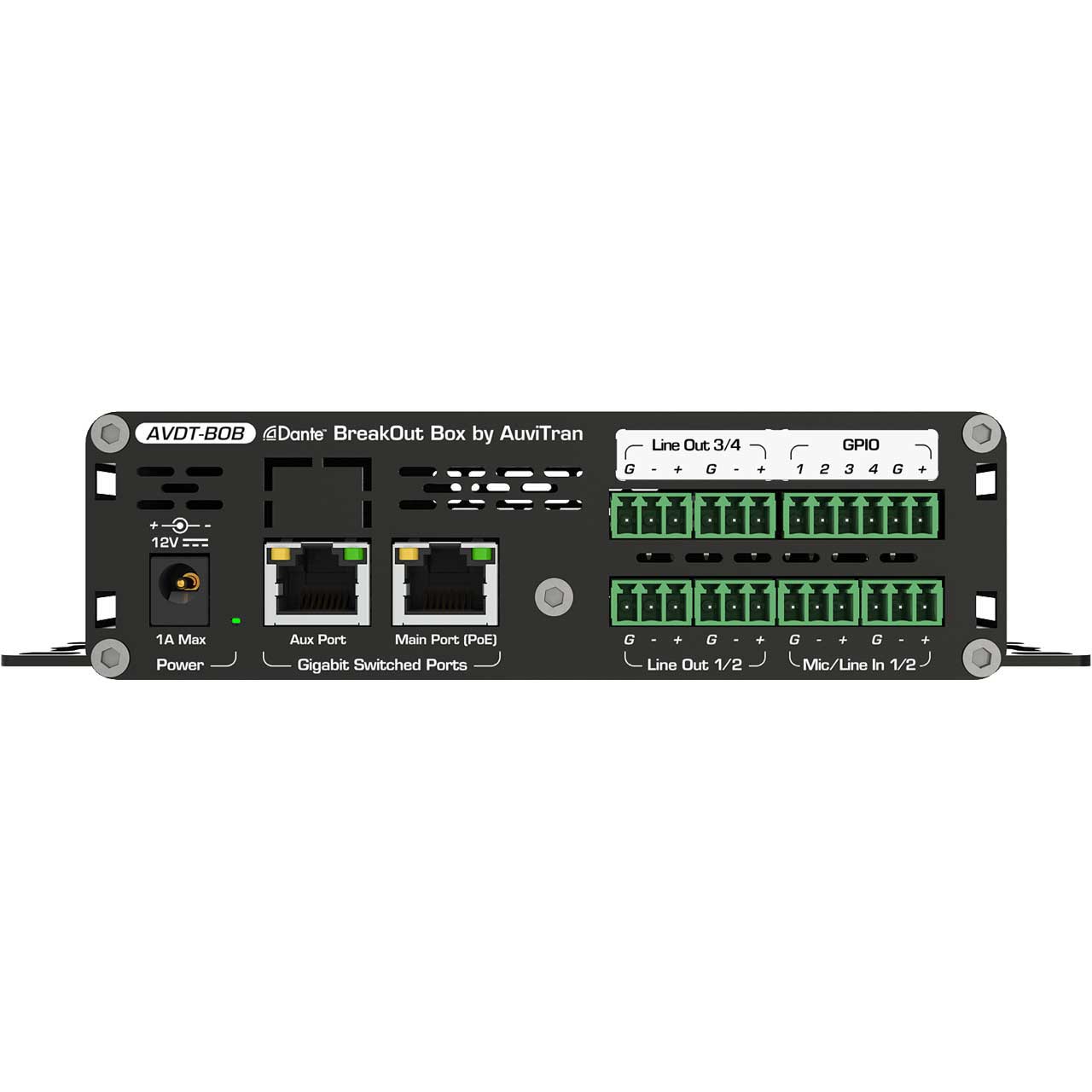

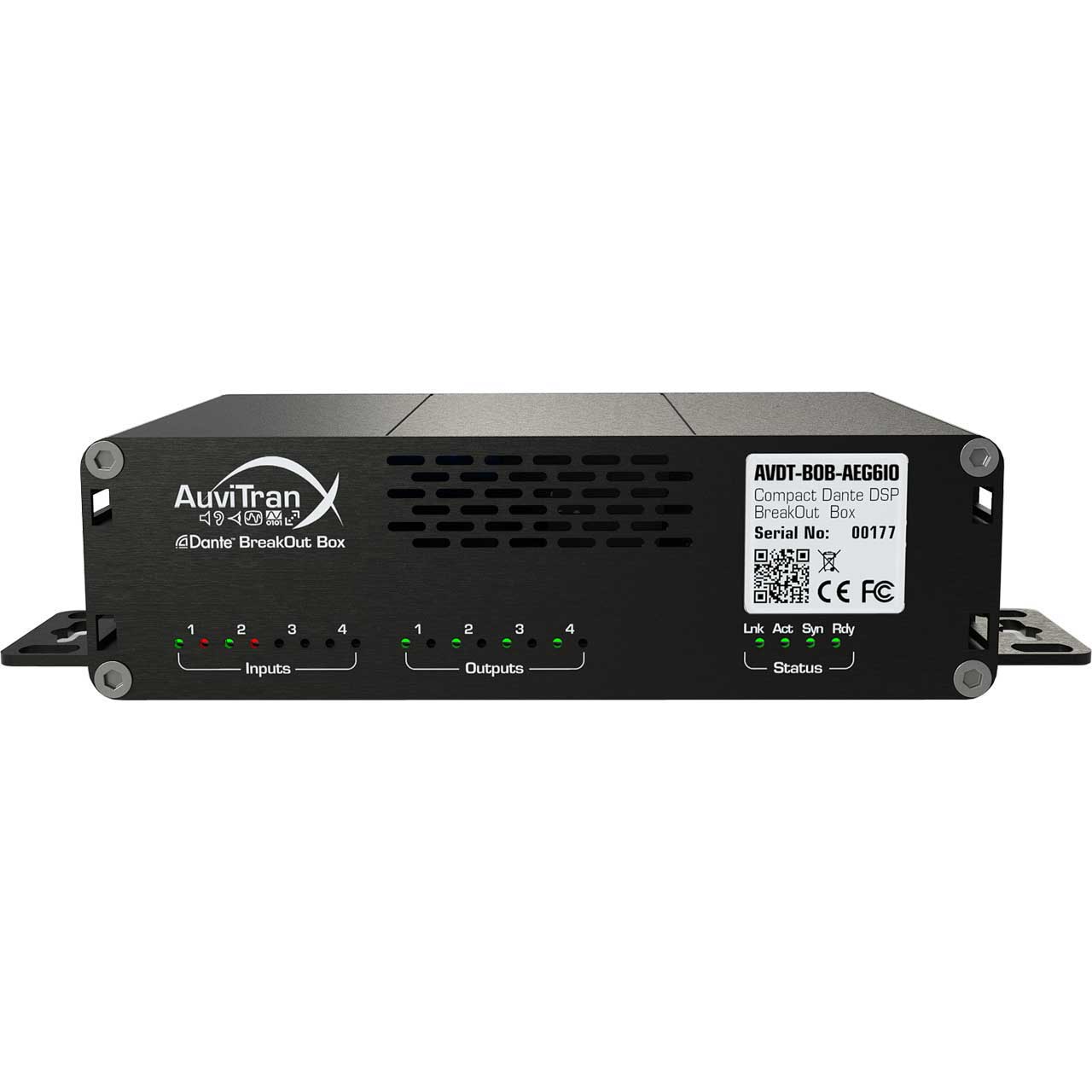

The Auvitran AVDT-BOB-AEG6IO is a compact multipurpose Dante break out box. It has two mic in/four line out and four GPIO on Euroblocks. Embedded Ultimo Dante processor allows it to receive from / send to up to four channels on a Dante Network. Its network connectivity allows it to remotely control/monitor any Dante parameters and be compatible with any Dante software and tools.
State-of-the-art analog microphone preamplifiers gives the AVDT-BOB a very high audio dynamic and quality at a very contained price. Theses preamplifiers are coupled to high quality analog ladder-step gain controllers that allows to achieve a 60dB gain range, 3dB step, with an Equivalent Input Noise (EIN) as low as - 125dBu.
The AVDT-BOB has a DSP to process and mix audio signal at the source and at the output. A powerful embedded Digital Signal Processor gives the user the power of high pass filters, parametric equalizations, dynamic compressions and fine-pitch digital gain adjustments. It also contains a digital mixing matrix that allows one to mix analog and Dante channels and route them to any output.
The AVDT-BOB features a dual core ARM processor associated with a large amount of flash memory for a universal and multi-platform remote control over IP (iOS, Android, Windows, Mac OS, Linux). This RISC processor ARM Cortex M4 M0 runs in the AVDT-BOB a Web 2.0 server for a remote control and monitoring in an efficient, customizable and user friendly way. The interface uses open standards HTML5 and JavaScript for multi OS compatibility. This universal interface drives mic/line preamps, digital processing (DSP) and storages / reload of scenes.
The AVDT-BOB integrates an internal 5 port Gigabit switch to ease the cabling, to increase the throughputs and to reduce the latencies. This gigabit switch links the external Gigabit ports (i.e. 2 RJ45 or 2 SFP modules and an EtherCon depending of part number) with the Dante Ultimo chip and the embedded double core ARM Cortex M4+M0 microcontroller. This switch guaranties a very low latency between the Dante chip and other Dante devices and allows one to Daisy Chainthe AVDT-BOB together with other Dante devices without necessarily requesting any external switch devices.
