Belden 2183R CMR-LP/Riser 4K UHD Media Cable UL4299-POH/POE HDBaseT F/UTP 4-Pr/23AWG - Black - Per Foot

ITEM #: BL-2183R-FTBK MFG #: 2183R FTBK

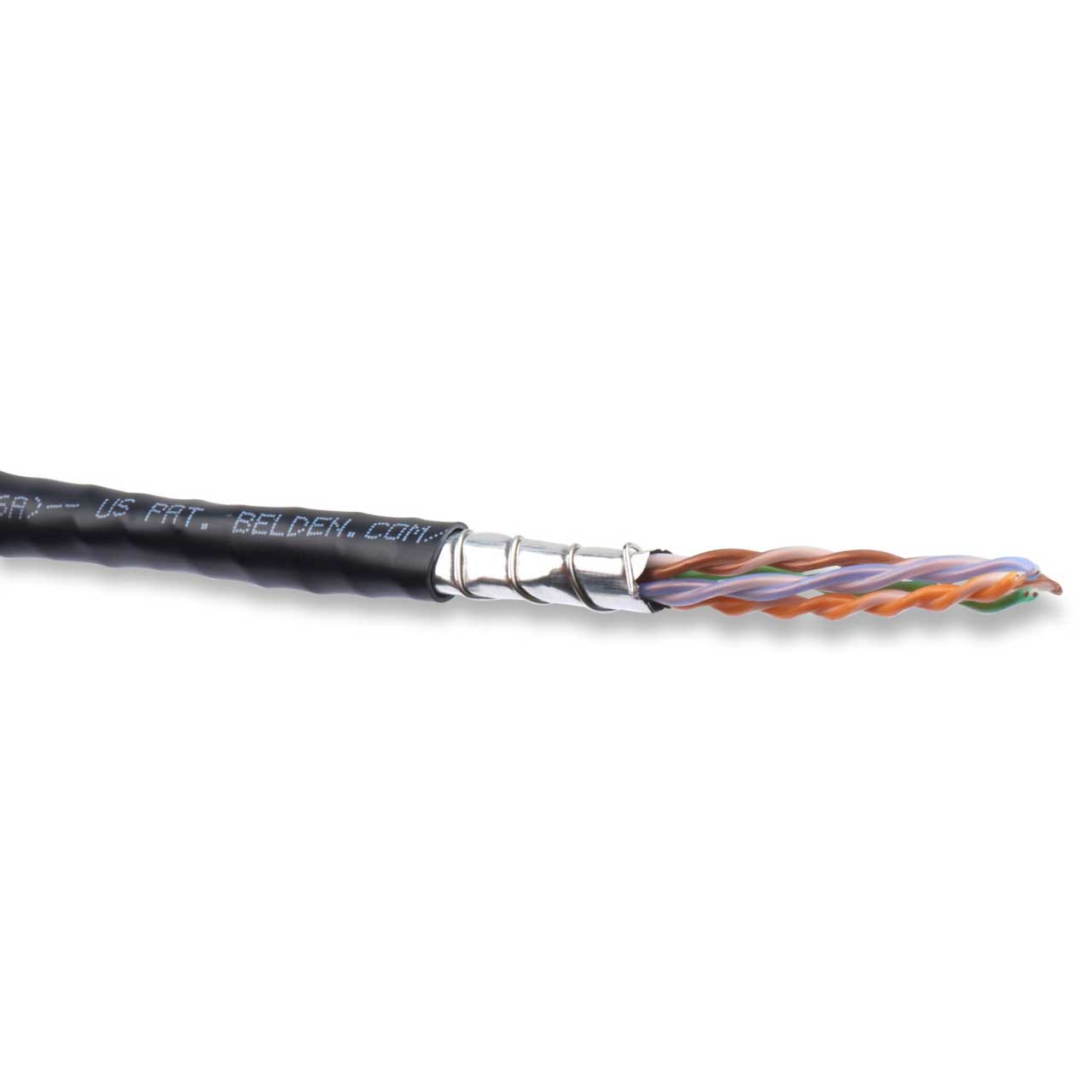

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.06

Our Price:

$1.02

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

2183R FTBK - Overview

Designed specifically for optimal performance in 4K HDBaseT transmission

Belden 2183R is a CMR-LP/Riser 4K UHD F/UTP Media Cable. It features 4 Pair 23 AWG Solid Bare Copper Conductors with PP Insulation, a Helical TC Drain with Ripcord in a Riser CMR-LP (0.6A) rated PVC Jacket.

Belden 2183P and 2183R cables were designed specifically for optimal performance in 4K HDBaseT transmission. These shielded cables deliver 4K content over 100 meters in a unique, small, sleek design. Combined with either standard field-mount plugs or Belden's REVConnect connectivity system, it is the easiest to install, most reliable HDBaseT cabling solution available.

Applications
HDBaseT
Full 5-Play
4K (UHD/DCI)
POH, POE

  • Features:

    • Durable: The cables are resistant to rigors of installation with Bonded-Pair, durable, corrugated flex shield and helical drain
    • Lean: Belden HDBaseT cables are up to 25% smaller than Category 7a cables
    • Optimized: All Belden HDBaseT cables are designed and tested specifically for optimal 4K UHD performance
    • Flexible: The cables are easy to bend and fit into small spaces
    • Tough: Belden 2183P and 2183R have 45 lbs of pull tension


  • Specifications:

    • Conductor Count: 8
    • Total Number of Element: 4
    • Conductor Size: 23 AWG
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Element: Pair(s)
    • Insulation Material: PP - Polypropylene
    • Insulation Nom. Thickness: 0.013 in (0.33 mm)
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Outer Shield Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 26 AWG (Solid) TC
    • Outer Shiled Notes: Two drain wires applied helically for added flexibility
    • Outer Jacket Nom. Thickness: 0.025 in (0.64 mm)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.290 in (7.37 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.290 in (7.37 mm)
    • Installation Temp Range: 0°C To +75°C
    • Environmental Space: Indoor - Riser
    • UL Temp Rating: 90°C
    • Storage Temp Range: -20°C To +75°C
    • Operating Temp Range: -20°C To +75°C
    • Cold Bend Test: -20°C Compliance per UL 1581
    • Bulk Cable Weight: 37 lbs/1000ft
    • Max Recommended Pulling Tension: 45 lbs
    • Min Bend Radius/Minor Axis: 1.25 in
    • Min Bend Radius/Installation:< 3.0 in


  • Item Includes:

    • 2183R CMR-LP/Riser 4K UHD Media Cable - Black - Per Foot


  • Warranty:

    • 10 Year Limited Warranty
