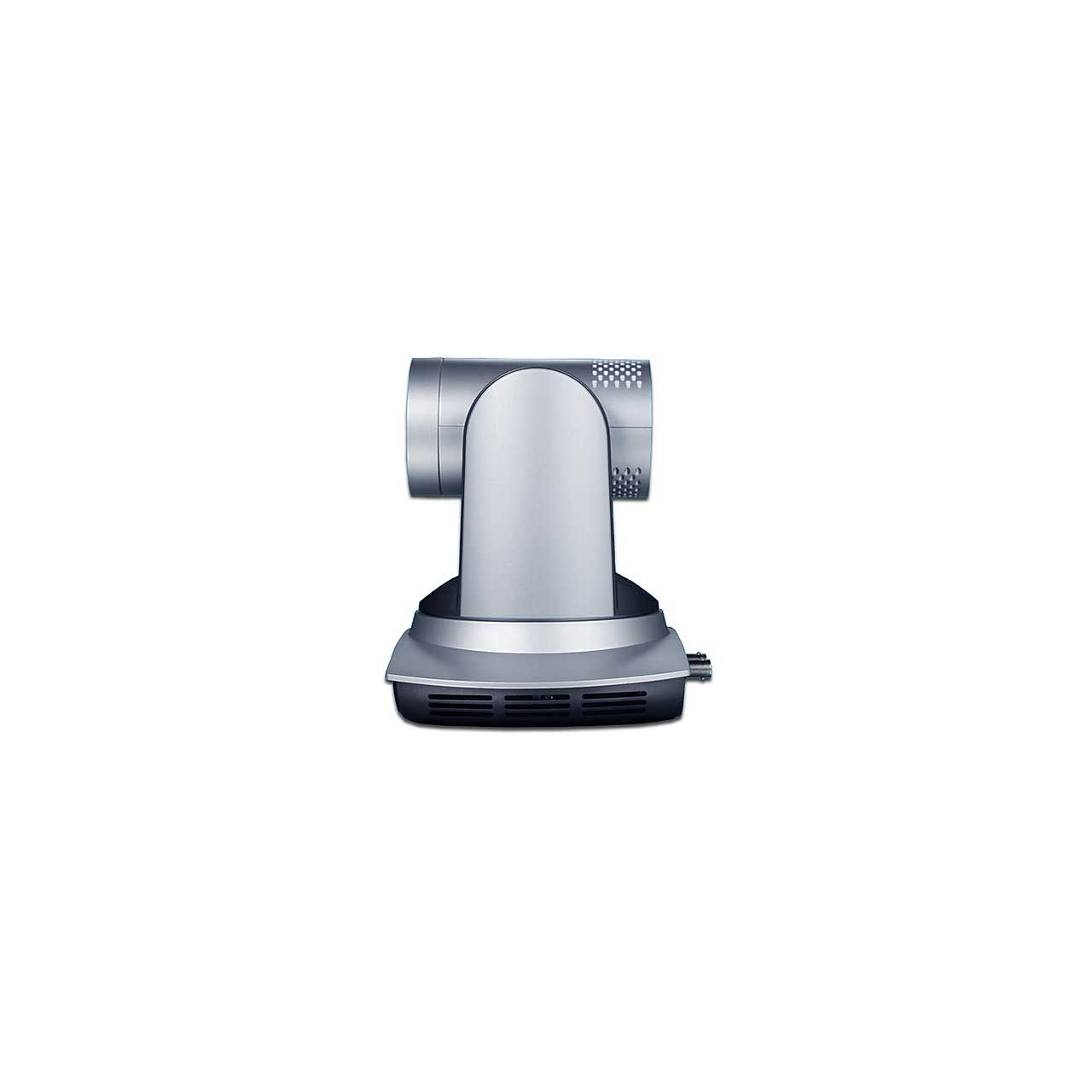

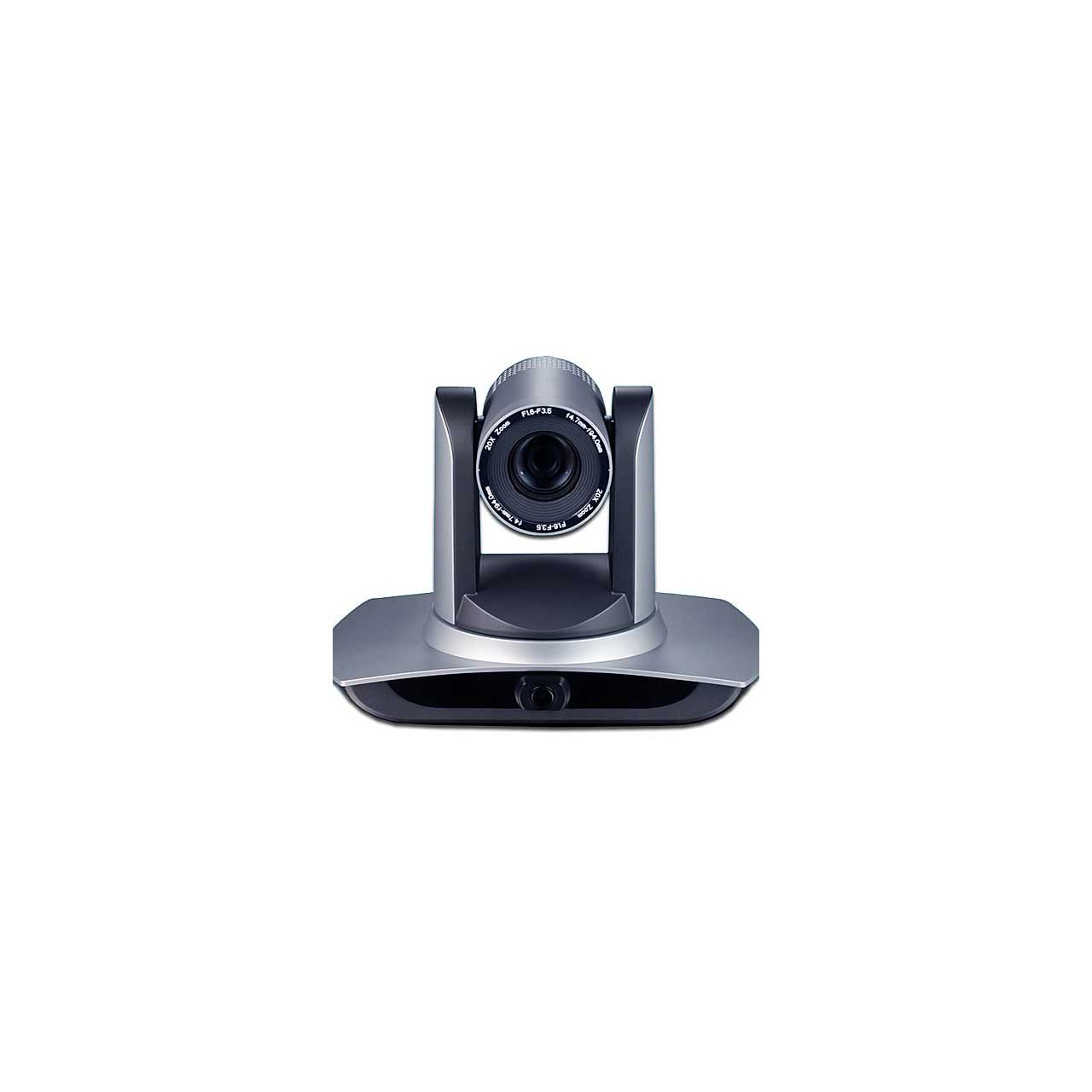

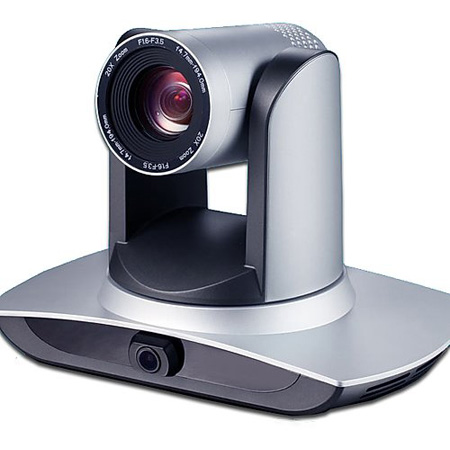

AViPAS AV-1364 20x SDI Auto-Tracking PTZ Camera

ITEM #: AV-1364 MFG #: AV-1364

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AV-1364

AV-1364 - Overview

The AviPAS AV-1364 is a new intelligent auto-tracking camera with a built-in high-speed processor, and advanced image processing & analysis algorithms. It allows lecture capturing to be more accurate, faster and smoother. AV-1364 equips with a full HD 1080p tracking camera with 20X optical zoom & 10X digital zoom, and an integrated panoramic camera for analysis. With the provided IVESmart tool, AV-1364 is easy to install and maintain. Both the tracking & panoramic camera have 2 outputs: HD-SDI and LAN.

  • Features:

    • Integrated design: a built-in panoramic camera works in coordination with the tracking camera
    • Advanced tracking algorithms for human detection; strong anti-interference ability
    • User-defined tracking & masking areas
    • 1920 x 1080 high resolution output with a frame rate up to 60fps
    • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
    • Wide dynamic exposure function to avoid target darken under strong-light
    • background such as projectors
    • H.264/H.265 video compression
    • Low-power sleep function, lower than 0.4W
    • IP streaming & HD-SDI output


  • Specifications:

    • Video System: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
    • Sensor: 1/2.8", CMOS, Effective Pixel: 2.07M, 16:9
    • Scanning Mode: Progressive
    • Lens: 20x, f4.7mm ~ 94mm, F1.6 ~ F3.5
    • Digital Zoom: 10x
    • Minimal Illumination: 0.5 Lux (@F1.8, AGC ON)
    • White Balance: Manual/Auto/One Push/ 3000K/ 4000K/5000K/6500K
    • Digital Noise Reduction: 2D&3D Digital Noise Reduction
    • Focus: Auto / Manual
    • Aperture: Auto / Manual
    • Electronic Shutter: Auto / Manual
    • Backlight Compensation: Support
    • Video S/N: ≥55dB
    • WDR: OFF/ Dynamic Level Adjustment
    • Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
    • View Angle: 6.43°(Tele)60.9°(Wide)
    • Pan Speed Range: 0.1° ~ 100°/s
    • Tilt Speed Range: 0.1°~ 45°/s
    • Number of Preset: 255 (10 by Remote Controller)

      Panoramic Camera
    • Sensor: 1/3", CMOS, Effective Pixel: 2.1M
    • Focus: Manual
    • View Angle (D/H/V): 122°/98°/73°

      IPC Features
    • Video coding standard: H.265/H.264
    • Video Stream: Dual stream
    • Network Protocol: RTSP, RTMP, ONVIF, GB/T28181
    • Audio encode standard: AAC/MP3/PCM

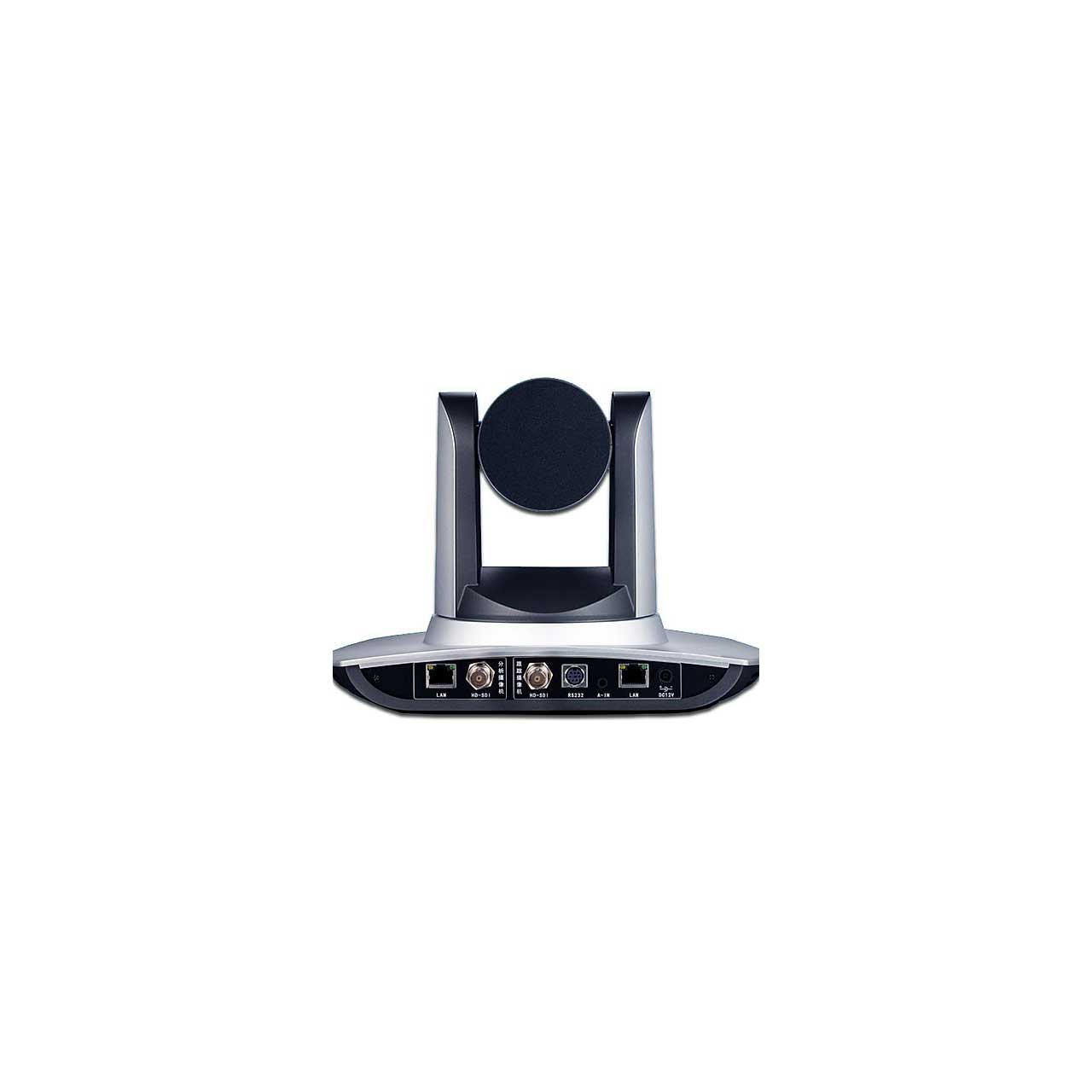

      Input / Output Interface
    • HD Output: HD-SDI
    • Network Interface: RJ45: 100M network interface (10/100BASE-TX); Support VISCA protocol control through IP port
    • Audio Interface: Dual audio channel 3.5mm linear input
    • Communication Interface: RS-232
    • Protocol: VISCA/Pelco-D/Pelco-P
    • Baud Rate: 115200/9600/4800/2400bps
    • Power jack: Input AC110V-AC220V; Output DC12V/1.5A

      Generic Specification
    • Input Voltage: DC12V±10%
    • Current Consumption: 1.5A (Max)
    • Consumption: 18W (Max)
    • Operating Temperature: -10°C ~ 50°C (20°F ~ 80°F)
    • Storage Temperature: -10°C ~ 60°C (20°F ~ 95°F)
    • Size: 254mm X 144mm X 174mm (10" x 5.7" x 6.9")
    • Net Weight: 1.54kg (3.4lb)
