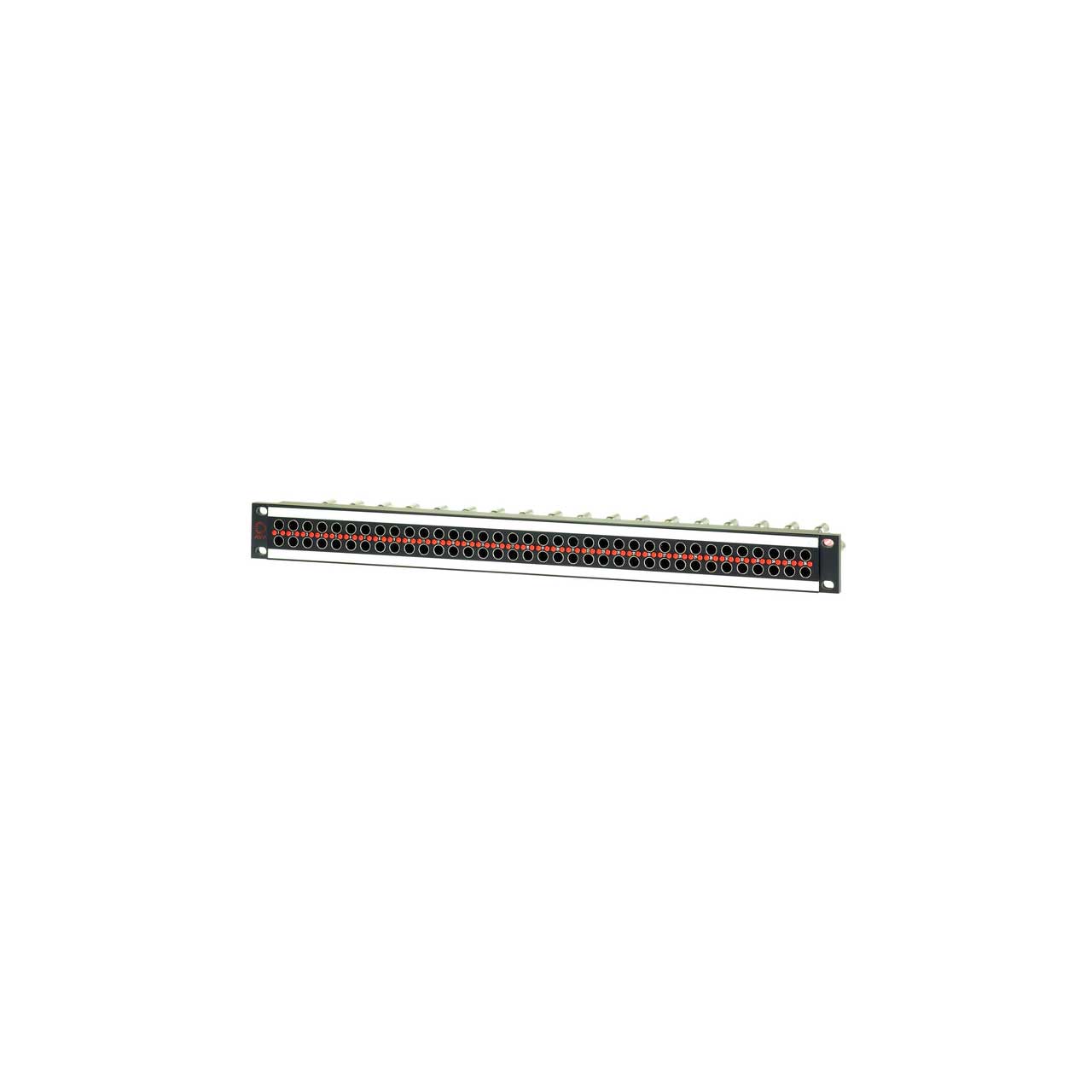

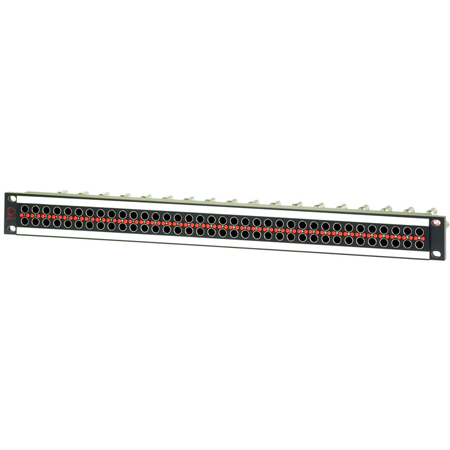

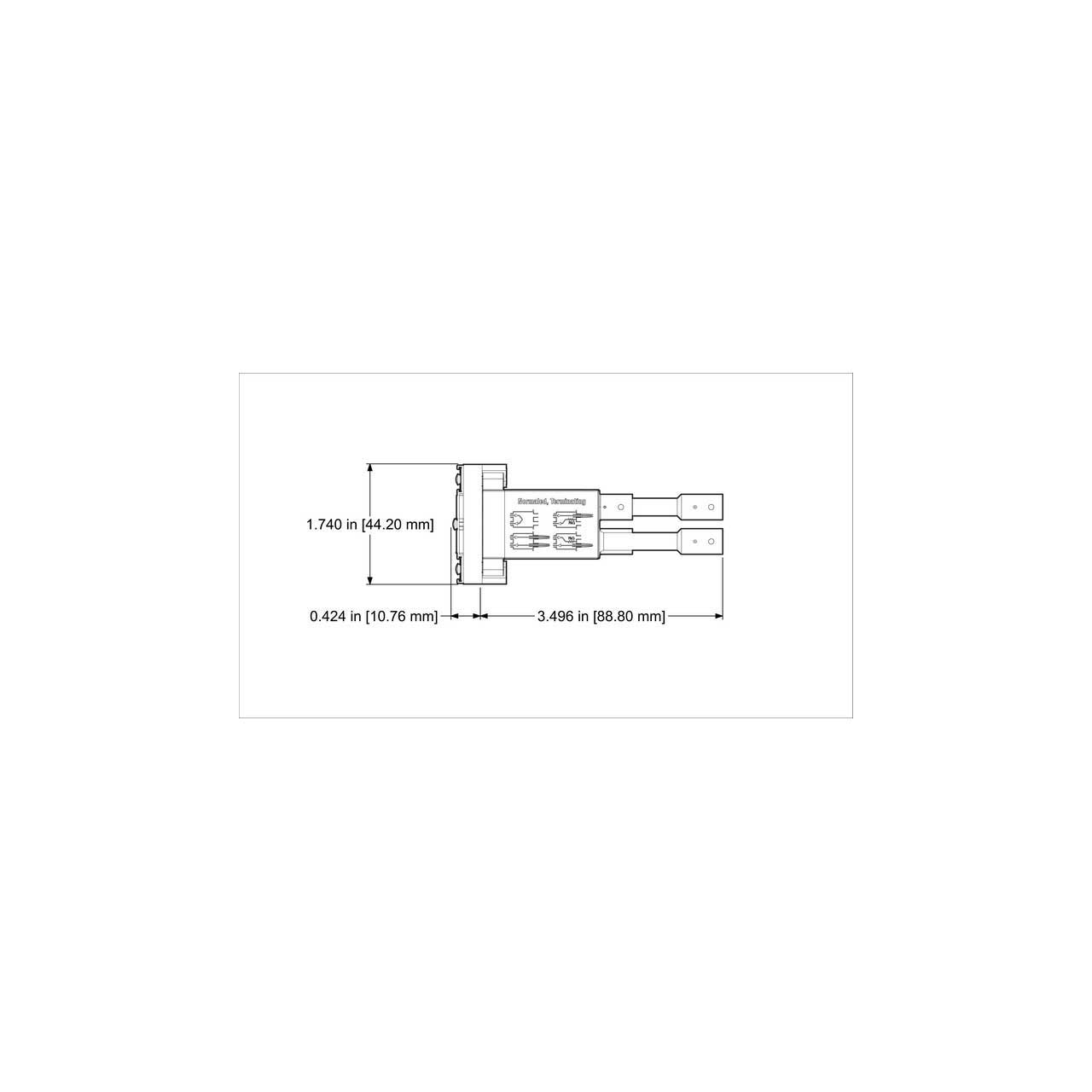

AVP AV-D236E1-AMN75-BZ 1 RU Midsize (Mini-WECO) Video Patch Panel - 2 x 36 - Normaled - Terminating

ITEM #: AV-D236E1AMN75BZ MFG #: AV-D236E1-AMN75-BZ

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
AVP
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,190.00

Our Price:

$1,971.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AV-D236E1-AMN75-BZ - Overview

AVP's Midsize (Mini-WECO) patchbays are available in 32 and 36 jacks per row in 1RU, 1.5RU or 2 RU panels. Numbering, color-coding and front mount jacks offer maximum layout flexibility. All are designed for exceptional performance in high-bandwidth applications such as 3-D, HDTV, SDI, AES and high-resolution computer graphics, as well as in conventional analog applications such as monitor routing, primary routing, re-routing, router backup and video distribution.

  • Features:

    • SuperHD+ 3.0GHz - 3Gb/s Midsize jacks
    • Jacks meet SMPTE 424M-2006 HDTV specifications
    • Life Cycle rating of 30,000
    • Made & assembled in Canada/USA
    • Front-mount jacks simplify system re-design & maintenance
    • Numbered jack positions for quick and accurate installation, system troubleshooting & operational ease
    • Patented designation design maximizes viewable area
    • CIS (Circuit Identification System), allows color-coding of every circuit
    • Also suitable for L Band


  • Specifications:

    • Electrical:
    • Rated Bandwidth: 3.0GHz - 3Gb/s: meets HDTV SMPTE 424M-2006 Specification
    • Characteristic Impedance: 75 Ohms
    • Contact Resistance: Less than 50 milliohms
    • Termination Resistance: 75 Ohms +/- 1%
    • Center Conductor: Accepts 0.048” pin diameter

      Environmental:
    • Operating Temperature: -40°C to 65°C
    • Storage Temperature: -40°C to 65°C
    • Thermal Shock: Per MIL-STD-202, Method 107
    • Moisture and Humidity: Per MIL-STD-202, Method 106
    • RoHS: Compliant

      Mechanical:
    • Mechanical Shock: Per MIL-STD-202, Method 213, Test condition 1
    • Vibration: Per MIL-STD-202, Method 201
    • Insertion Force: 7 lbs. maximum
    • Withdrawal Force: 3 lb. minimum
    • Life Cycle: 30,000 minimum

      Material:
    • Housing Zinc: alloy, nickel plated
    • Center Contacts: Copper alloy, gold plated
    • Switching Contacts: Copper alloy, gold plated
    • Grounding Contacts: Copper alloy, gold plated
    • Actuators: Thermoplastic, UL 94V-0 rated
    • BNC Insulators: Teflon


  • Item Includes:

    • 1x 1 RU Panel - 36 AVP-AMN75 Normaled - Terminating Jacks


  • Warranty:

    • Lifetime Warranty on Jacks
    • 5 Year Warranty on Panel
